• Model NO.：ME+
• Pixels：1,000, 000
• Depth of Field：8-80mm
• Color：Blue
• Transport Package：Carton
• Specification：240mm*102mm*126mm
• Trademark：Coantec
• Origin：China
• HS Code：8525803100
• Production Capacity：5000 PCS,Year

Basic Info.

Model NO. ME+ Pixels 1,000, 000 Depth of Field 8-80mm Color Blue Transport Package Carton Specification 240mm*102mm*126mm Trademark Coantec Origin China HS Code 8525803100 Production Capacity 5000 PCS/Year

Product Description

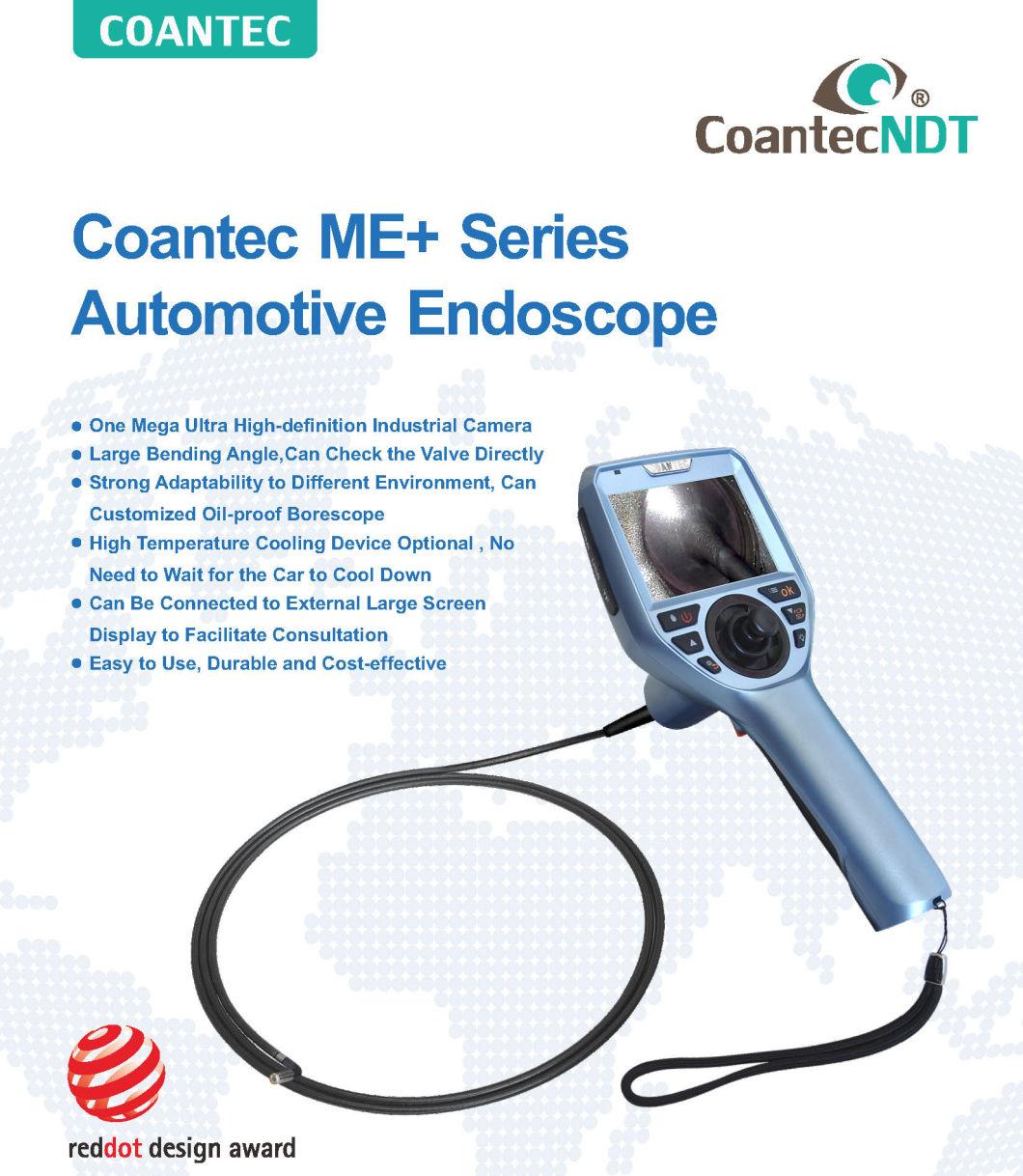

Automotive Endoscopes of Coantec ME+ series



Ultra high definition Camera, ability to take images and videos

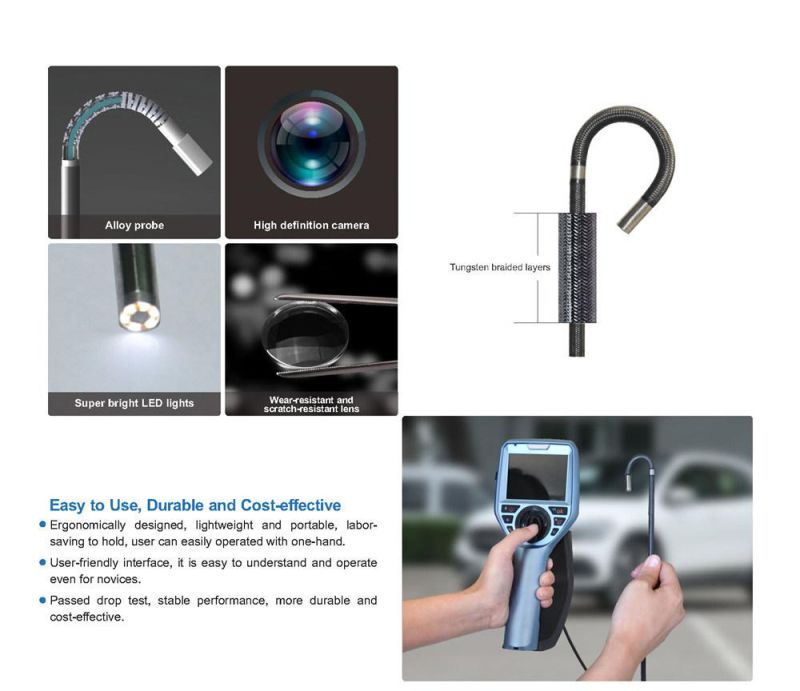

The ME+ series is a 360° all-way articulating high-definition automotive videoscope. We use 3.5 inch HD display,1 million pixels ultra HD camera on this product , with clear image quality.The probe has large bending angle in every direction, the dust-proof and waterproof rating of the insertion tube can reach IP67, and the oil-resistant tube can be customized.We adopt intergrated design on the whole device, which is lighter and more portable. It is an essential testing tool in the field of automotive maintenance.

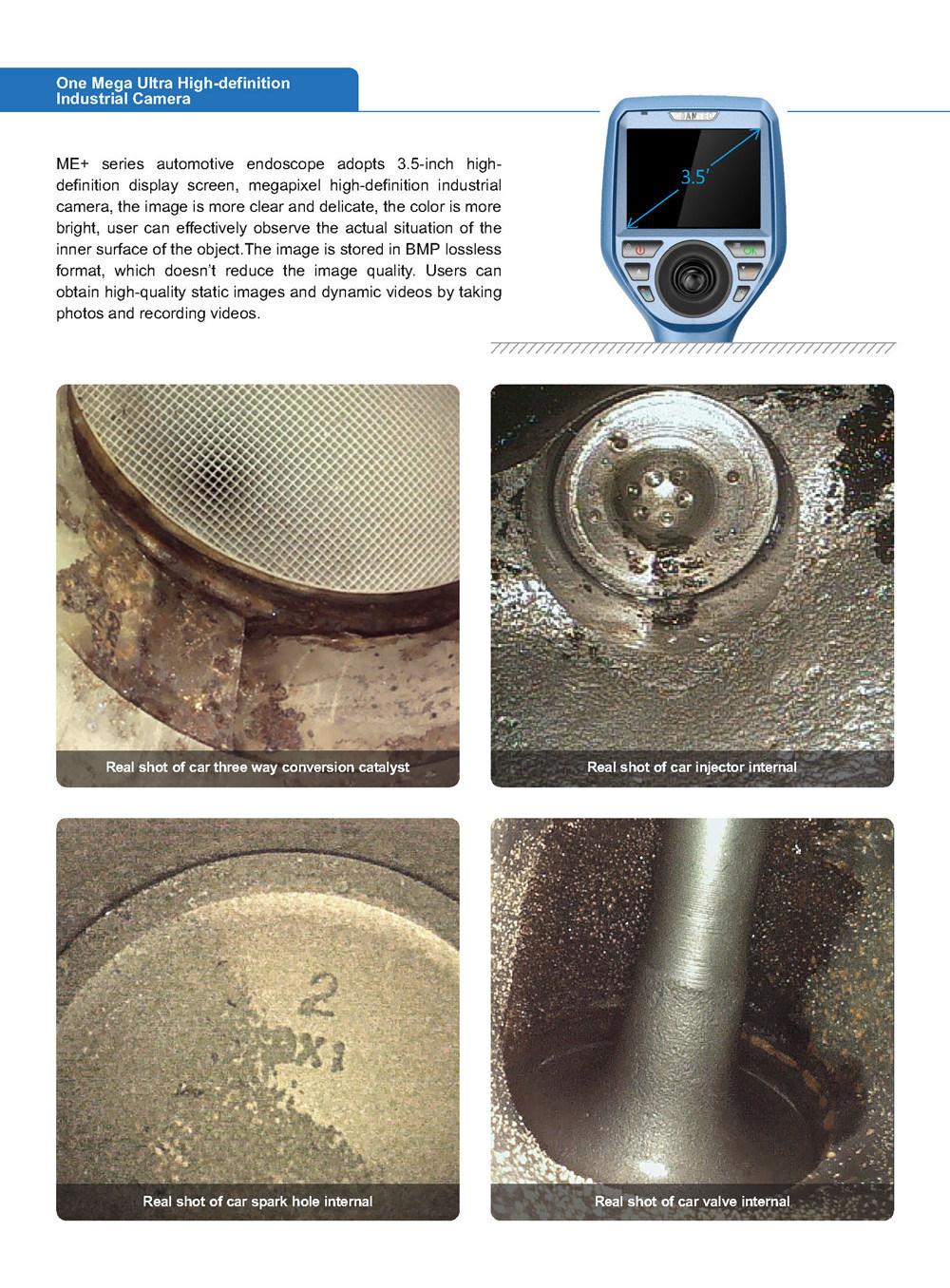

Megapixel HD Industrial Camera

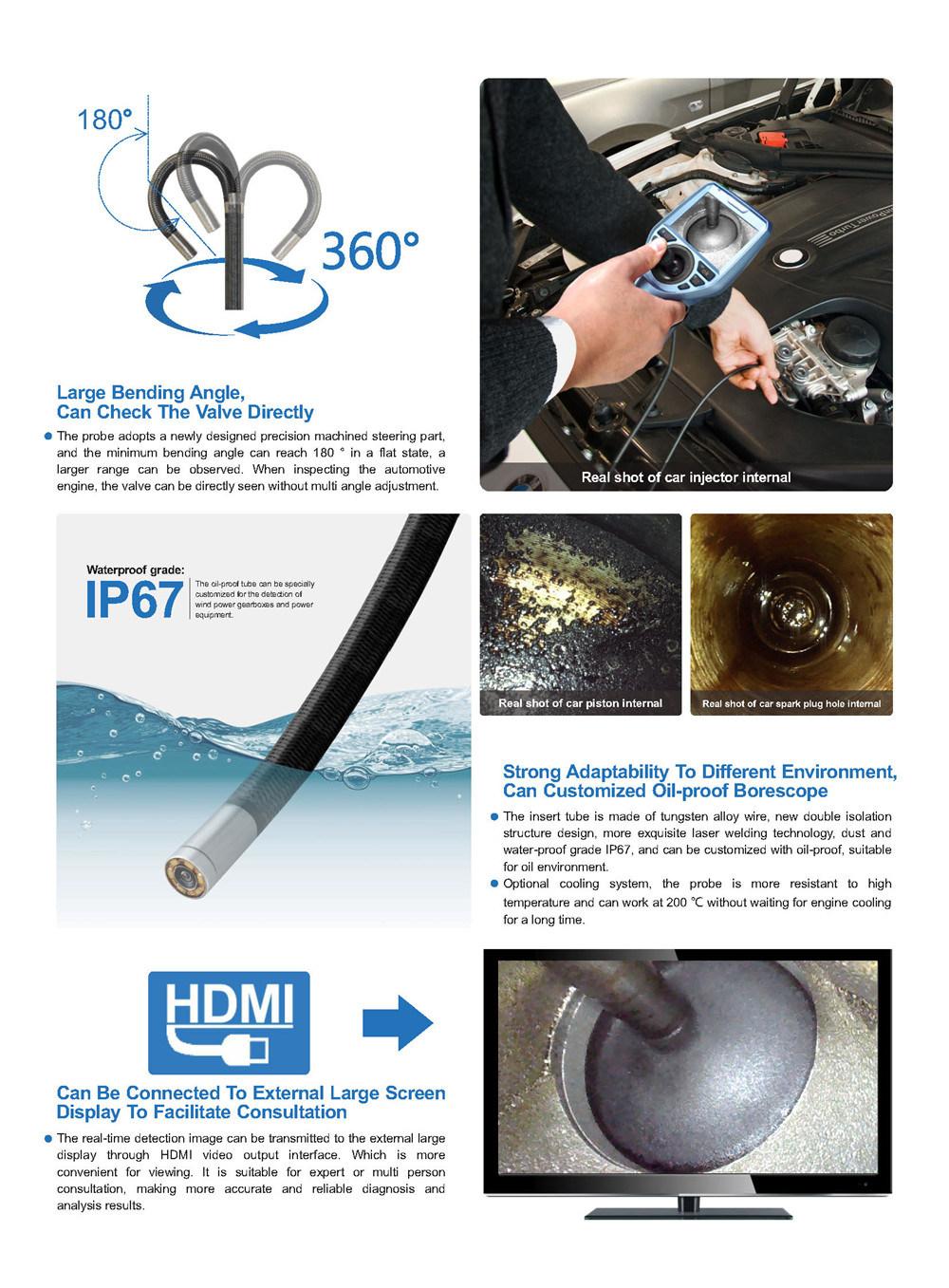

Large bending angle,can check the valve directly
Strong adaptability to different environment,can be customized oil-proof models
Optional high temperature cooling device,without waiting for the car to cool down
Can be connected to an external large-screen display to facilitate multiple consultation
Durable and cost-effective
The probe can be bent at a large angle,can check the valve directly

Host

Display Dimension	3.5-inch HD display
Display Resolution	640*480
Digital Zoom	Support real-time 4x zoom, 8x partial zoom when playback
LED Brightness Level	0-7 level adjustment
Photo/Video	Can take images and videos and snapshot when recording
Document Format	Image :JPEG/BMP; Video:MP4
Time Watermark	Yes
Menu Language	Simplified Chinese,Traditional Chinese, English, Japanese, Korean,French,German,Portuguese,Spanish,Russian etc.
Screen Backlight Brightness	3 -level adjustment
Output Port	Micro HDMI
Storage Medium	Standard 8G capacity TF card,maximum support 32G
Host Dimension	240mm*102mm*126mm
Package Dimension	411mm*321mm*165mm
Host Weight	0.5kg(include battery)

Tube

Probe Diameter (±0.1mm)	Φ6
Tube Material	Tungsten alloy wire wear-resistant braided tube
Camera Pixels	1,000,000
Depth of Field	10-100mm
Field of View	85°
Tube Length	1m
View Direction	Forward view
Lighting Mode	Front LED lighting
Joystick Control	360° all-way articulation
Probe Unidirectional Bending Angle	≥180°
Guided Control Method	Mechanical joystick control
Probe Waterproof Level	IP67

Power

Power Supply Method	Rechargeable lithium battery (with reverse battery protection)
Battery	3.7V,3200mAh
System Operating Time	≥4H

Operation Environment

System Operating Temperature	-10°C-50°C
Probe Operating Temperature	-20°C-60°C
Storage Temperature	-20°C-60°C
Relative Humidity	15%-90%

 Configurations

Standard Configurations	ME+ videoscope x1,instrument case x1,lithium battery x1, charger x1, card reader x1, 8G TF card x1, anti-fall hand strap x1,user manualx1,precautions for use x1
Optional Configurations	Micro HDMI cable, cooling system,magnetic base
