• Model NO.：M-16
• Deck Length：5800mm
• Wight：1900kg
• Lifting Capacit：3500kg
• Hydraulic Pressure：70MPa(10000psi)
• Pneumatic Pressure：0.8MPa
• Hydraulic Tower Per Tower：10ton
• Transport Package：Carton and Wooden
• Trademark：Brand
• Origin：China
• HS Code：8479819000
• Production Capacity：1000per Year

Model

M-16

Type

Single TiltDeck Structure

Box structure with steel plate 10mm+10mm, square tie-down opening

A: Deck Length

5800mm/19'

B: Deck Width2200mm/7'2.6''Deck Working Height400mm/1'0.8''C:Maximum Length

6735mm/22'1.1''

D:Maximum Width2675mm/8'9.3''E:Width of Tradeway625mm/2'0.6''F:Width between Tradeways950mm/3'0.4''Standard Tower Quantity2Weight

1900kg/4188 lbs

Life Capacity

4000kg/8818 lbs

Hydraulic Tower per Tower10tonTower Working Range360°Hydraulic Pressure70Mpa(10000psi)Pneumatic Pressure0.8MpaOptional Towers Configurations3 or 4 towersOptional Deck Length

6100mm/20' or 6700mm/22''

Optional Lifting Capacity

4500kg/10000 lbs, 5500kg/12000 lbs or 6000kg/13500 lbs

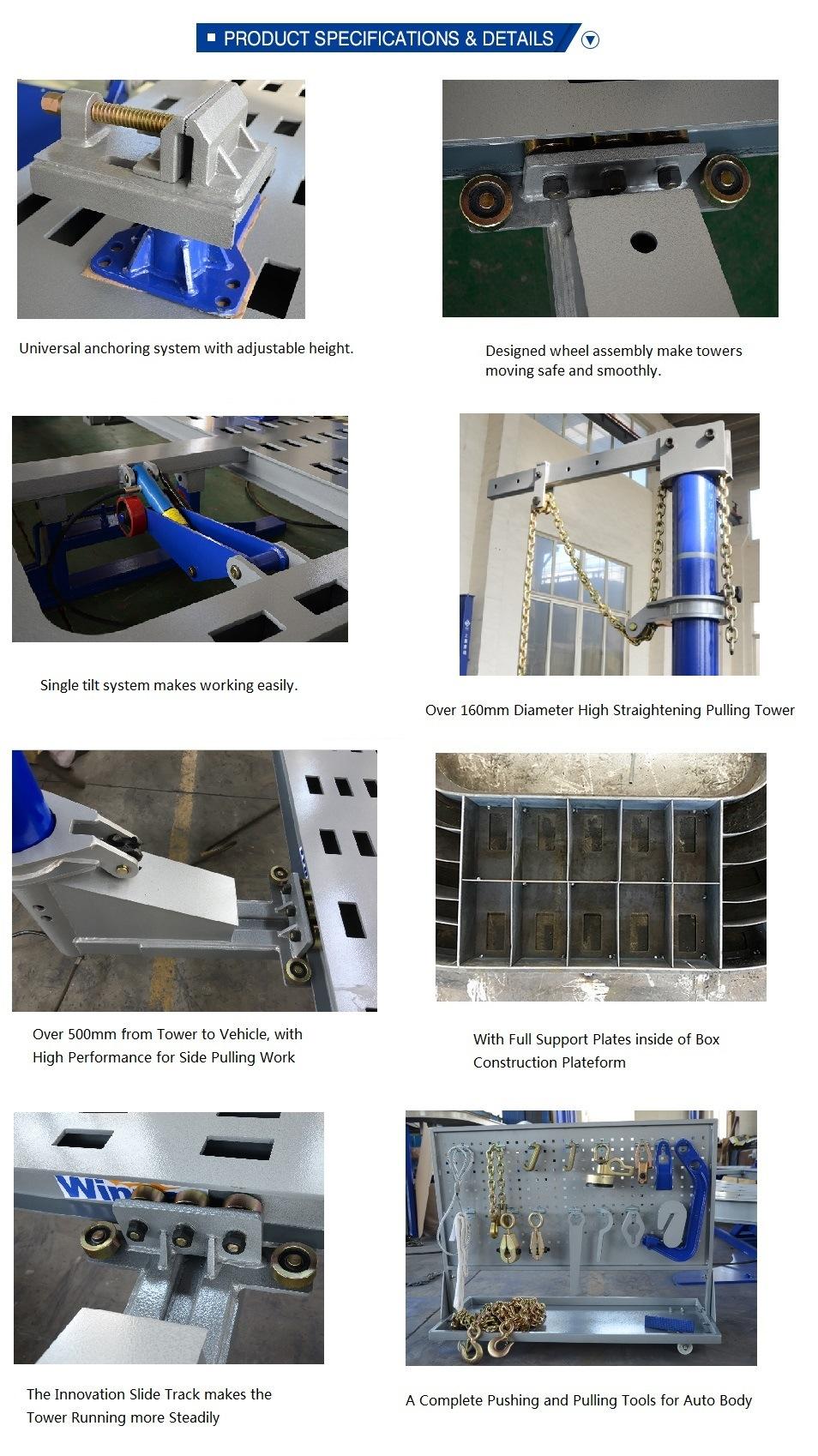

Description:

1. 86'' /2200mm wide deck is perfect for light trucks, SUV or Pickups, etc full-frame vehicles.

2.Over 200 tie-down opening for virtually unlimited anchoring.

3.True 3600 pulling capability.

4.4500kg/10000 lbs, 5500kg/12000 lbs/ or 6000kg/13500 lbs lift capacity for more options

5.Heavy duty towers for strong pulling capacity.
