• Model NO.：EPS205
• Standard：Standard
• Color：According to Request
• Transport Package：Export Standard Packing
• Specification：0.92X0.79X0.76
• Trademark：TAIAN XINAN
• Origin：China
• HS Code：9031200090
• Production Capacity：1000

Basic Info.

Model NO. EPS205 Standard Standard Color According to Request Transport Package Export Standard Packing Specification 0.92X0.79X0.76 Trademark TAIAN XINAN Origin China HS Code 9031200090 Production Capacity 1000

Product Description

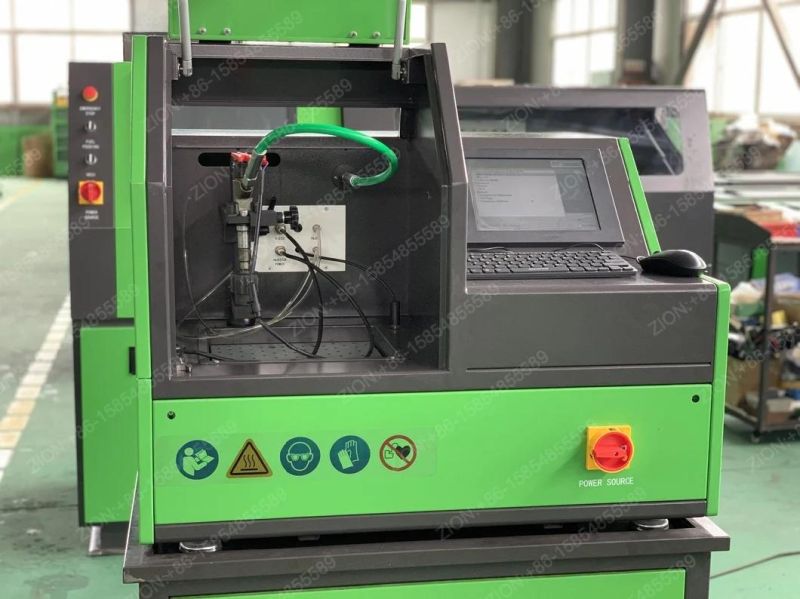

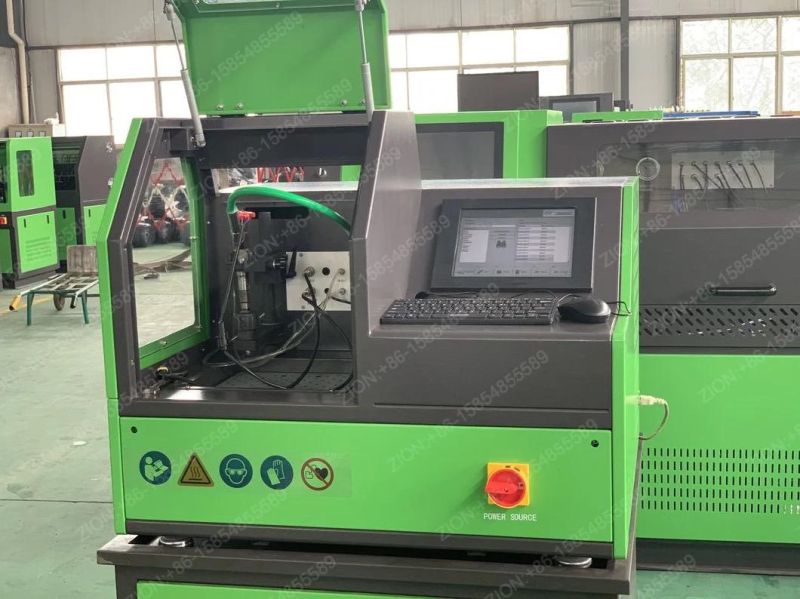

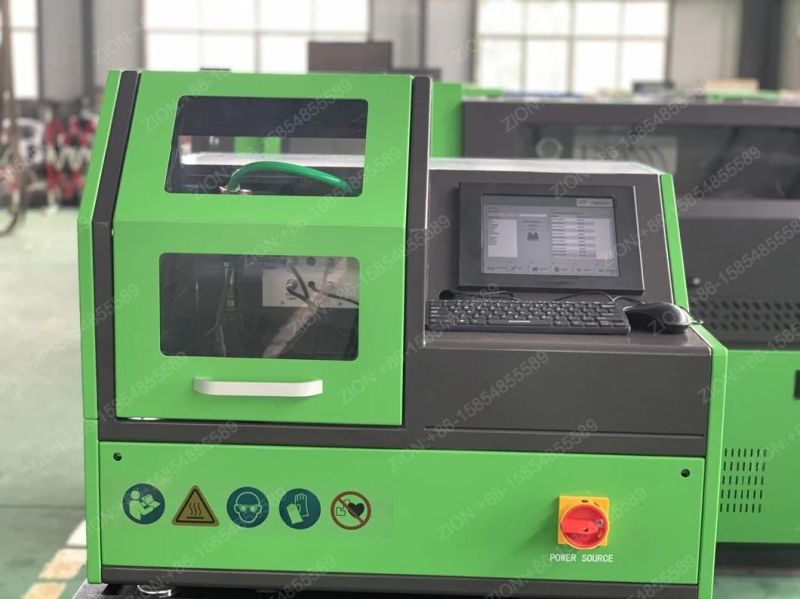

EPS205 Common Rail Injector Test Bench

EPS205 test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOS-CH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test all brands of common rail injecotor. Advanced technology, steady performance, precise measurement ,convenient operate and competitive price.

It can test common rail injector of All Brands
Piezo Injector Testing

EPS205 Common Rail Injector Test Bench Characteristic

1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;
3. More than 700 kinds of injecotors data can be searched and used.
4. It is installed original common rail pump CP3 to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.

EPS205 Common Rail Injector Test Bench Function

1.Test injector brands:All Brands, Piezo injector testing
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. Injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.





EPS205 Common Rail Injector Test Bench Parameters

1.	Pulse width	0.1~20ms
2.	Continuous injection times	0~1000
3.	Fuel temperature	40±2°C
4.	Rail high pressure	0~2000 bar
5.	Test oil filtered precision	5μ
6.	Power Voltage	220V 1 Phase
7.	Rotation speed	0~3000RPM
8.	Oil tank capacity	16L
9.	Overall dimension(MM)	865x775x1430 mm
10.	Weight	150KG


Main products include:

 1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories)

 2 Injection pump test bench

 3.Auto tools

 4.Auto parts

 5.Special vehicles

 6.Turbocharger
