Garage Equipments/Spray Booth/Spray Booths/Paint Booths with Car Jack
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-L7-W6
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Side Walls：Thermal Insulation Transparent Walls
- Plenum：600mm
- Basement：350mm
- Lights：LED Lamp
- Brightness：>1,000 Lux
- Total Fan Capacity：35,000m3,H
- Motor Brand：Siemens
- Empty Loaded：+,- 0.23m,S
- Heat Exchanger Power：315kw
- Burner：Riello RS5d Gas Burner
- Noise：<78dB
- Voltage：380V,50Hz
- Filters：High Efficiency Filter
- Power：30kw
- Transport Package：Polyfoam and Metal Frame
- Specification：CE
- Trademark：INFITECH
- Origin：China
- HS Code：8419899090
- Production Capacity：900sets,Year
Description
New Style CE Certified Spray BoothITEMS Garage Equipments/Spray Booth/Spray Booths/Paint Booths with Car Jack SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions 7000 X 6000 X 3500mm (L X W X H) External dimensions 7350 X 7400 X 5960mm(L X W X H) Plenum 600mm high Basement 350mm high Entrance door (Electric roller shutter door) 1 set, 3980X2700mm (W X H) Personnel door 2 sets, 800 X 2000mm (W X H) Walls Insulating transparent glass Side lighting (LED) 16 sets, each 4 X 18W, 1,152W total Brightness >1,000LUX Filters Pre-filter, high efficiency filter, floor-level filter, exhaust filter Air intake Direct-type turbine fan, 11KW SIEMENS motor Air exhaust Direct-type turbine fan, 11KW SIEMENS motor Air volume 35,000m3/h Empty loaded air speed +/-0.23m/s Air exchange times 4 times/min Maximum working temperature 80ºC Heat exchanger power 315KW Burner (Max. calorific value) RIELLO gas burner RS5D (two stage) Controls CE standard control box Rated power 30KW
3) Packaging and Loading

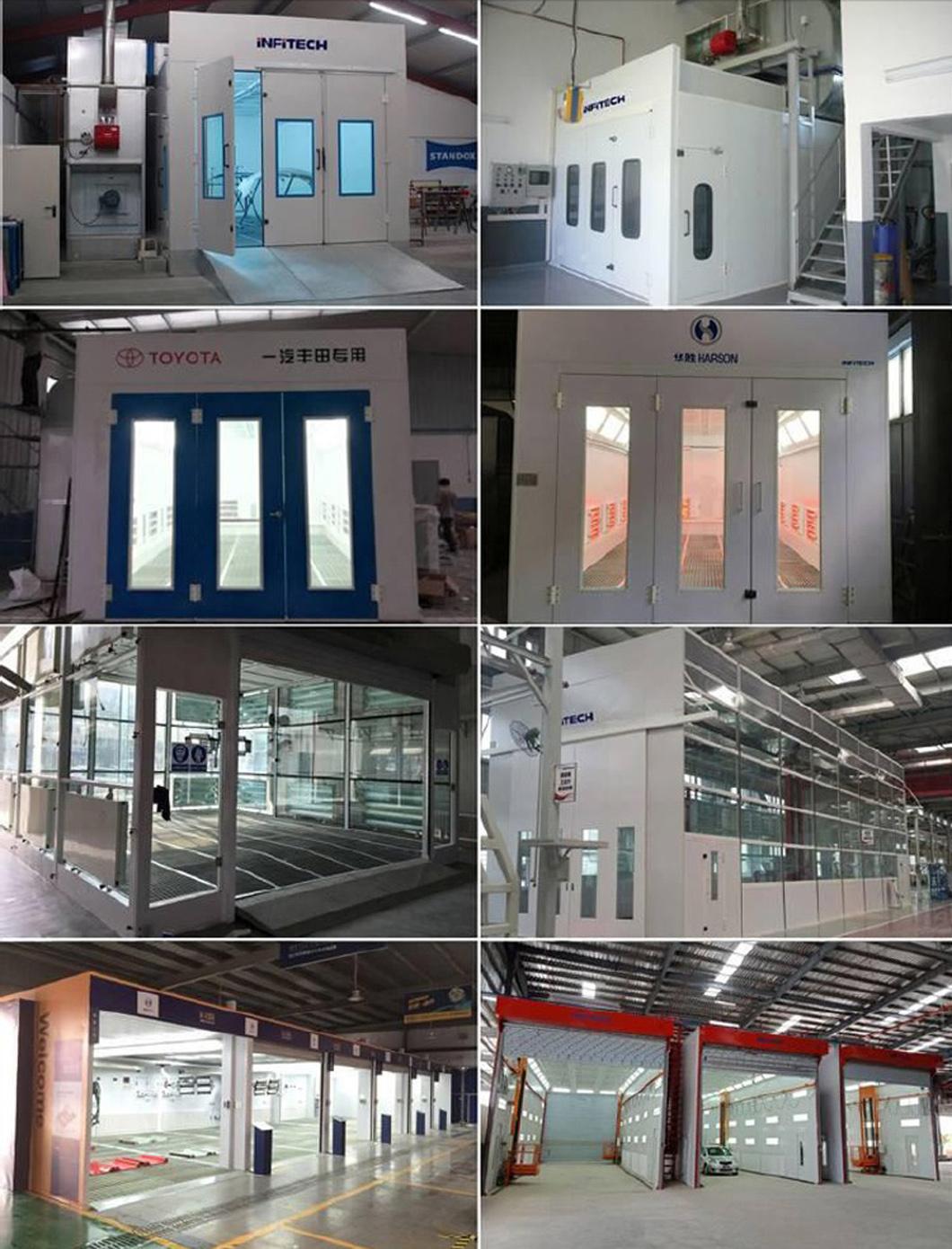

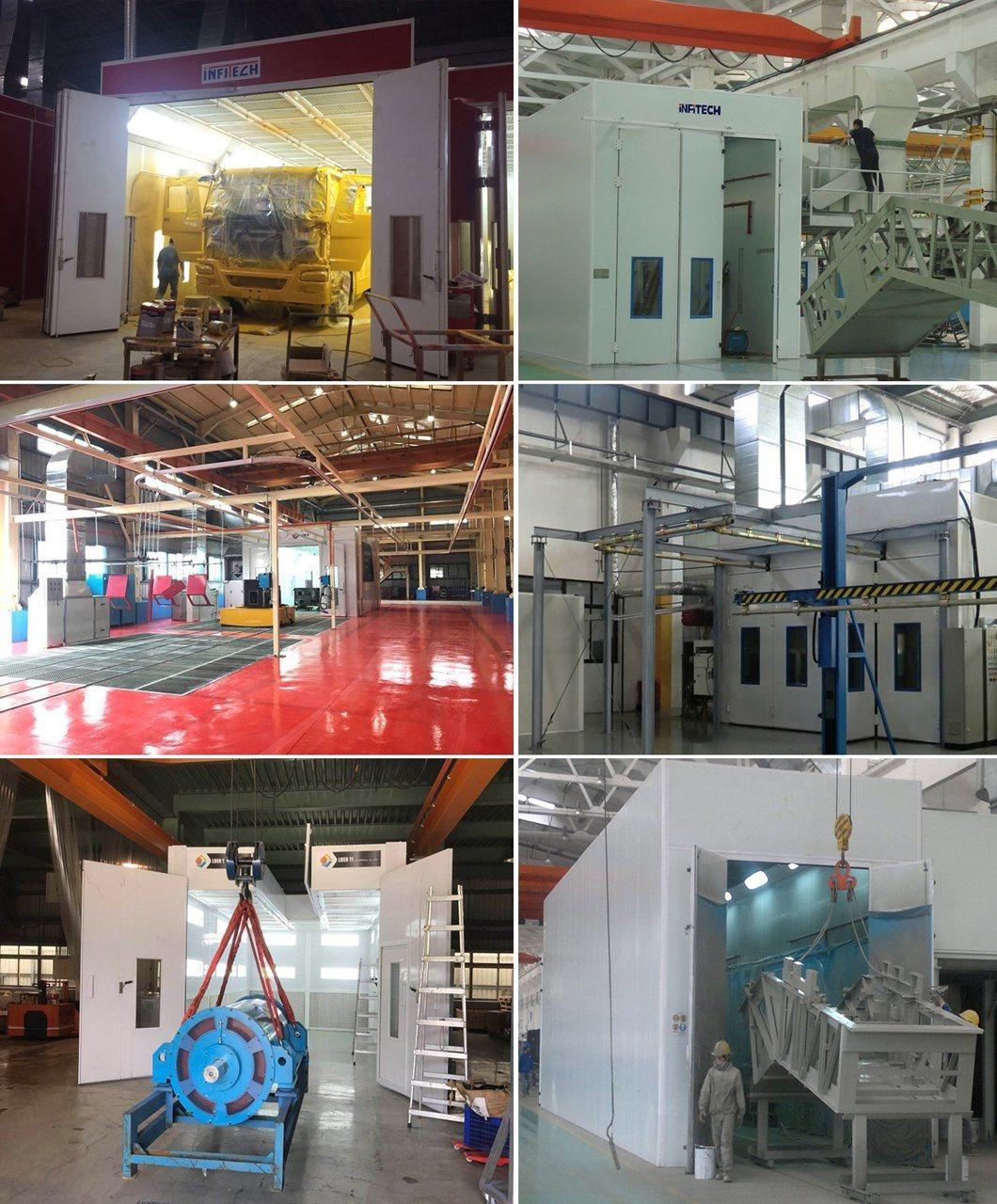

4) Engineering cases

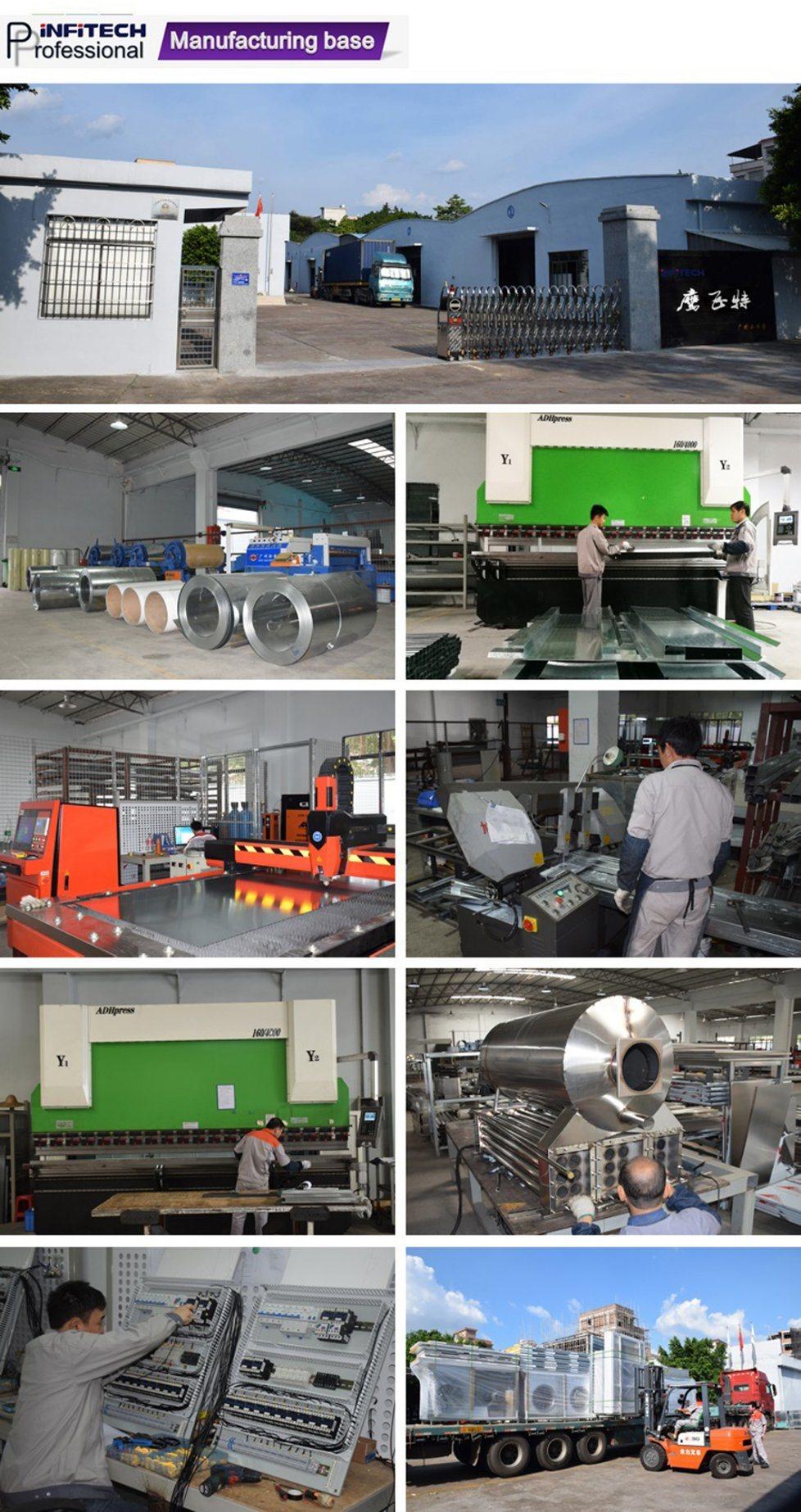

5) Company Profile
INFITECH is professional manufacturer of CE certified spray booth. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.

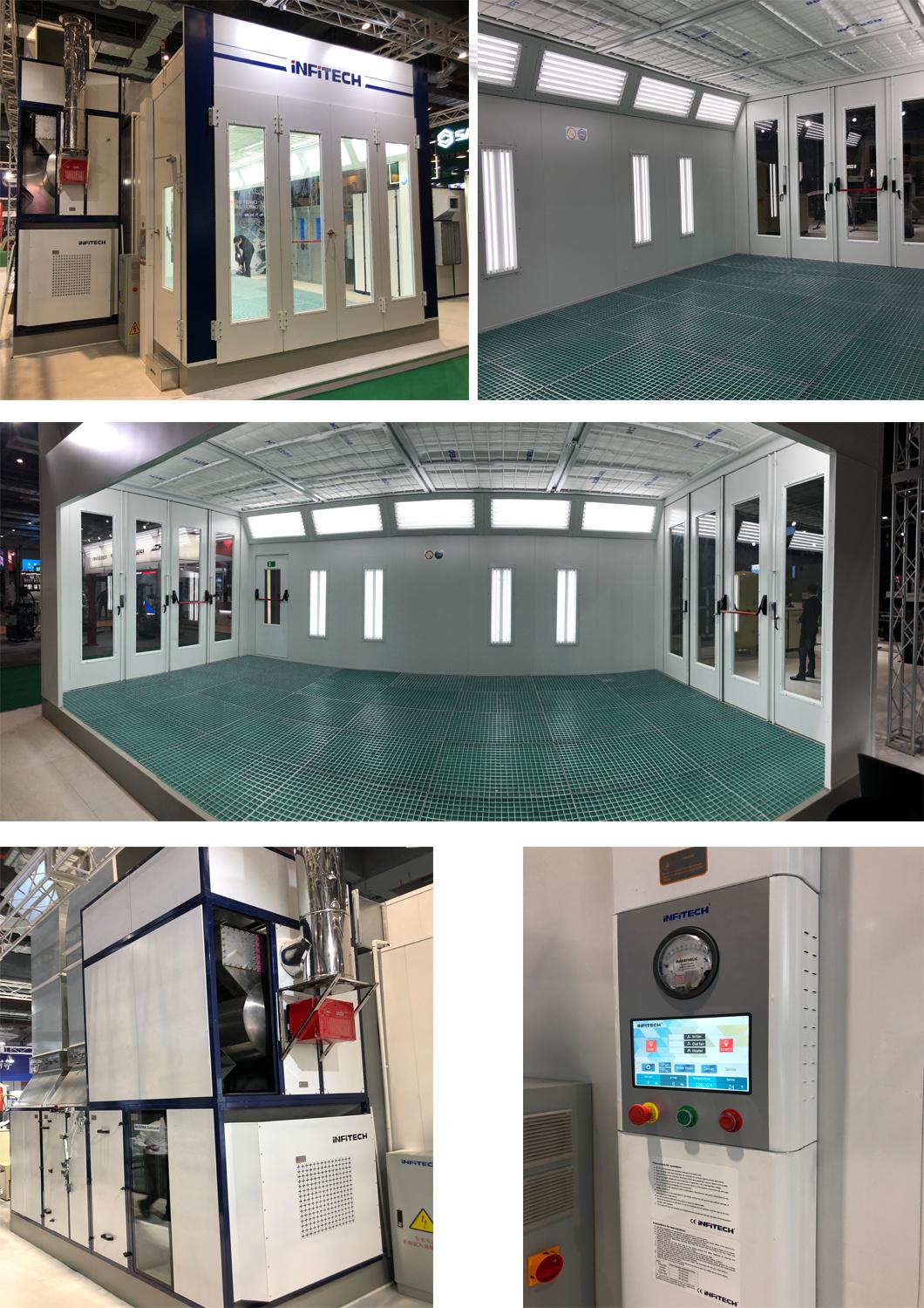

6) INFITECH at trade show
Welcome to contact us for business!
