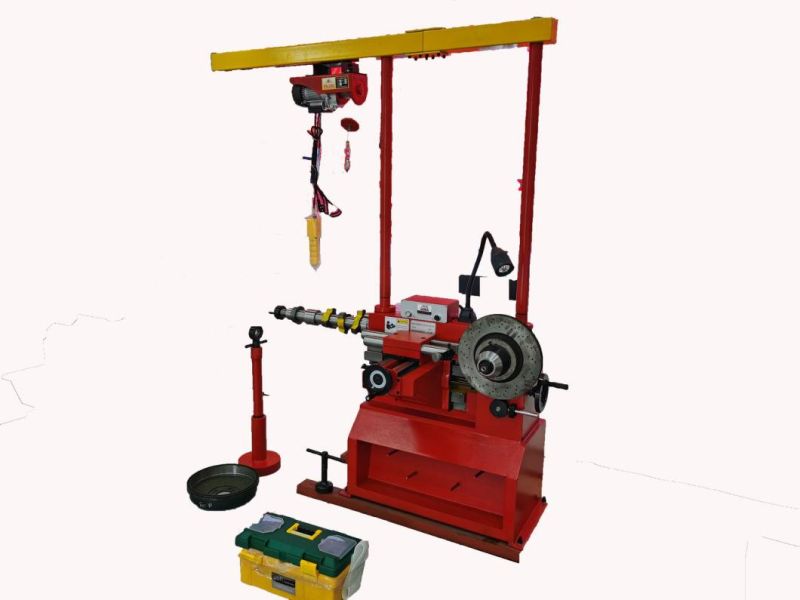

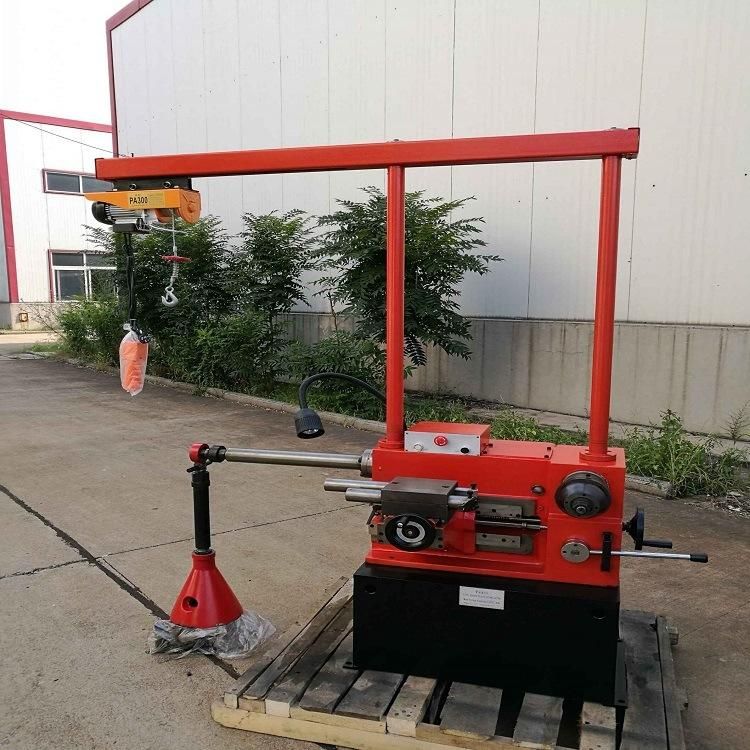

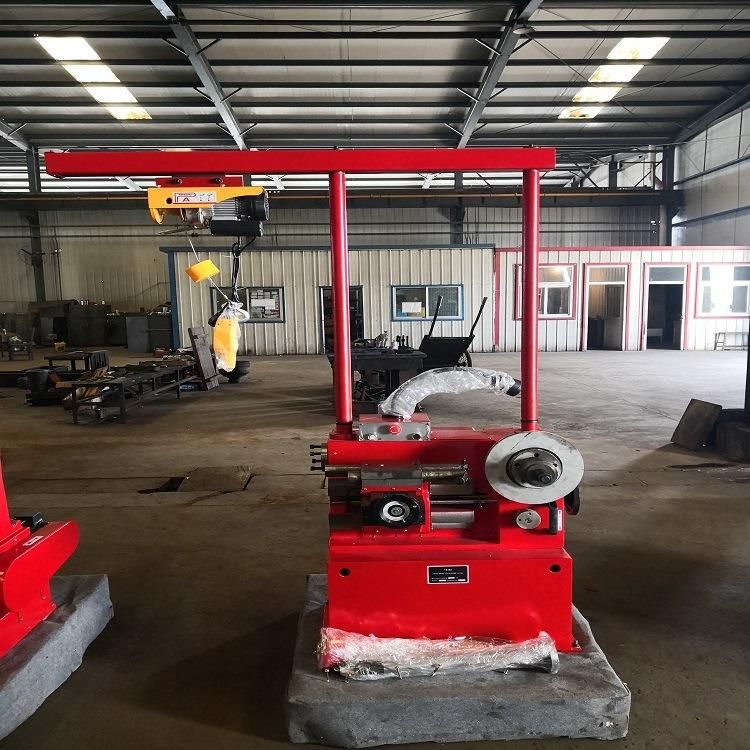

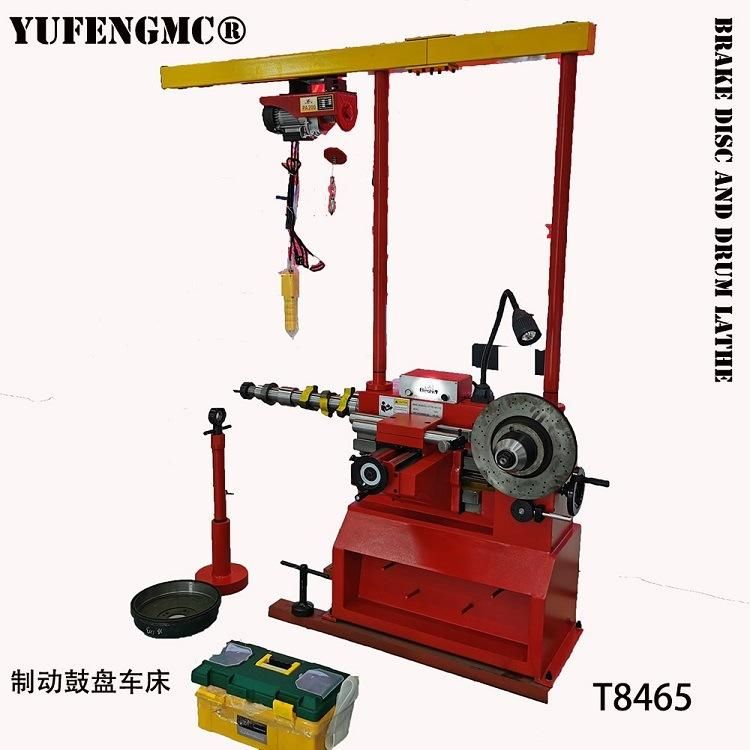

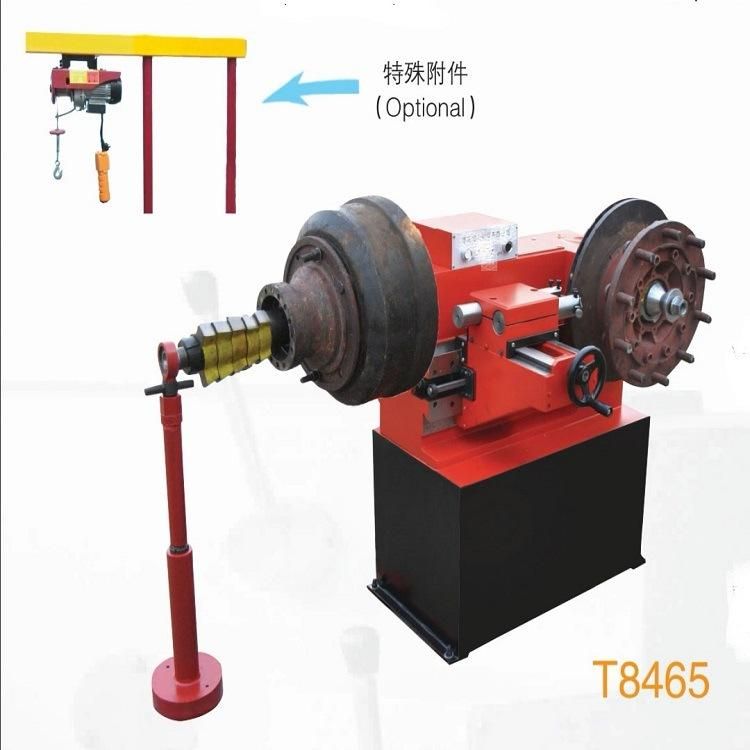

Brake Drum Disc Lathe Brake Disc Brake Drum Cutting Disc and Drum T8465

Zaozhuang Dedang Machinery Co., Ltd.
  • Warranty：One Year
  • Transport Package：Export Package
  • Specification：1020*1065*1100MM
  • Trademark：YUFENGMC®
  • Origin：Zaozhuang City

Base Info

  • Model NO.：T8465
  • HS Code：8458190000
  • Production Capacity：500unit,Year

Description

Basic Info.

Model NO. T8465 HS Code 8458190000 Production Capacity 500unit/Year

Product Description

Brake Drum Disc Lathe Brake Disc Brake Drum Cutting Disc and Drum T8465Brake Drum Disc Lathe Brake Disc Brake Drum Cutting Disc and Drum T8465Brake Drum Disc Lathe Brake Disc Brake Drum Cutting Disc and Drum T8465Brake Drum Disc Lathe Brake Disc Brake Drum Cutting Disc and Drum T8465Brake Drum Disc Lathe Brake Disc Brake Drum Cutting Disc and Drum T8465
BRAKE DRUM AND DISC LATHE T8445/T8445AT8465
 DRUM DIA180-450MM180-650MM
DISC DIA102-400MM102-520MM
CUTTING TRAVEL190MM265MM
SPINDLE SPEED20,52,85RPM20,52,85RPM
FEED SPEED0.16MM0.16MM
MAIN MOTOR1.1KW1.1KW
MACH WITH LIFTING UNIT1100*870*1000MM1580*1020*1050MM
1880*1020*1970MM
 PACKING SIZE WITH LIFTING UNIT900*930*1100MM1020*1065*1100MM
1420*1065*1100MM
G WEIGHT /N.W350/290KG530/470KG

1. "Replacement adapter" system eliminates the need for traditional bell clips and cones.

2. Continuously variable spindle and cross feed speed set for fast rough and fine finishing.

3. Precision double cutter and fast drum to rotor conversion help improve your service capability.

4. Dc motor designed to meet the requirements of industrial motion control.

5.Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.
