• Model NO.：SJG1-6
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Power：220V, 240V, 380V, 400V or Other
• Install：Underground
• Type of Products：Hydraulic Scissor Car Lift
• Color：Red, Blue, Orange, Gray or Other
• Motor：Customer Required Brand or Chinese Famous Brand
• Safety Device：Explosion Proof Lock Valve, Emergency
• Warranty：24monthes
• Handrail：900mm
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：5000set Per Year

 The cargo lift can be customized as your detailed size.

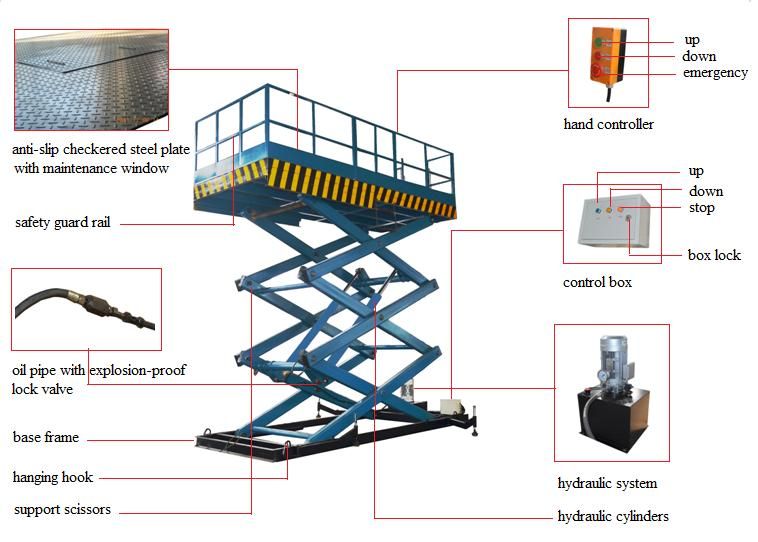

Parts Showing:

Configuration:

1) Platform Material: rectangular tube +checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe:  high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above Electric Hydraulic lift platform .
3) Equipped 4 guide rails, to ensure the cargo lift runs more smoothly and steadily.
4) The limit switch system helps the cargo lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the cargo lift are passed 1.2 times loading test before leaving factory.

Our services:

1) We can design the cargo lift as per your requirement.

2) The most suitable cargo lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
