• Model NO.：CD-12
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Internal Size：12000-4500-4000mm(L-W-H)
• External Size：12144-6396-4600mm(L-W-H)
• Grid：2 Rows Air Exhust Plenum Chamber
• Wall：75mm EPS Panel, 0.5mm Steel
• Front Door：1 Unit, 3800X3900 mm(Wxh)
• Service Door：1unit, 650X1800 mm(W×h)
• Lighting System：16 Ceiling Lights, 18 Side Lights
• Intake Air System：4X5.5kw Double-Intake Centrifugal Fans
• Exhaust Air System：2X7.5kw Double-Intake Centrifugal Fans
• Total Power：44kw
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month

Booth Dimension- Internal Size(L×B×H)12000×4500×4000mm(L×W×H) & 39'4''X14'8''X13'1''- External Size(L×B×H)12144×6396×4600mm(L×W×H) & 39'8''X20'9X15'1''Foundation and Floor- Grid2 rows air exhust plenum chamber- Metal BasementNeed to build the base construction , 2 rows of pits in the ground for exhaust air,
 dimension of each pit is10350×760mm((LxW),
 with galvanized grids made by twisted steel and flat bar aboveWall and Door- Steel WallDouble construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm,
 tongue and groove interlock structure, with Polystyrene(EPS) insulation inside- 3-Folded Entrance Door
 With Safety Glass Window1 Unit, 3800×3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside- Operator's Door With
 Safety Glass Window1Unit, 650×1800 mm(W×H) Lighting System- Ceiling Lights16Units, each 3×36 W, with electronic ballasts- Side Lights18Units, each 2×36W, with electronic ballasts- Brightness>1000LUXFilter System- FilterPre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter- Filtering area46M2Ventilation System- Intake air system
 (Fresh Air)4×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S,
 total air capacity 65000m3/h- Exhaust
 air system(Exhaust Air)2×7.5KW double-intake centrifugal fans for exhaust air, with motor outside,
 belt-drive, model TAE-560H, total air capacity 50000m3Heating System- Heating ExchangeStainless Steel- Heating
 Exchange Capacity260000Kcal/h- Max. Drying
 Temperature 80 °C- Heating time 8-12 min (from 20 to 60) by Drying Phase- Heating Type (optional)RIELLO RG5S (260000 kcal/h)Diesel )2 setsControl Box- Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator,
 thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
 hours meter, temperature limit controller, pressure gauge. exhaust reduction
 voltage motor start- Total power44KW

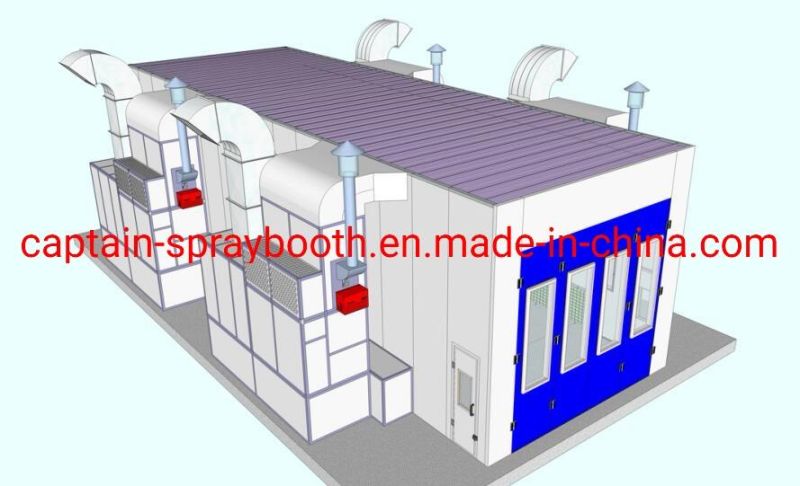

Basic Draw

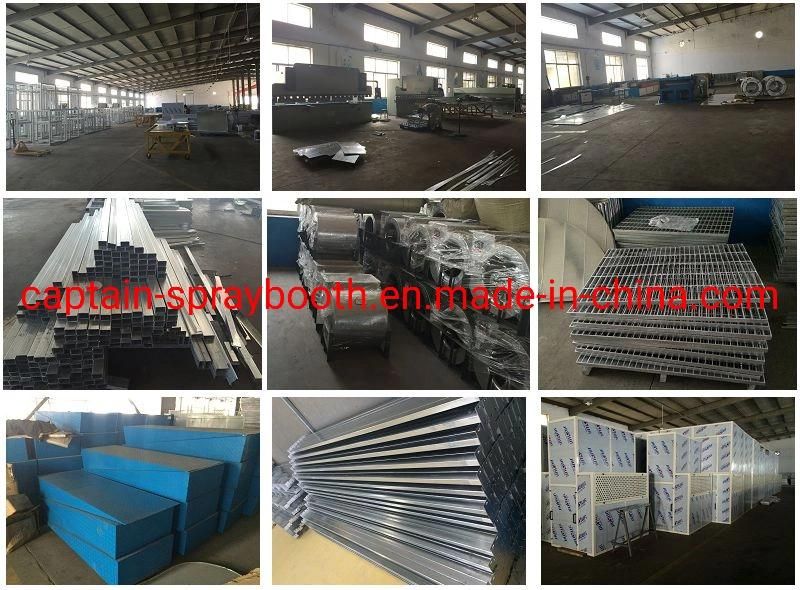

Production

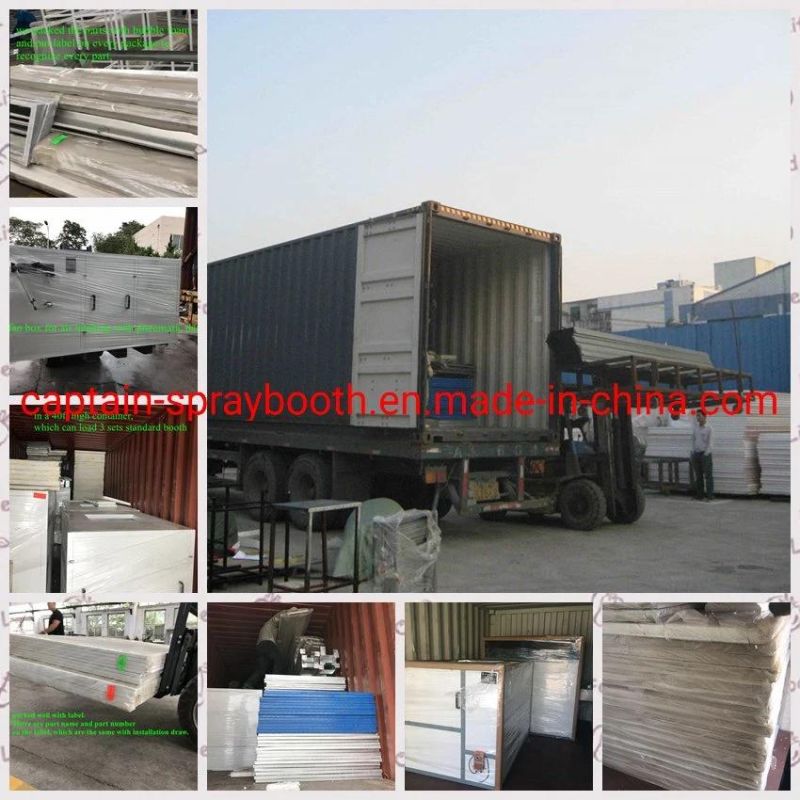

Package and delivery

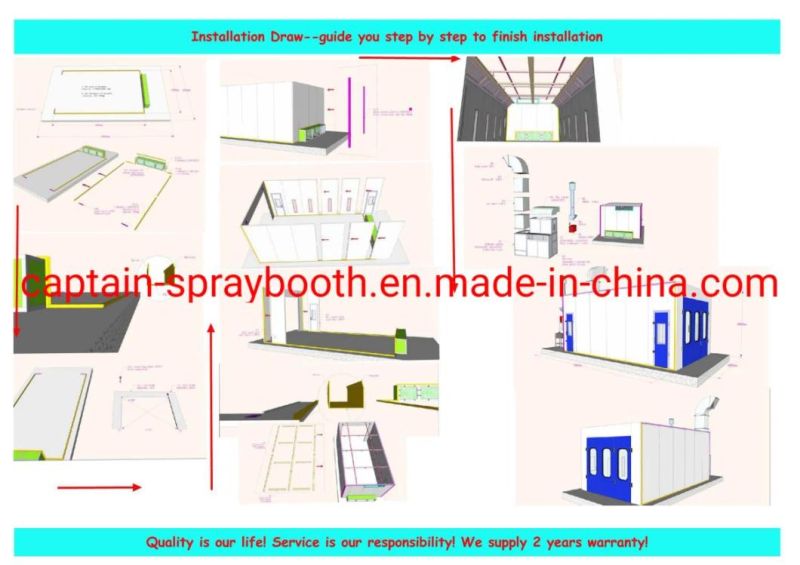

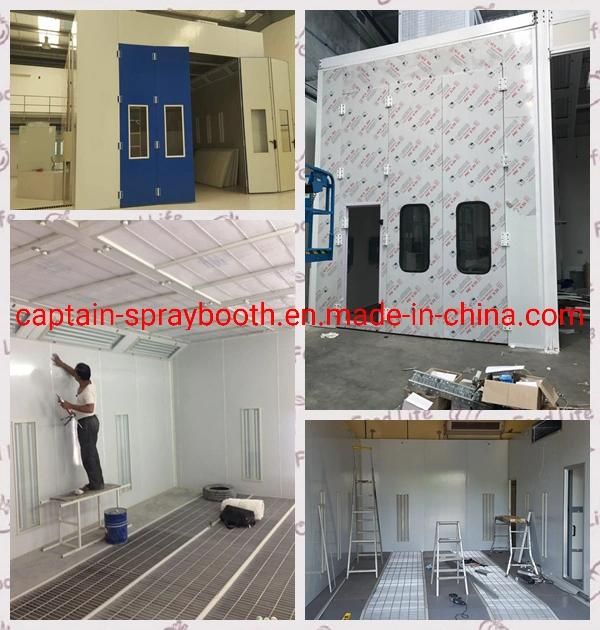

Installation

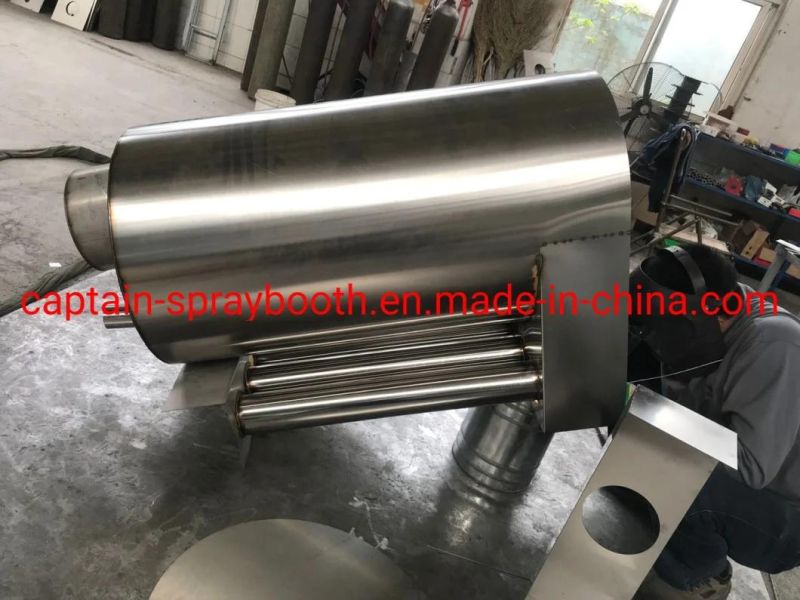

Stainless Steel heat exchanger with high safety

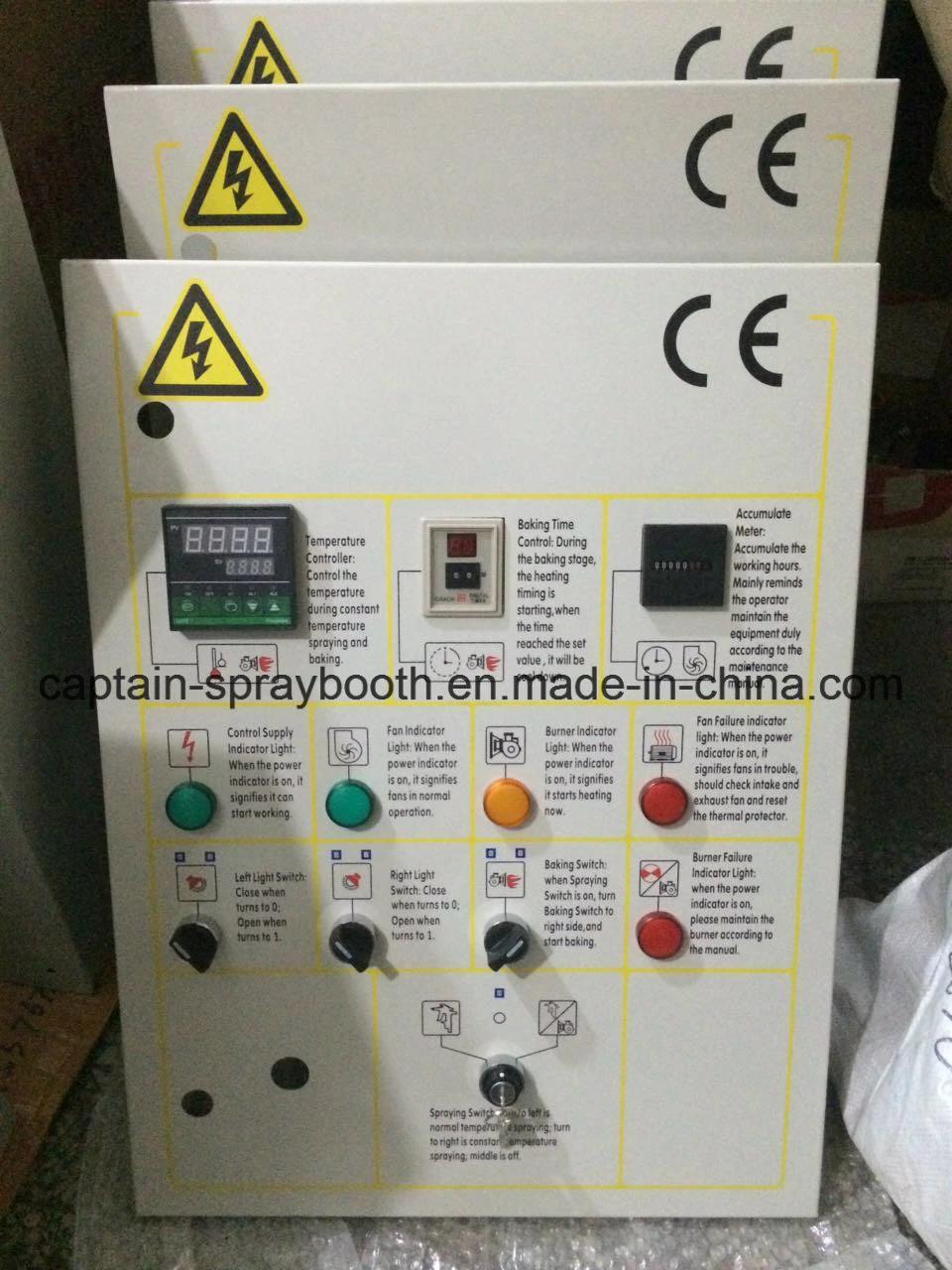

Control Panel


installed models

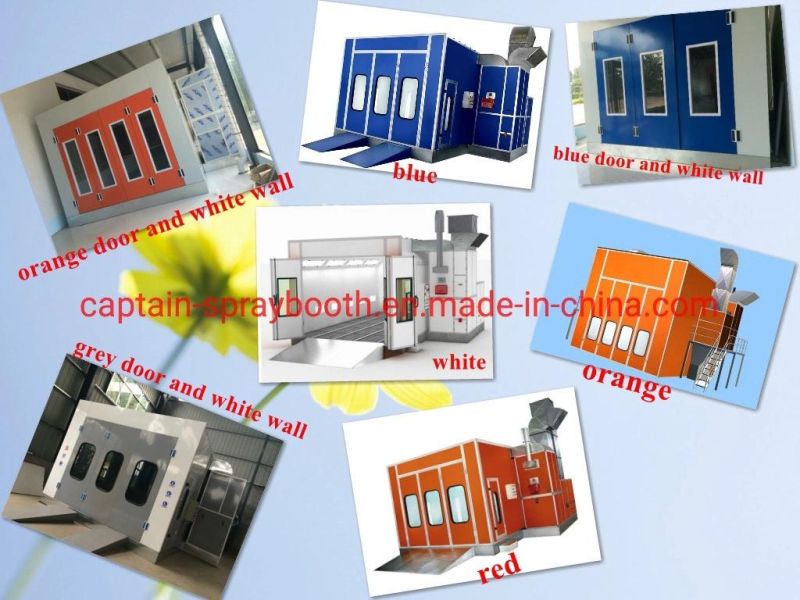

different colors for your choice

our workshop


factory view

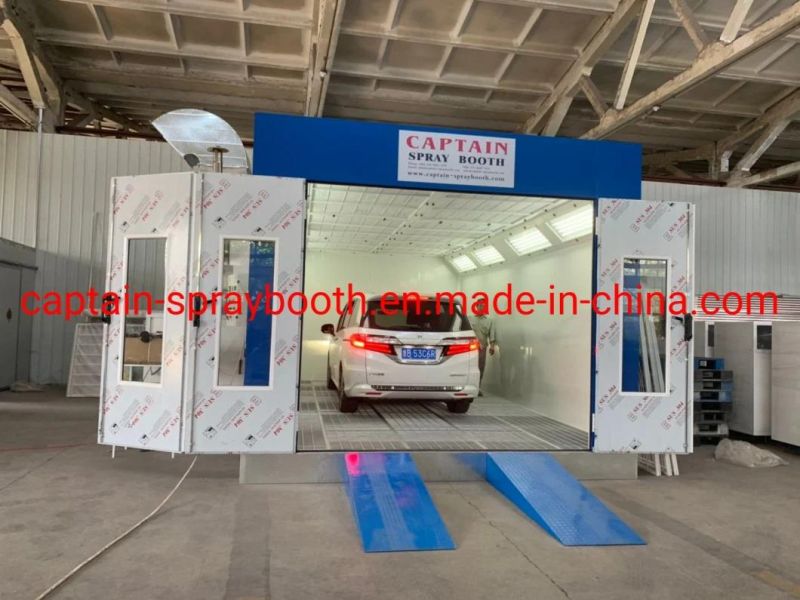

1. This paint spray booth is suitable for 12m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125× (W)8400× (H)5000

Interior size (mm)(L)12000× (W)5000× (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000× (W)500× (H)800mm
Surface area of rear exhaust box15 m²
Metal BasementNo
Drive-in rampsNo



Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
  entrance door size: (W)4000× (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800× (H)1800mm
LightingCeiling lightings12 units, each unit: 4× 36 W, total 1728W, IP54
Side lightings18units, each unit: 2× 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
