China Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar Locator
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Certification：CE, ISO, RoHS, GS
- Update Method：by Hard Disk
Base Info
- Model NO.：ZBL-R630
- Condition：New
- Standard：Standard
- Model：Zbl-R800
- Protective Layer Thickness Range (mm)：6~ 50
- Applicable Range(mm)：φ6~φ50
- Data Correction：Automatic
- Transport Package：Instrument Box
- Specification：SGS, ISO, CE
- Origin：China
- HS Code：9001409900
- Production Capacity：500 Set,Month
Description
ModelZBL-R800 ZBL-R650 ZBL-R630A ZBL-R630 ZBL-R620 Protective layer thickness range (mm) φ6~φ50 φ6~φ50 φ6~φ50 φ6~φ50 φ6~φ50 Max range(mm) First range 3~98 6~90 3~98 6~90 6~90 Second range 3~196 10~180 3~196 10~180 10~180 Max allowed error ±1(mm) 3~79 6~70 3~79 6~79 6~79 ±2(mm) 57~119 51~110 57~119 60~119 60~119 ±4(mm) 70~196 70~180 70~196 70~180 70~180 Applicable range(mm) φ6~φ50 φ6~φ32 φ6~φ50 φ6~φ32 φ6~φ32 Max allowed error for diameters measurement ±1 Common type ü Closely bars type ü Transverse section bars ü × Grid type ü × Signal wave × Real time display × Scan range Borderless Data correction Automatic Manually × Data transfer U disk USB U disk USB Wireless transfer ü × ü × LCD 160×128 320×240 160×128 Power Built-in battery DC:9V 5 batteries Size (mm) 212×134×50 190×135×52 212×134×50 190×135×52 Weight(kg) 0.9 1.1 0.9 0.9 0.7

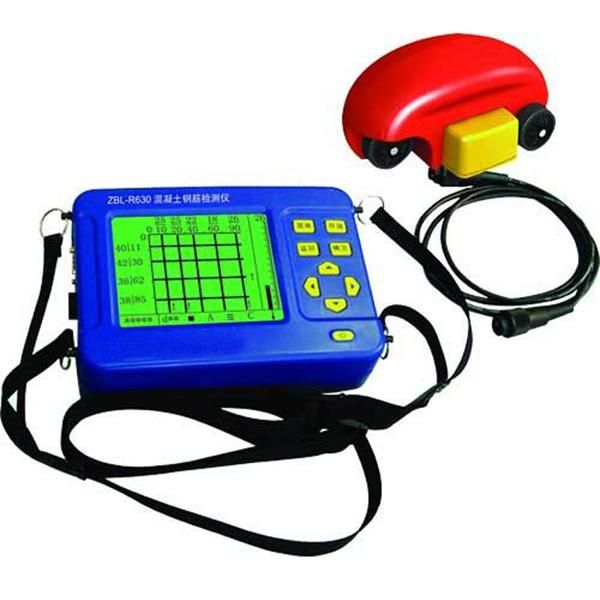

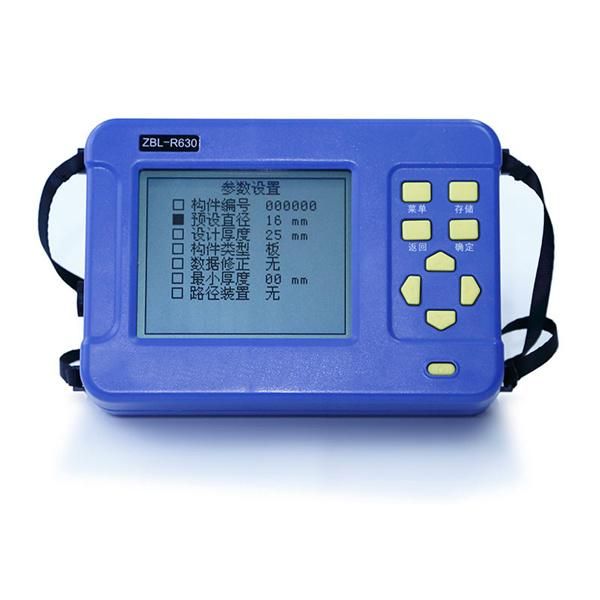

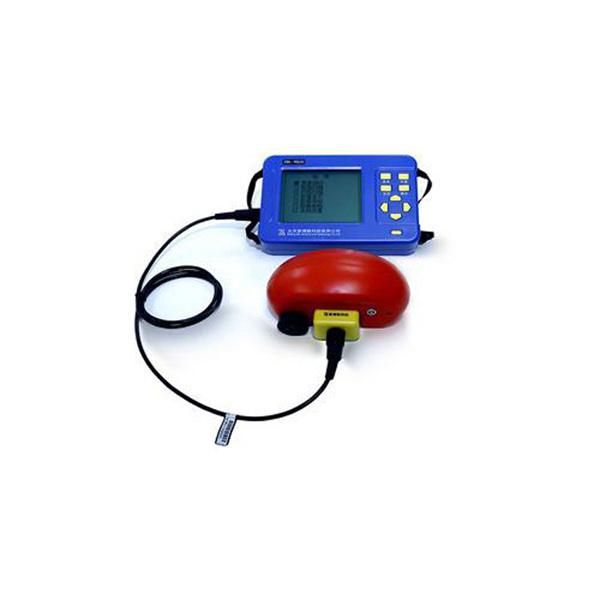

Photos Of China Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar Locator
