Diesel Burner Spray Booth / Customzied Paint Booth D7006GS

Qingdao Hua Yushun Commercial Co., Ltd.
  • Warranty:24 Month
  • Type:Spray Booth

Base Info

  • Model NO.:D7006GS
  • Certification:CCC, CE, GS, SGS
  • Substrate:Sandwich Panel
  • Brand:Captain
  • Coating:Powder Coating
  • Airflow Direction:Fully Undershot-type
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Inside Dimension:6900mmx3900mmx2700mm
  • Outside Dimension:7000mmx5350mmx3400mm
  • Front Door:3-Folds:3000*2600mm, Front and Back Door
  • Personal Door:1-Fold: 750*1800mm
  • Wall Panels:50mm EPS, 0.4mm Steel, 14kgs Density
  • Ceiling Panel:0.8mm Galvanzied Steel Sheet
  • Air Intake:2 Set 4kw Centrifugal Fan
  • Air Exhaust:1 Set5.5kw Centrifuga Fan
  • Damper:Pneumatic
  • Heaeting:Diesel Burner
  • Basement:300mm High with 3 Row Diamond Plate 2 Rows Grids
  • Ramp:8 PCS, 630X1800mm Long
  • Ceiling Lights:32PCS LED Lights
  • Color:White, Red, Blue, Grey, Orange
  • Transport Package:Export Container ,Pallet ,Disassembly with Carton
  • Specification:6900mmX3900mmX2700mm
  • Trademark:OEM,Captain
  • Origin:Jiangsu, China.
  • HS Code:8424899990
  • Production Capacity:96sets,Month
  • Package size per unit product:6900.00cm * 3900.00cm * 2700.00cm
  • Gross weight per unit product:3960.000kg

Description

 16 KW

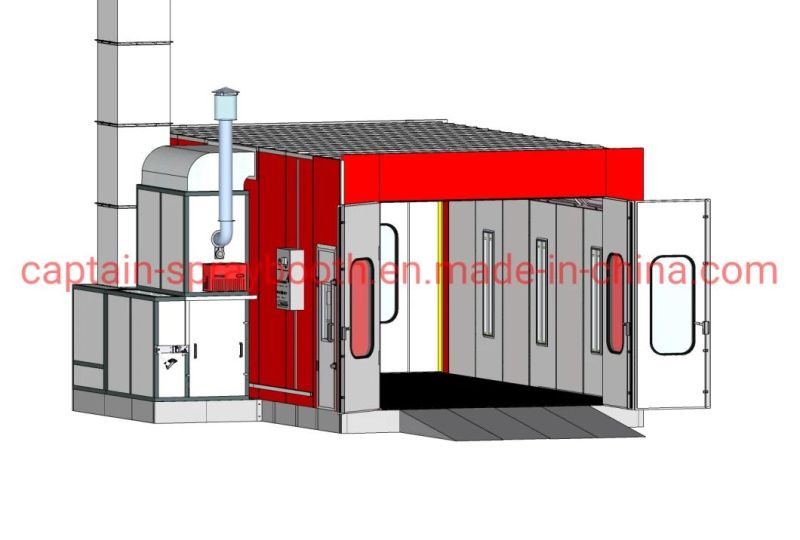

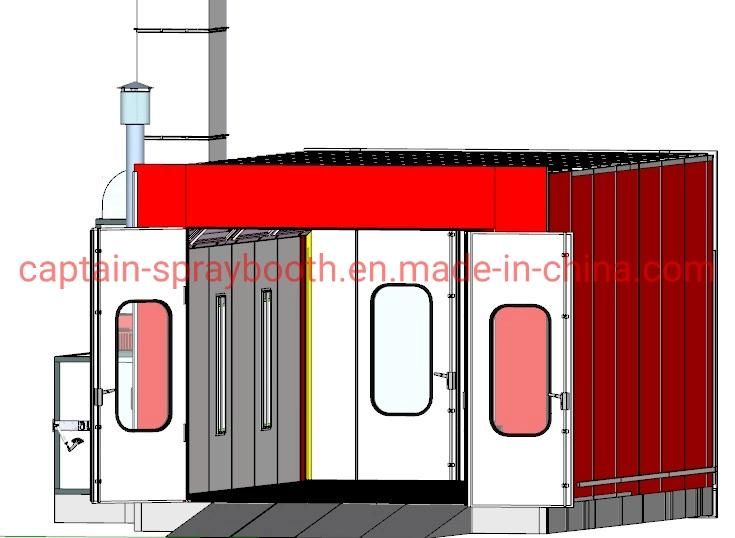

Design drawing:
Diesel Burner Spray Booth / Customzied Paint Booth D7006GS
Diesel Burner Spray Booth / Customzied Paint Booth D7006GS

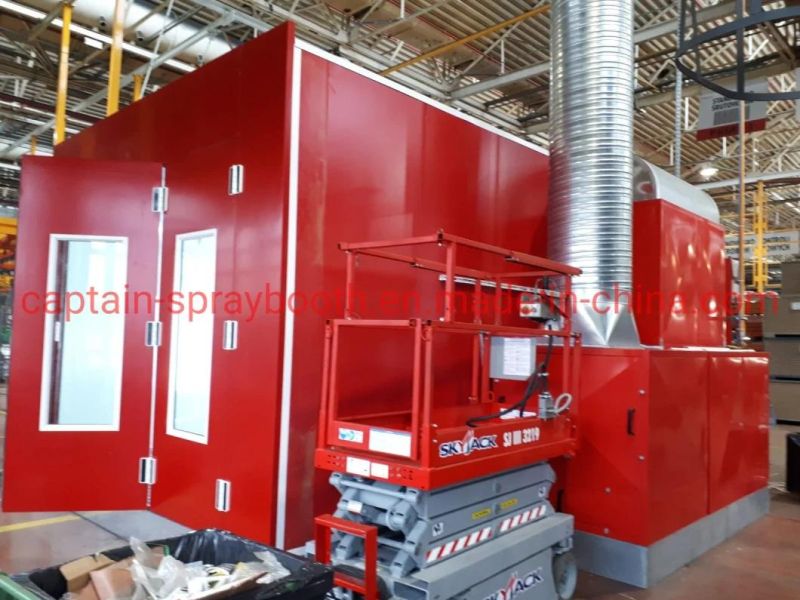

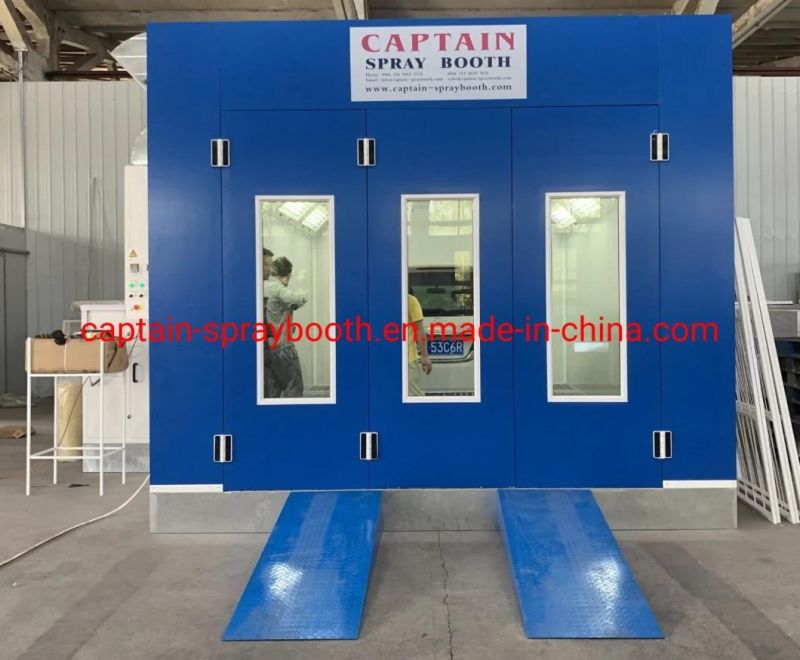

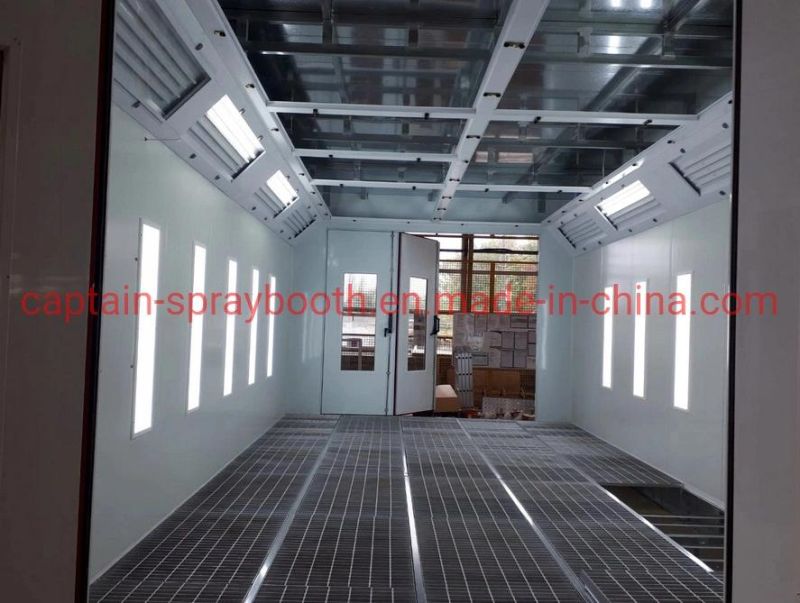

Real photos :
Diesel Burner Spray Booth / Customzied Paint Booth D7006GSDiesel Burner Spray Booth / Customzied Paint Booth D7006GSDiesel Burner Spray Booth / Customzied Paint Booth D7006GSDiesel Burner Spray Booth / Customzied Paint Booth D7006GS

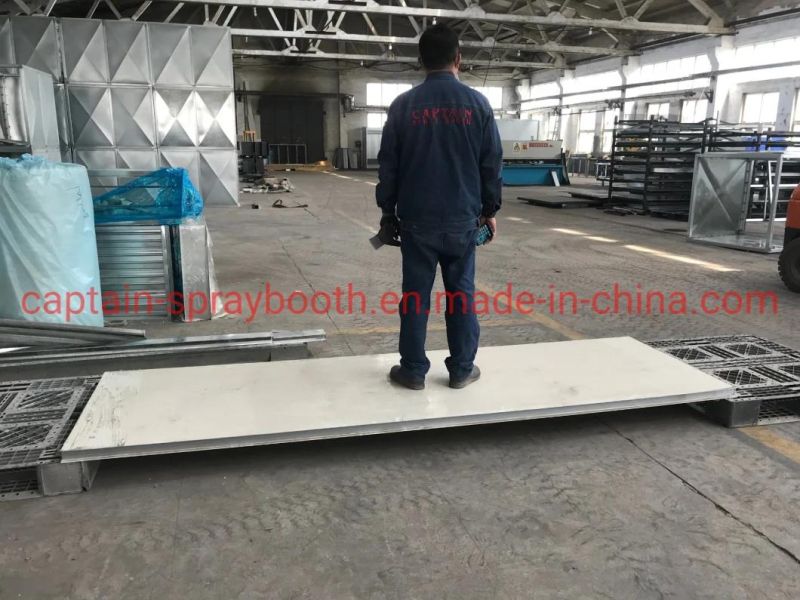

Materials
Diesel Burner Spray Booth / Customzied Paint Booth D7006GSDiesel Burner Spray Booth / Customzied Paint Booth D7006GS

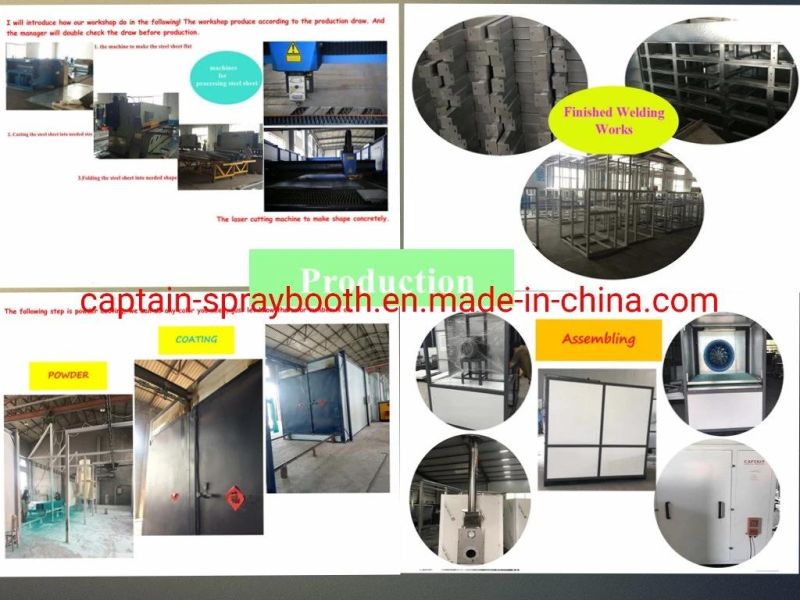

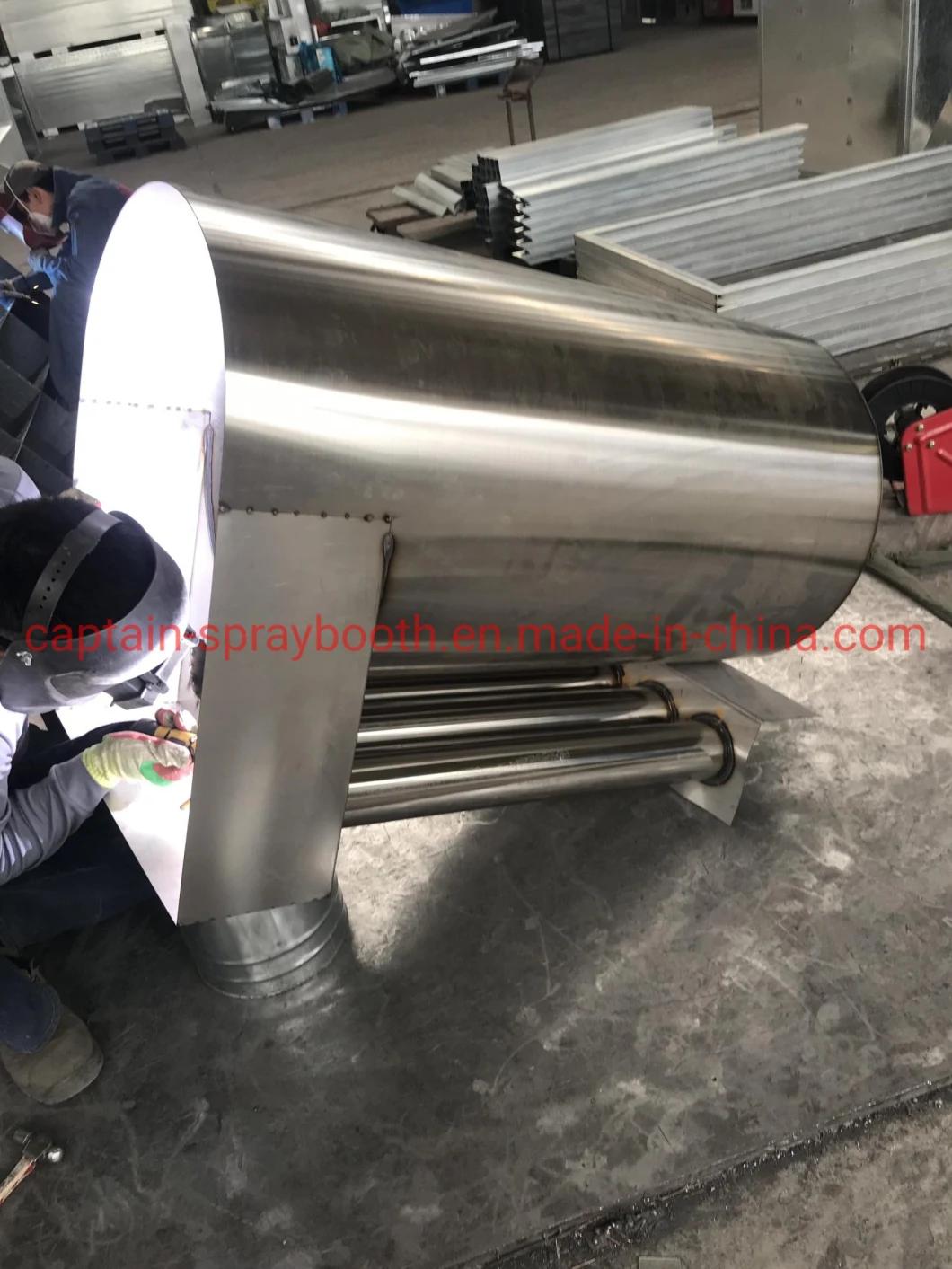

Production

Diesel Burner Spray Booth / Customzied Paint Booth D7006GS

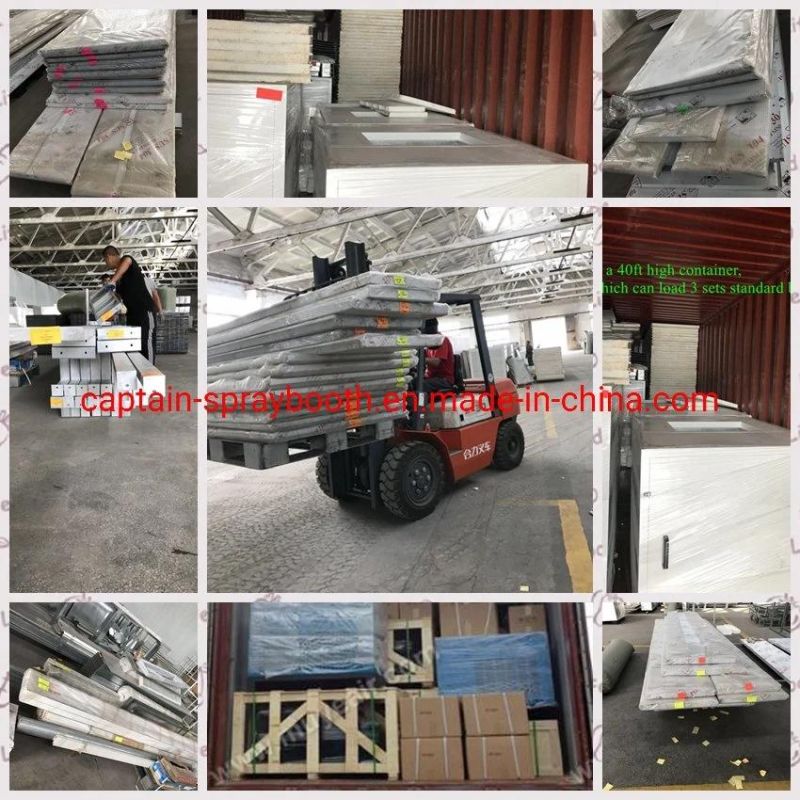

Package and Delivery
Diesel Burner Spray Booth / Customzied Paint Booth D7006GS

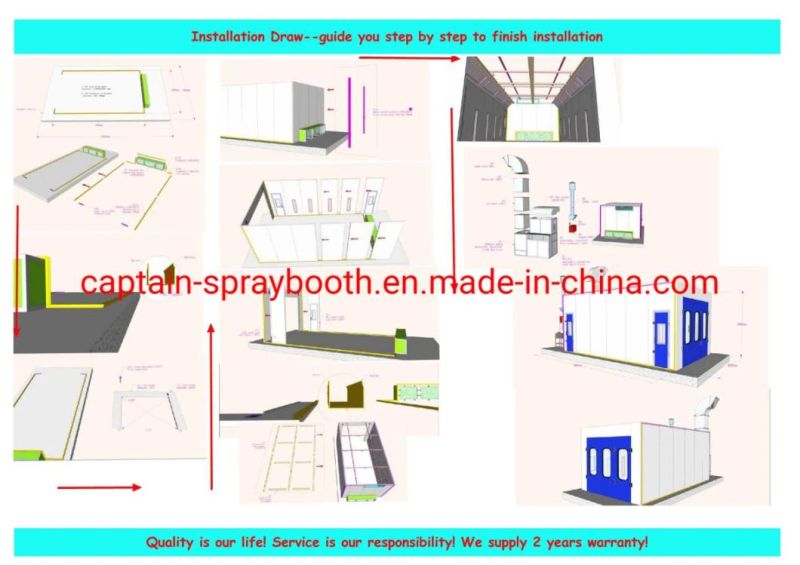

Installation Draw

Diesel Burner Spray Booth / Customzied Paint Booth D7006GS

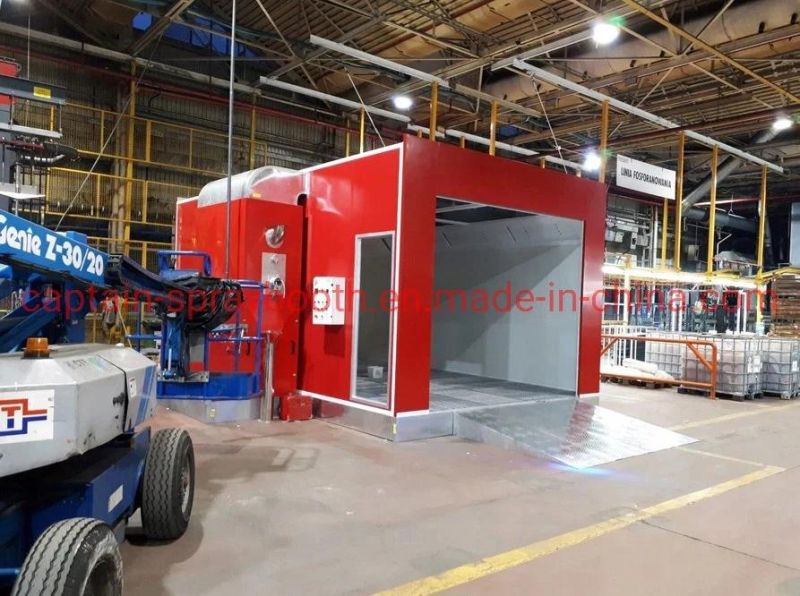

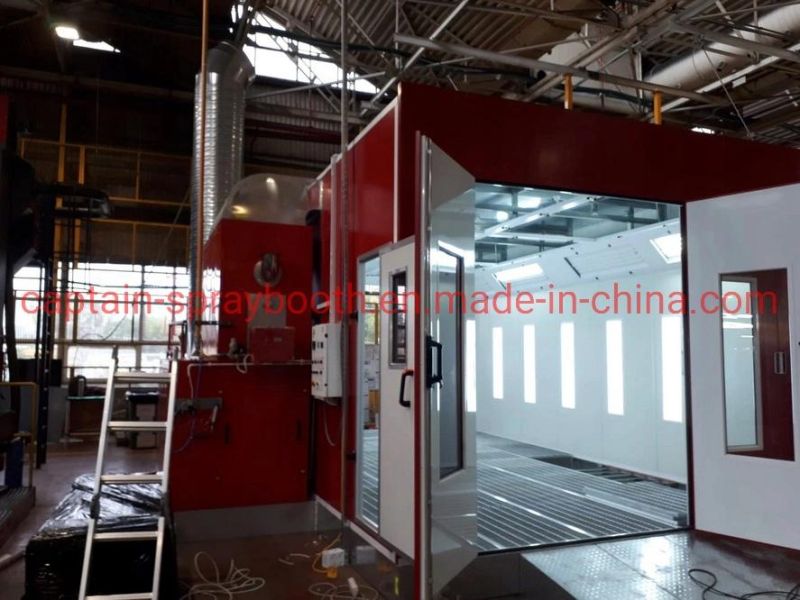

Installed Model
Diesel Burner Spray Booth / Customzied Paint Booth D7006GS



Delivery time : after received you payment ,we will produce , for this standard model ,
the delivery time is 2-3 weeks .
Payment term: 50% TT IN ADVANCE , 50 % before delivery
After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)
when your workers unloading the goods, If they find something damaged during transit by sea,
please take the pictures of the damage in the container and we will reissue you or give you some compensation.
(Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)


Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !



Professional team from design to installation! Warmly welcome to visit our factory!
