CE Standard Captain Car Spray Booth/Paint Cabinet /Baking Room
Qingdao Hua Yushun Commercial Co., Ltd.- After-sales Service：on Line ,Locally
- Warranty：24 Month
- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Captain
Base Info
- Model NO.：D7006T
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Inside Dimension：6900X3900X2700mm(Lxwxh)
- Outside Dimension：7000X5350X3300mm(Lxwxh)
- Main Door：3-Fold, 3000X2600mm(Wxh)
- Personal Door：1-Fold, 700X2000mm(Wxh)
- Wall Panel：50mm EPS with 0.5mm Steel
- Basement and Floor：2 Rows Grilles, 3 Rows Diamond Plate
- Lighting System：32pcsx36W, Osram Lamp
- Intake Air System：1X7.5kw Turbo Fan
- Heating System：Italian Riello G 20 Diesel Burner
- Total Power：16kw
- Air Exhaust System：1X7.5kw Turbo Fan
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS, ISO
- Trademark：OEM,Captain
- Origin：Jiangsu, China.
- HS Code：8424899990
- Production Capacity：660sets,Month
Description
Heating systemItalian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate Filter system Prefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter),
floor filter, exhaust active carbon filter Control system Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
limited-temperature device, most of electrical spare part is import, C.E standard Total power 16KW

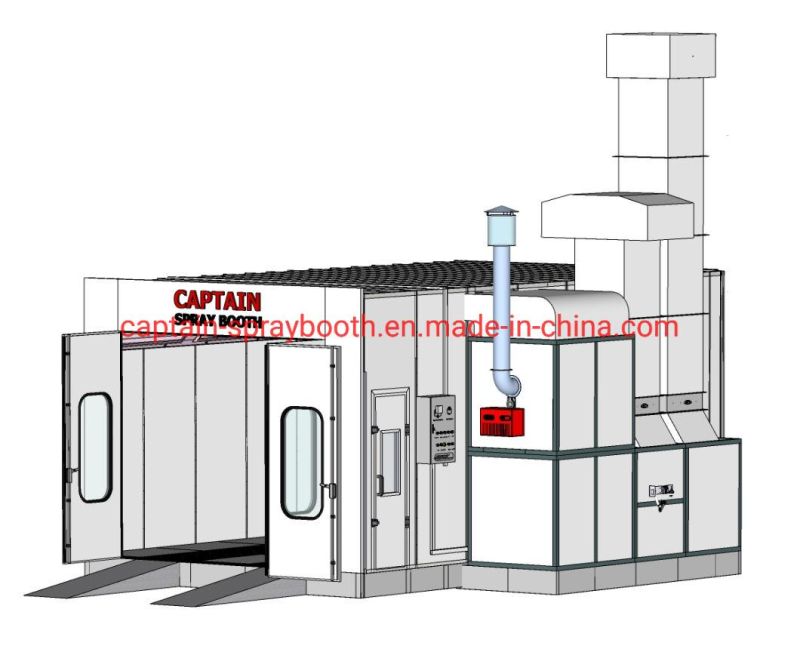

Customized Basic Draw :

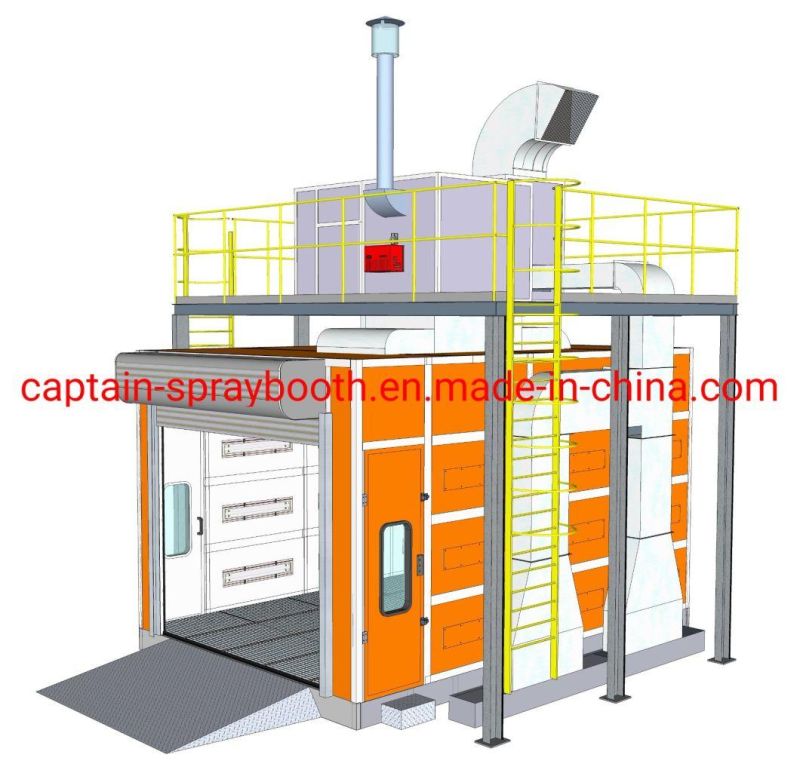

Other drawing :

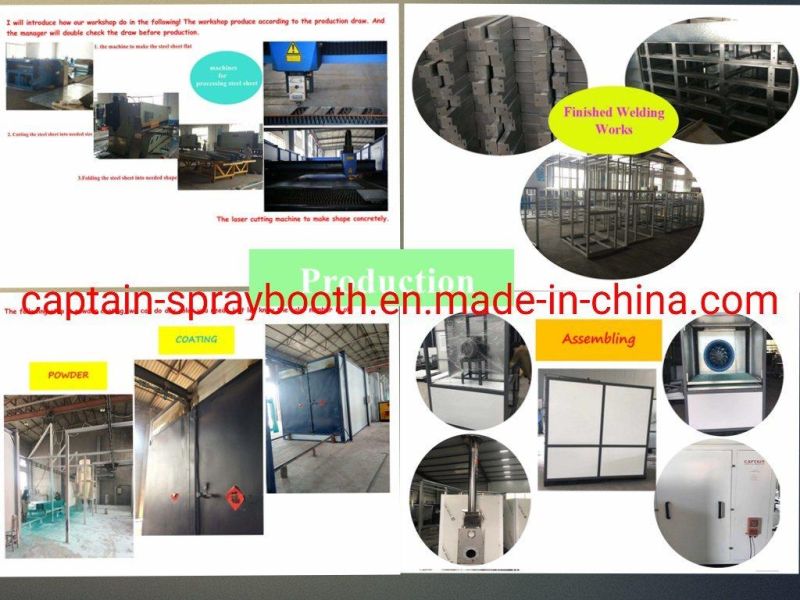

Production

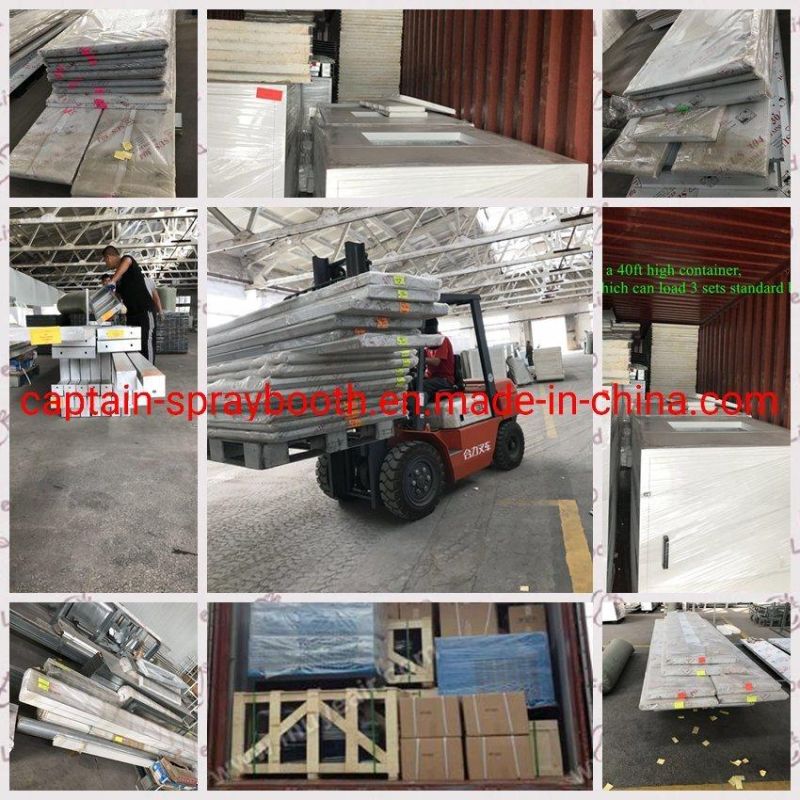

Package and Delivery
Installation
Real pictures of installed model
Workshop
Factory View
Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate
floor filter, exhaust active carbon filter
lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
limited-temperature device, most of electrical spare part is import, C.E standard
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
