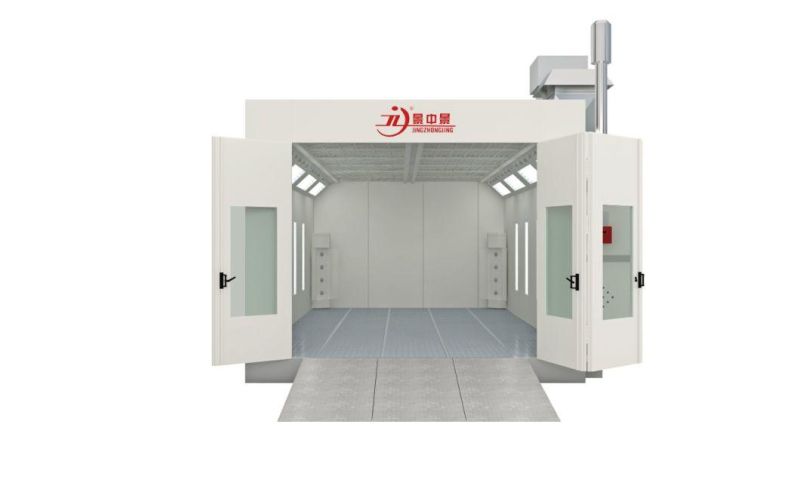

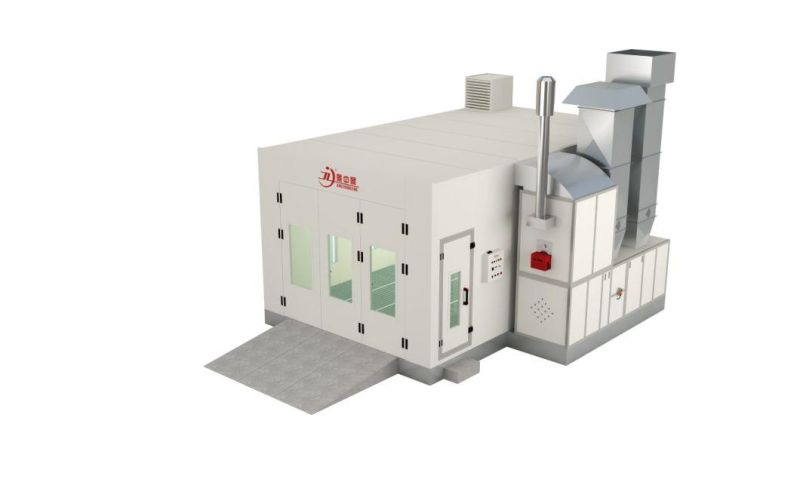

Large Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-Type

Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.
  • After-sales Service:1 Year
  • Warranty:1 Year
  • Type:Spray Booth
  • Certification:CCC, CE, ISO9001
  • Substrate:Steel
  • Brand:Jzj

Base Info

  • Model NO.:JZJ-9400
  • Coating:Painting
  • Airflow Direction:Fully Undershot-type
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Color:Sea Blue, Red, Orange, White
  • Motors:Proof-Explosion Motors
  • Lighting:External Lighting
  • Inside Dimension:6900*4000*2650(mm)
  • Heating System:Diesel Oil or Eletricity
  • Key:Paint Booth
  • Transport Package:Consist with International Shipping Packaging.
  • Specification:CE, ISO
  • Trademark:JZJ
  • Origin:Yancheng Jiangsu
  • HS Code:8419399090
  • Production Capacity:2500 Sets,Year

Description

17KWCabin systemWall panel  50mmEPS panel,  steel sheet thickness: 0.6mmCeiling panel Galvanized steel sheet.Basement300mm depth, middle with grids, two side with checkered plates.Rampthree pieces 2000*900mm rampsGlass6mm toughened glassWindowsSquare glass windowsAir Make-up SystemAir Inlet fan system1 * 7.5kw Belt-drive fan, proof-explosion motor, Ex ratedExhausted fan system1 * 7.5kw Belt-drive fan, proof-explosion motor, Ex ratedAi capacity25000m3/hAir Flowing speed0.3m/s in empty boothAir Control methodOne manual damper for air exhausted systemExhausted ducting4 meters air duct and one flop damperPurification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersM green fiber glass filter. Heating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:        Riello G20 diesel oil burner(gas burner for option)    Heating productivity                             180000Kcal/hSpray to baking switch20N BELIMO brand electrical damperChimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80degreesHeating time4-6min(20-60degrees)fuel consumption5-6L /vehicleLighting SystemCeiling lights8 Units, each 4 x 36W Philips lamps, Total 1152 WSide lights8 Units, each 4 x 20W Philips lamps, Total 800 WIllumination 1200LUXControlling systemSwitched control panel Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gaugeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-TypeLarge Size Car Painting Truck Garage Auto Spray Booth with Fully Undershoot-Type

Q: Which Port of loading?

A: Mainly ship from Ningbo port / Shanghai Port/Guangzhou Port.



Q: What is your MOQ?

A: All the products can be mixed in one container with low MOQ 1pcs.



Q: What is the Lead Time?

A: Normally it needs 20-25 days.



Q: What is the Payment Terms?

A: T/T/ 30% deposit before production and 70% before delivery.



Our Service
1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.

If you have interest in any of our products, please kindly contact us. If you have anu questions or doubts, please also feel free to contact us.
