Paint Stop with Fiberglass Material
Vitto Filter (Zhongshan) Co., Ltd.- Certification：CE, GS, UL
- Airflow Direction：Fully Undershot-type
- Heating Mode：Used Oil
- Paint Mist Treatment：Dry-type
- Update Method：by Email
- Transport Package：PE Bag
Base Info
- Model NO.：LHY350G
- Specification：0.75*20m, 0.8*20m, 2*20m
- Trademark：Vittofilter
- Origin：Zhongshan, Guangdong, China
- HS Code：790100010
- Production Capacity：500000sqm,Month
Description
Basic Info.
Model NO. LHY350G Specification 0.75*20m, 0.8*20m, 2*20m Trademark Vittofilter Origin Zhongshan, Guangdong, China HS Code 790100010 Production Capacity 500000sqm/MonthProduct Description

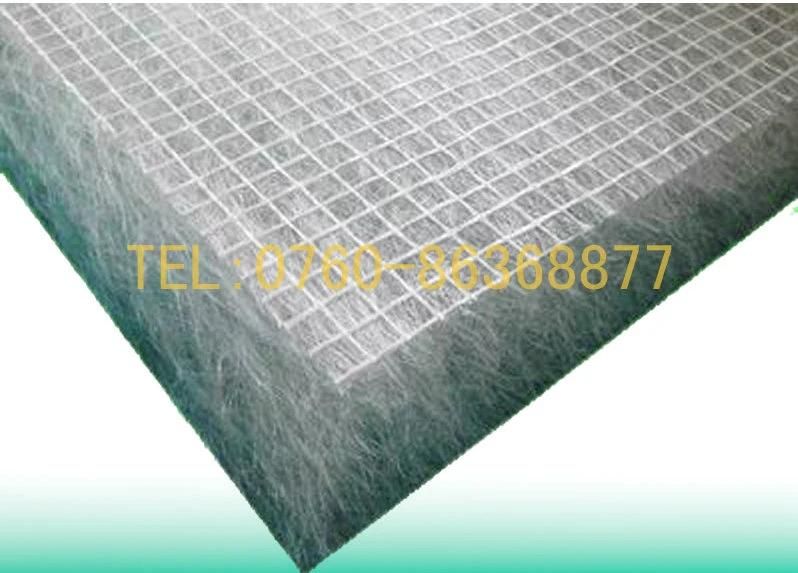

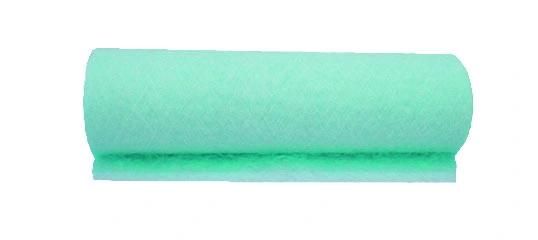

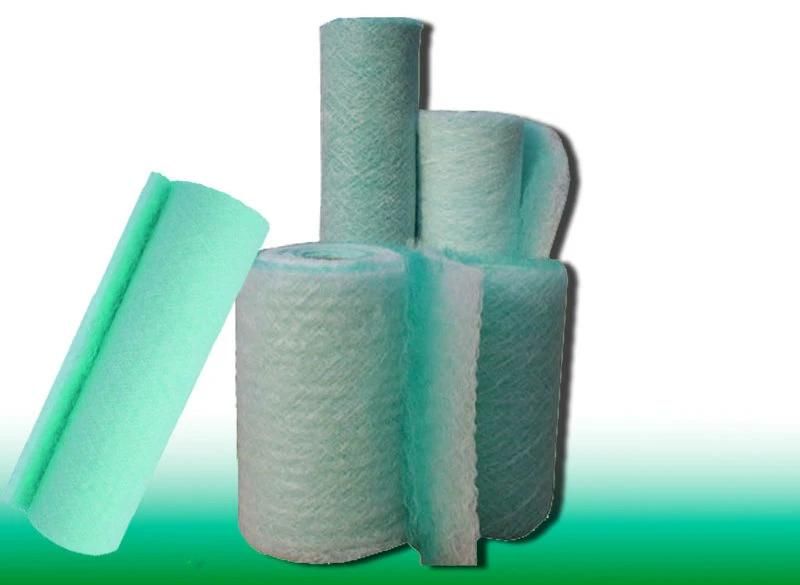

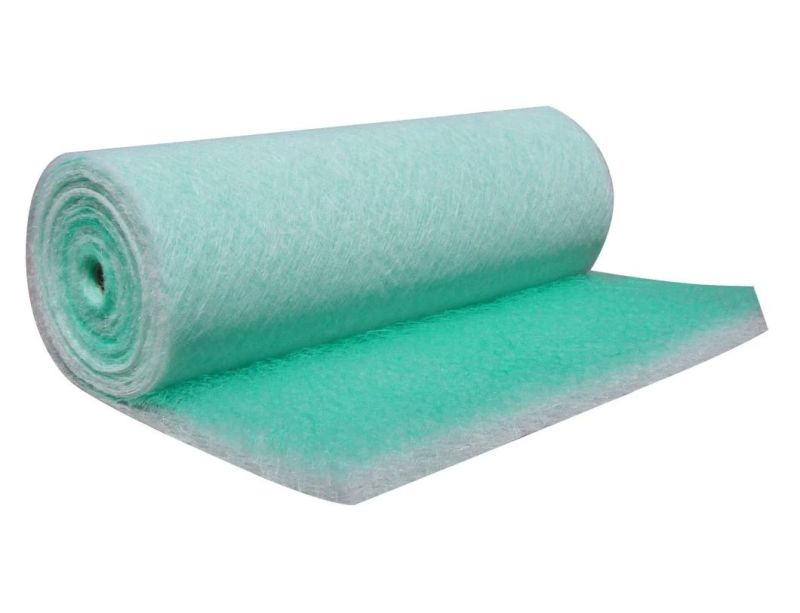

Paint arrestor LHYThe fiber glass paint arrestor is an environmental filter with green and white color, the density is increased orderly and the bottom density is the largest. It is able to prevent the short fiber spread, to collect the dissociative particles and to protect the air circulation system and the ceiling filtration systems.
Model:LHYWeight:300gr/sqmThickness:75~100mmAir Flow Rate:3780m3/hInitial Resistance:15paFinal Resistance:250paMedium Arrestance:76.60%Air Velocity:1.05m/sDust Holding:4330gr/sqmMax Temperature:3000CFiltration Class:G3(DIN 24185)Flame Resistance:F-1(DIN 53438)
