• Model NO.：YS-100-C
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Ventilation：Semi Downdraft Airflow Way
• Air Intake：5.5kw Double Intake Centrifugal Fan
• Air Exhaust：5.5kw Double Intake Centrifugal Fan
• Heating：Riello G10 Diesel Burner
• Voltage：1X220V, 3X380V, Your Special Voltages Are Accepted
• Optional Colour：White, Blue, Orange and Red
• Port：Huangpu Port or by Your Order
• Main Product：Spray Booth, Prep Station, Infrared Curing System
• Transport Package：Bubble Film Packing for Sea Transportation in Bulk
• Specification：20′GP can load 2 sets, 40′GP 5 sets, 40`HQ 6 sets.
• Trademark：YOKISTAR
• Origin：Guangdong, China
• HS Code：84198990
• Production Capacity：180units,Month

Basic Info.

Model NO. YS-100-C Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Ventilation Semi Downdraft Airflow Way Air Intake 5.5kw Double Intake Centrifugal Fan Air Exhaust 5.5kw Double Intake Centrifugal Fan Heating Riello G10 Diesel Burner Voltage 1X220V, 3X380V, Your Special Voltages Are Accepted Optional Colour White, Blue, Orange and Red Port Huangpu Port or by Your Order Main Product Spray Booth, Prep Station, Infrared Curing System Transport Package Bubble Film Packing for Sea Transportation in Bulk Specification 20′GP can load 2 sets, 40′GP 5 sets, 40`HQ 6 sets. Trademark YOKISTAR Origin Guangdong, China HS Code 84198990 Production Capacity 180units/Month

Product Description

Product Details
**Model:YS-100-C
**Inside dimention:6300*3450*2700mmL*W*H
**Any Size Requirements Can Be Met
**with plenum,intake and exhaust air fan



 Function

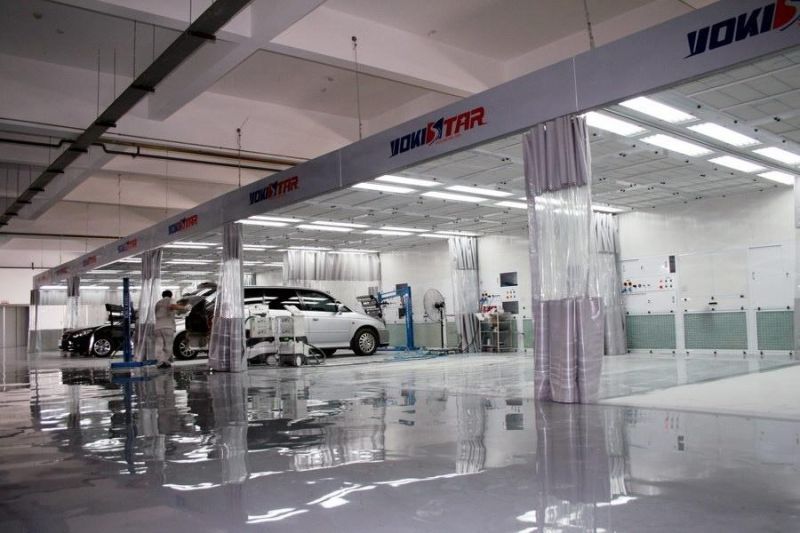

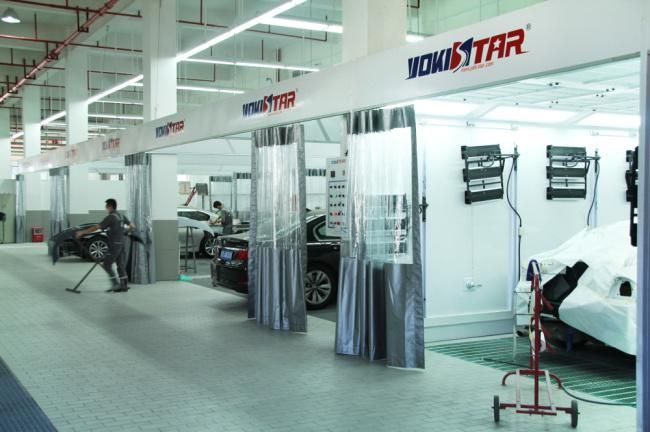

A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts
D. Optional heat units are available for high production needs.

Prep Station Conveying and Storage
 As prep station are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. Be noticed to make sure that the parts are not damaged and dilapidated in the loading and unloading process.

The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by


Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

Outside Dimension	7550×3550×3100mm(L×W×H)
Inside Dimension	6300×3450×2700mm(L×W×H)
Plenum Dimension	6300×3450×400mm(L×W×H)

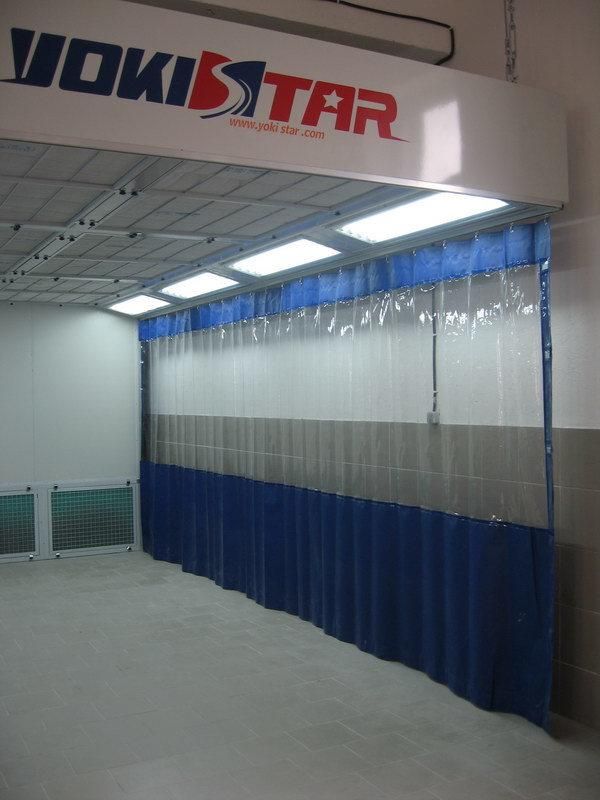

Room Body	Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains
Lighting System	Ceiling lights 8units×4pcs=32pcs 36W, with electronic ballasts ,5.0mm clear tempered glass
Generator Setting	Exhaust air from rear side; galvanized steel molding frame , white coated steel cover
Intake and Exhaust Air System	5.5KW double intake centrifugal fan for intake air, 5.5KW double intake centrifugal fan for exhaust air, model YDW-4.5S, air capacity is 15500 m 3 /h, with manual damper for exhaust air
Heating System	RIELLO G10 oil burner, stainless steel heat exchanger. Max. heating productivity: 100000 Kcal/h.
Filter System	Pre-filter, high efficiency filter, exhaust fiberglass filter.
Roof Plates	Galvanized steel plates
Control System	Fan operation switch, lighting switch, temperature controller, emergency stop
Setting Style	Suspending steel hook from roof of building or steel column supporting;
