• Model NO.：SJG3.5-3
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Power：220V, 240V, 380V, 400V or Other
• Install：Underground
• Type of Products：Hydraulic Scissor Car Lift
• Color：Red, Blue, Orange, Gray or as Your Request
• Motor：Customer Required Brand or Chinese Famous Brand
• Safety Device：Explosion Proof Lock Valve, Emergency
• Lift Height：3000mm
• Keywords：Scissor Car Lift
• Application：Car Scissor Lift with Hot DIP Galvanized Pattern P
• Lift Platform Size：5.5m*2.6m
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：3600 Set Per Year

 The car scissor lift can be customized as your detailed size.

Feature:

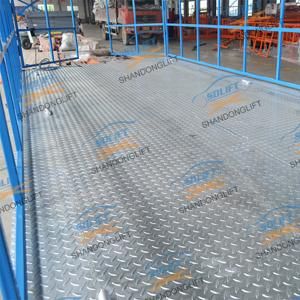

1) Hot dip galvanized can protect the platform exposed outside of the pit not to be corrosion.

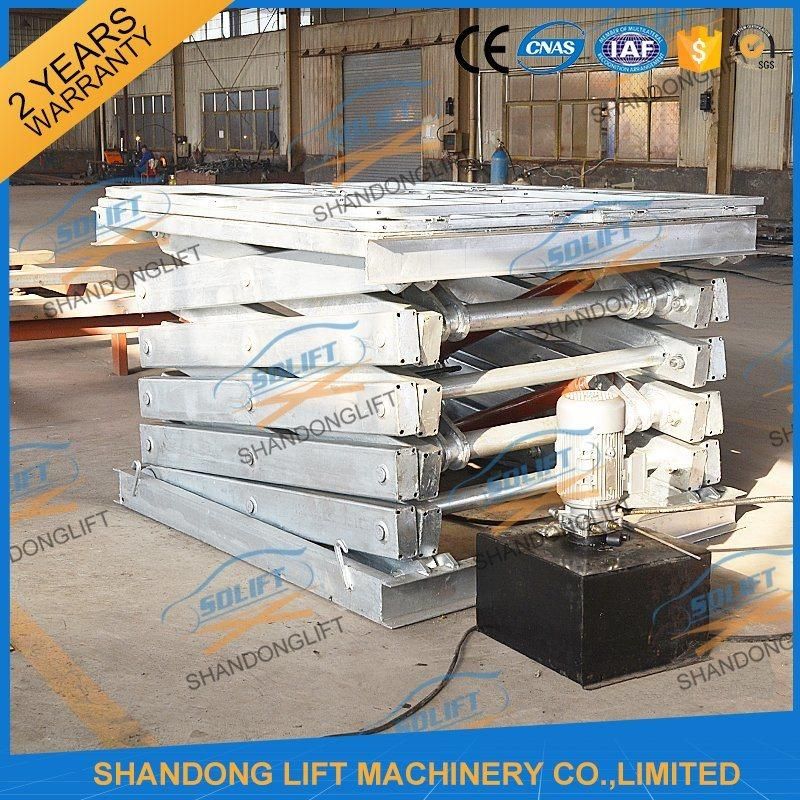

2) Not only the platform can be galvanized, the overall lift is also same.
Configuration:

1) Platform Material:rectangular tube + checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 380V/3.0Kw or as your requests.

4) High Precision Hydraulic Cylinder.

5) Piston Rod: hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

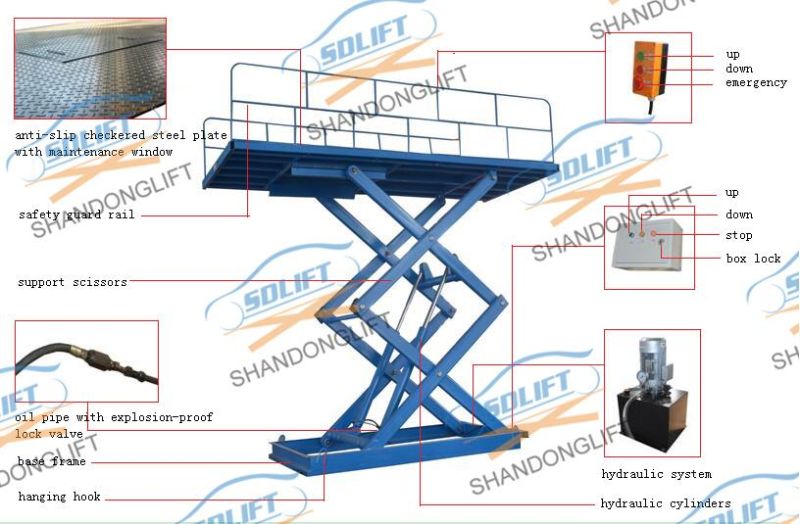

Parts showing:

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps car scissor lift to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the car scissor lift are passed 1.2 times loading test before leaving factory.

Our services:

1) We can design the customerized car scissor lift as per your requirement.

2) The most suitable car scissor lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) Two year warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
