Spray Booth/Paint Booth with Customized Design

Qingdao Hua Yushun Commercial Co., Ltd.
  • Warranty:24 Month
  • Type:Spray Booth

Base Info

  • Model NO.:Customized combination booth
  • Certification:CE
  • Substrate:Sandwich Panel
  • Brand:Captain
  • Coating:Painting
  • Airflow Direction:Fully Undershot-type
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Outside Size(mm):7000X5350X3300
  • Inside Size(mm):6900X3900X2650
  • Front Door(mm):3000X2600(Wxh)
  • Total Power:16kw
  • Basement:3 Rows Diamond Plate, 2 Rows Grids
  • Cabin System:50mm EPS Panel
  • Ventilation System:2X4kw for Intaking, 1X5.5kw for Exhausting
  • Lights:LED Type
  • Heating System:Italy Riello G20 Diesel Burner
  • Certificate:Ce
  • Transport Package:Export Container ,Pallet ,Disassembly with Carton
  • Specification:SGS, ISO
  • Trademark:OEM,Captain
  • Origin:Jiangsu, China.
  • HS Code:8424899990
  • Production Capacity:196sets,Month
  • Package size per unit product:6900.00cm * 3900.00cm * 2700.00cm
  • Gross weight per unit product:3960.000kg

Description

Basic Info.

Model NO. Customized combination booth Certification CE Substrate Sandwich Panel Brand Captain Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Outside Size(mm) 7000X5350X3300 Inside Size(mm) 6900X3900X2650 Front Door(mm) 3000X2600(Wxh) Total Power 16kw Basement 3 Rows Diamond Plate, 2 Rows Grids Cabin System 50mm EPS Panel Ventilation System 2X4kw for Intaking, 1X5.5kw for Exhausting Lights LED Type Heating System Italy Riello G20 Diesel Burner Certificate Ce Transport Package Export Container /Pallet /Disassembly with Carton Specification SGS, ISO Trademark OEM/Captain Origin Jiangsu, China. HS Code 8424899990 Production Capacity 196sets/Month

Packaging & Delivery

Package size per unit product 6900.00cm * 3900.00cm * 2700.00cm Gross weight per unit product 3960.000kg

Product Description

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .

1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement


Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!

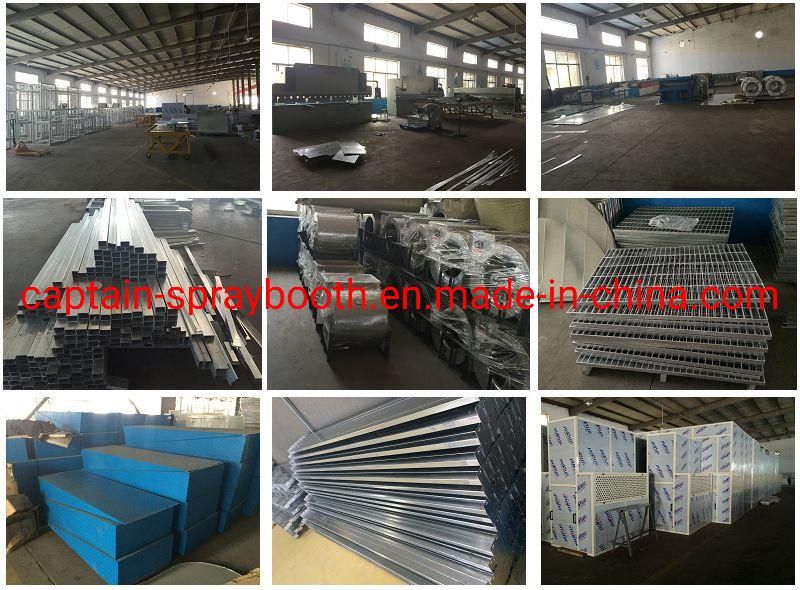

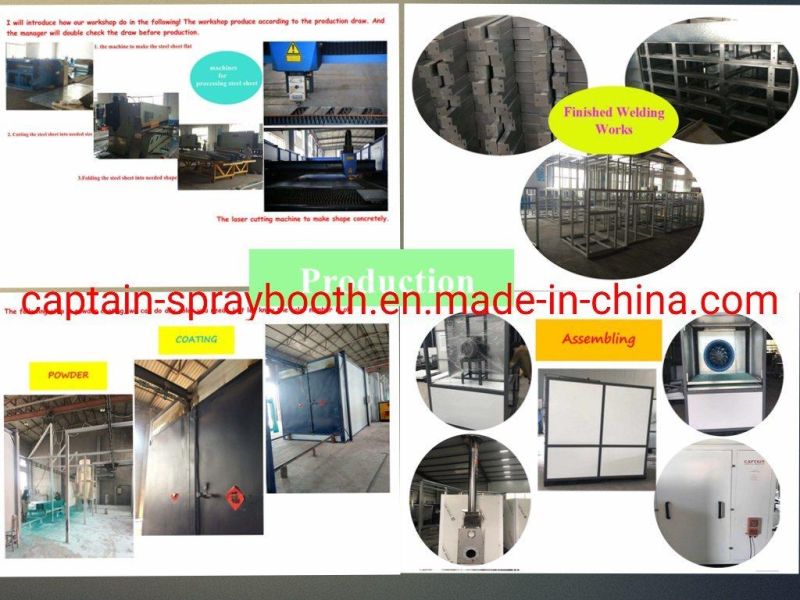

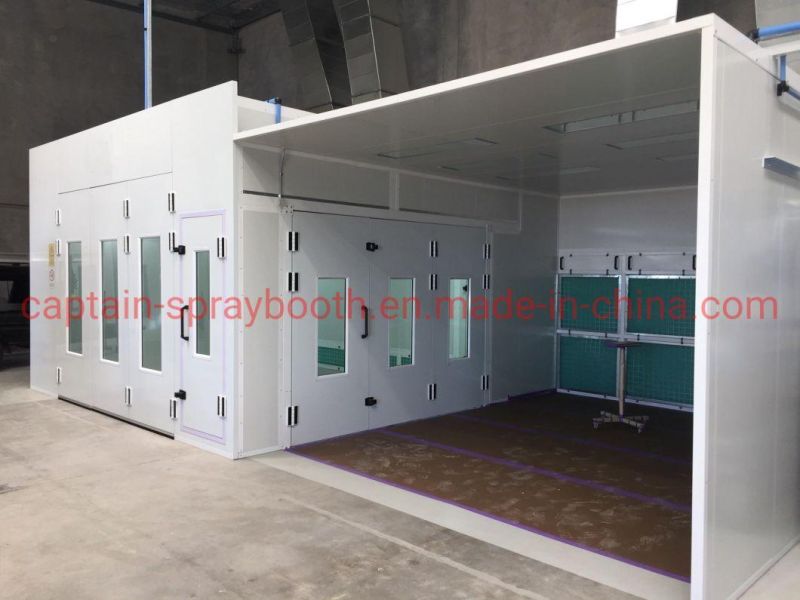

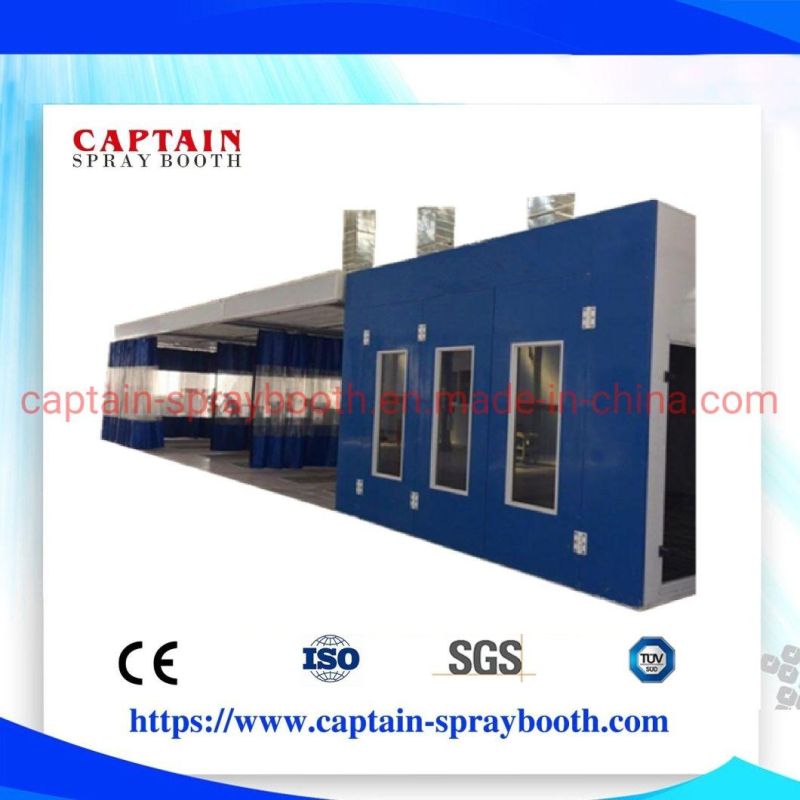

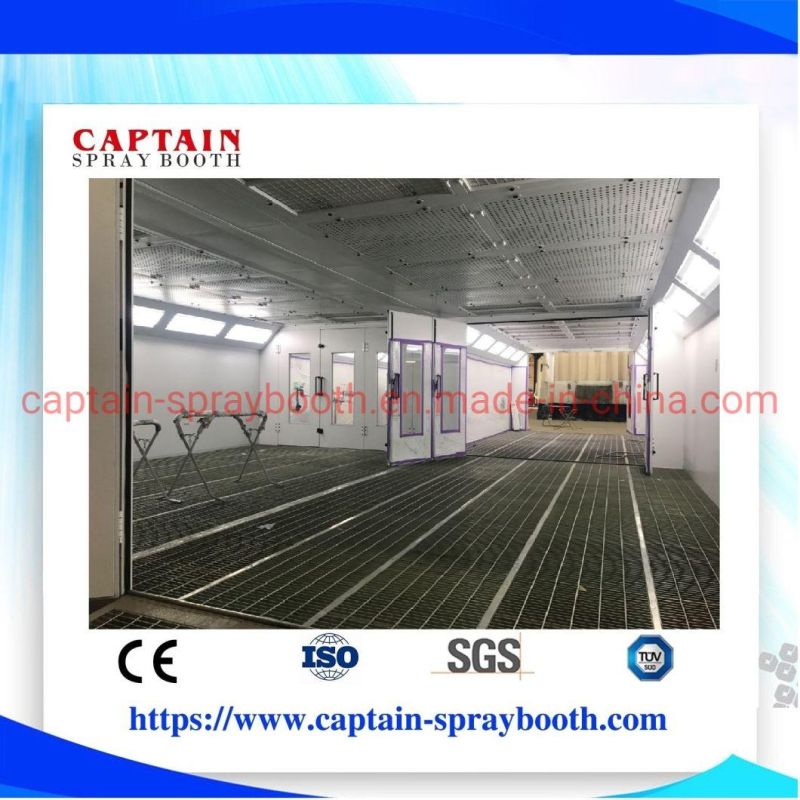

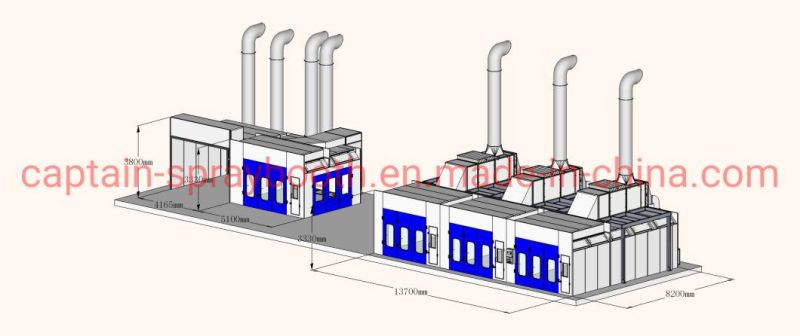

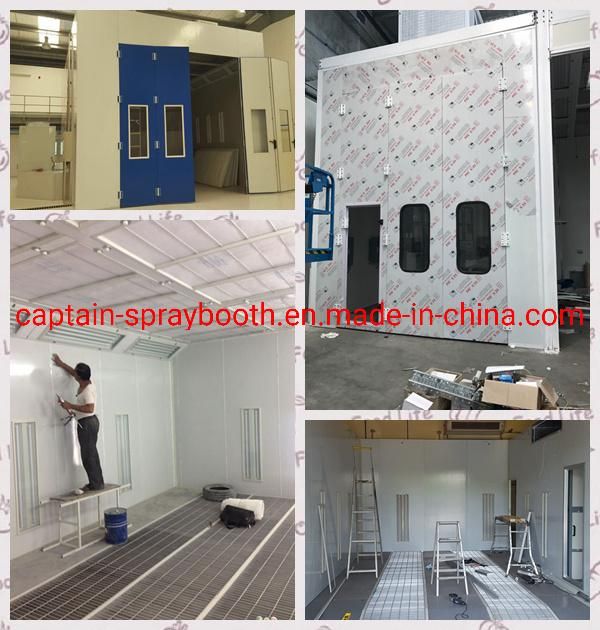

This is our real photos of customized conbinetion booths : 3 sets spray booth ,one set oven and one set open face booth

If you have any requirements , please feel free to contact me .
Spray Booth/Paint Booth with Customized Design
Spray Booth/Paint Booth with Customized Design


Spray Booth/Paint Booth with Customized Design





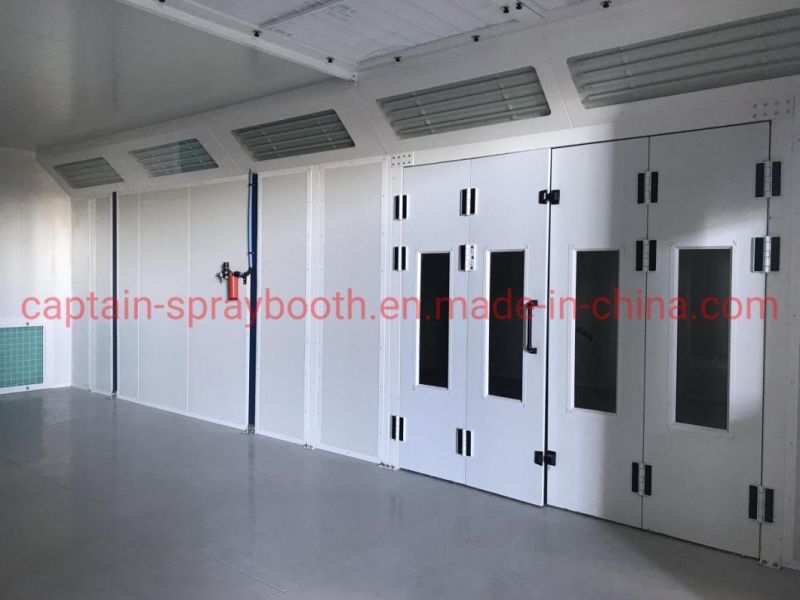

This model is our luxury model for 4S repair shop,it's popular for Europe,please check the details,aslo we can design the booth according to your needs,so just tell me your requirements,we will give you the best solution.
ItemsSpecifications
Outside Dimension7000×5350×3400mm(L×W×H)
Inside Dimension6900×3900×2700mm(L×W×H)
Main Door3-folds: 3000×2600mm (W×H),  aluminium alloy door frame
Personal Door1-fold: 750×2000mm (W×H),aluminium alloy door frame
Wall panelEPS colorful steel skin panel,50mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel.
Basement & FloorComplete steel assemble, height is 300mm,  5 rows grilles on the metal basement, 2 Pcs ramps: 630×1800mm (W×L)/pc
Lighting SystemCeiling Lights: 8Units×4Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.
Optional : Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, vertically set,power-coated light box.
Generator SettingIntake air from side back direction, quadrate steel frame, colourful coated steel plate
Intake Fan2 sets of double-intake centrifugal fans for intake air, direct drive,4kw each,air capacity 12500m3/h in total.
Extract Fan1 set of double-intake centrifugal fan for exhaust air, direct drive,5.5kw, air flow 15000m3/h in .
Number Of Air Changes (times/hour)290
Wind Velocity At Full Load Inside The Room(M/S)0.3m/s
Heating System1set Riello G20  brand diesel oil burner, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle .
Maximum Working Temperature80
Heating Rate(/min 20--60)4-6
Filtering SystemPre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter.
Control PanelSpraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch
Filter   Efficiency≥98%
Noise(db)≤75
ColourBlue,red,white,Orange, Grey
Total power(Kw)16KW

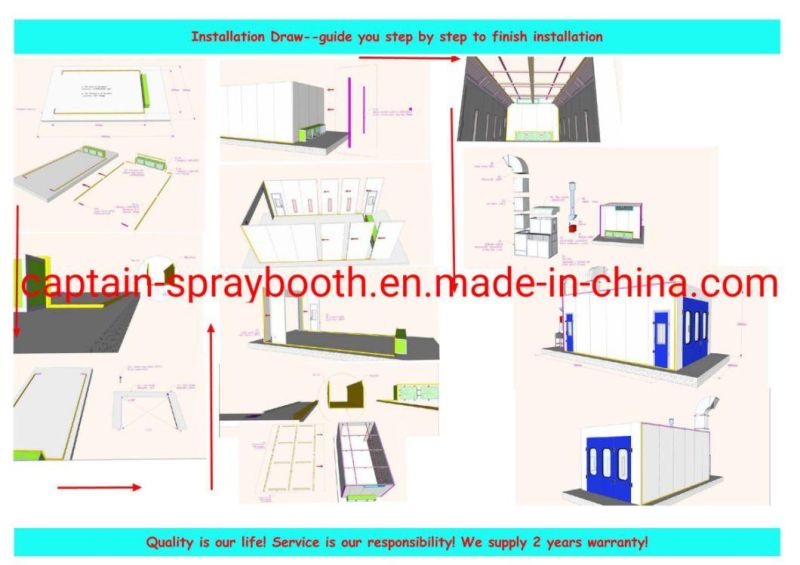

Delivery time : after received you payment ,we will produce , for this standard model ,
the delivery time is 2-3 weeks .
Payment term: 50% TT IN ADVANCE , 50 % before delivery
After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)
when your workers unloading the goods, If they find something damaged during transit by sea,
please take the pictures of the damage in the container and we will reissue you or give you some compensation.
(Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)
