Cylinder Boring Machine Bm200
Shanghai Shenji International Co., Ltd.- Control：CNC Touch Screen for Automatic 2 Axis
- Spindle：Quick Change Spindle System
- Transport Package：Inner Is Aluminum Foil Bag, out Is Wooden Case
- Specification：CE by TüV Rheinland
- Trademark：SJMC
- Origin：Shanghai, China
Base Info
- Model NO.：BM200 BM160
- HS Code：84593900
- Production Capacity：5 Sets , Month
Description
Basic Info.
Model NO. BM200 BM160 HS Code 84593900 Production Capacity 5 Sets / MonthProduct Description

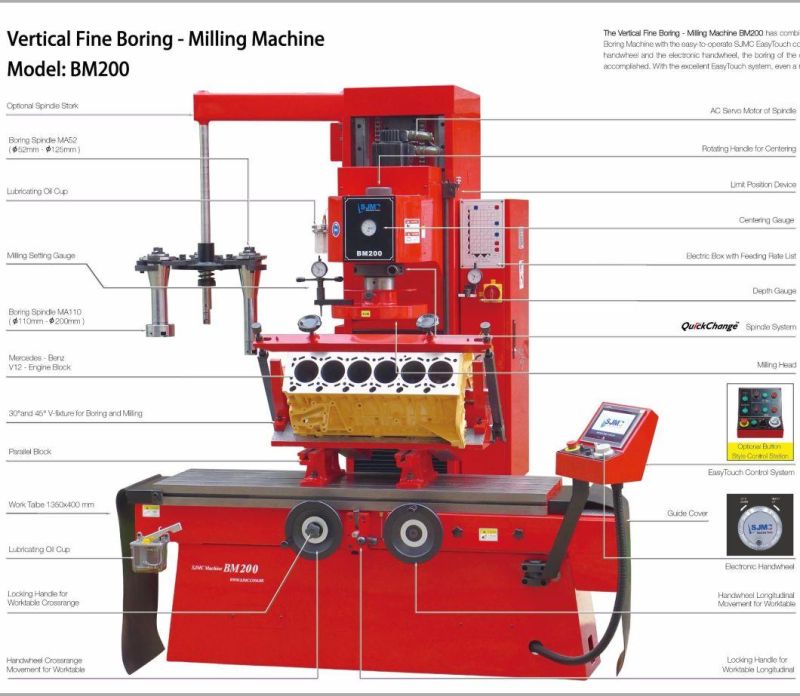

The Vertical Fine Boring - Milling Machine BM200 has combined all functions and simple performance of the traditional Cylinder Boring Machine with the easy-to-operate SJMC EasyTouch control system. Through the joint operation of the standard mechanical handwheel and the electronic handwheel, the boring of the cylinder body and the machining of the milling plane can be easily accomplished. With the excellent EasyTouch system, even a new hand can easily learn to operate the machine.
BM200 is especially suitable for precision work of engine refitted : boring , milling , stepped hole machining , groove machining ..... guarantee the high consistency of all processing
Feature:
1. spindle with boring cutter can directional start and stop for boring
2. Precise Zero set control of Z-Axis
3. Repetitive position precision of Z-Axis ≤ 0.005 mm
4. QuickChange - Spindle
5. Unilateral engagement of boring is 1.2 mm
6. Optional 3 axis DRO.
