AS/NZS Standard Customized Full Downdraft Auto Car Painting Rooms
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
Base Info
- Model NO.：IT-1101A-21
- Paint Mist Treatment：Dry-type
- Condition：New
- Walls：Rock Wool Walls
- Lights：LED Lamp
- Fan Unit：2X11kw, Direct Drive
- Air Volume：35,000m3,H
- Empty Loaded Air Speed：0.31m,S
- Warranty：2 Years
- Noise：<78dB
- Grids：800kg,Wheel
- Basement：Raised Basement, 350mm High
- Illumination：1000lux
- Heat Exchanger：232kw
- Burner：Riello Diesel Burner Rg5d
- Control：Touch Screen Control Panel
- Voltage：380V, Can Be Adapted
- Plenum：600mm High
- Transport Package：Cargo Packed on Metal Frames Handled by Forklifts
- Specification：7000*4500*2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets , Year
Description
CE Compliance Customized Spray BoothITEMS SPECIFICATIONS Design standard AS/NZS 4114.1:2003 Internal dimensions 7000 X 4500 X 2800mm (L X W X H) External dimensions 7110 X 6070 X 3810mm (L X W X H) Airflow type Full downdraft Plenum 600mm high Entrance door 2850x2700mm (WxH), 1 set Service door 800x2000mm(WxH), 1 set Ceiling lights (LED) 6 sets, each 4 X 18W,432W total Sidewall lights (LED) 8 sets, each 2 X 18W, 288W Brightness >1,000LUX Filters Pre-filter bag filter, ceiling filter, floor filter, exhaust filter Intake / Exhaust unit Direct-type turbine fan, 2x11KW Air volume 35,000m3/h Empty loaded air speed 0.31m/s Heats 232KW, RIELLO RG5D diesel burner Maximum working temperature 80ºC Temperature increase capacity 25ºC (from -5ºC to 20ºC) Heating time 5-8min (from 20ºC to 60ºC) Control Touch screen control, with stack light Inverter SCHNEIDER inverter as option Rated power 28KW
4. LOADING PHOTOS

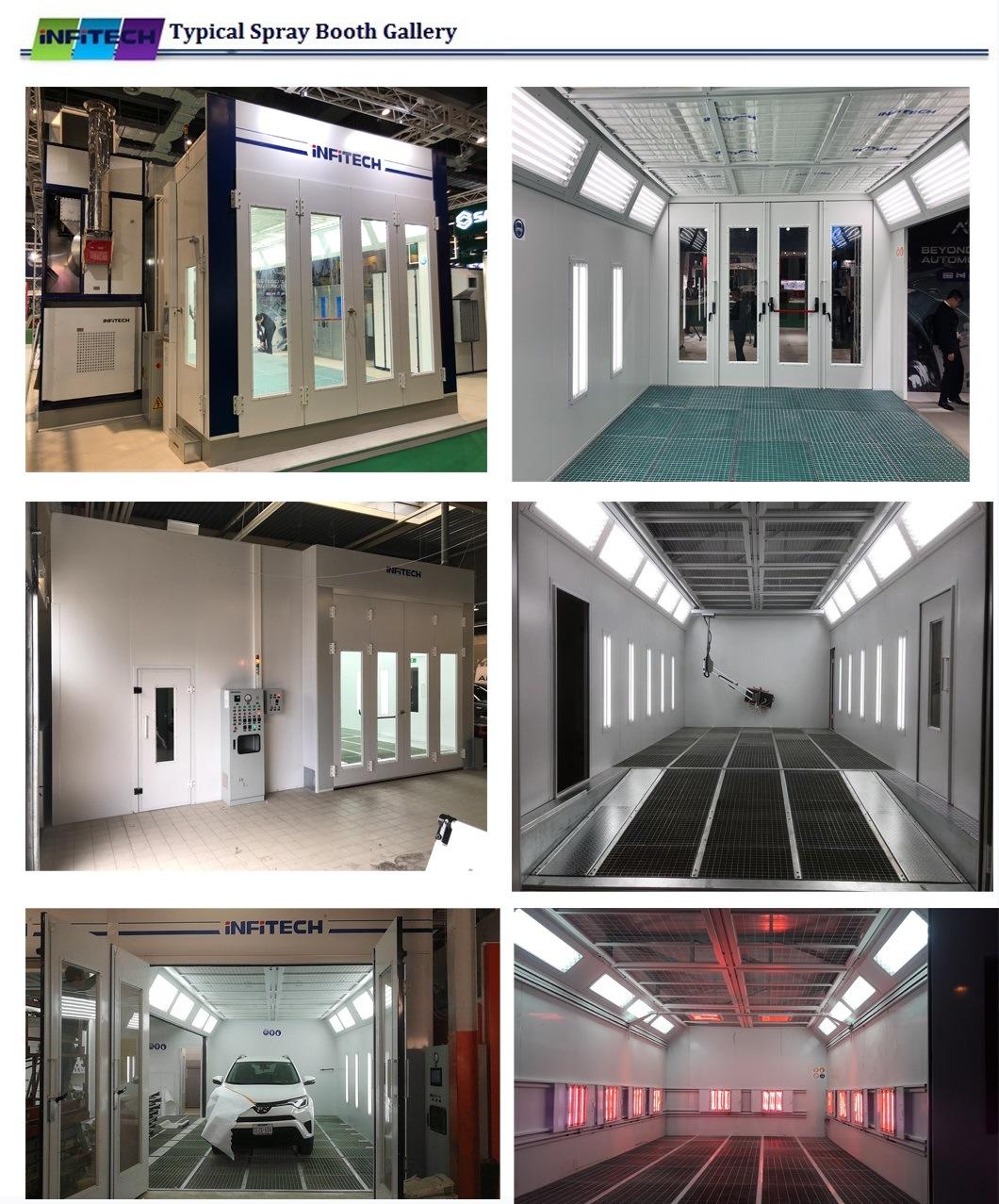

5. TYPICAL PROJECTS

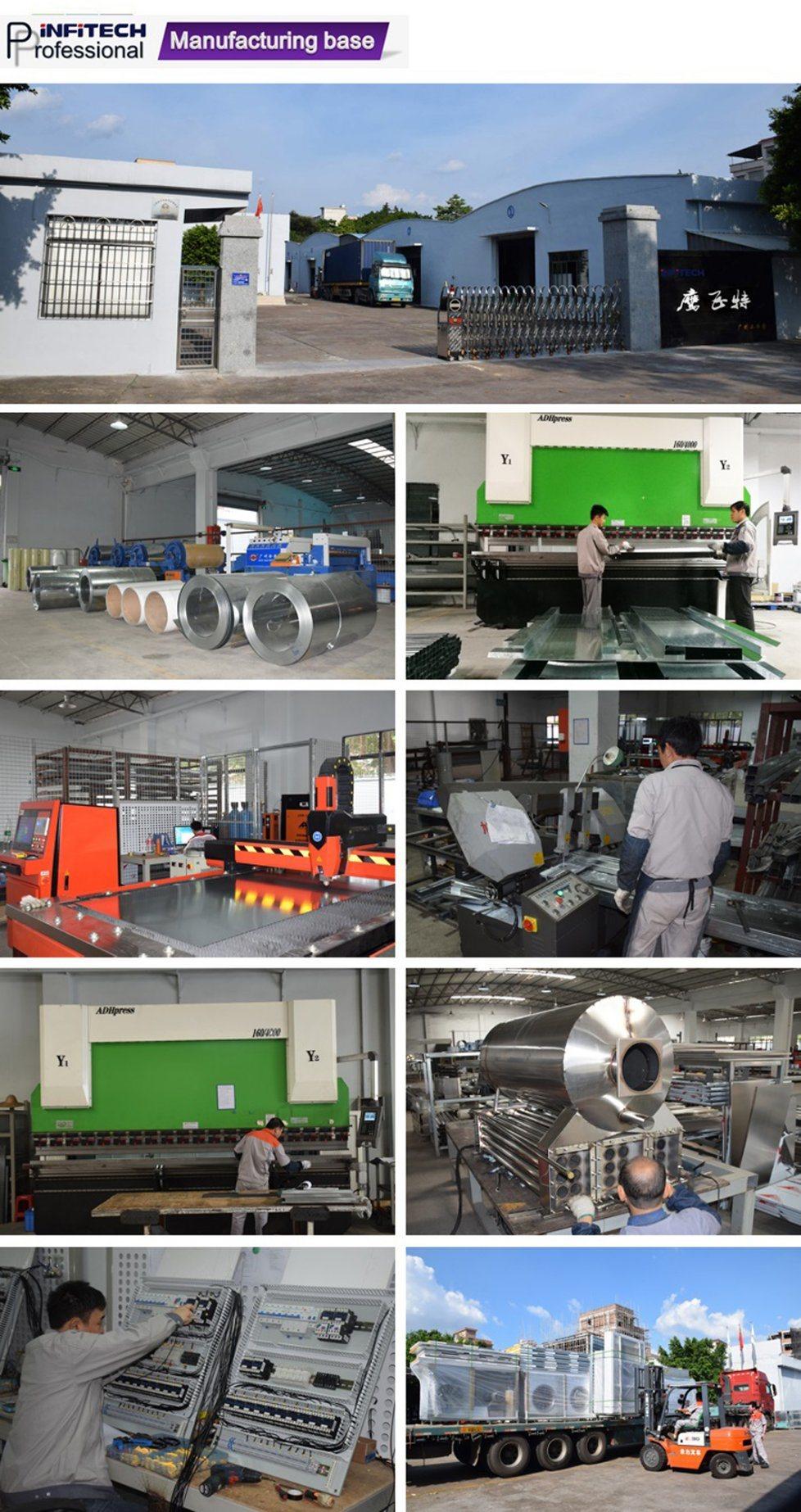

6. FACTORY PHOTOS
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
