• Model NO.：HY-CB55B1
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：White, Blue, Red
• Panel：50,75mm EPS Foam Panel
• Grate：2rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filter System
• Upper Light：Available
• Side Lights：Optional
• Control Box：English Panel
• Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Car Lift,Tire Changer,Wheel Balancer
• Transport Package：Standard Package for Sea Shipment
• Specification：25cbm
• Trademark：N,A
• Origin：China
• HS Code：84198990
• Production Capacity：100sets Per Month



Inhaling
Ventilator
 Model:  YDW-4.5L1
Capacity:  24000m³/h
Pressure:  800Pa
Rolling Speed:  900rpm
Power: 4kW
Quantity:  2sets

Exhaust VentilatorModel: YDW5.6M
Capacity: 21000m3/h
Pressure: 800Pa
Velocity: 900rpm
Power: 5.5kW
Quantity: 1Set
Electric dampers actuate from spraying to baking cycle, equip with electric damper for exhaust air.
Generator: back upper intake air, back up extract air, quadrate steel frame,coated steel;
Air purification system: 1. G3 grade, Pockets filter,
2. EU5 / F5 high efficiency filter (ceiling filter),
3. green fiber glass filter / G3 grade floor filter;
4. Pocket filter or M green fiber glass filter and active carbon exhaust fan filter(for option).
Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set;
Spray to baking switch: 20N Electrical Actuator
Chimeney Duct: 1 meters straight ducting and one chimney hood(longer chimeney for option)
heating time is 5~7 minutes;
Max heating temperature: 80degree;

Lighting system: ≥900Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W ;
Side lights: 8GroupsX2Pcs=16Pcsx36W(for option);
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 17.5KW

Explain:
Changed to metal sheet front door, the color sheet using 0.8 galvanized sheet powder coating made, the structure more secure and firm.
aluminium alloy edge cabinet

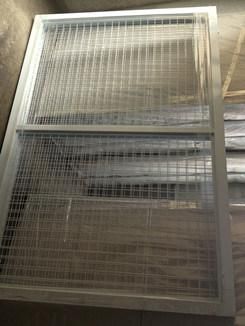

 ceiling filter support mesh



Explain:using galvanized sheet bend Ceiling filter support mesh, more convenient to change
