• Model NO.：A530+
• Transport Package：Export Packing
• Trademark：baphua
• Origin：Guangzhou
• Production Capacity：5000,Year

Project

Measuring range

 Accuracy

Toe-in & Toe-out

±20'

 ±0.03°/2'

Camber

±20'

 ±0.03°/2'

Caster

±20'

 ±0.03°/2'

Kingpin Inclination

±30'

 ±0.03°/2'

Axle base difference

±2mm

Feature introduction

Rolling offset compensation:

1.Offset compensation is used to eliminate the measurement errors caused by mounting and rim out-of-round.

2.Revised offset compensation just need to move the vehicle forward and backward.

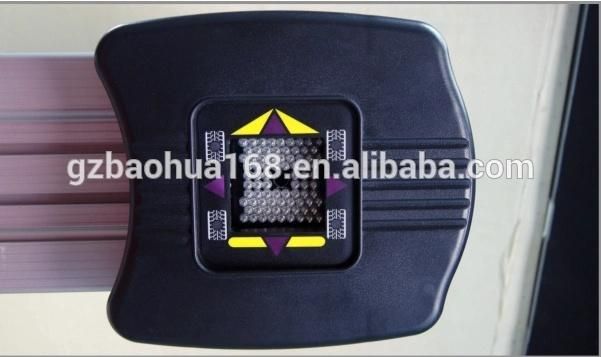

5 million high-definition pixels camera

1.Industrial 5 million high-definition pixels camera ensure measurement accuracy and speed.

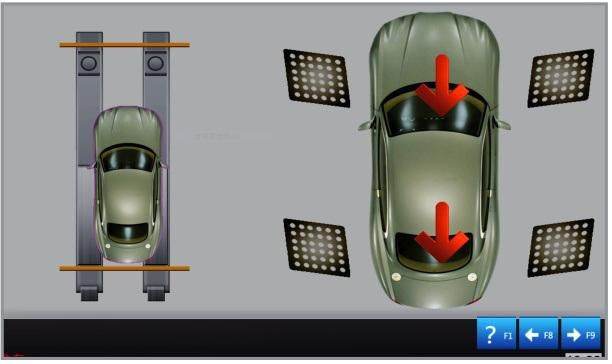

2.Can be used to guide the alignment  steps.

3.LED light board to monitor the surrounding work environment.

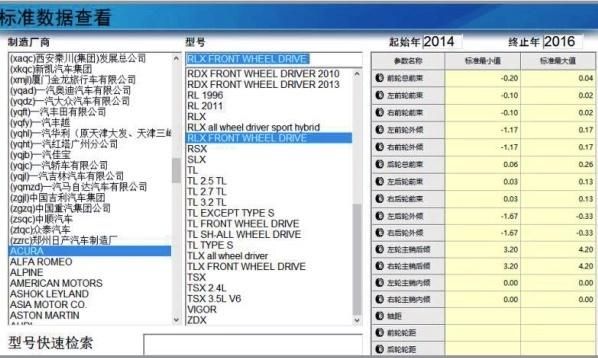

Comprehensive model database

1.Rich domestic database, covering the majority of domestic models.

2.It comes with a global model database , covering most European and American ,Nissan models.

3.Automatically storage the new models, then it can quickly recognize next time.

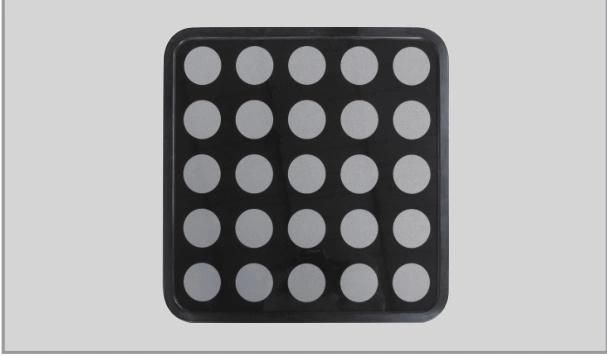

New type target

1.V3D Improved type target board,it is  durable,and four wheel can be used interchangeably.

2.It doesn't have any electronic components on the target board , so you just need to clean the dust in daily maintenance.

3.V3D new machine one-time precision correction, no need calibration regularly.

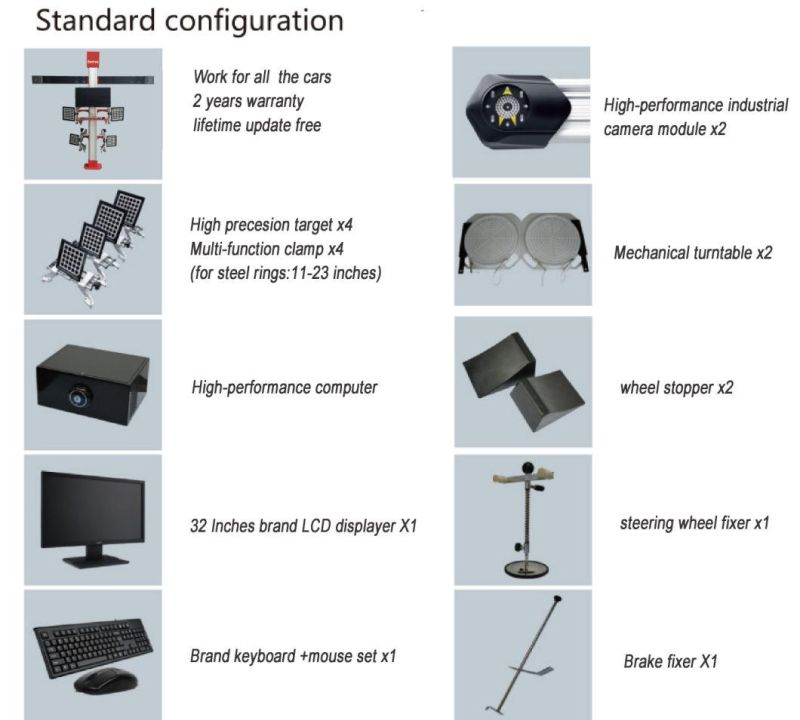

More Accessories:
