Garage Paint Booth Paint Spray Booth Garage Equipments with Car Jack
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-PRB-6100D
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Electric
- Paint Mist Treatment：Dry-type
- Condition：New

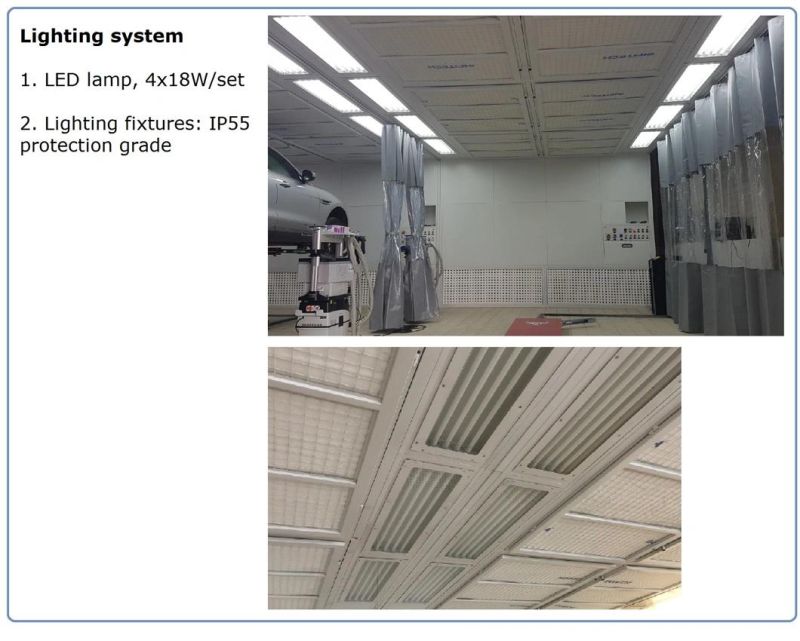

- Lamp：LED Lamps

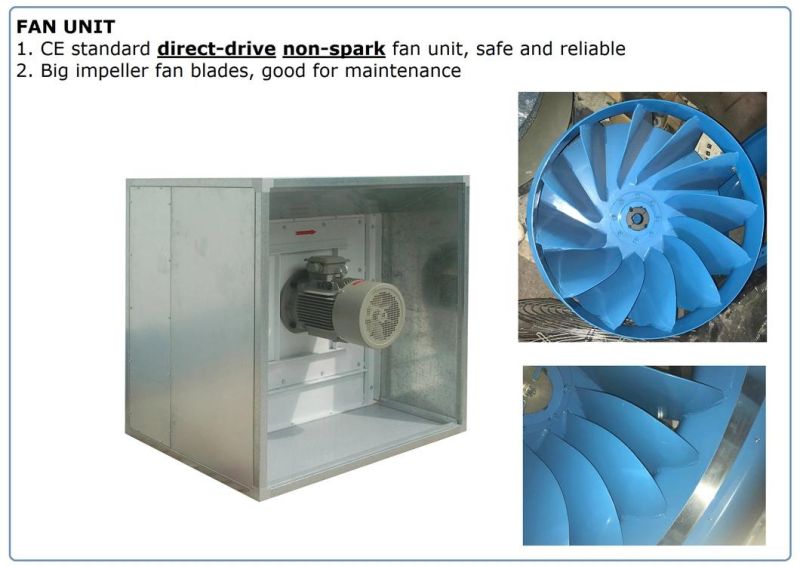

- Fan：Direct Drive, Intake and Exhaust Fan
- Motor：2X5.5kw, Siemens

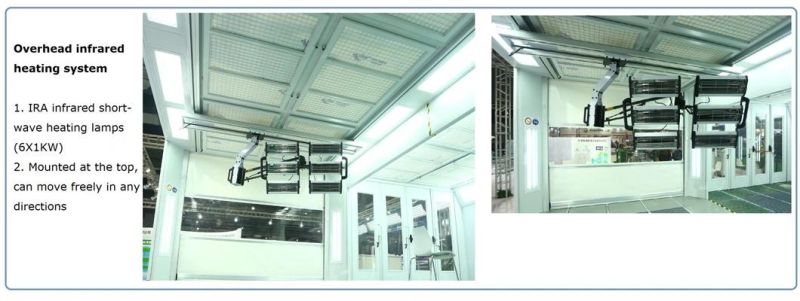

- Heats：Infrared Heating
- Brightness：>800lux
- Air Volume：20,000m3,H
- Empty Loaded Air Speed：0.25m,S

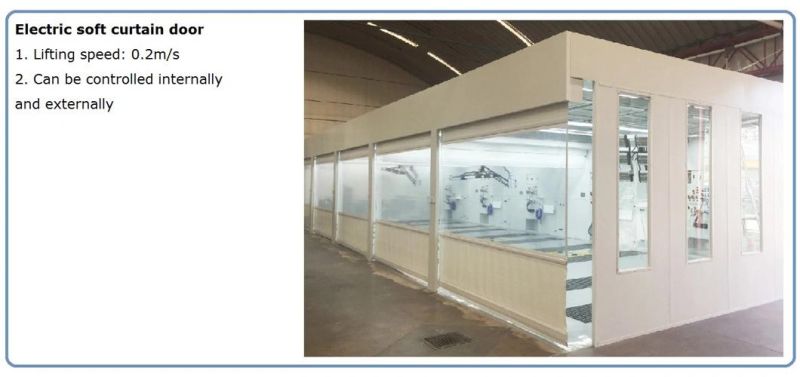

- Doors：Electric Soft Curtain Doors
- Rated Power：20kw
- Transport Package：Cargo Packed on Pallets Handled by Forklifts
- Specification：6100*3550*2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
Garage Paint Booth Paint Spray Booth Garage Equipments With Car JackITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009

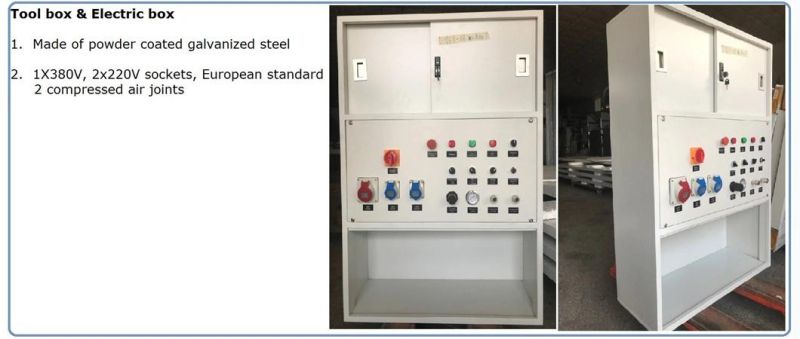

BS EN 60204: 2006+A1:2009 Internal dimensions 6100 X 3550 X 2800mm (L X W X H) External dimensions 7250 X 3650 X 3260mm (L X W X H) Airflow Downdraft Plenum 400mm high, suspended or supported by columns Extraction Through pit Extraction area 6.8m2 Entrance door 3350x2400mm (WxH), 1 set, electric soft curtain door Divider door 5860x2400mm(WxH), 1 set, electric soft curtain door Ceiling lights (LED) 8 sets, each 4 X 18W, 576W total Brightness >800LUX Filters High efficiency ceiling filter, floor filter, exhaust filter Intake / Exhaust unit Direct-type turbine fan, 2x5.5KW Air volume 20,000m3/h Empty loaded air speed 0.25m/s Heats Overhead infrared curing lamp, 6x1kw/set Tool box & electric box Integrated in the back wall Inverter Inverter as option Rated power 20KW
3. Details
4. Packaging and loading photos

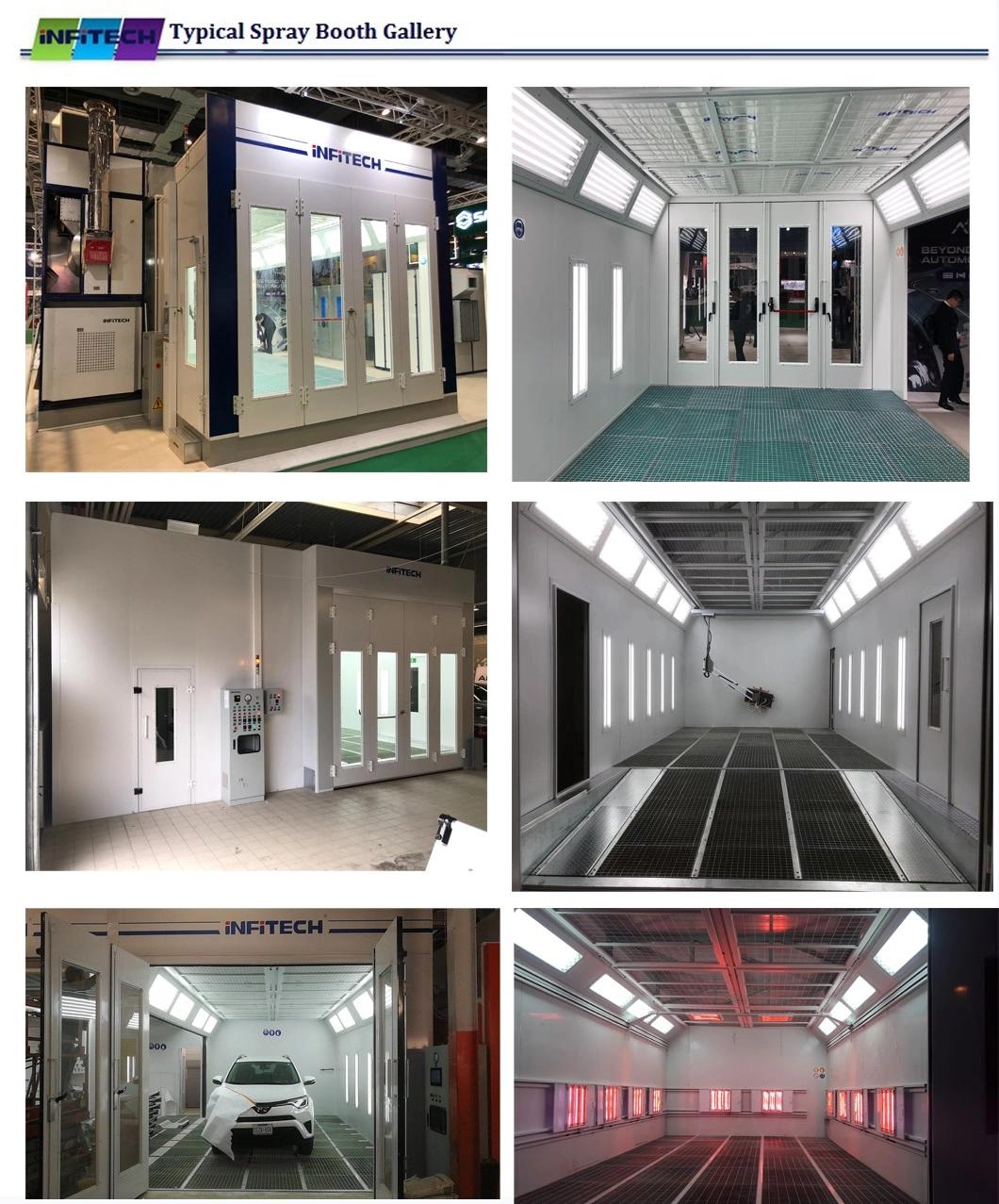

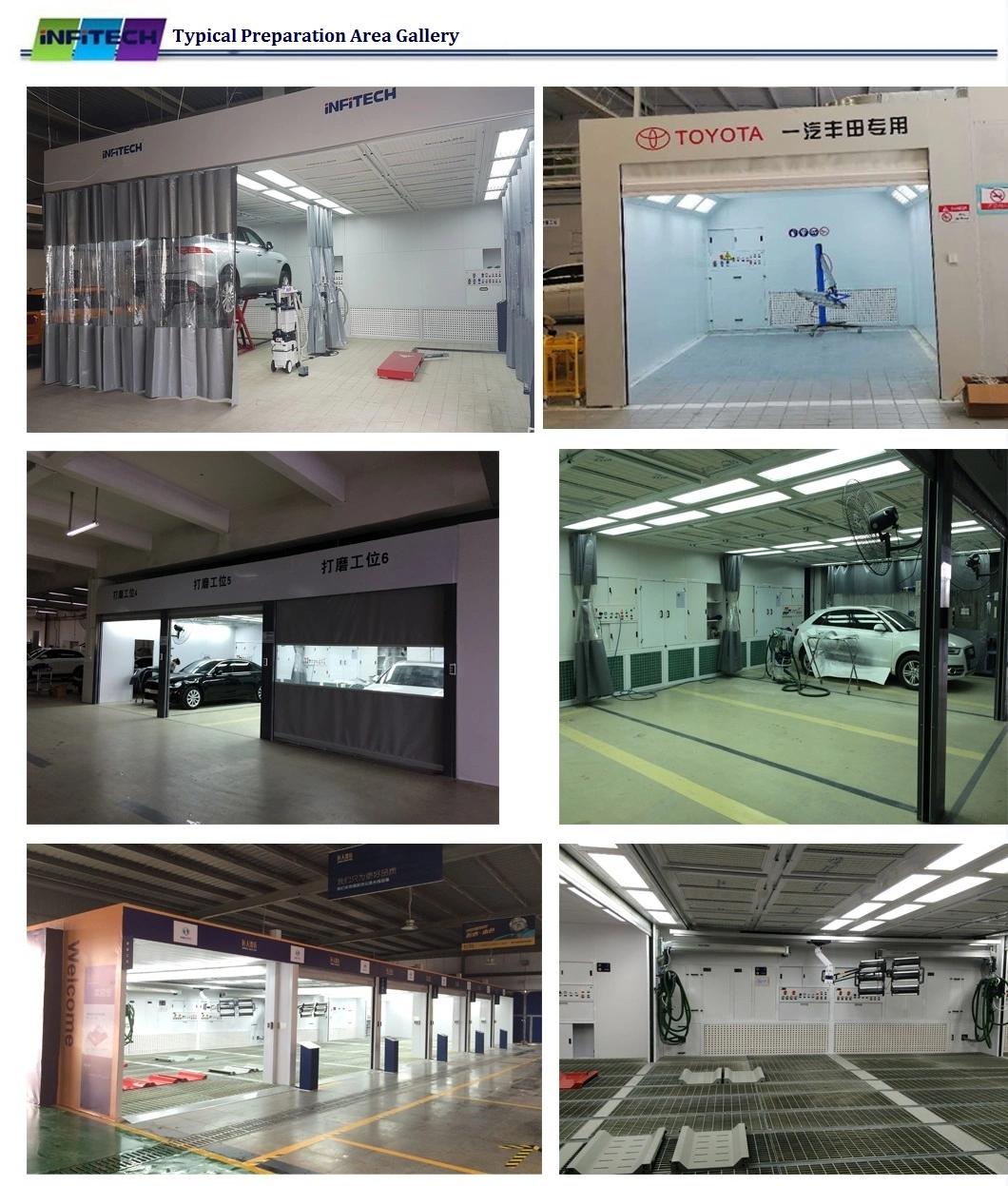

5. Typical projects
6. Factory photos
