• Model NO.：F4032MM
• Lifting Capacity：4T
• Driving Type：Hydraulic
• Certification：CE
• Driving Motor Number of Mechanical Lift：1
• Condition：New
• Brand：Yuanmech

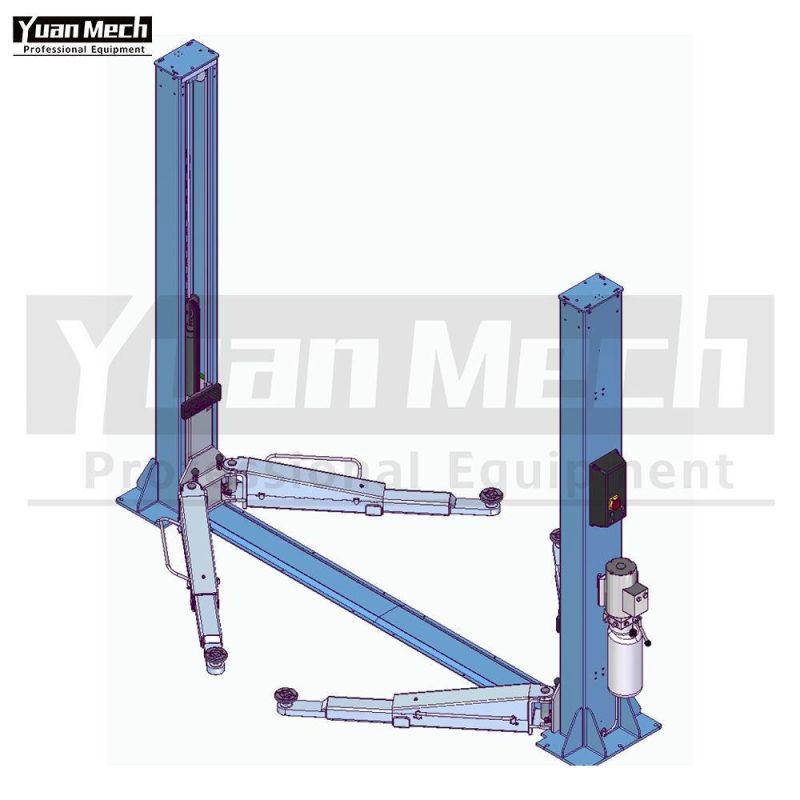

• Design：Two Post
• Product Name：Two Post Lift ( Floor Connection)
• Colour：Customization
• Post Lift Height：2826mm
• Space Between Posts：2820mm
• Maximum Width：3370mm
• Post Base Width C (mm)：460mm
• Front Arms -Short Arms R 2 Step (mm)：740 - 1130mm
• Rear Arms-Long Arms F 2 Step (mm)：860 - 1370mm
• Standard Pad Height T Min (mm)：90mm
• Standard Pad Height T Max (mm)：140mm
• Capacity：4t
• Voltage：400V,230V 3 pH 2.2 Kw 50,60 Hz
• Transport Package：Plywood
• Specification：2000cm*200cm*200m
• Trademark：YuanMech
• Origin：Yingkou, Liaoning, China
• HS Code：8425429000
• Production Capacity：3000
• Package size per unit product：2000.00cm * 200.00cm * 200.00cm
• Gross weight per unit product：2000.000kg

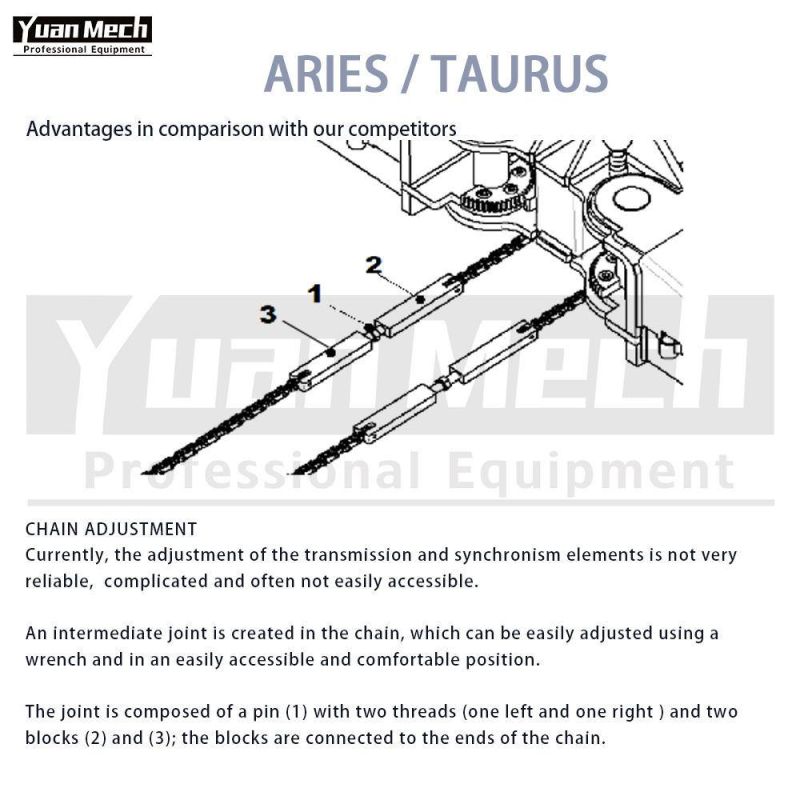

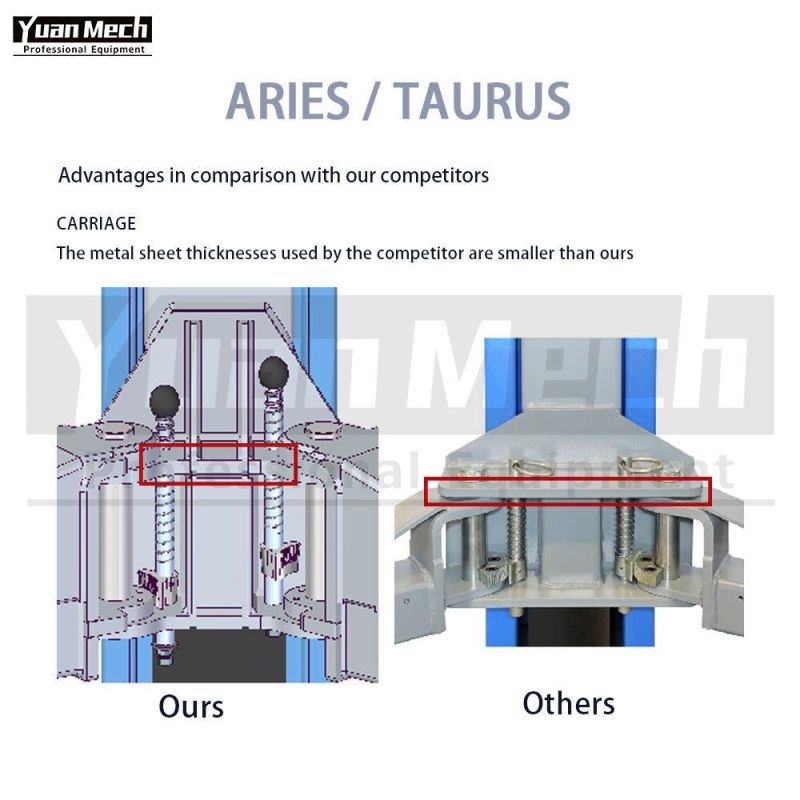

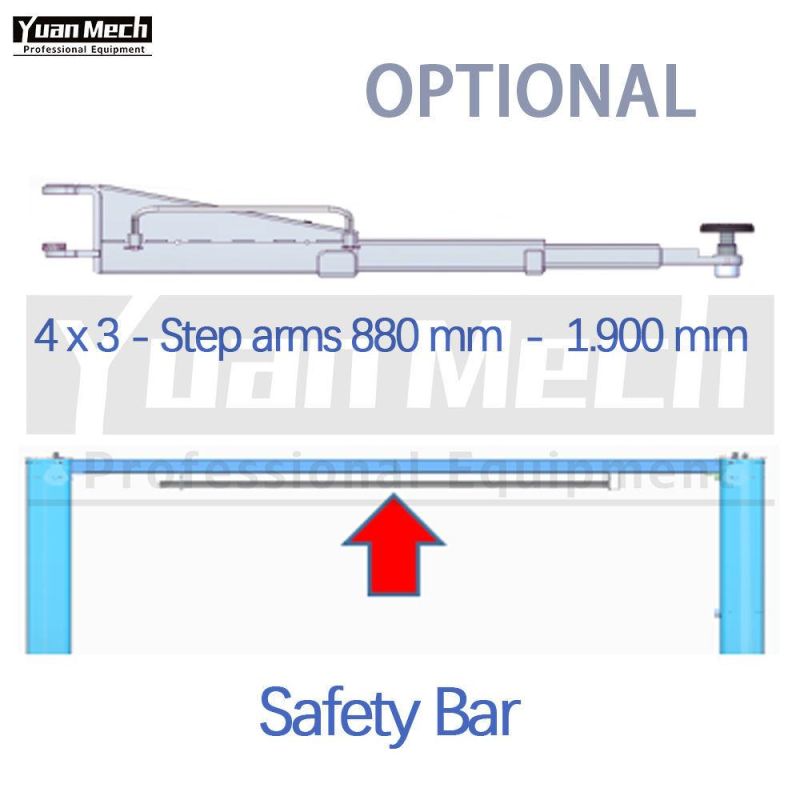

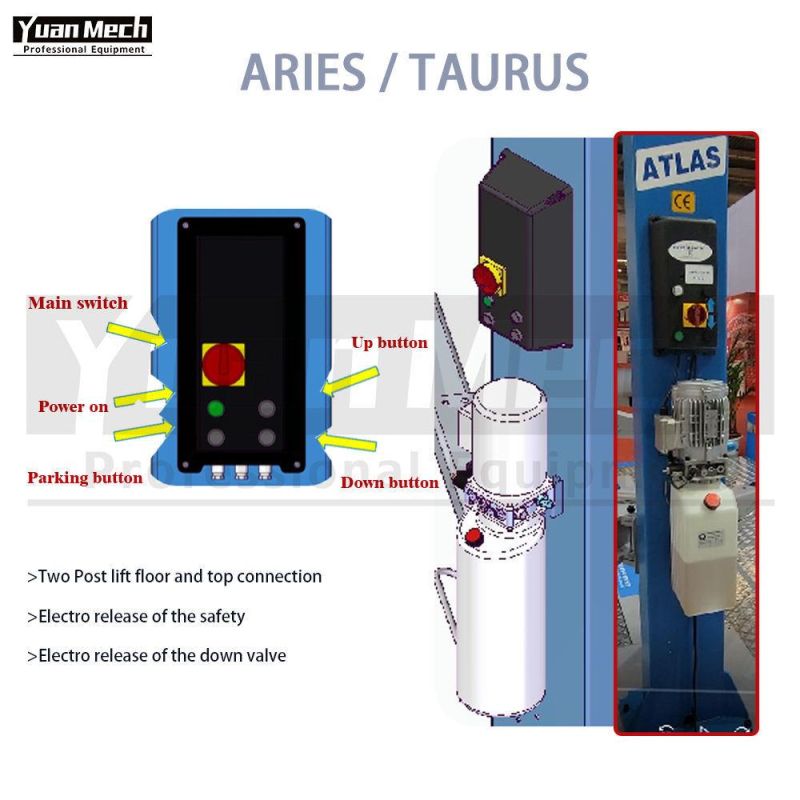

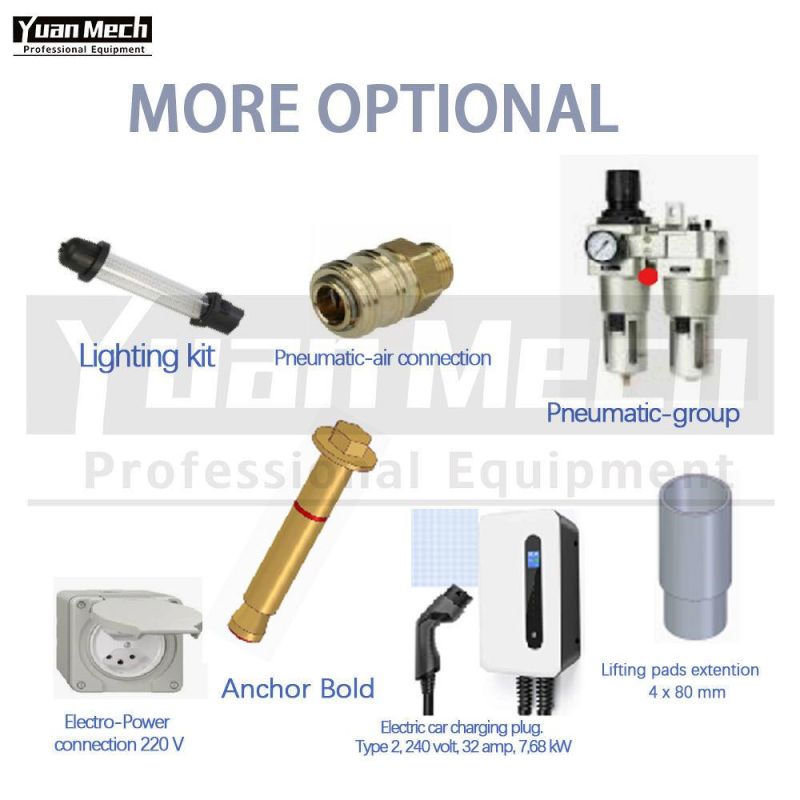

Product OverviewFEATURES AT A GLANCEPRODUCT SPECIFICATIONSPRODUCT CONFIGURATIONThe metal sheet thicknesses used by the competitor are smaller than oursAn intermediate joint is created in the chain, which can be easily adjusted using a wrench and in an easily accessible and comfortable position.SALES AND SERVICE NETWORK
Customer Sevice

FAQ

Q1:Why should you buy from YuanMech compared with other suppliers?

A1:The products was totally Designed by Italian Technician , and produce in China. In this way, the product is belongs to the high level and Premium quality which can compete with High-end level products.Q2: How can we guarantee quality?A2: Always a pre-production sample before mass production, and always final inspection before shipment.Q3: What excellent service can we provide?A3: 24h-toll-phone for service and training by English , Italian, Japanese Spoken.

You can press " CONTACT NOW " or " CHAT WITH SUPPLIER " to get more details.
Also by other contact ways .
