Pneumatic Unlock Full Rise Scissor Wheel Alignment Lift

Yancheng Xinchun Machinery and Electrical Equipment Co., Ltd.
  • Type：Double Cylinder Hydraulic Lift
  • Lifting Capacity：3.5T
  • Driving Type：Hydraulic
  • Certification：CE, ISO
  • Driving Motor Number of Mechanical Lift：1
  • Double Cylinder Lift Type：Planer-type

Base Info

  • Model NO.：RS-35W
  • Shearing Lift Type：Big Shear Type
  • Condition：New
  • Brand：Rising Sun
  • Design：Scissor
  • Product Name：Full Rise Scissor Wheel Alignment Lift
  • Max Lifting Height：1850mm
  • Min Height：330mm
  • Motor Power：2.2kw
  • Oil Pressure：18MPa
  • Lifting Time：50s
  • Lowering Time：40s
  • Power Supply：220-240V,380-415V,1,3pH,50,60Hz
  • Color：Red,Blue,Grey,Customised
  • Certificate：Ce
  • Transport Package：3ctns, 880kgs, 1cbm
  • Specification：wheel alignment lift
  • Trademark：RSISING SUN
  • Origin：China
  • HS Code：84254290
  • Production Capacity：400sets,Month

Description

Basic Info.

Model NO. RS-35W Shearing Lift Type Big Shear Type Condition New Brand Rising Sun Design Scissor Product Name Full Rise Scissor Wheel Alignment Lift Max Lifting Height 1850mm Min Height 330mm Motor Power 2.2kw Oil Pressure 18MPa Lifting Time 50s Lowering Time 40s Power Supply 220-240V/380-415V,1/3pH,50/60Hz Color Red,Blue,Grey,Customised Certificate Ce Transport Package 3ctns, 880kgs, 1cbm Specification wheel alignment lift Trademark RSISING SUN Origin China HS Code 84254290 Production Capacity 400sets/Month

Product Description

Full Rise Scissor Wheel Alignment Lift

Sincerely looking for contracted distributor in different country,thanks for kind contacting !

Main feature
  1. Inground installation or optional ramps for under-ground installation .
  2. Suitable for wheel alignment , chassic checking and vehicle maintenance. .
  3. Adopt Italy mad high quality seals. .
  4. Adopt quality power pack,more endurable, running safely and reliably . .
  5. Automatic locking system when rising to ensure safety.
  6. Pneumatic lock release , considerably reduce the noise when the machine is running ..
  7. 24V low voltage control system .
  8. To level single platform is feasible , more simple to debug .
  9. Equipped built-in hydraulic pressure inspection device,any reason caused loss pressure.
  10. CE certificated.

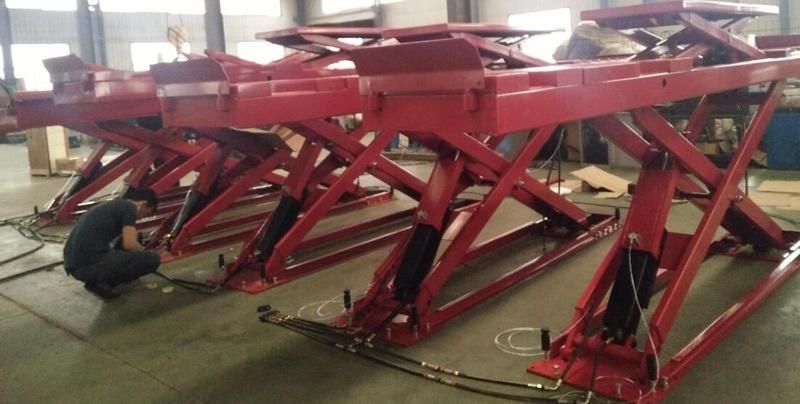

Pneumatic Unlock Full Rise Scissor Wheel Alignment Lift


 Technic data
Lifting capacity3500kgs
Max.lifting height1800mm
Buried depth330mm
Lifting time65s
Lowering time 55s
Motor 3KW/380V/50HZ,220v/50hz(60hz)
Max pressure18MPA


Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE

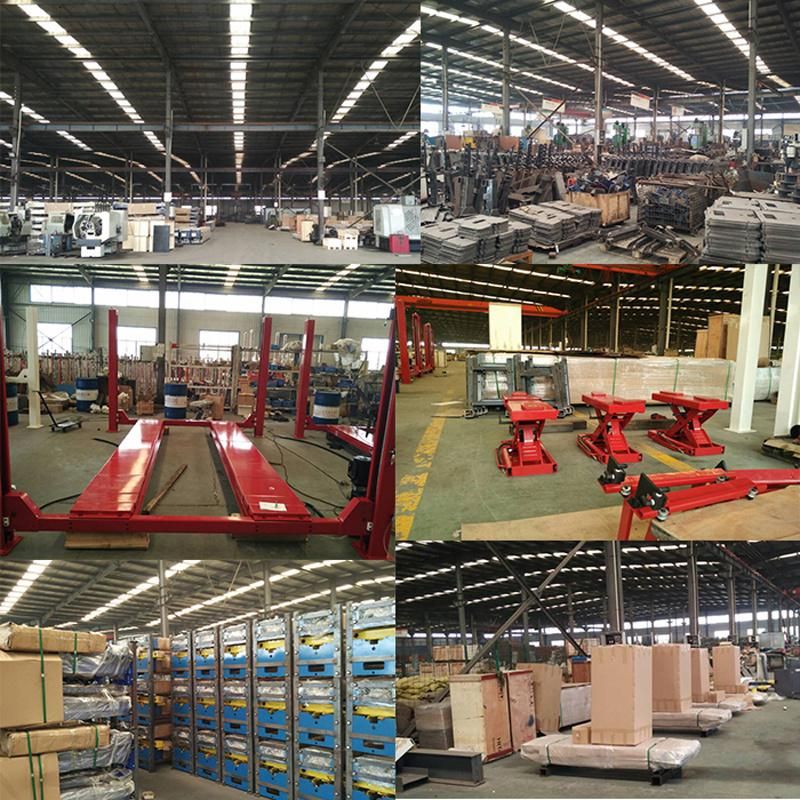

Company information
