• Model NO.：DDCP
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Moral
• Design：Scissor
• Load capacity：3000kg
• Lifting height：5000m
• Platform size：5000*2500mm
• Warranty：12monthes
• Color：As customers′ request
• Drive mode：Hydraulic drive
• Motor power：5.5kw
• Voltage：AC 220V,380V 50Hz,60Hz
• Transport Package：Standard Export Packing
• Specification：6000(L)*3000(W)*1500(H)mm
• Trademark：MORAL
• Origin：Shandong, China(Mainland)
• HS Code：842890
• Production Capacity：500pieces,Month

Basic Info.

Model NO. DDCP Shearing Lift Type Big Shear Type Condition New Brand Moral Design Scissor Load capacity 3000kg Lifting height 5000m Platform size 5000*2500mm Warranty 12monthes Color As customers′ request Drive mode Hydraulic drive Motor power 5.5kw Voltage AC 220V/380V 50Hz/60Hz Transport Package Standard Export Packing Specification 6000(L)*3000(W)*1500(H)mm Trademark MORAL Origin Shandong, China(Mainland) HS Code 842890 Production Capacity 500pieces/Month

Product Description

Double Car Park Platform  Underground Garage Lift Mechine



WELCOME TO Moral LIFT,we are professional manufacturer for SCISSOR LIFT,FREIGHT LIFT,DISABLED LIFT,CAR TURNTABLE,PARKING LIFT,LOADING RAMP AND WORK PLATFORM.  We are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced technology and complete testing equipment. Welcome to your inquiry,pls tell us your load capacity and lifting height,we can customize for you,thanks!

Look forward to having opportunity to cooperate with all of you around the world!

Parameter


Model	SJG3-5
Drive mode	Hydraulic
Platform  size	5500*2500mm/ customized according to customers' requirements
Loading capacity	Dynamic 5ton / customized according to customers' requirements
Motor power	5.5kw
Voltage	380v, 50hz, 3P * customized according to customers' requirements
Travle height	2500mm/ customized according to customer's requirements
Distance of two deck	The same with travel height/can be customized
Min. height	560mm
Color	Customized
Platform	Painted steel platform or hot Galvanization
Operation	Button/Remote/PLC

1. Load weight: 3000kgs/customize
2. Table size: 5.5m x 2.5m/customize
3. Travel height: 5m/customize
4. Elevator controls system
5. Structure: high-strength Mn steel

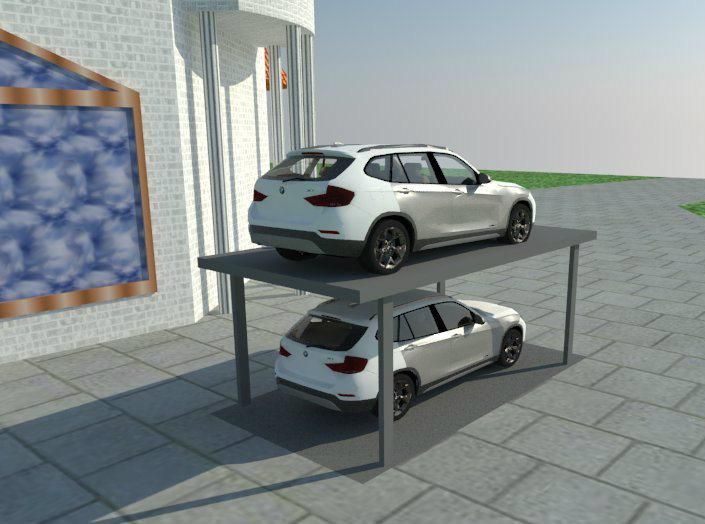

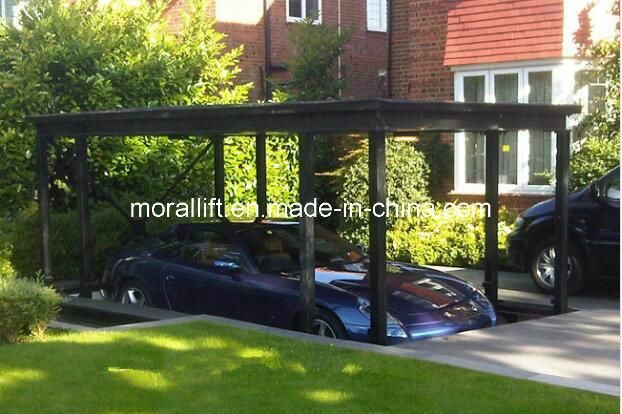

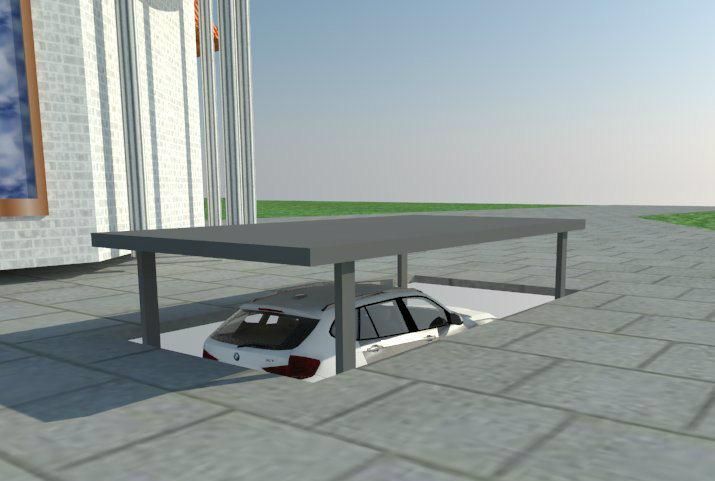

Show






Safety

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.

Specifications

1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
