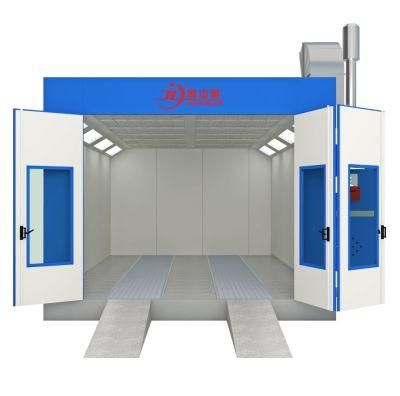

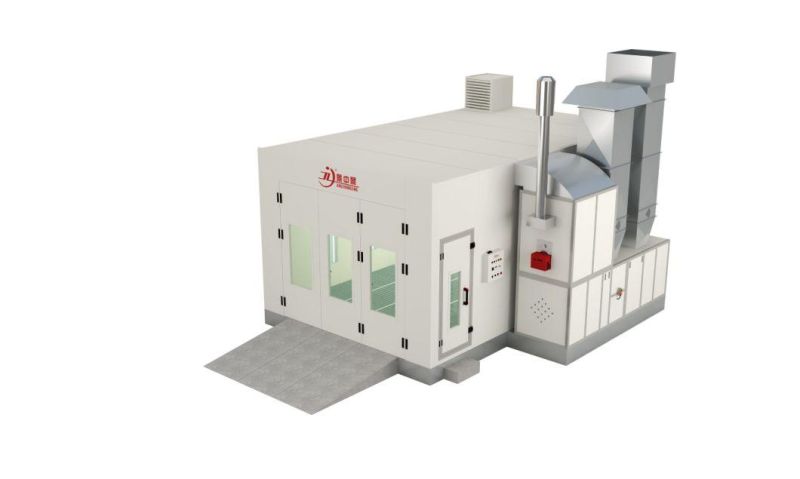

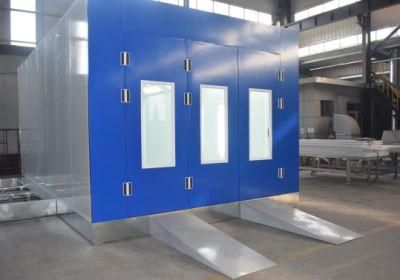

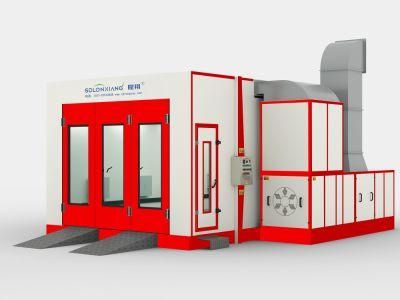

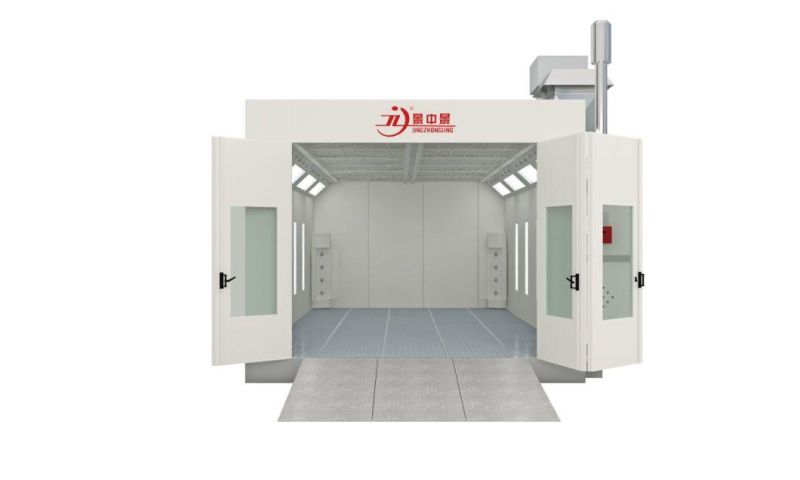

Spray Booth Full Down Draft Model with External Lighting
Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Spray Booth
- Certification：CCC, CE, ISO9001
- Substrate：Steel
- Brand：Jzj
Base Info
- Model NO.：JZJ-9500
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Sea Blue, Red, Orange, White
- Motors：Proof-Explosion Motors
- Lighting：External Lighting
- Inside Dimension：6900*4000*2650(mm)
- Heating System：Diesel Oil or Eletricity
- Transport Package：Consist with International Shipping Packaging.
- Specification：CE, ISO
- Trademark：JZJ
- Origin：Yancheng Jiangsu
- HS Code：8419399090
- Production Capacity：2500sets,Year
Description
16.5KWCabin system Wall panel 50mmEPS panel, double face steel sheet thickness: 0.6mm Ceiling panel Galvanized steel sheet Basement 300mm depth, middle with grids, two side with checkered plates Ramp three 2000*900mm ramps Glass 6mm safety tempered glass Windows Square glass Windows Air Make-up System Air Inlet fan system 1 * 7.5kw turbo fan, ABB motor Exhausted fan system 1 * 7.5kw turbo fan, ABBA motor Ai capacity 25000m3/h Air Flowing speed 0.3m/s in empty booth Air Control method One manual damper for air inlet and exhausted system Exhausted ducting 8 meters air duct, one flop damper and one weather hood Purification System Pre-filter G3 grade. Pockets filter. Ceiling filter EU5 / F5 Floor filter green fiber glass filter / G3 grade Exhausted fan Filters Pocket filter or M green fiber glass filter. Heating System Heat Exchanger SUS304 material, argon arc welding. Heating burner: Riello G20 diesel oil burner(gas burner for option) Heating productivity 180000Kcal/h Spray to baking switch 20N BELIMO brand electrical damper Chimney ducting 3 meters stainless ducting and one chimney elbow Max heating temperature 80degrees Heating time 4-6min(20-60degrees) fuel consumption 5-6Litters /vehicle Lighting System Ceiling lights 8 Units, each 4 x 36W Philips lamps, Total 1152 W Side lights For option Illumination 1000LUX Controlling system Switched control panel Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge
1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.
If you have interest in any of our products, please kindly contact us. If you have anu questions or doubts, please also feel free to contact us.
breakdown alarm, failure alarm, pressure gauge
Q: Which Port of loading?
A: Mainly ship from Ningbo port / Shanghai Port/Guangzhou Port.
Q: What is your MOQ?
A: All the products can be mixed in one container with low MOQ 1pcs.
Q: What is the Lead Time?
A: Normally it needs 20-25 days.
Q: What is the Payment Terms?
A: T/T/ 30% deposit before production and 70% before delivery.
