• Model NO.：LX-20-50
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Size：20150*6650*5600mm(L*W*H)
• Inside Size：20000*5000*5000mm(L*W*H)
• Entrance Door：4-Folds 4000*4500mm(W*H)
• Emergency Door：650*2000mm(W*H)
• Wall Panel：75mm EPS,Rock Wool
• Fan System：Centrifugal Fan,Turbo Fan
• Heating System：Diesel,Gas,Electrical Heating
• Burner：Riello Burner
• Lighting System：LED Lighting
• Color：White,Orange,Red,Blue
• Total Power：88.5kw
• Voltage/Frequency：380V,50Hz,3 Phase
• Filter：Floor Filter,Pre-Filter,Ceiling Filter
• Usage：Bus Painting Baking
• Product Name：Spray Booth
• Transport Package：Shipping
• Specification：20000*5000*5000mm(L*W*H)
• Trademark：longxiang brand
• Origin：China
• HS Code：8419899090
• Production Capacity：30 Sets,Months

Basic Info.

Model NO. LX-20-50 Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Outside Size 20150*6650*5600mm(L*W*H) Inside Size 20000*5000*5000mm(L*W*H) Entrance Door 4-Folds 4000*4500mm(W*H) Emergency Door 650*2000mm(W*H) Wall Panel 75mm EPS/Rock Wool Fan System Centrifugal Fan/Turbo Fan Heating System Diesel/Gas/Electrical Heating Burner Riello Burner Lighting System LED Lighting Color White/Orange/Red/Blue Total Power 88.5kw Voltage/Frequency 380V,50Hz,3 Phase Filter Floor Filter/Pre-Filter/Ceiling Filter Usage Bus Painting Baking Product Name Spray Booth Transport Package Shipping Specification 20000*5000*5000mm(L*W*H) Trademark longxiang brand Origin China HS Code 8419899090 Production Capacity 30 Sets/Months

Product Description

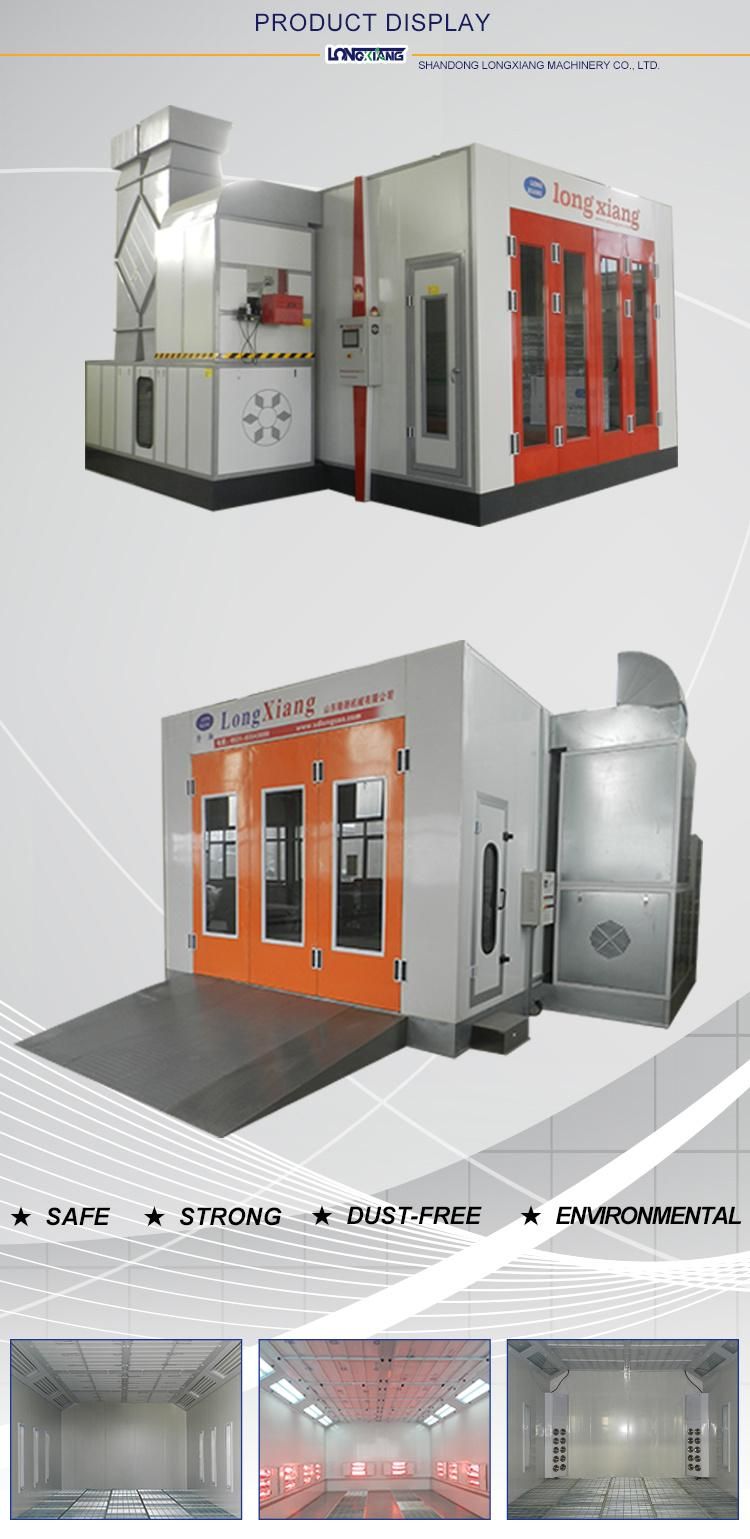

  CE direct factory for bus truck spray booth

Inside Dimension	20000*5000*5000mm(L*W*H)
Outside Dimension	20150*6650*5600mm(L*W*H)
Wall Panel	Profiled bar beams in the roof to strengthen the room body,  wall panel thickness:70mm, width:1150mm,tongue and groove structure, with polystyrene(EPS) insulation inside,  colour:white
Doors	Main door:folding door, 4-folds 4000*4500mm(W*H), with galvanized steel cover frame, with polystyrene(EPS) insulation inside, colour:blue Escape door:2 units, 800*2000mm(W*H), colour:white
Basement	Without basement,2 rows of pits in the ground for exhaust air,dimension of each pit is 18400*760mm(L*W),with galvanized grilles made by twisted steel and flat bar above
Intake air system	6*7.5KW double-intake centrifugal fans for intake air,model is YDW4.5M,total air capacity is 126000m³/h
Exhaust air system	3*11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive,model TAE-710H,air capacity is 108000m³/h
Damper actuates	Equip pneumatic damper actuates from spraying to baking cycle,manual damper for exhaust air
Heating system	3 units RIELLO RG5S diesel burner,stainless steel heat exchanger. Max. heating productivity:780000Kcal/h.Max.working temperature:80ºC
Filter system	Pre-filter,ceiling filter,exhaust fiberglass filter,activated carbon filter
Filtering area	84m2
Lighting system	Ceiling lights:26units*4pcs=104pcs*16W Side lights: 32units*4pcs=128pcs*16W, up and down interleaving installation,  with electronic ballasts
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,thermostat, power supply switch, emergency stop, ampere meter, voltmeter,hours meter,temperature limit controller,pressure gauge,exhaust reduction voltage motor start
Total power	88.5KW
