• Model NO.：Non-standard
• Brand：Boayues
• Coating：Powder Coating
• Airflow Direction：Full Down Draft
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Product Name：Car Beauty, Paint Booth with Turbo Fan
• Usage：for Car(or Furniture) Painting, Baking
• Specifications：Customise Acceptable
• Certificate：Ce, CCS, TUV, SGS
• Service：Professional Team for Installation Abroad
• Warranty：1 Year
• Ramp：Inner Ramp
• Transport Package：Sea Transport Packing 1 Set,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：80 Pieces,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

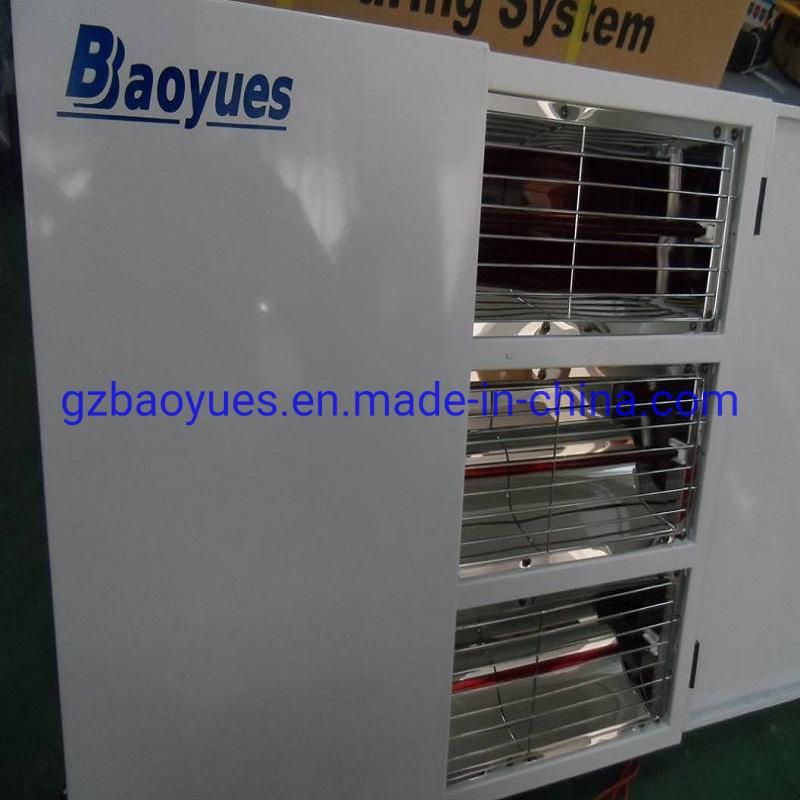

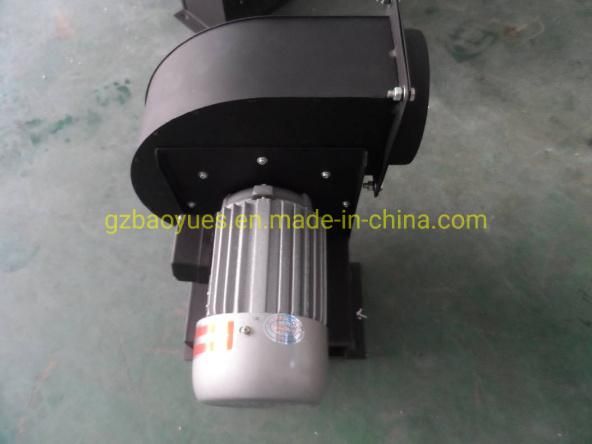

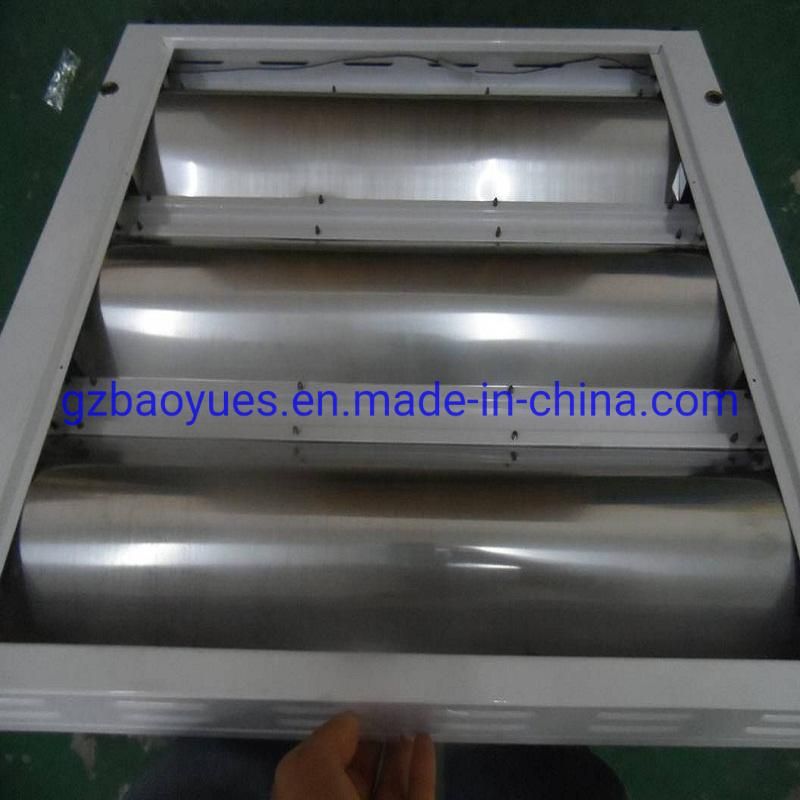

Detailed SpecificationInside dimension6900×3900×2650 mm (L×W×H)Outside dimension7000×5350×3400mm  (L×W×H)Front doorFolding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour.Emergency door1 units, 650×1800mm (W×H), colour: white.BasementGalvanized steel assemble, 300mm high, quadrate steel support, full grilles made by flat bar and twisted steel, silver colour, inner ramps for space saving.Wall panelThickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with EPS inside, colour: white.LightCeiling Lights: 8Units×4Pcs=32Pcs×16W, side lights: 8Units×2Pcs=16Pcs×8W, with LED, lighting boxes are powered coated.Generator cabinetIntake from back upper, exhaust from rear upper, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside.Intake and Exhaust systemInlet:1×7.5KW turbo fan, air capacity for each fan: 25000m 3 / h.Outlet: 1×7.5KW turbo fan, air capacity for each fan: 25000m3/h. Manual damper, 4m ducts, 1 pcs 90 0  bend, 1 pcs 30 0  bend.Heating system10 sets infrared heating, 4sets on each side, 2 sets at back side. With water base paint system at the corners, special for the water base painting and drying.Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filter.RoofGalvanized steelControl systemSpraying, baking, time setting, lighting switch, thermostat, power supply switch, emergency stop, all motors is normal start.Total power16KW (Power supply  1×220V, 3×380V, 50HZ)
