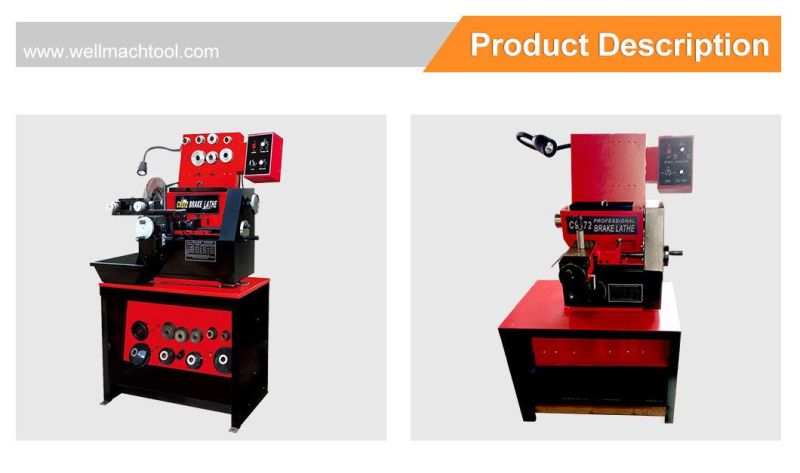

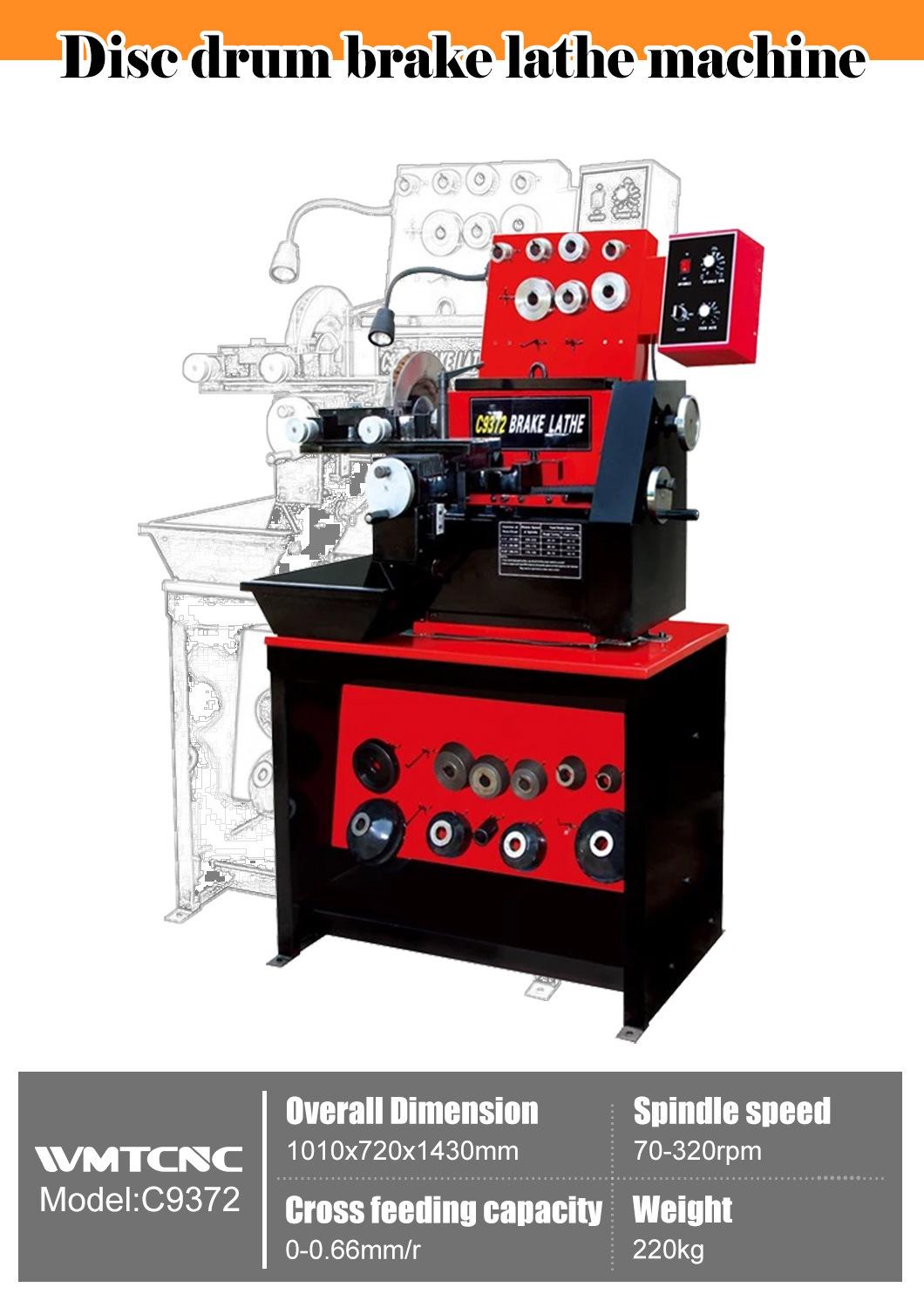

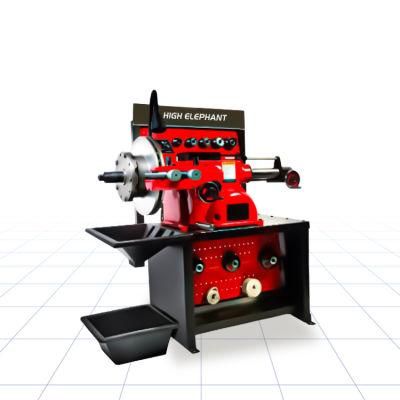

C9372 brake disc drum lathe machine for car and truck repair
Wmt Cnc Industrial Co., Ltd.- Color：Customer Appoint
- Lathe：Drum,Disc Repair
- Processing diameter mm：102-610mm
- Ma≃ travel of tool：73mm
- Motor power：0.6kw
- G.W：300
Base Info
- Model NO.：C9372
- Feeding Rate mm/r：0.11
- Transport Package：Fumigated Poly-Wood Case
- Specification：CE, SGS
- Trademark：WMT
- Origin：Chizhou, Anhui
- HS Code：845899000
- Production Capacity：100 Per Sets Monthly
Description
Basic Info.
Model NO. C9372 Feeding Rate mm/r 0.11 Transport Package Fumigated Poly-Wood Case Specification CE, SGS Trademark WMT Origin Chizhou, Anhui HS Code 845899000 Production Capacity 100 Per Sets MonthlyProduct Description
Main specification:
| Specification | C9372 |
| Rotor diameter | 4"-24"(102mm-610mm) |
| Maximum rotor thickness | 2.85"(73mm) |
| Drum diameter | 6"-28"(152mm-711mm) |
| Drum depth | 9"(229mm) |
| Flywheel diameter | 6"-24"(152mm-610mm) |
| Spindle weight capacity(standard 1" Arbor) | 1501bs(68kg) |
| Spindle speed | 70-320RPM |
| Feed rates-rotor and drum | 0"-0.026"(0mm-0.66mm) |
| Feed rate per minute | 2.54"(64.5mm) |
| Motor | 110V/220V 50/60HZ 0.6KW |
| Shipping weight | 300kg |
| Dimension (L×W×H) | 1130mm×1720mm×1750mm |
