• Model NO.：RS-3DIII
• Product Name：Wheel Alignment Automatic Car Service Machine
• Rim Diamater：13-24inch
• Language：26kinds, Include English, German, Russia...
• Computer System：Windows XP, Windows 7
• Power Supply：220V,50-60Hz,1pH
• Color：Red, Blue, Grey, Orange, Customised
• Vehicle Database：More Than 25000
• Taraget Plate：4PCS
• Turntable：2PCS
• Computer and Printer：1set
• Transport Package：3ctns, 1.8cbm, 250kgs
• Specification：automatic car service machine
• Trademark：Rising Sun
• Origin：Jiangsu
• HS Code：9031100090
• Production Capacity：600sets,Moth

Basic Info.

Model NO. RS-3DIII Product Name Wheel Alignment Automatic Car Service Machine Rim Diamater 13-24inch Language 26kinds, Include English, German, Russia... Computer System Windows XP, Windows 7 Power Supply 220V/50-60Hz/1pH Color Red, Blue, Grey, Orange, Customised Vehicle Database More Than 25000 Taraget Plate 4PCS Turntable 2PCS Computer and Printer 1set Transport Package 3ctns, 1.8cbm, 250kgs Specification automatic car service machine Trademark Rising Sun Origin Jiangsu HS Code 9031100090 Production Capacity 600sets/Moth

Product Description

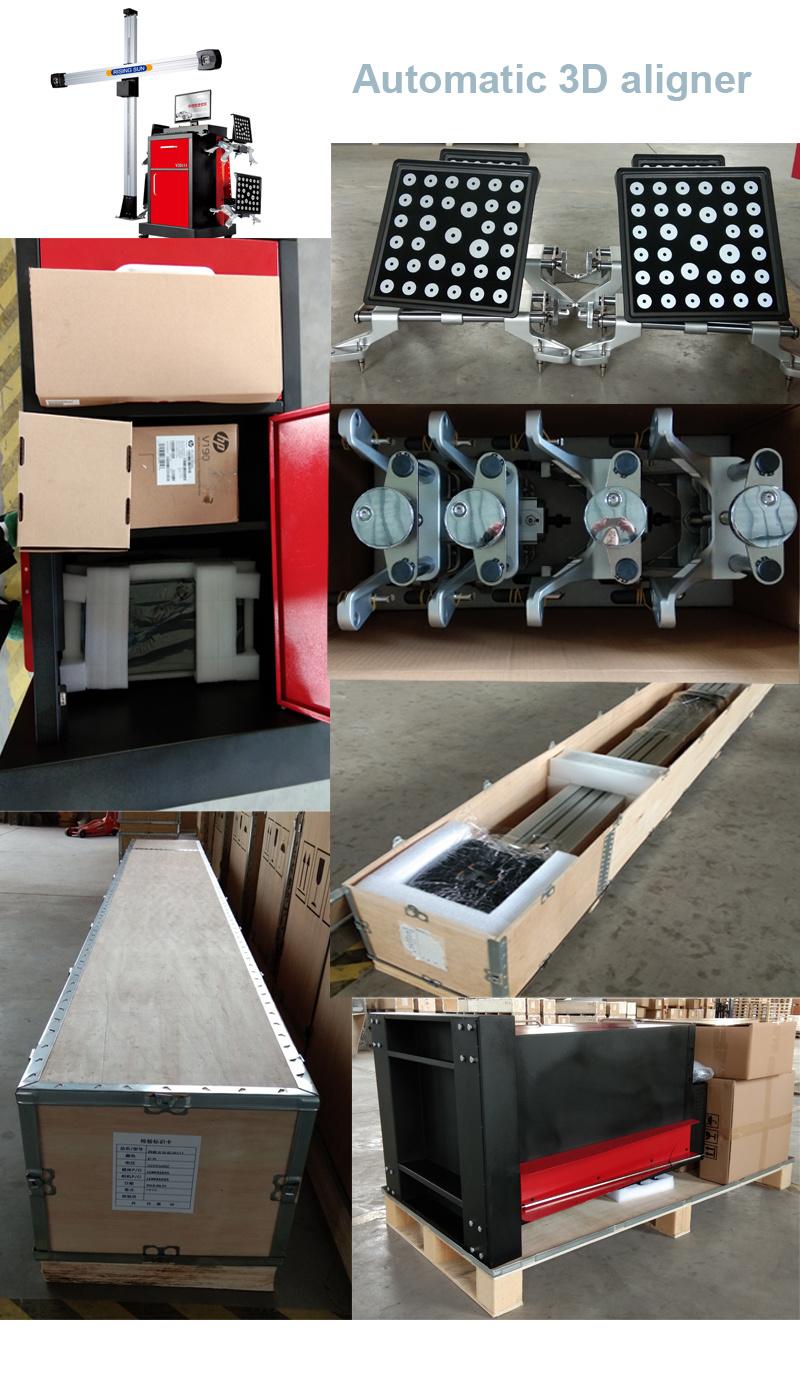

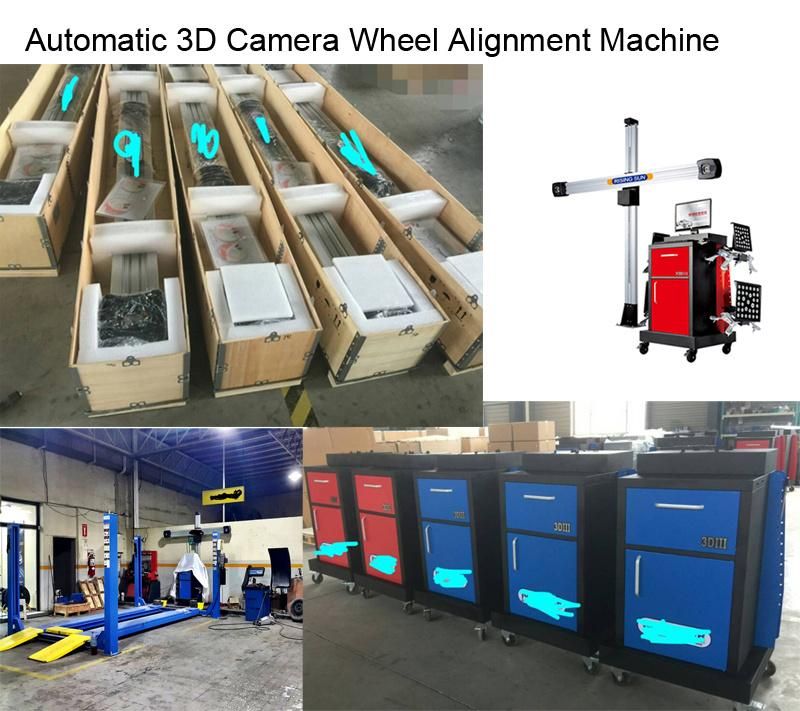

220V 3D Alignment Automatic Car Service Machine for Wheel Aligning

Sincerely looking for contracted distributor in different country , thanks for kind contacting !

Wheel alignment, sometimes referred to as breaking or tracking, is part of standard automobile maintenance that consists of adjusting the angles of the wheels so that they are set to the car maker's specification. The purpose of these adjustments is to reduce tire wear, and to ensure that vehicle travel is straight and true (without "pulling" to one side). Alignment angles can also be altered beyond the maker's specifications to obtain a specific handling characteristic. Motorsport and off-road applications may call for angles to be adjusted well beyond "normal" for a variety of reasons .
All new vehicles leave the factory with their alignment checked and adjusted. Usually the technician paints the heads of the adjustment hardware to show it has been set, also to show if it has moved later on. It is advisable to do the alignment of the car after the first 5000 km, since all the suspension get set. Failure to do this may result in the camber and toe specifications drifting outside the manufacturer's limit. This may lead to vehicle pulling and tire wear
 Product description

 Product feature

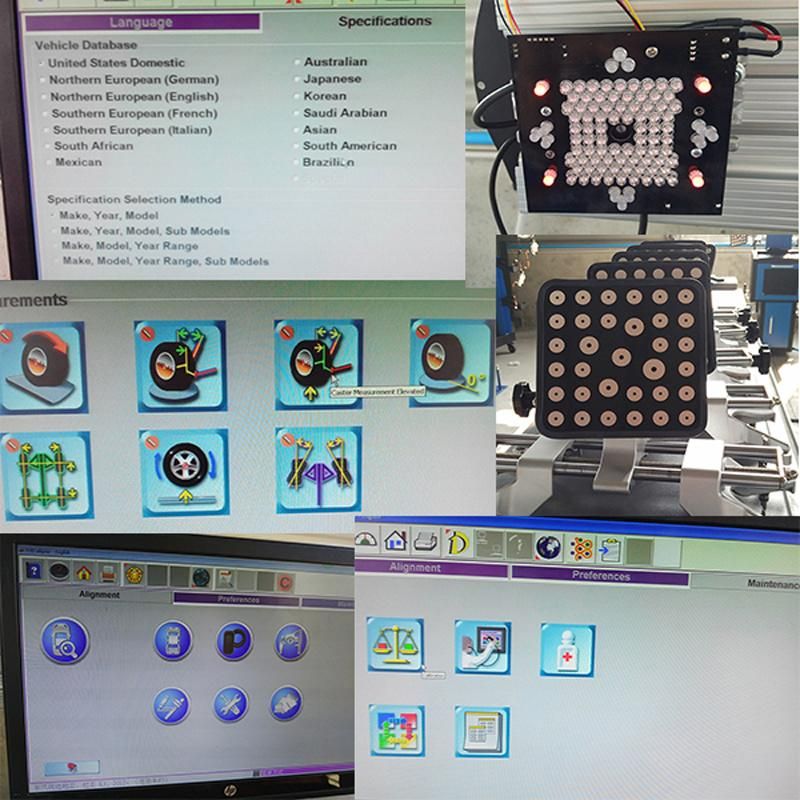

1. Windows 7 computer system , 3D wheel alignment software ;
2. Easy to operate with guiding menu, to read alignment database within 3 minutes;
3. The fault of machine can be reduced as no electric element & battery & transmission cable & bluetooth & infrared ray on the target plates ;
4. HP computer ;
5. Calibration made before delivery ,convenient to use, no influenced by working site ;
6. Set with Volkswagen dedicated application,can measure toe-arc for A6,B5;
7. 26kinds of language for different countries and districts ;
8. Suit for measurement of vehicle with super-low chassis ;
9. Integrative cabinet , simple but perfect ;
10. 25000 vehicle database , online updating .

Technic data

Item	Measurement Accuracy	Measurement Range	Total Measurement Range
Camber	±0.01°	±8°	±8°
Caster	±0.05°	±19°	±19°
Front wheel KPI	±0.02°	±19°	±19°
Total Toe	±0.01°	±2°	±8°
Rear wheel thrust angle	±0.01°	±2°	±4°
Toe-out on turn	±0.08°	±2°	±40°
Axle offset of Rear wheel	±0.02°	±2°	±4°
Wheel tread difference	±0.03°	±2°	±8°
Front setback	±0.02°	±2°	±4°
Rear setback	±0.02°	±2°	±4°
Wheel tread	±0.64cm(±0.25cm)	<265cm(<105in)	<265cm(<105in)
Wheelbase	±0.64cm(±0.25cm)	<533cm(<210in)	<533cm(<210in)

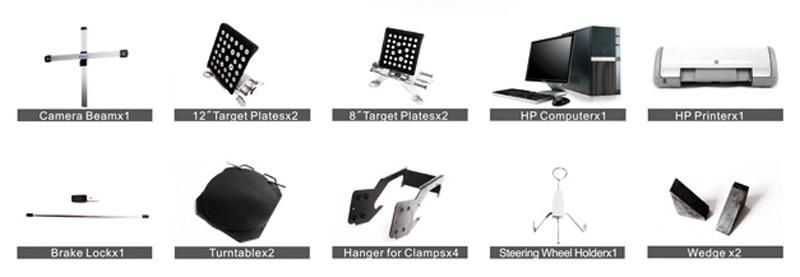

Standard accessories include ,

1. Camera beam x 1
2. Computer x 1
3. Printer x 1
4. Turnplate x 2
5. Brake lock x 1
6. Steel wheel lock x 1
7. Target plate x 4
8. Wedge x 1
9. Hanger for clamp x 4

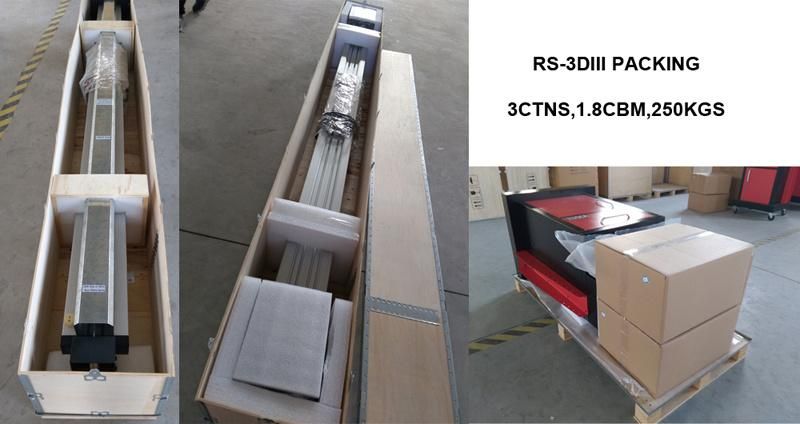

  Packing : total 3cartons ,250kgs , 1.8cbm
1)1840x765x750mm , 1ctn
2) 2900x370x320mm , 1ctn
3) 2900x370x320mm , 1ctn



Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.

1) Warranty : 12months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE
