• Model NO.：EPS816F
• Delivering Method：Sea Shipping; Air Shipping; Courier
• Production Time：10-15 Working Days
• Gurantee：One Year of Free Maintenance for Overall Unit, EQ
• Test Plan：Includes More Than 3000 Test Plan
• Function：Solenoid Injector and Piezo Injector Testing
• Bip Function：Common Rail Bip Function (Optional)
• Brand：Nant

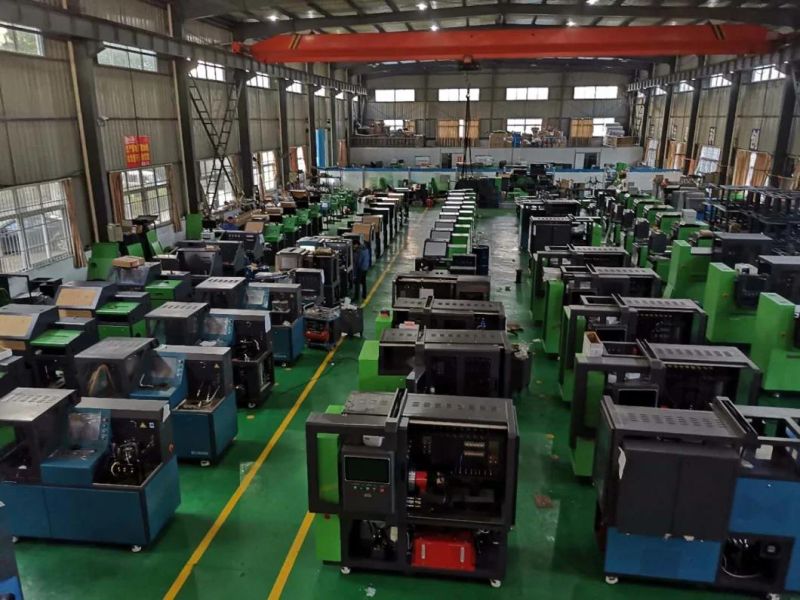

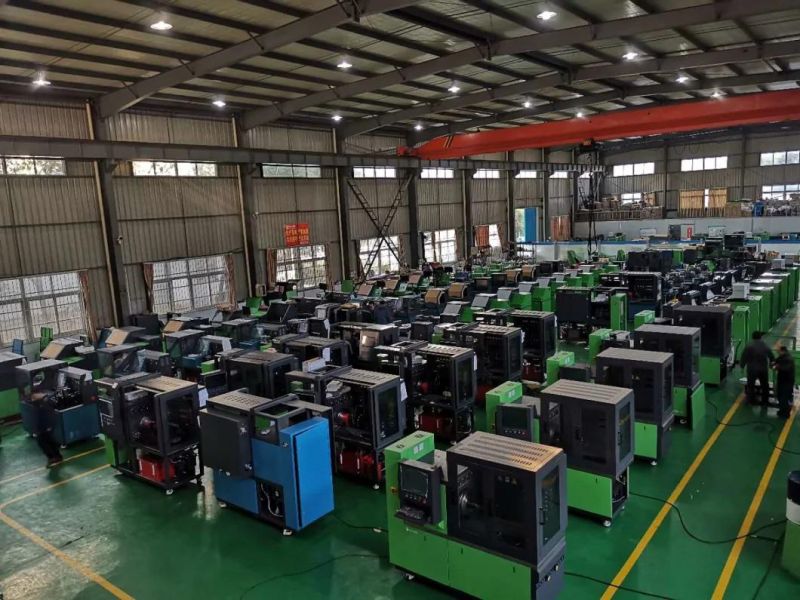

• Factory：Real Strong Manufactory
• HS：9031200090
• Quality：Very Good
• Industrial Air Conditioner：Include

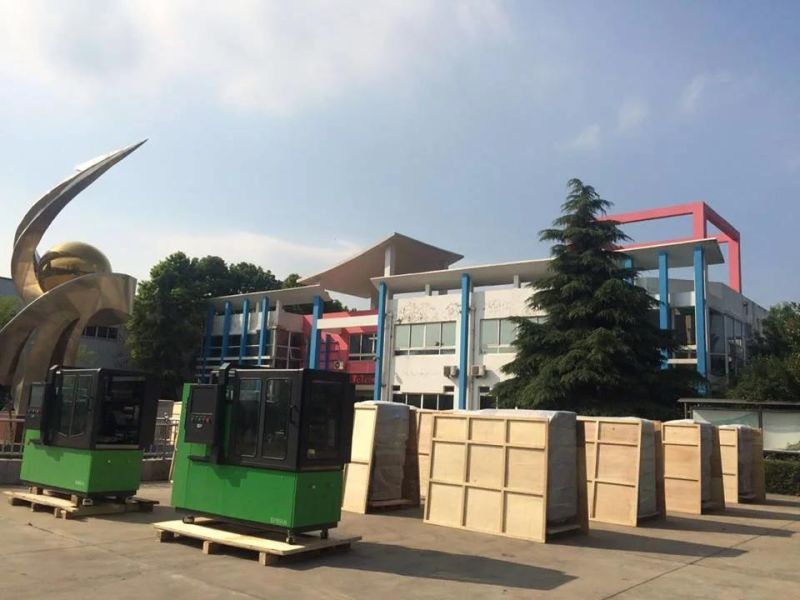

• Transport Package：Plywood Box
• Specification：143CM*98CM*168CM; 460kgs
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. EPS816F Delivering Method Sea Shipping; Air Shipping; Courier Production Time 10-15 Working Days Gurantee One Year of Free Maintenance for Overall Unit, EQ Test Plan Includes More Than 3000 Test Plan Function Solenoid Injector and Piezo Injector Testing Bip Function Common Rail Bip Function (Optional) Brand Nant Factory Real Strong Manufactory HS 9031200090 Quality Very Good Industrial Air Conditioner Include Transport Package Plywood Box Specification 143CM*98CM*168CM; 460kgs Trademark NANT Origin China HS Code 9031200090 Production Capacity 1000 Sets/Year

Product Description

Common rail injector test bench EPS816F

Function introduction:
1. Automatically test various solenoid valve injector and piezo injector
2. Automatically test the performance of injector solenoid valve
3. Set injection current curve ,injection time and pressure. Fully automatic test of different types of solenoid valve injector and piezoelectric injector
4. Test the current of injector solenoid valve, valve assembly lift, fuel injection lift.
5. High pressure cleaning: high pressure cleaning impurities attached to internal parts of injector.
6. Atomization test: to judge whether the injector is blocked through the atomization effect.
7. Single injection: the operator can set the number of injections to conduct a single injection observation.
8. Sealing test: check the sealing performance of nozzle, nozzle cap nut and solenoid valve.
9. Injectionion test: Test the injected fuel & return volume under rating, idling, Emission, pre-injection and pre-injection 2 status.
10. Check, save, print data and customer information.

Main configuration:
1. Equip original Bosch CP1 pump
2. Iron fuel tank with industrial air conditioner to control temperature 40± 2 ºC circularly.
3. Includes Germany High precision flow sensor.
4. Equip original Bosch DRV, pressure sensor (0-2500bar).
5. Include DRV, fuel injection cooling treatment device
6. Include Oil circuit emptying treatment device
7. You can set the injection current curve by yourselves
8. The system includes original fuel injector current curve and data
9. Main motor power 5.5KW, optional three phases 380V 50HZ, three phases 220V 60HZ, two phases 220V/60Hz in convenient for the different need of power supply in different countries.

System advantage:
1. Industrial computer system: Full automatic operation, high speed operation and stable performance.
2. Original Bosch test bench database. Test accuracy similar with the world-leading test bench.
3. Powerful database: include more than 1,000 kinds of Bosch, Delphi, Denso, Siemens injector plan, and test plan could be updated free of charge
4. The operator can choose to test step by step or continuous test
5. The operator can set injection time and injection pressure during testing
6. The operator can choose testing results automatically judged by computer system or judge it by yourself.
7. Injector database (test plan) management: edit,save, revise and delete
8. Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
9. Database (test plan) remote one click upgrade

Optional functions
1. Support customized products and application.
2. Generate IMA code for Bosch Denso Delphi injector
3. Fuel injection response time test
4. Four injectors can be test at the same time
5. Equip Bosch 3rd stage stroke testing program and adapters.
