• Model NO.：LX2
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Heating Method：Oil Heating,Electric Heating
• Filters：High Efficiency Filter
• Lighting System：LED
• Usage：Car Painting Baking
• Color：Orange, Blue, White, Red, Grey
• Air Fan：Centrifugal Fan, Turbo Fan
• Logo Printing：Yes
• Steel Grid：Galvanized Steel
• Room Size：Can Be Customised
• Voltage：380V,220V
• Air Speed：0.25-0.3m,S
• Package：Polyfoam and Carton
• Basement：Complete Steel Assemble
• Wall Panel：50mm EPS Panel
• Mark：Longxiang ,OEM
• Transport Package：Standard Exporting Packages
• Specification：6.9*3.9*2.6m
• Trademark：LONGXIANG
• Origin：Jinan, Shandong
• HS Code：8419899090

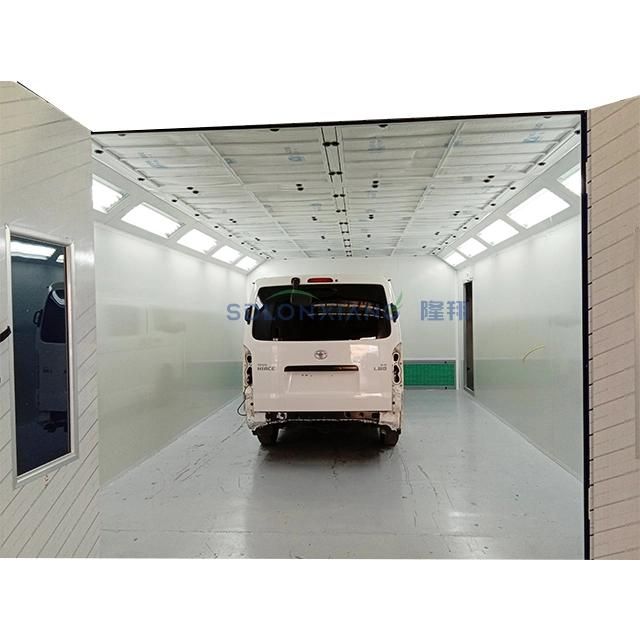

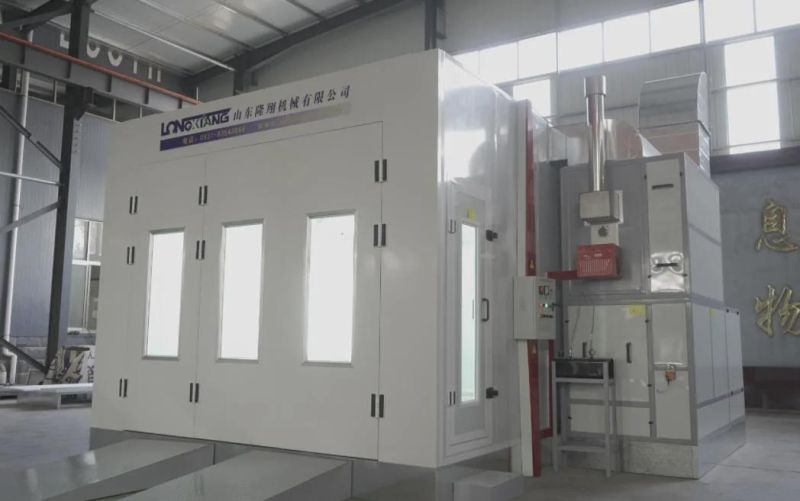

      car spray booth Specification

Inside Dimension

6900×3900×2600mm(L×W×H)

Outside Dimension

7000×5350×3300mm(L×W×H)

Main Door

3-folds, 3000×2500mm(W×H)

Personal Door

1 fold 650×1800mm(W×H)

Wall Panels

EPS (epispastics polystyrene) colorful steel skin board,

wall panel: 50 mm thick, 0.4 mm steel,

tongue & groove style compound construction,

Aluminum-alloy frame,

anti-flame and heat-insulation, galvanized steel roof panel

Basement and Floor

Plate type pressing convex platform , height is 300mm,

full grille floor,2 pieces of ramps, 520*1750mm(W*L).

diamond plate construction

Lighting

Ceiling lights :8 units×3pieces = 24pieces ×36W ;

Side lights: Optional

Generator Setting Type

Side upper intake air, quadrate steel frame, coated steel.

Inlet Fan

2×4KW  YDW double-intake centrifugal fans,

air capacity : 24000m³/h

Exhaust Fan

Optional

Heating System

1set: RIELLO G10 Diesel  burner,

heating productivity:180000Kcal/h,

stainless steel heat exchanger,

 working temperature:80 degree

Optional: 24pieces*1KW carbon fiber far-infrared heater .

Filter System

Dual filtering structure,

the primary filter can capture granules larger than 10μm.

Ceiling filter can capture granules bigger than 4μm.

 Its filtering rate reaches 98%.

Air pressure balance gauge, TSP≤1.4mg/m3

Control System

Lighting switch,spraying,risen-temperature spraying,

baking temperature controller,time setting,failure alarm

Total Power

9KW

FAQ

1. Q: What is your delivery date?
A: Normally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
2. Q: Can you design the spray booth according to our request?
A: Of course. All product can be customized with your own designs.
3.Q: Are you a factory or a trading company?
A: We are a factory and have the own design&production&competitive price advantages.
4. Q: Can I order special color which I like?
A: Yes, we can produce machines with blue, white, red and grey to meet your requirement.
5.   Q: Where is your factory located? How can I get there?
A: Our factory is located in Longyao Industrial park, Shandong province, china. About an hour from Jinan international airport. Welcome to our factory from all over the world.
6.  Q: How about your service?
All product have one year warranty and life-long technology support.
