• Model NO.：SJG
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Moral
• Design：Scissor
• Load Capacity：3000kg or Customized
• Platform Size：5000mm*2300mm
• Lifting Height：4000mm or Customized
• Speed：6m,Min
• Power：5.5kw
• Certificate：CE
• Voltage：220V or 380V
• Material：Mn Steel
• Self height：560mm
• Warranty：12 Months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：500units,Year

Basic Info.

Model NO. SJG Shearing Lift Type Big Shear Type Condition New Brand Moral Design Scissor Load Capacity 3000kg or Customized Platform Size 5000mm*2300mm Lifting Height 4000mm or Customized Speed 6m/Min Power 5.5kw Certificate CE Voltage 220V or 380V Material Mn Steel Self height 560mm Warranty 12 Months Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 500units/Year

Product Description

Hydraulic Scissor Car Parking Elevator with Roof

Load capacity: 3000--6000kg
Platform size: 5500*2800mm
Lifting height: 3000mm
Hydraulic drive system


Technical Data:

1.Power supply 220 VAC, 3 Phases 60 Hz/ local power
2.Total capacity 3,000 kilograms
3.Size of platform 5500 X 2800 mms. Diamond steel sheet metal
4.Stops with limit switch control system

Detailed specification:

  1.The hydraulic cylinders and hoses are armed with explosion-proof lock valve that aims to avoid a sudden drop in case hydraulic pipe breaks, the work platform will drops slowly to ensure car's safety .

 2. The handrail guarantees the safety of cars.

 3. Equipped with 4 guide rails to ensure safety and steady.

 4. The limit switch system ensures lifts stop at accurate position.

 5. Overload protection facility will protect the lift from working when goods are overloaded.

 6. Electric control system is adopted from the elevator control system of Japan Mitsubishi that ensures the safety of lift.

7. Guarantee period: 12 months. We supply spare parts free and supply technical supporting all the time.

Features:

1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.

4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.

5) Control system adopt elevator control system, very convenient and safety.

6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

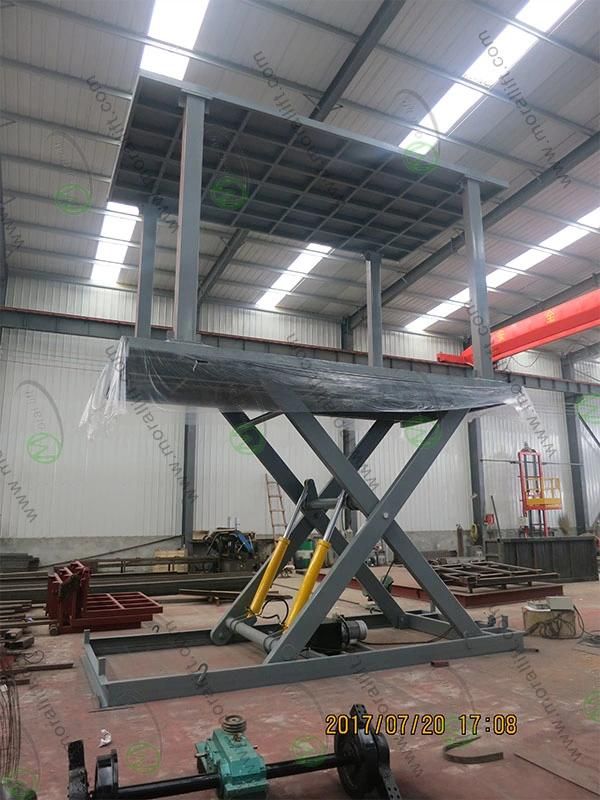

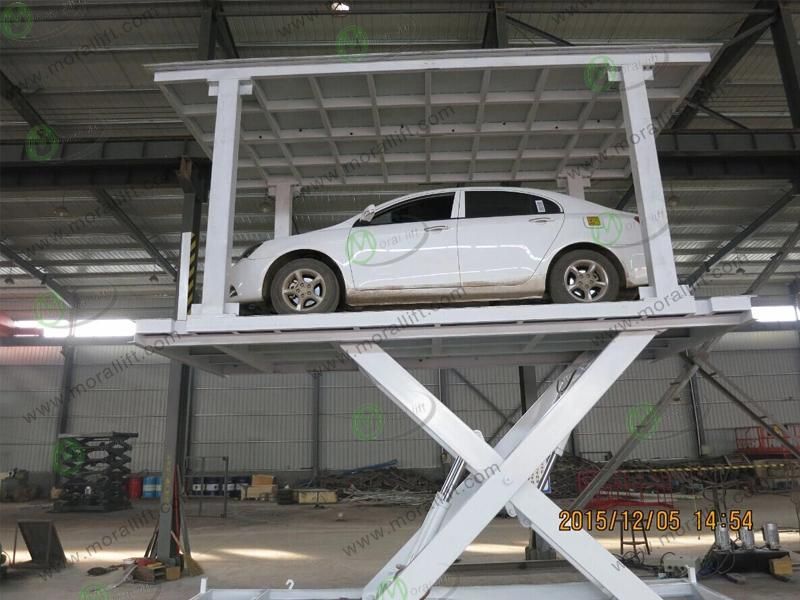

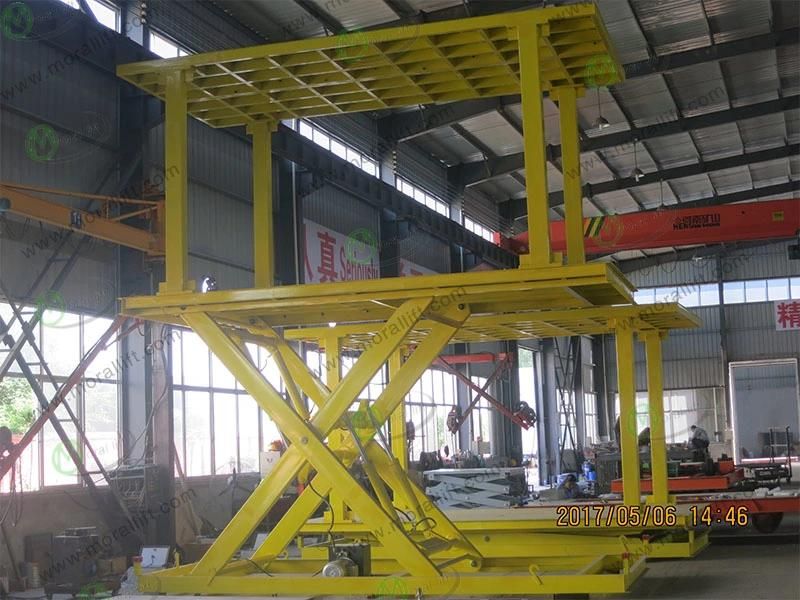

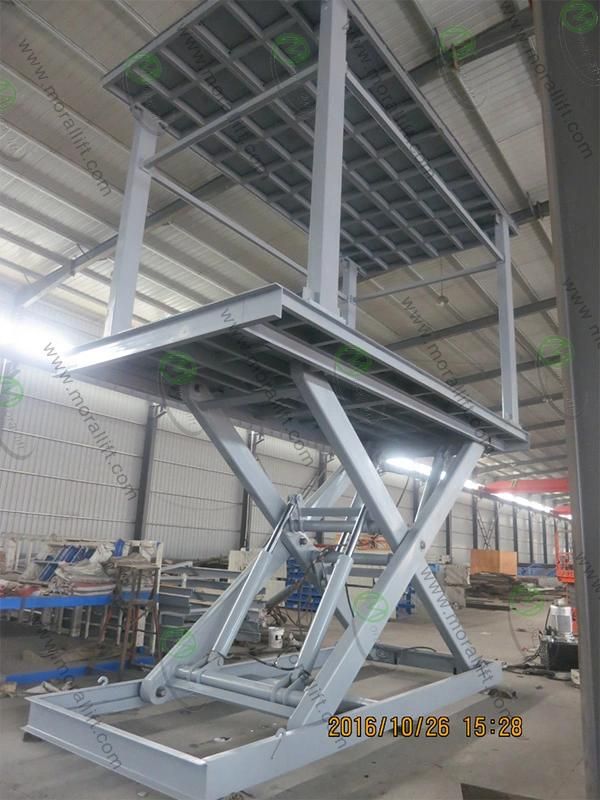

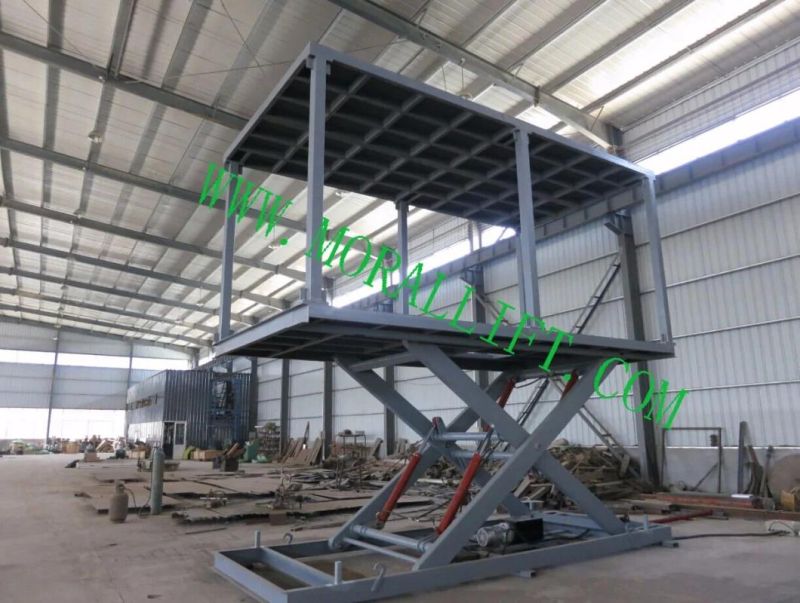

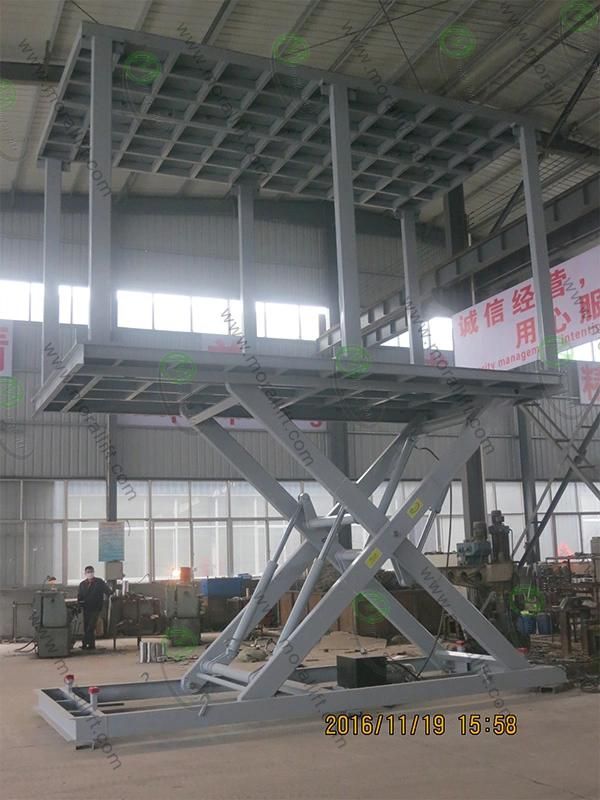

Pictures:
