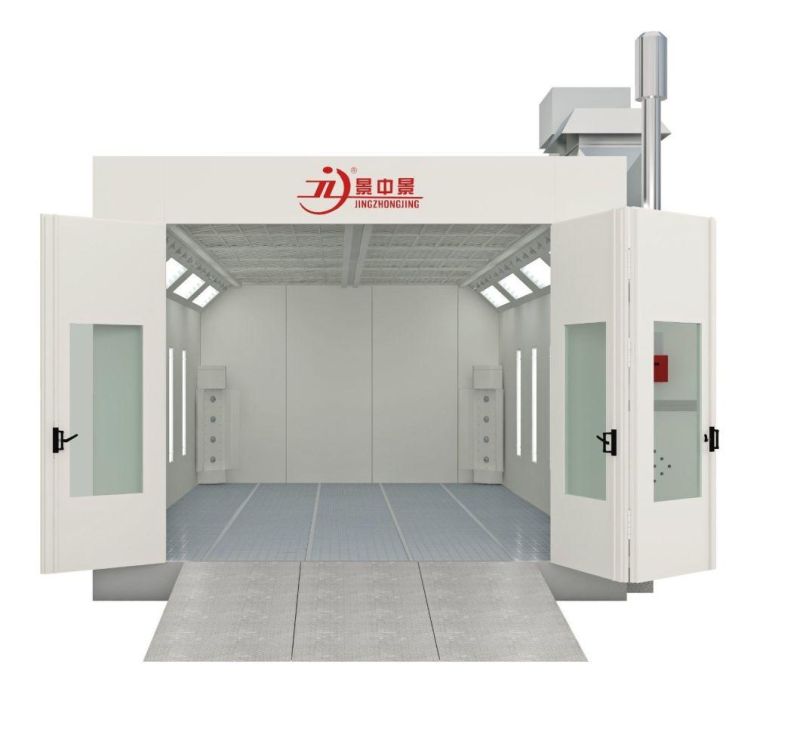

• Model NO.：JZJ-9200
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Trademark：JZJ
• Origin：Yancheng Jiangsu
• HS Code：8419899090
• Production Capacity：2000sets, Year

Outside Dimension (mm)7006*5556*3450(L*W*H)Inside Dimension(mm)6900*4000*2650(L*W*H)Front Door(mm)3000*2600(W*H)Service door (mm)1800*650(W*H)Total Power10KWCabin systemWall panel  50mm EPS sandwich panel, steel sheet thickness: 0.426mmBasement300mm depth, two rows grids and three rows checkered plates. Ceiling panel0.8mm Galvanized steel sheet.RampsTwo pieces 2000*600mm rampsGlass4mm safety tempered glassWindowsRubber sealed glass windowAir Make-up SystemAir Inlet fan system2*4kw centrifugal fanExhausted fan systemFor optionAi capacity24000m3/hAir Flowing speed0.25m/s in empty boothExhausted ducting4meters straight ducting, one 90°elbow and one 30°elbow.Purification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filterfiber glass filter / G3 gradeExhausted fan Filtersfiber glass filter and active carbonHeating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:       RielloG20 diesel oil burner(gas burner for option)   Heating productivity                            180000Kcal/hSpray to baking switch20N BELIMO brand electrical damperChimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80ºCfuel consumption6-8L/vehicleLighting SystemCeiling lights8 Units, each 4 * 36W Philips lamps. Total 1152 WSide lightsFor optionIllumination900LUXControlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gaugeQ: Which Port of loading?
A: Mainly ship from Ningbo port / Shanghai Port/Guangzhou Port.

Q: What is your MOQ?
A: All the products can be mixed in one container with low MOQ 1pcs.

Q: What is the Lead Time?
A: Normally it needs 20-25 days.

Q: What is the Payment Terms?
A: T/T/ 30% deposit before production and 70% before delivery.

Our Service
1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.

If you have interest in any of our products, please kindly contact us. If you have anu questions or doubts, please also feel free to contact us.
