Car Spray Booth Car Repair and Painting Baking and Maintenance
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB40A
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas, LPG, LNG
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White, Grey
- Panel：50mm Thickness EPS Foam Panel
- Grates：Full Grates
- Intake Fan：2set
- Exhaust Fan：1set
- Filter System：4-Stage Filtration
- Heating System：Gas, LPG, LNG
- Upper Lights：Available
- Side Lights：for Option
- Control Box：English Panel
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product 1：Large Truck Paint Spray Booth
- Related Product 2：Folding Retractable Paint Spray Booth
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB40A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Gas, LPG, LNG Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 50mm Thickness EPS Foam Panel Grates Full Grates Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Gas, LPG, LNG Upper Lights Available Side Lights for Option Control Box English Panel Drawing Available User Manual Available Installation Video Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the car spray booth car repair and painting baking and maintenance1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

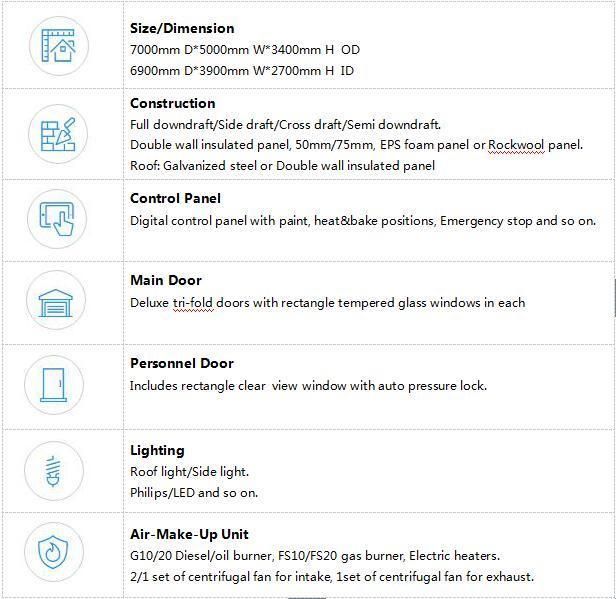

Quick Specification of car spray booth car repair and painting baking and maintenance
| Model | HY-CB40A |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
| Intake | two set of fan, motor:4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(GAS) | Italy Riello gas burner, one-stage oil burner for option. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Package of the car spray booth car repair and painting baking and maintenance
details show of car spray booth car repair and painting baking and maintenance
parts show of the car spray booth car repair and painting baking and maintenance
Package show of Car Spray Booth Car Repair and Painting Baking and Maintenance
Production area and equipment of Car Spray Booth Car Repair and Painting Baking and Maintenance
