• Model NO.：E501
• Coating：Powder Coating
• Airflow Direction：Downdraft
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：400mm
• Extraction：300mm
• Extraction Area：10.4m2
• Grids Carrying Capacity：650kg,Wheel
• Walls：50mm Rock Wool Walls
• Brightness：>800lux
• Empty Loaded Air Speed：0.18m,S
• Heats：Electric Infrared Lamps
• Maximum Working：80 Celsius
• Voltage：380V, 50Hz, 3pH
• Rated Power：45kw
• Noise：<78dB
• Transport Package：Goods Packed by Polyfoam and Loaded on Metal Frame
• Specification：6900 X 4000 X 2650mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. E501 Coating Powder Coating Airflow Direction Downdraft Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Plenum (Height) 400mm Extraction 300mm Extraction Area 10.4m2 Grids Carrying Capacity 650kg/Wheel Walls 50mm Rock Wool Walls Brightness >800lux Empty Loaded Air Speed 0.18m/S Heats Electric Infrared Lamps Maximum Working 80 Celsius Voltage 380V, 50Hz, 3pH Rated Power 45kw Noise <78dB Transport Package Goods Packed by Polyfoam and Loaded on Metal Frame Specification 6900 X 4000 X 2650mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Infrared Lamp Spray Booth Infrared Paint Booth Infrared Paint Oven For Car Painting1.HIGHLIGHTS
E501 downdraft infrared automotive paint booth is practical booth model proposed to satisfy the need for both low cost and good downdraft airflow for automotive refinish.
The compact and rigid structure, consistent airflow, efficient infrared lamps and easy-to-use control makes the booth the ideal solution for you.

2.SPECIFICATIONS

ITEMS	Infrared Lamp Spray Booth Infrared Paint Booth Infrared Paint Oven For Car Painting SPECIFICATIONS
Model	E501 Downdraft Infrared Automotive Paint Booth
Internal dimensions	6900 X 4000 X 2650mm (L X W X H)
External dimensions	7010 X 5400 X 3410mm (L X W X H)
Airflow	Downdraft
Plenum (height)	400mm
Extraction	Through 300mm high raised basement
Extraction area	10.4m2
Grids carrying capacity	650kg/wheel

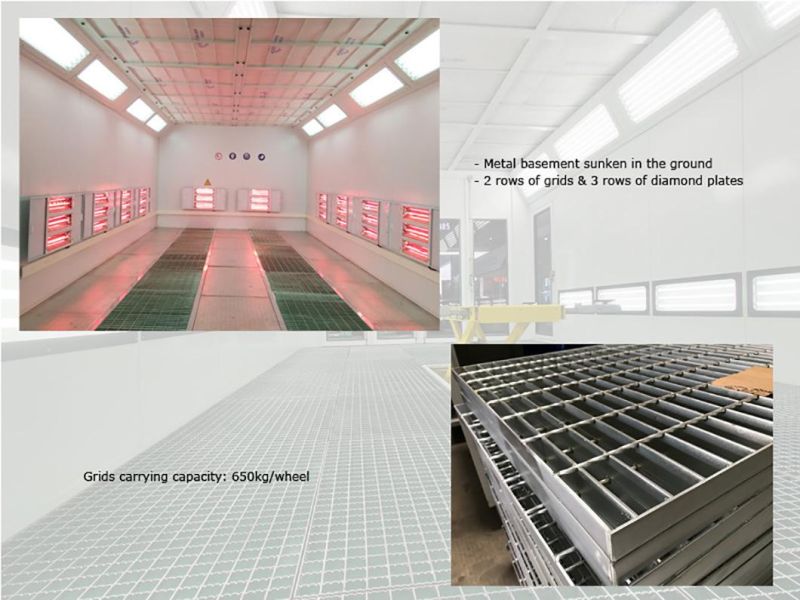

Basement	2 rows of grids and 3 rows of diamond plates
Entrance door	3200x2550mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 4 X 18W, 576W total
Brightness	>800LUX
Filters	Plate filter, high efficiency ceiling filter, floor filter
Intake/Exhaust unit	Direct-type turbine fans 1x5.5KW intake fan, 18,000m3/h 1x5.5KW exhaust fan, 18,000m3/h
Empty loaded air speed	0.18m/s
Heats	Electric infrared lamps  10 sets, 3 x1kw/ set
Maximum working temperature	80ºC
Controls	Control box with standard functions
Voltage	380V, 50Hz, 3ph
Rated power	45KW

3.DETAILS

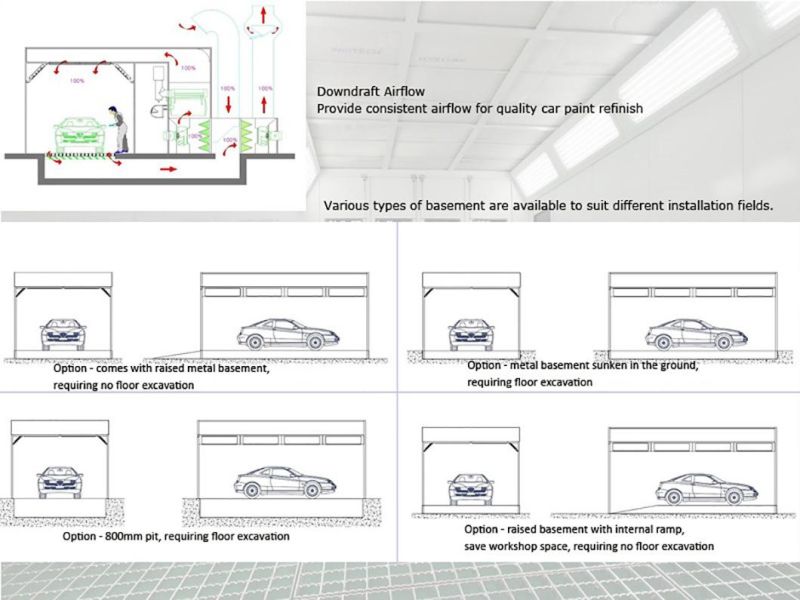

AIRFLOW & BASEMENT

• Downdraught airflow
• 400mm high plenum
• 300mm basement sunken in the ground, with grids and diamond plates

OPTION
Infitech offers different types of basement to cater to your installation field's requirements.

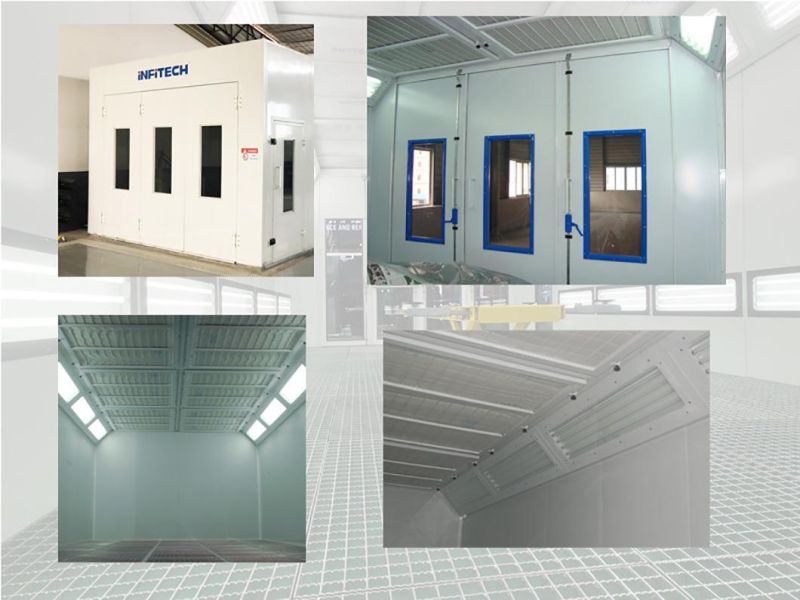

ENTRANCE DOOR & LIGHTS

• 2+1 entry doors: 3200x2550mm, window size: 500x1000mm
• Ceiling lights (LED lamp), illumination>800lux

OPTION

• Sidewall lighting fixtures, total illumination>1,000lux

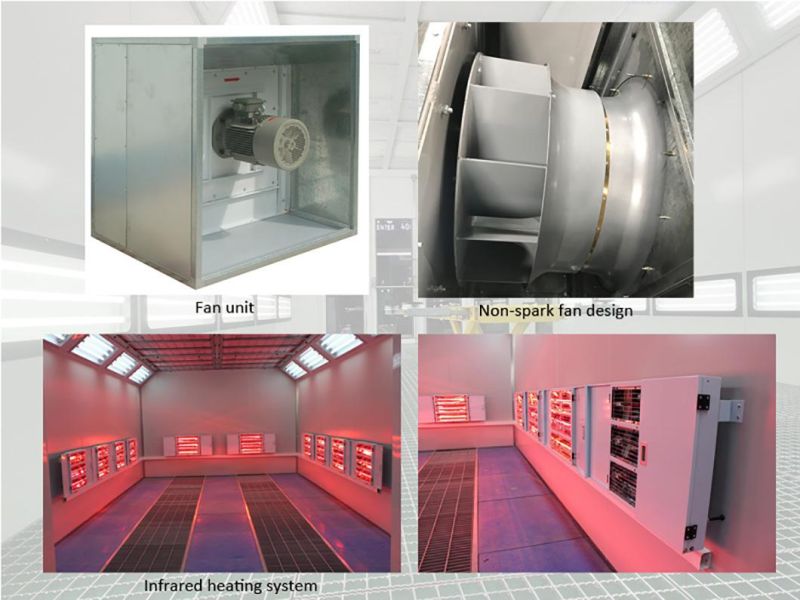

AIR HANDLING UNIT

• Direct-drive non-spark fan unit, CE certified motor
• Infrared lamps fixtures, 10 units, 3*1kw/set

Each unit works separately or all units work together.
The infrared lamps are with slow start function, and they are equipped with silicone rectifier to adjust the power, and accordingly the brightness of the lamps can be adjusted depending on actual application.

OPTION

• RIELLO diesel burner G20 and 200kw heat exchanger
• RIELLO gas burner FS20 and 200kw heat exchanger

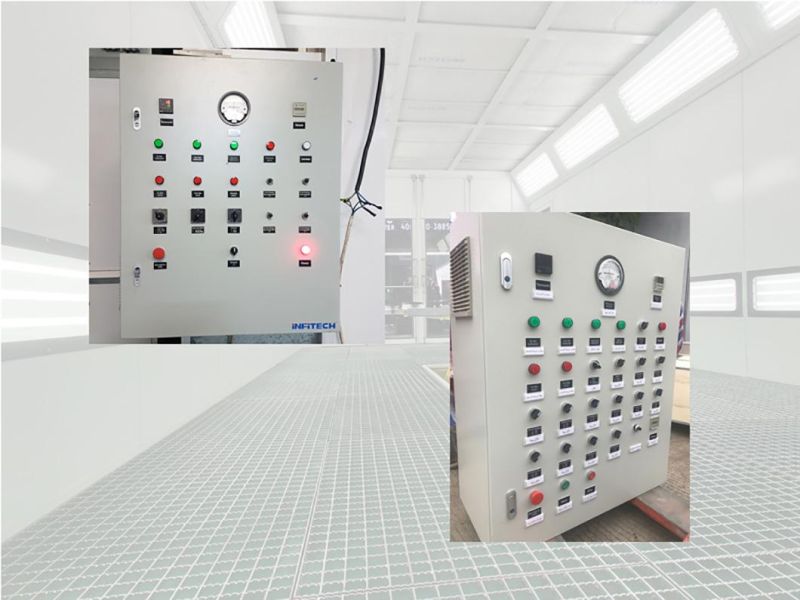

CONTROL

• Control system comply with European standard
• Basic functions: paint, bake
• Safety functions: failure indication, emergency stop, cool down

FILTERS

Item	Specification
Inlet filter	Plate type fiberglass filter
Micro-dust filter	High efficiency SP-600G
Floor filter	Fiberglass paint arrestor filter

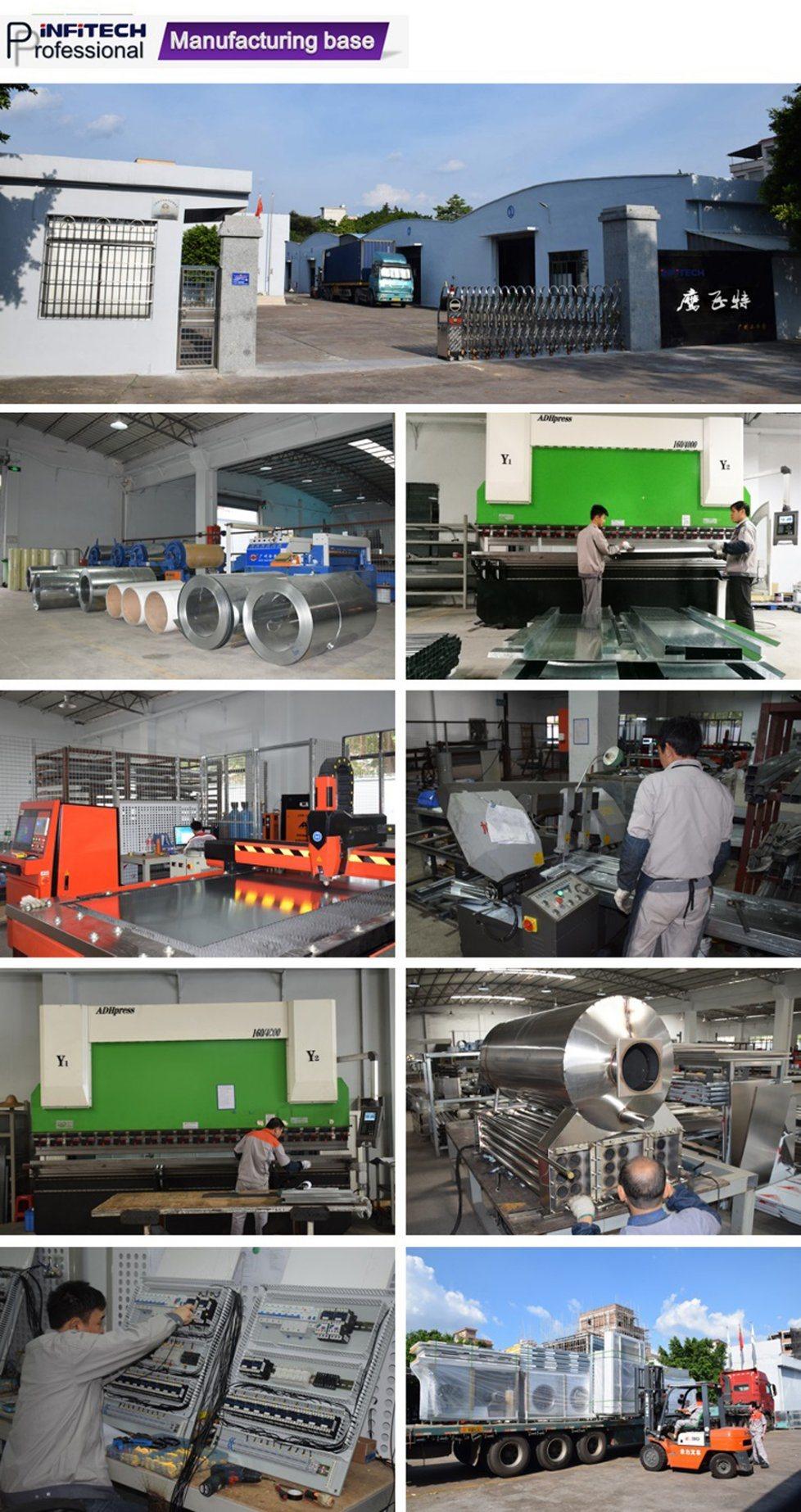

Factory image:

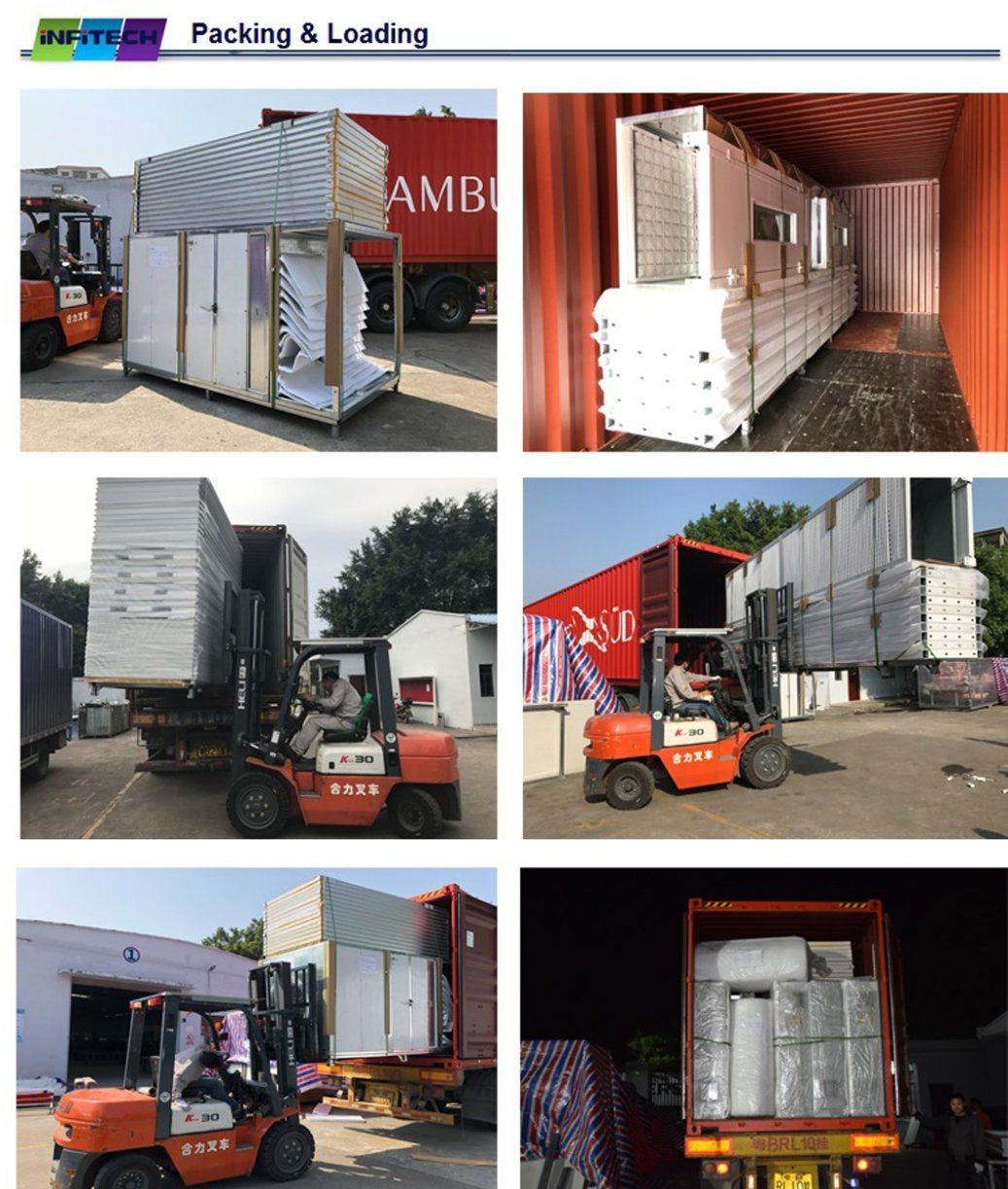

Packing and loading:


FAQQ: I want diesel burner instead of infrared lamps for the automotive paint booth.A: Okay. We can offer RIELLO diesel burner for you. The diesel burner model depends on the heating output required and the volume of air to be handled.
 Q: I notice that the empty loaded air speed is 0.18m/s only. It is not enough when I use water-based paints.A: Good question. First of all, kindly be advised that this model E501 is an economical model designed for customers who require relatively lower cost. Hence, it comes with only 2*5.5kw motor at air volume of 18,000m³/h.
To suit the application of water-based paints, we can further upgrade the paint booth to meet your needs.

Alternative 1: Add air accelerator with air nozzles installed on both sides of the paint booth, which helps greatly accelerate the airflow speed and achieve faster drying.

Alternative 2: Change to other paint booth models with higher air volume, which has empty loaded air speed over 0.3m/s.

Please contact us for more detailed information if you are interested.
 Q: How long is the production lead time?A: Normally, the standard production lead time is 20 days from the date we receive the down payment.
 Q: Can you provide grids with higher carrying capacity?A: Sure. There are grids with carrying capacity at 900kg/wheel in option.
 Q: I want bigger booth. Can you supply?A: Okay. Please send your specific inquiries through, and we will follow your requirements to proceed with the design and layout for your approval.
Please be advised that Infitech can customize paint booth from small ones to massive booths for you.
 Q: What about the terms of payment?A: 50% advance payment, and balance payment before EXW.
Usually, we accept payment by T/T. However, L/C, West Union payment methods are also accepted.
