• Model NO.：CP-120
• Certification：CCC, CE, GS, SGS
• Substrate：Sandwich Panel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：20000X5000X5000 mm(Lxwxh)
• Outside Dimension：20150X6500X5500mm(Lxwxh)
• Pit：2 Rows of Pits, 18000X760mm(Lxw)
• Main Door：4-Folds, 4000X4500mm(Wxh)
• Escape Door：2 Units, 800X2000 mm (Wxh)
• Room Body：75EPS Panel, 0.5 Steel
• Lighting System：Ceiling Lights: 104PCS, Side Lights: 128PCS
• Intake Fan：6X7.5kw Centrifugal Fans
• Exhasuting Fan：3×11kw Centrifugal Fans
• Heating System：3 Units Riello Rg5s Diesel Burners
• Air Speed：0.3-0.35m,S
• Ventilation Type：Semi Downdraft
• Filter Type：Dry
• Voltage：Customized According to Need
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：96sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

CP-20Outside Size(mm):20150×6500×5500mm(LxWxH) Inside Size(mm):20000×5000×5000 mm(L×W×H)Front Door(mm):4000×4500mm(WxH), 1 Unit,4 folded, galvanized steel cover frame, with polystyrene(EPS) insideService Door(mm):2 units, 800×2000 mm (WXH), There are two sets of pressure lock which will automatically open when the pressure inside is over the limit.Total Power:88.5KW Cabin SystemWallboardDouble construction with insulations EPS, thickness 75mm, 0.5mm steel thickness, width: 950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside. Profiled bar beams in the roof to strengthen the room body.BasementNeed to build the base construction, 2 rows of pits in the ground for exhaust air, dimension of each pit is 18000×760mm(L×W), with galvanized grids made by twisted steel and flat bar above.Inlet Fan(Belt)Capacity: 21000m³/h eachOutlet Fan(Belt)Capacity: 36000m³/h eachPower: 7.5kwPower: 11kwQuantity: 6 setsQuantity: 3 setsPurification SystemG3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter.Heating SystemItaly Riello RG5S diesel burner, 260000Kcal/h, 3 setsHeating exchanger, stainless steelmax temp: 80 degree centigrade, heating time: 8-10 min(from 20 to 60)by Drying PhaseLighting SystemCeiling Light: 26 Units, each 4×36W, with electronic ballasts;                         Side Light: 32 Units, each 4×36W, with electronic ballastsControlling SystemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator,
 thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
 hour meter, temperature limit controller.Environmental SystemG3 grade glass fiber floor filter, exhaust active carbon filter.

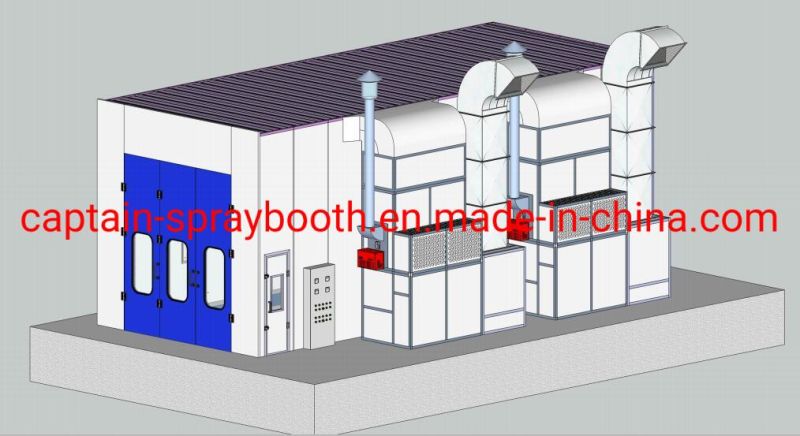

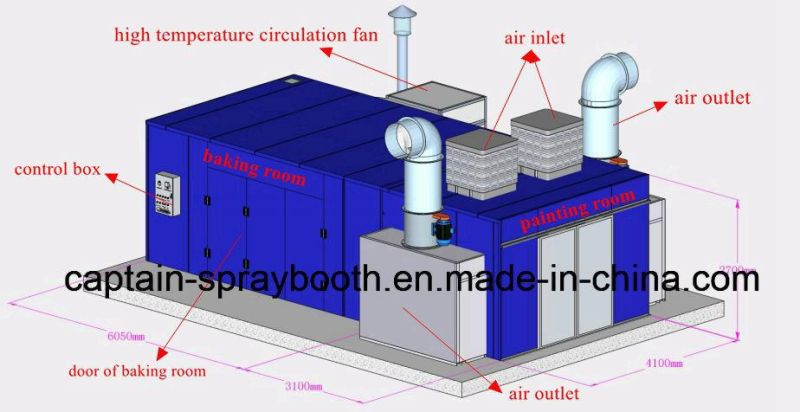

Designed Draw





Our production

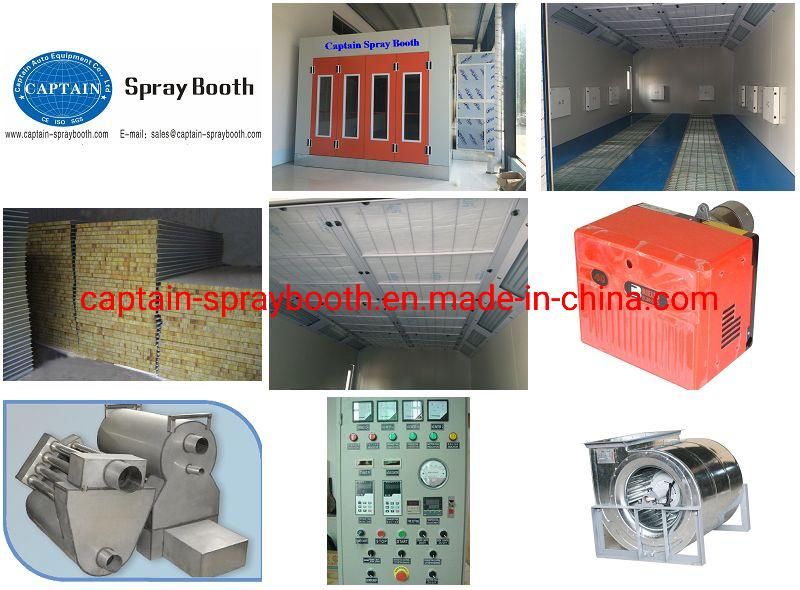

High quality parts

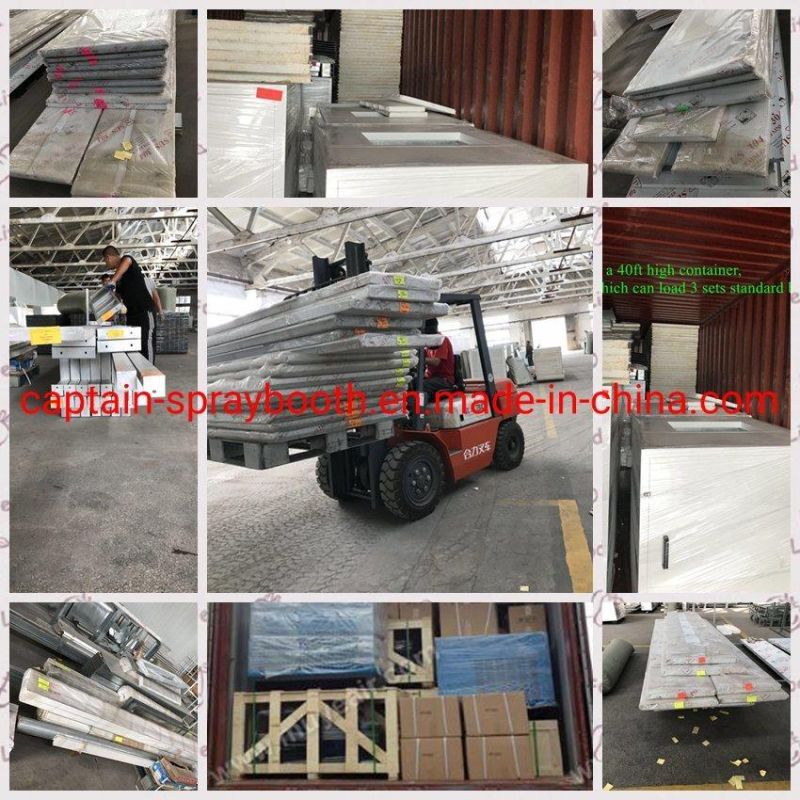

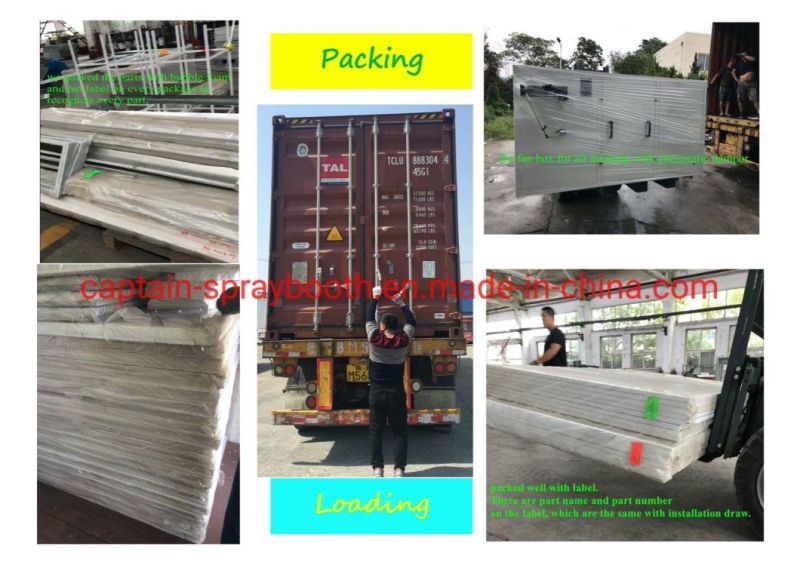

Package and delivery

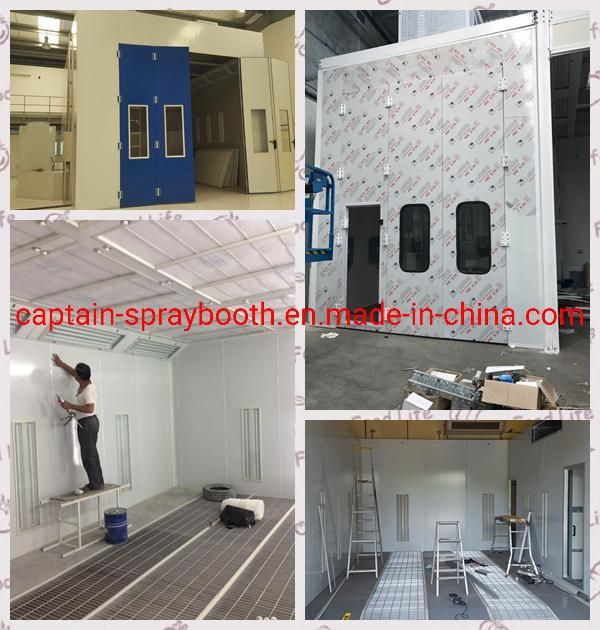

Installation

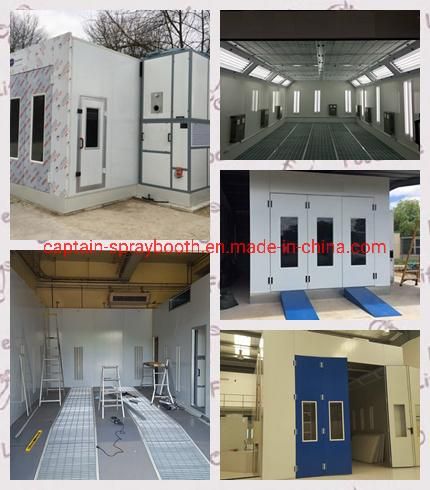

Customer Installed Models


Different Colors


Our Workshop


Factory View



Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
