• Model NO.：BZB-BF
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：as Require
• Voltage：as Require
• Transport Package：Polyfoam and Carton
• Specification：CE ISO9001: 2000
• Trademark：BZB
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：200sets,Year

specifications of spray booth of 15meters, only for reference.model of spray booth:BZB-FB modelmanufacturerJingzhongjingtechnical parameters (L× W× H)outside size15156× 6956× 5800structure parameterthickness of wall panel mm75(L× W× H)inside size15000× 5000× 5000thickness of steel sheet mm0.5Access door width(mm)4000stuffingEPS PanelAccess door hight(mm)4500  grid30*4flat ironair speed when empty(m/s)≥ 0.25shelf of the boothsquare steel pipe+angle iron noise dB≤ 85  mesh square steel pipetotal power kw52  cabinetsquare steel pipe+galvanized steel platemax work temprature 80 centi degreeilluminance parameterlamps(pcs)ceiling lamps72spec. of burnerburner2 sets of RG5S Riello Burnerbottom lamps 40max heat Calories/h 260000*2power/pc W36fuel consumption L/h(13-26)*2lamps 220V/50HZheat-exchangerstainless steelilluminance Lux≥ 800spec. of inlet fan  model of inlet fan                      YDW-5.6S                                                             outlet air parametersoutlet pipe(mm)900× 900   estimated air Volume m3/h17530chimneygalvanized steel platepower/set(KW)7.5hight of chimneystandard 12m plus two elbows  Quatity4electric appliancecontrol box modelPLC control boardspec. of outlet fan  model of outlet fan                      4-82-6.3E                                                                 components of control boxmain parts are importd.estimated air Volume(m 3 /h)34000otherscolorgrey/sky blue/orange(optional)power/set(KW)15work plate lifteroptionalquatity2   remarks made by: Guangdong Jingzhongjing Industrial Painting Equipment Co., LTD.                                                                   Aprill. 30th, 2011

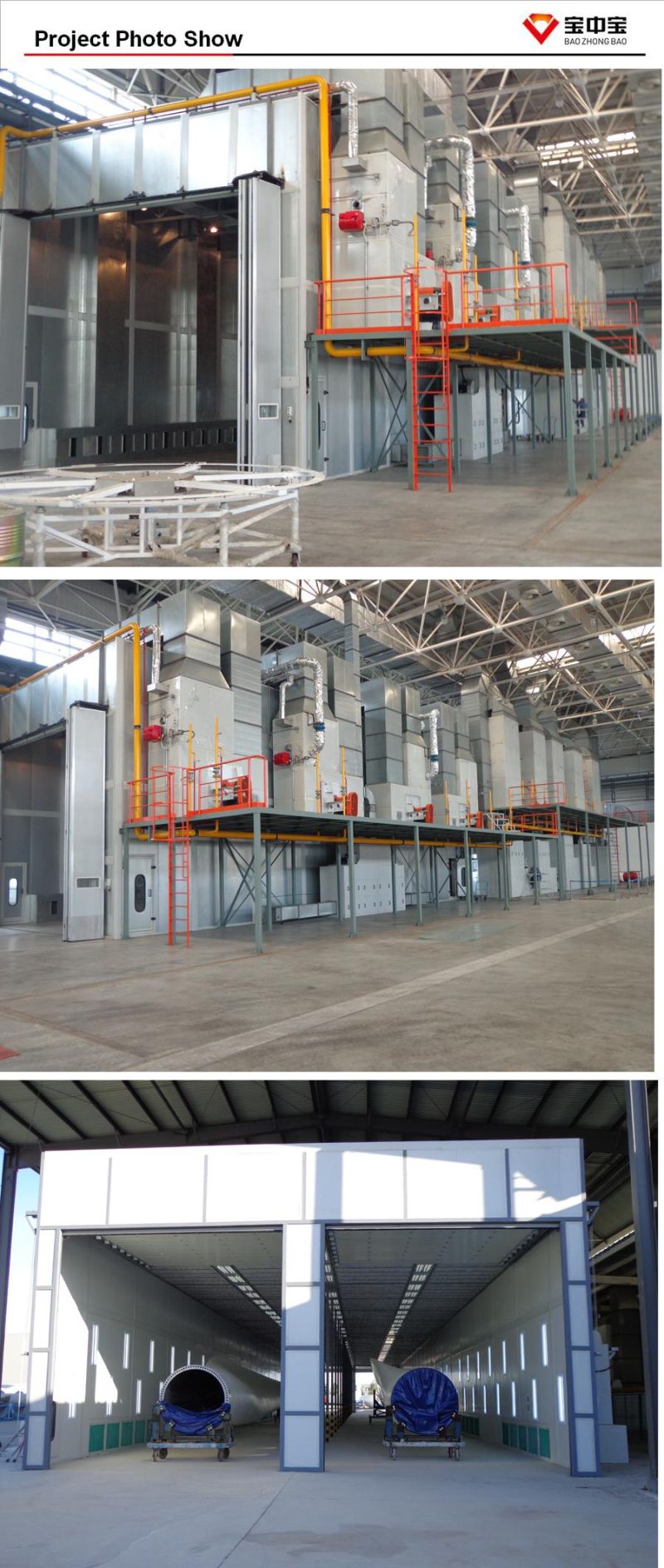

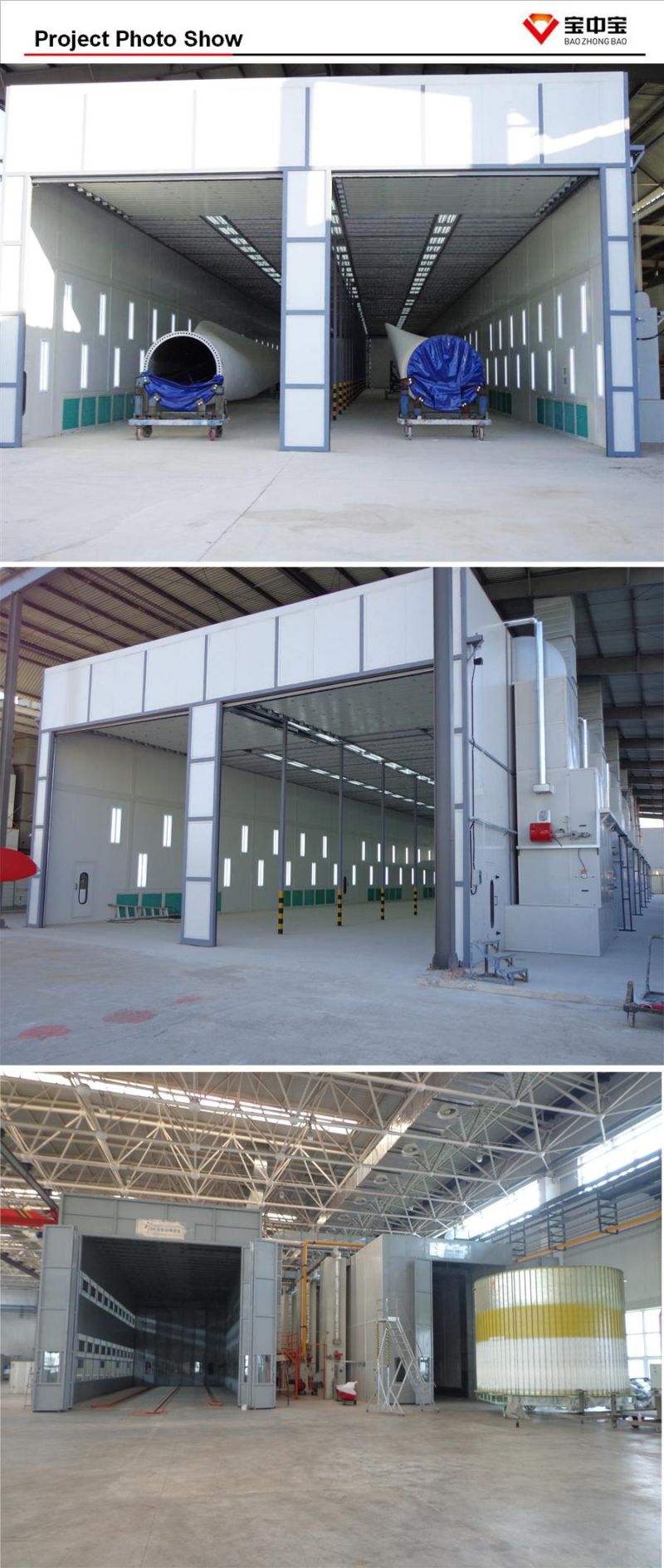

The follow Project is from Dandong Project in China.
