• Model NO.：BZB-BF
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Colors：White,Red,Orange,Blue.......
• Transport Package：Polyfoam and Cardboards, by Sea, in Container.
• Specification：CE and ISO9001
• Trademark：BZB
• Origin：China
• HS Code：84198990
• Production Capacity：200 Sets Per Year

SystemsEquipment DetailsPre-treamment

1. Flood wash equipment

2. Degrease equipment

3. Electrophoresis equipment

4. Electrophoresis equipment

Chain conveyor system1. Aluminium fixture block
2. Chain transit unit
3. Steel alloy track
4. Inverterters & gear motorSpray booth

1. Size:Customied
2. Fan exhaust system

3. Exhaust gas treatment system

4. Filter system
5. Lighting system
6. Control system

Oven1. IR tunnel oven and UV machine
2. TEM:50-150 degree
3. Heating pipe and UV lamp
4. Mirror stainless steel inner wall
5. T50-150mm rock wood thermal insulation
6. China motorRotation unit1. Selt-rotation sysem 2 sets
2. Auto spray gun hold(with scale)
3. Selt-rotation motor
4. Magiceye sensor
5. DEVELBISS spray gun 6 setsControl system1. Switch or PLC touching screen
2. air switch & overload ensure
3. Branded power switch & indicator light
4. Branded pneumatic elements & Magnetism valve



This is Customer-made Painting line base on customer's require.Workshop space.Produce Capacity.

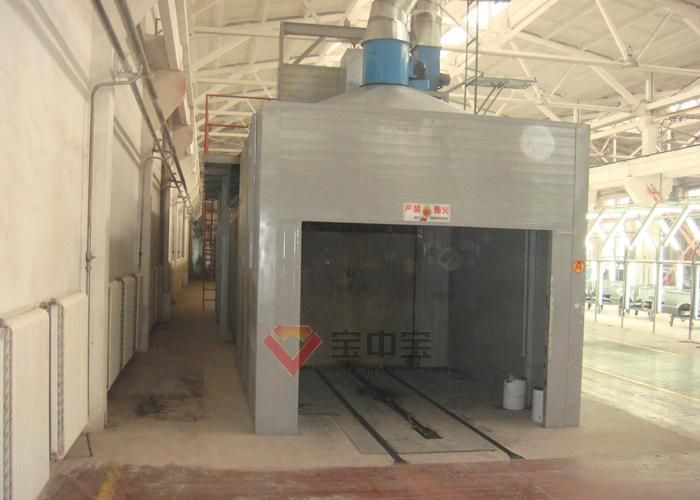

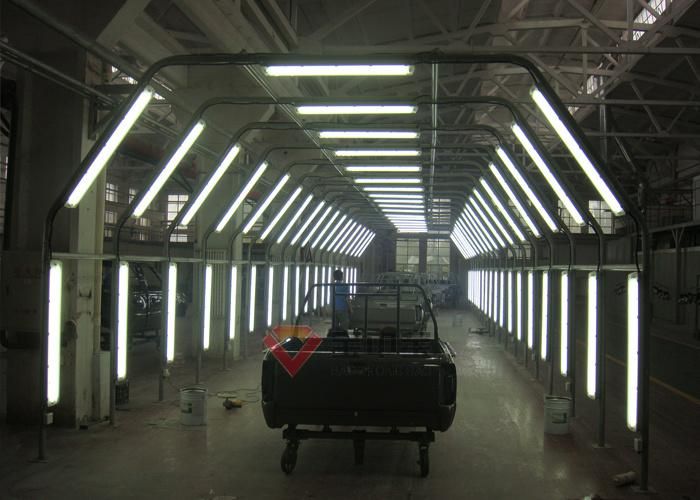

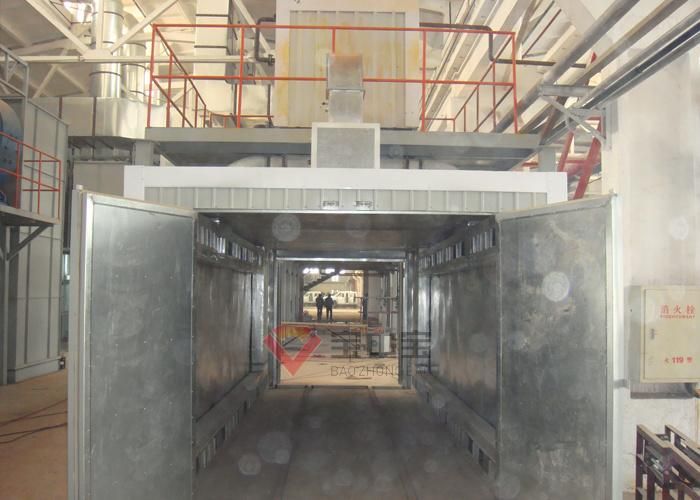

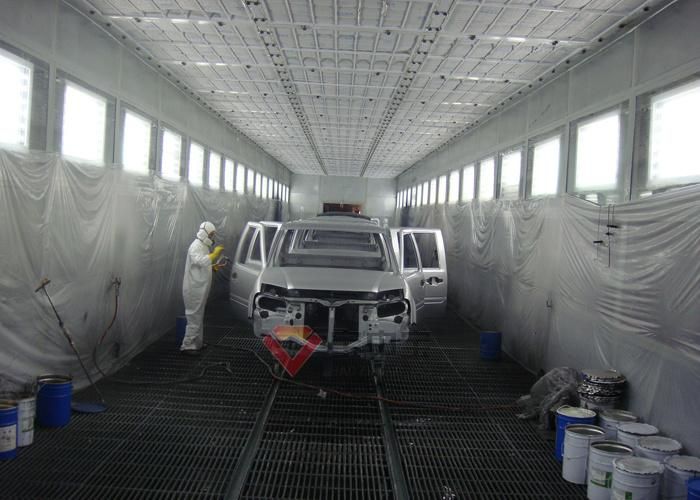

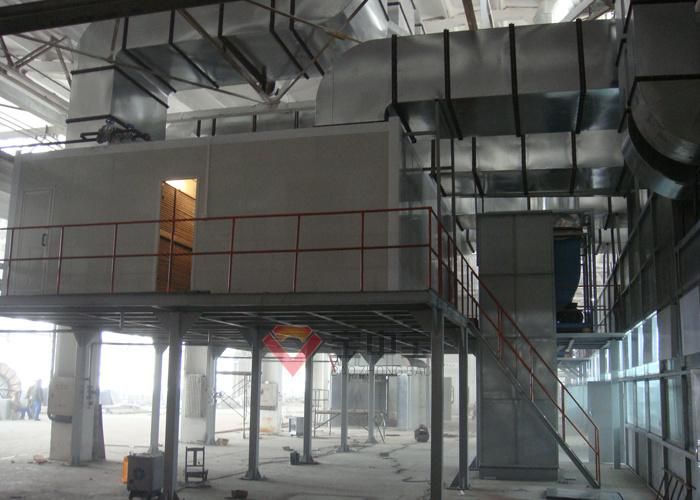

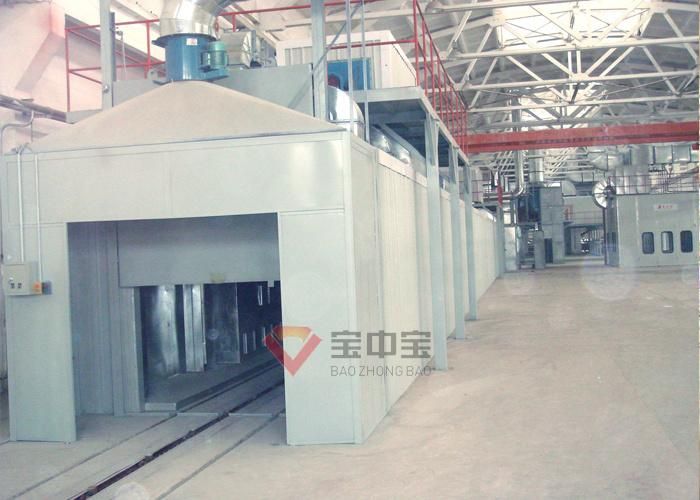

Contact us if you have require.we can design to full fill your require.The follow project is about auto main body painting line.
