• Model NO.：JZJ-8000-EUN
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Sea Blue, Red, Orange, White
• Large Door Size (W X H) mm：3000×2600
• Capacity of Blower Fan：25000m3,H
• Capacity of Exhausted Fan：25000 M3,H
• Inside Air Speed：M,S:0.3
• Air Exchange Volume Time/H：280
• Heating Time(20ºC-80ºC)/Min：5-6
• Noisy：≤80dB
• Tsp：Mg,M3:≤1.4
• Gas Consumption：8-10m3,H
• Key：Painting Room
• Transport Package：Consist with International Shipping Packaging.
• Specification：CE, ISO
• Trademark：JZJ
• Origin：Yancheng Jiangsu
• HS Code：8419899090
• Production Capacity：2500 Sets,Year

17KWCabin systemWall panel  50mm rock-wool panel, steel sheet thickness: 0.6mmCeiling panel 50mm rock-wool panel. steel sheet thickness: 0.6mmBasement300mm depth, full grids basementRampsThree pieces 2000*900mm rampsGlass4mm safety tempered glassWindowsSquare glass windowsAir Make-up SystemAir Inlet fan system1*7.5kw turbo fan, proof-explosion motor, Ex ratedExhausted fan system1*7.5KW turbo fan, proof-explosion motor, Ex ratedAi capacity for fresh air25000m3/hAir Flowing speed0.3m/s in empty boothAir ducting8meters straight ducting, one flop damper and one weather hood. Purification SystemPre-filterG3 grade, Pockets filter. Ceiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan Filtersgreen fiber glass filter and active carbon Heating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:        RielloG20 diesel oil burner(gas burner for option)    Heating productivity                             180000Kcal/hSpray to baking switch20N BELIMO brand electrical damperChimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80degreesfuel consumption6-8L /vehicleLighting SystemCeiling lights8 Units, each 4 x 36W Philips lamps, Total 1152 WSide lights10 Units, each2 x 20W Philips lamps, Total 400W Lighting volume1000LUXControlling systemSwitched control panel Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge

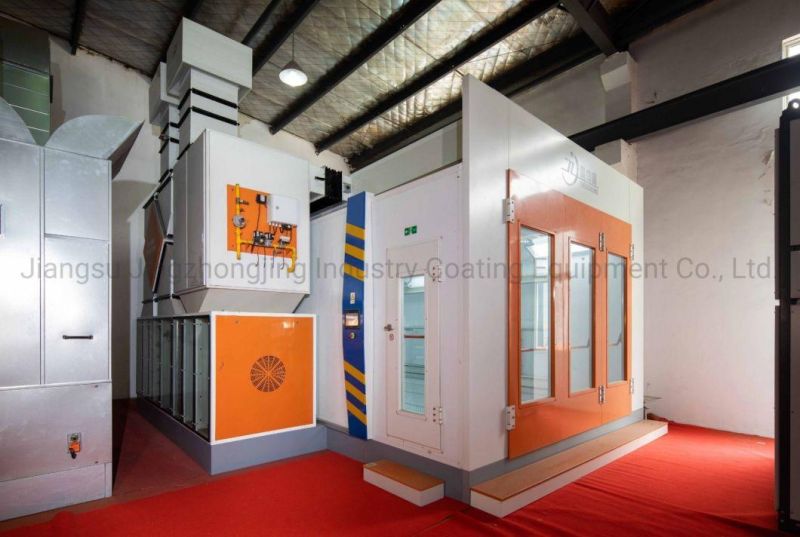

Automobile paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance. The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.
In order to make the equipment work normally, please read this manual carefully
before installation, operation and maintenance.


Q: Which Port of loading?

A: Mainly ship from Ningbo port / Shanghai Port/Guangzhou Port.



Q: What is your MOQ?

A: All the products can be mixed in one container with low MOQ 1pcs.



Q: What is the Lead Time?

A: Normally it needs 20-25 days.



Q: What is the Payment Terms?

A: T/T/ 30% deposit before production and 70% before delivery.



Our Service
1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.
