Common Rail Testing Equipment Test Bench with Coding Function

Wuxi Chengshunda Automobile Technology Co., Ltd.
  • Certification：CE, GS
  • Update Method：by Internet
  • Condition：New
  • Standard：Standard
  • Selling Point：Coding System
  • Test Range：Euro 3---Euro 6

Base Info

  • Model NO.：JZ-206
  • Motor Power：2.6 Kw
  • Power：220V 50,60Hz
  • Rail Pressure：0-2700 Bar
  • Speed：0-1000 Rpm
  • Metering Way：Flow Sensor
  • Rail Pressure Precision：5 Bar
  • Filter Precision：< 5 Um
  • Tank Volume：8 L
  • Fuel Temperature：38-42 ′c
  • Net Weight：120 Kg
  • Transport Package：Wooden Case or Strong Carton
  • Specification：685*730*715 mm
  • Trademark：Jing Zheng Hong Ye
  • Origin：Wuxi City, Jiangu, China
  • HS Code：903120009
  • Production Capacity：500 Pieces,Year

Description

Hardware advantage 1. Motor power is 2.6 KW2. Air-cooled heat dissipation kit3. Metering valve detect the fuel flow4. Imported flow sensor from Germany 5. Equipped with Bosch genuine DRV6. Equipped with Bosch genuine CP3 pump 7. Equipped with Bosch genuine common rail tube 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)9. Short-circuit protection, ground protection, over-pressure protection during the testing10. Equipped frequency converter to achieve testing function under different speed conditions11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life Technical  ParametersOutput2.6 KWPower220V 50/60HZSpeed0~1000 RPMRail Pressure0~1800 BarRail Pressure Precision±5 BarTank Volume8 LFuel Temperature40±2ºCFilter Precision<  5μmGross Weight140 kgPacking Size880×880×910 mmSpeed Control ModelConverter Control Temperature Control SystemAir-Cooled Heat DissipationNozzle SensorImported Original Elliptical Type Flow SensorLanguageEnglish, Spanish, Russian,etcMaterialMetal PlatePaintingPowder Painting, DurableColorDark Blue/ Green (can be customized)LogoJing Zheng Hong Ye (can be customized)MOQ1 PiecePayment40%Deposit, the rest paid before deliveryWarranty Time12 monthsDelivery time30 days after prepaidShipping Packing Wooden Case or Strong Carton

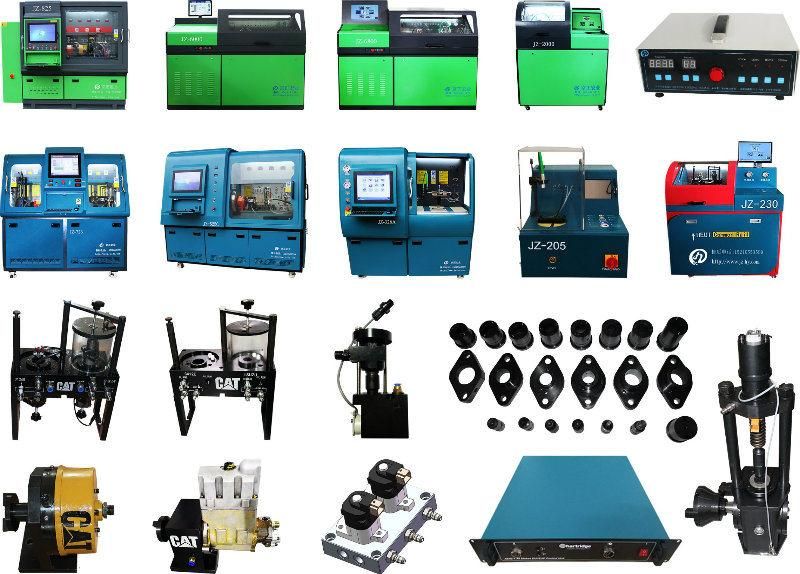

Related Products and Fixtures

Common Rail Testing Equipment Test Bench with Coding Function

Packing and Delivery

Common Rail Testing Equipment Test Bench with Coding Function

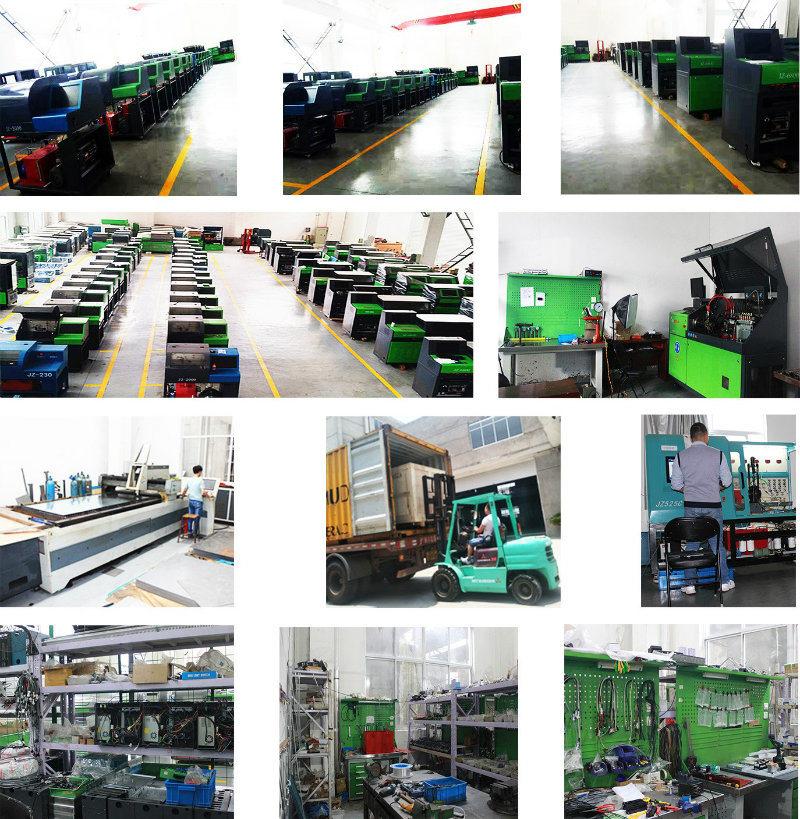

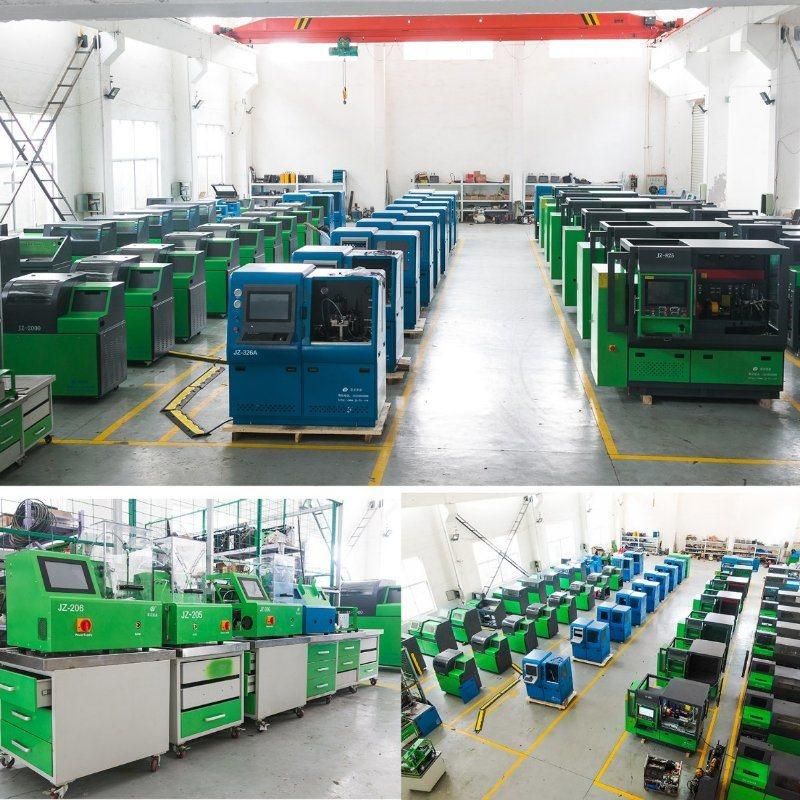

Our Company

Common Rail Testing Equipment Test Bench with Coding Function
Common Rail Testing Equipment Test Bench with Coding Function

Exhibition
Common Rail Testing Equipment Test Bench with Coding Function
Why Choose Us

1.  Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2.  Independent design and development team,and rich produce experience.
3.  Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC,  good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
