• Model NO.：ThinkCar ThinkScan 600
• Item Type：Auto Diagnostic Scanner
• Color：Yellow & Black
• Input Mode：Keypad Input
• Update：1 Year′s Free Update
• Connection：Obdii Diagnostic Cable
• Voltage：9V-18V
• Material：Plastic
• Item Weight：0.78kg
• Warranty：1 Year′s Free Warranty
• Certifications：Ce & FCC
• Transport Package：Carton
• Specification：0.78kg;
• Trademark：THINKCAR
• Origin：China
• HS Code：9031809090
• Production Capacity：1000000

Basic Info.

Model NO. ThinkCar ThinkScan 600 Item Type Auto Diagnostic Scanner Color Yellow & Black Input Mode Keypad Input Update 1 Year′s Free Update Connection Obdii Diagnostic Cable Voltage 9V-18V Material Plastic Item Weight 0.78kg Warranty 1 Year′s Free Warranty Certifications Ce & FCC Transport Package Carton Specification 0.78kg; Trademark THINKCAR Origin China HS Code 9031809090 Production Capacity 1000000

Product Description

OBD2 Auto Diagnostic Scanner Thinkcar Thinkscan 600 Full OBDII functions

Why choose our products?
1. All products in our company are 100% original ThinkCar products.
2. The lowest price in whole Made-in-China.
3.Overseas warehouse: Fast shipping & Seller paying customs tax for EU countries.
4.Countries with local free return: United States, Canada, Australia, United Kingdom, France, Spain, Germany, Russia, Brazil, Israel, South Korea, Saudi Arabia, UAE, Poland, Netherlands, Italy. ( Note: If products are blamed of any quality problem, free return service to local country will be open. )


Product Introduction:

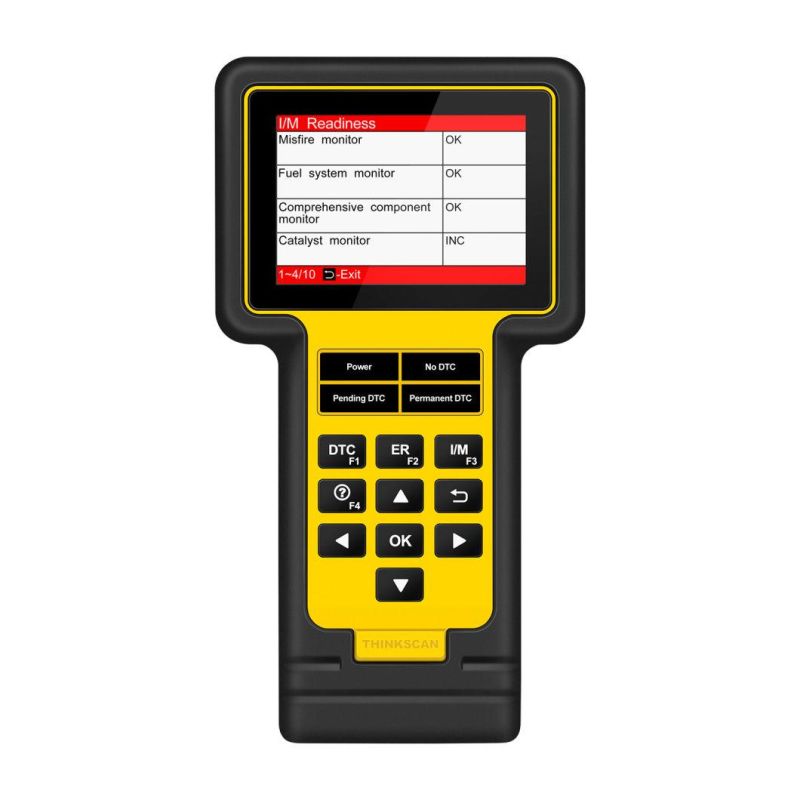

     ThinkCar ThinkScan 600 is one of the latest products released by ThinkCar company. It an practical smart solution for passenger car diagnosis. It inherits from ThinkCar's advanced diagnositic technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
      ThinkScan 600 supports all 10 modes of OBDII test for a complete diagnosis.
      It also supports the system diagnosis of both ABS system and SRS system.
      The product does well in 3 kinds of useful reset functions as well, including Oil Reset, TPMS Reset, Brake Reset.
      SKU : SC109

Features:
1. Reset Functions:
    Oil Light Reset, TPMS Reset, Brake Pad Reset
2. Two System Diagnosis:
    ABS System, SRS System
3. Ten Modes of OBDII test:
    Reading and Clearing DTCs, Data Stream, I/M Readiness, etc
4. Multiple Car Models:
    Covering over 50 prevailing models from Asia, America and Europe
5. Support 7 kinds of languages:
    English, French, Spanish, Russian, Portuguese, German, Japanese, etc
6. Keypad input, easy to operate
7. One-click update online via Wi-Fi, One year's free update



ThinkScan supports 3 kinds of Reset Functions:

1. Oil Reset: allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. TPMS Reset: makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

3. Brake Reset: is important in the maintenance of electronic braking system's safety and efficiency.



ThinkScan supports full 10 models of OBDII diagnostic functions for engine:

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).

Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.




ThinkScan supports two big systems diagnoses:
ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.
SRS Airbag System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

Vehicle Coverage: Most of OBDII Vehicles
American cars after 2000, European cars after 2006, Japanese cars after 2008

ThinkScan supports multiple languages :
Including English, French, Japanese, Spanish, German, Italian, Portugues, Russian, etc.
The device default language is English , you could switch the supported language freely by choose setting menu.

ThinkScan could Share & Print diagnostic report :
You could share diagnostic data via Email, and print car diagnostic report via PC & printer.


Specifications :

Item Type	car diagnostic scanner	Voltage	9V-18V
Color	yellow & black	Material	plastic
Input Mode	keypad input	Item Weight	0.78kg
Update	1 year's free update	Warranty	1 year's free warranty
Connection	OBDII diagnostic cable	Certifications	CE & FCC

ThinkScan Packing List :
Packing list supplied with ThinkScan 600 together
1. ThinkScan 600 main unit

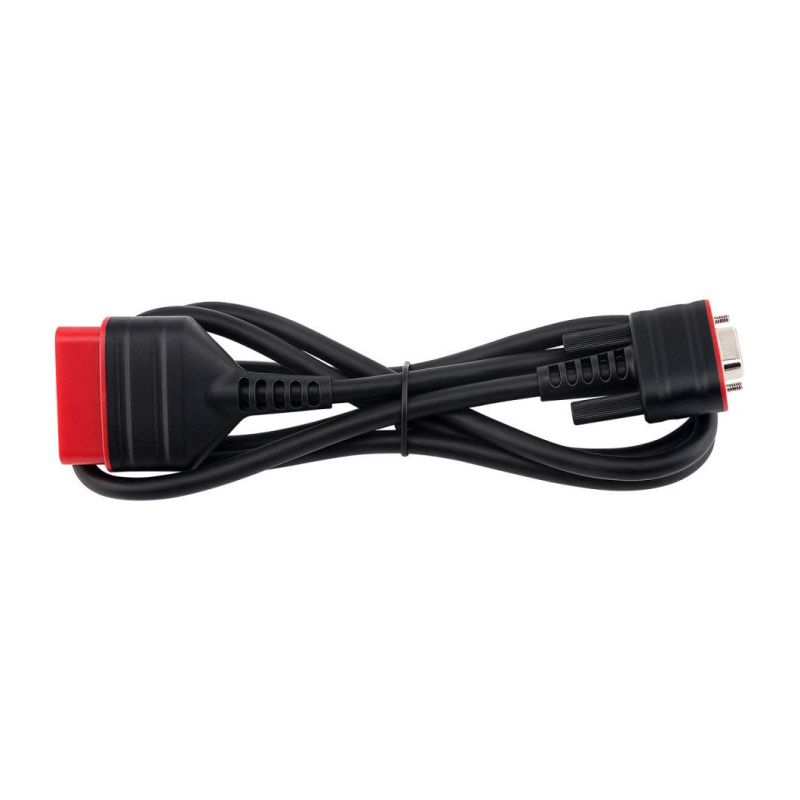

2. OBD II diagnostic cable

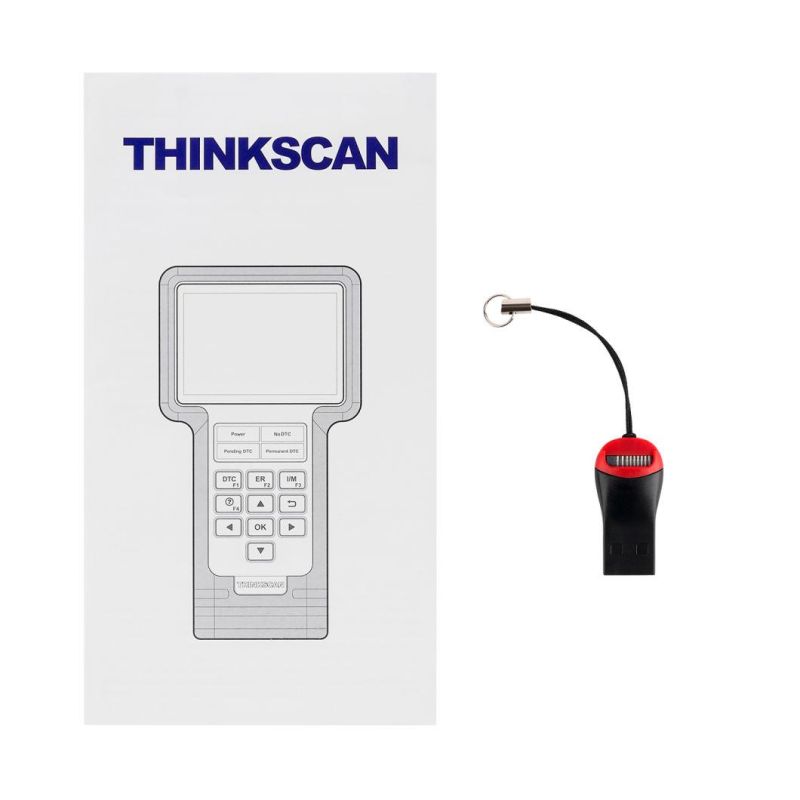

3. User manual








Attention please:
*This one can't support Diesel vechicles.
*Can do most of OBDII gasoline cars,but can't support all OBDII cars.
*ThinkScan 600 can do MOST of the OBDII vehicles, but it CAN NOT do all models.
