• Model NO.：Non-standard
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：6900*3900*2650 mm
• Function：Baking and Painting
• Design：European Design
• Lights：LED
• Transport Package：Export Professional Package
• Specification：CE, SGS
• Trademark：Baoyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：90 Sets,Month

Intake and Exhaust systemInlet: 2×4KW double-intake centrifugalfans, belt drive, model TAE-400H,total air capacity: 25000m 3 /h.Outlet: 1×7.5KW double-intake centrifugalfan, belt drive, model TAE-560H, air capacity: 24000m 3 /h.Heating systemRIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h, Max temperature: 80 degree.Purification systemPre-filter, ceiling filter, fibreglass filter, cylindrical activated carbon filterWater-borne paint systemWith water-borne paint system on the both sides of ceiling, stainless steel nozzle, 4 units 0.77KW centrifugal fan, total air quantity: 13400 m 3 /hRoofGalvanized steelControl systemSpraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, water-borne paint system switch, emergency stop, all motors are normal start.Total power22.5KW

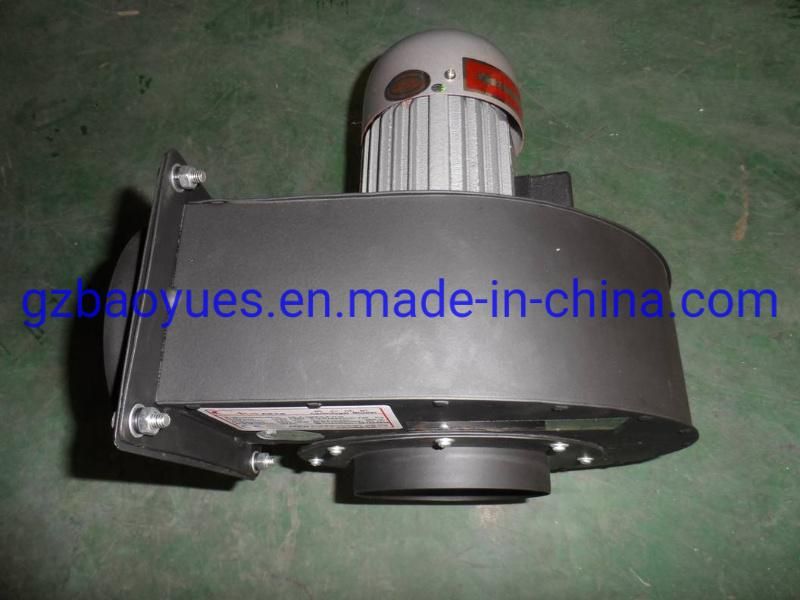

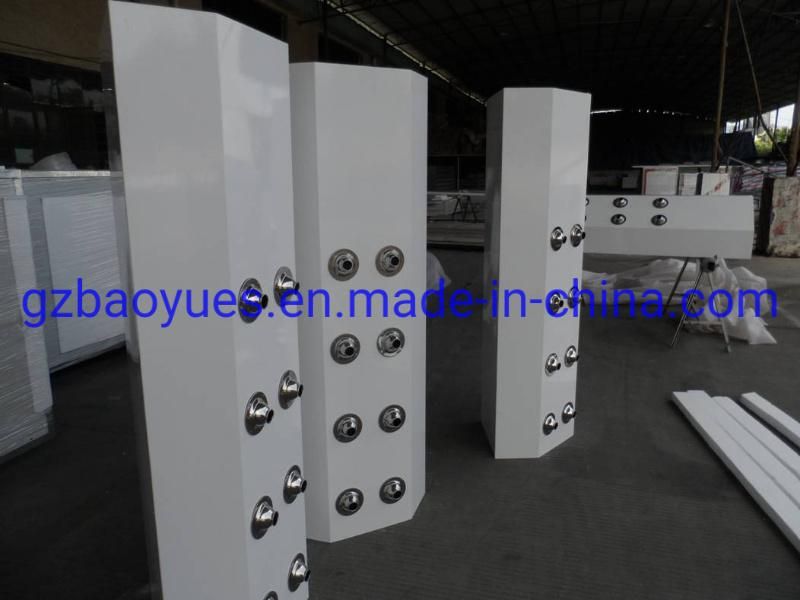

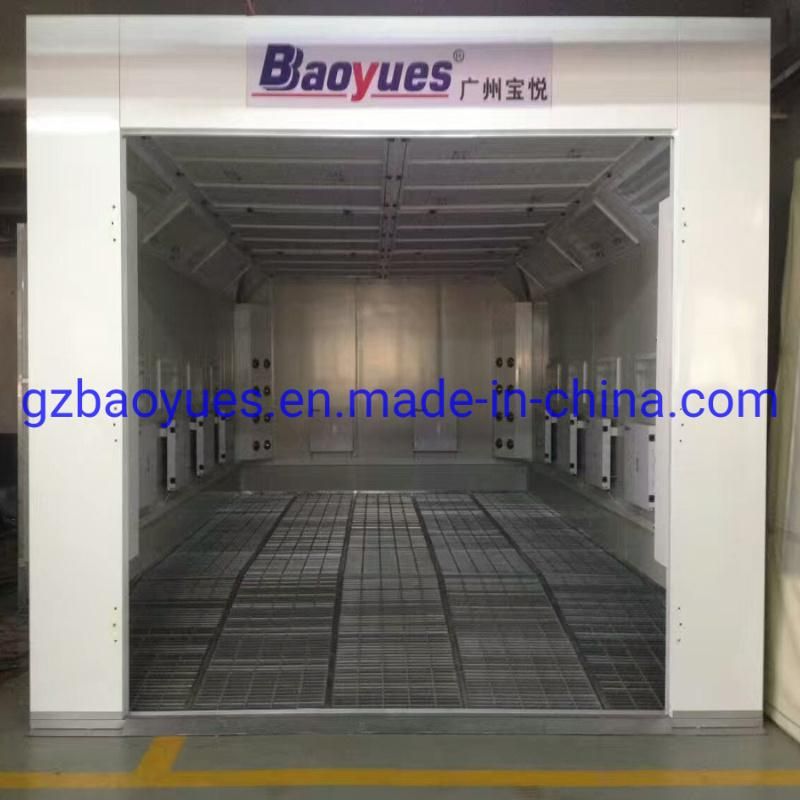

Details for parts:

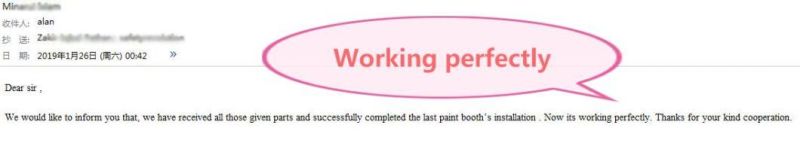

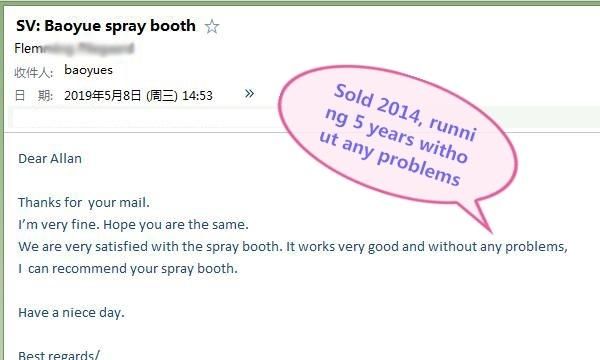

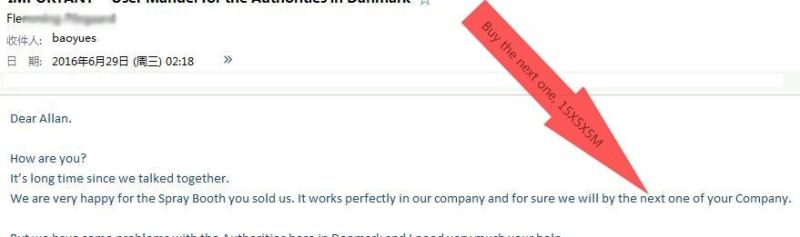

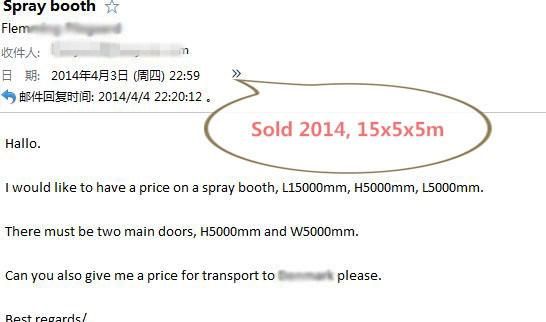

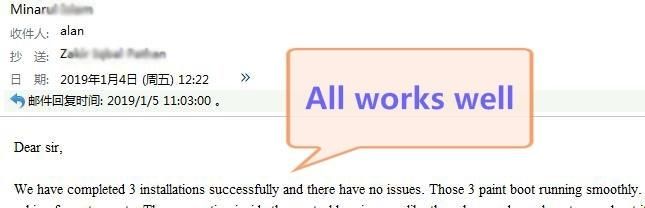

What customer saying:

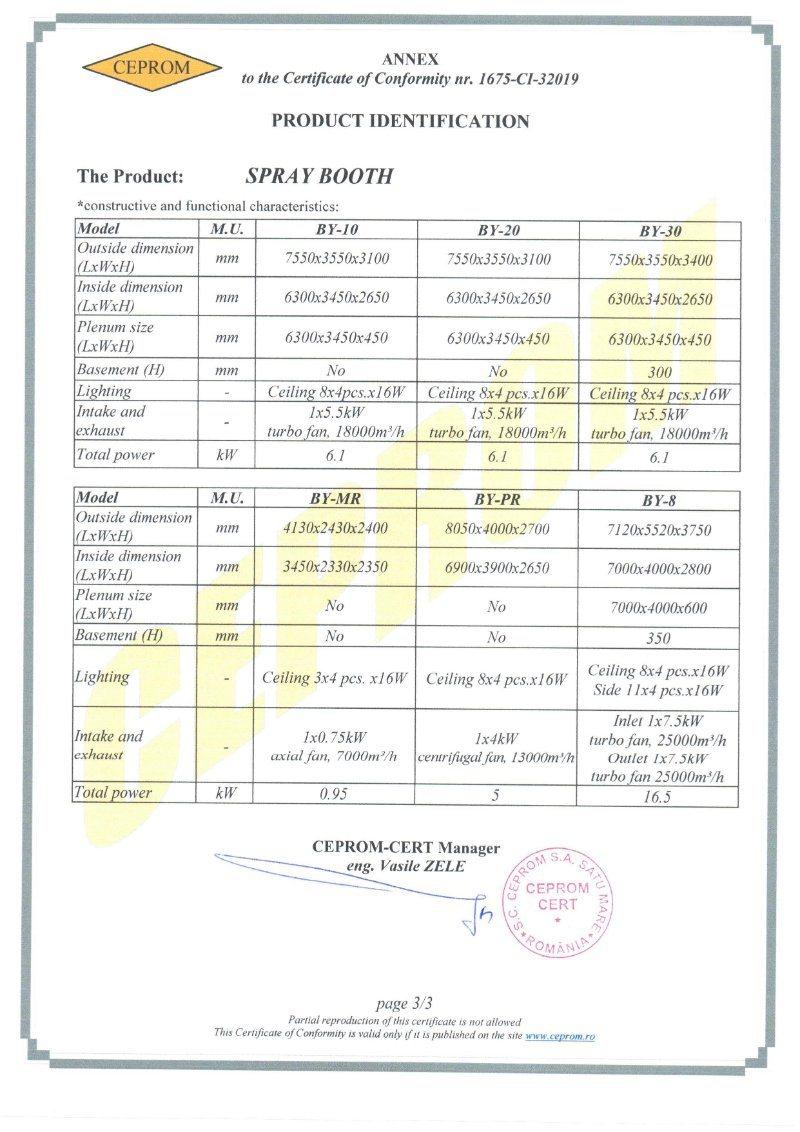

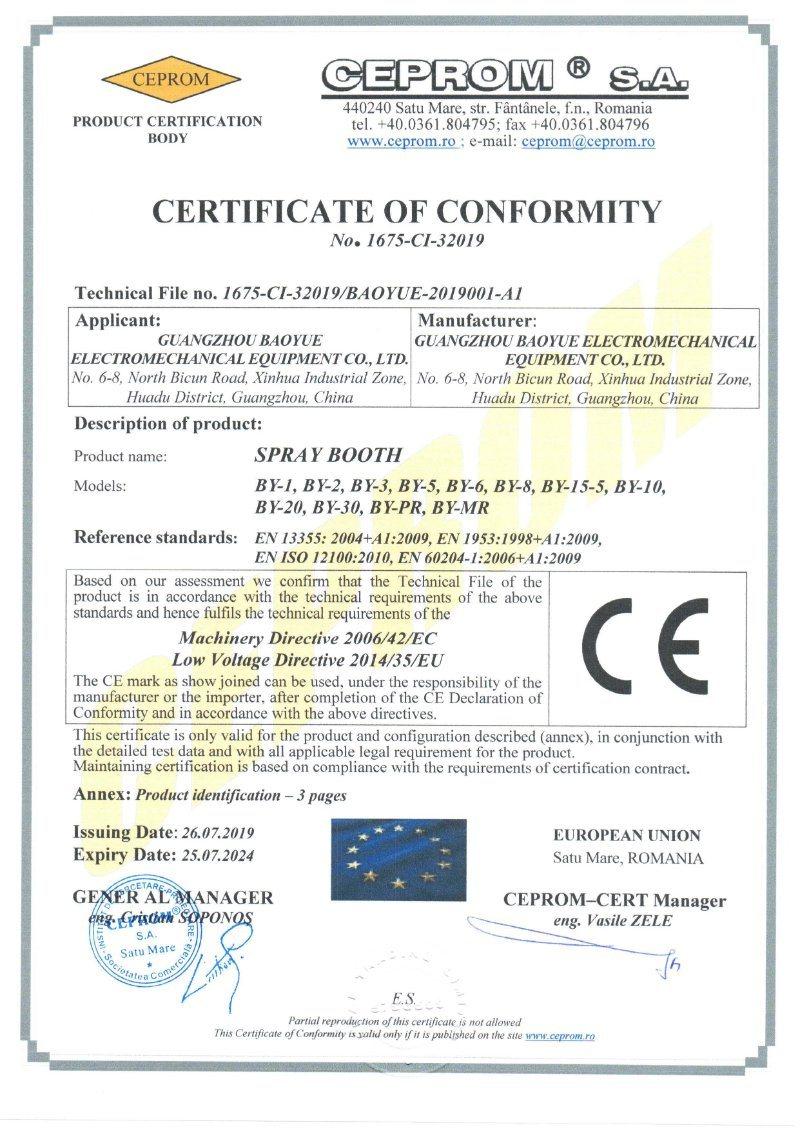

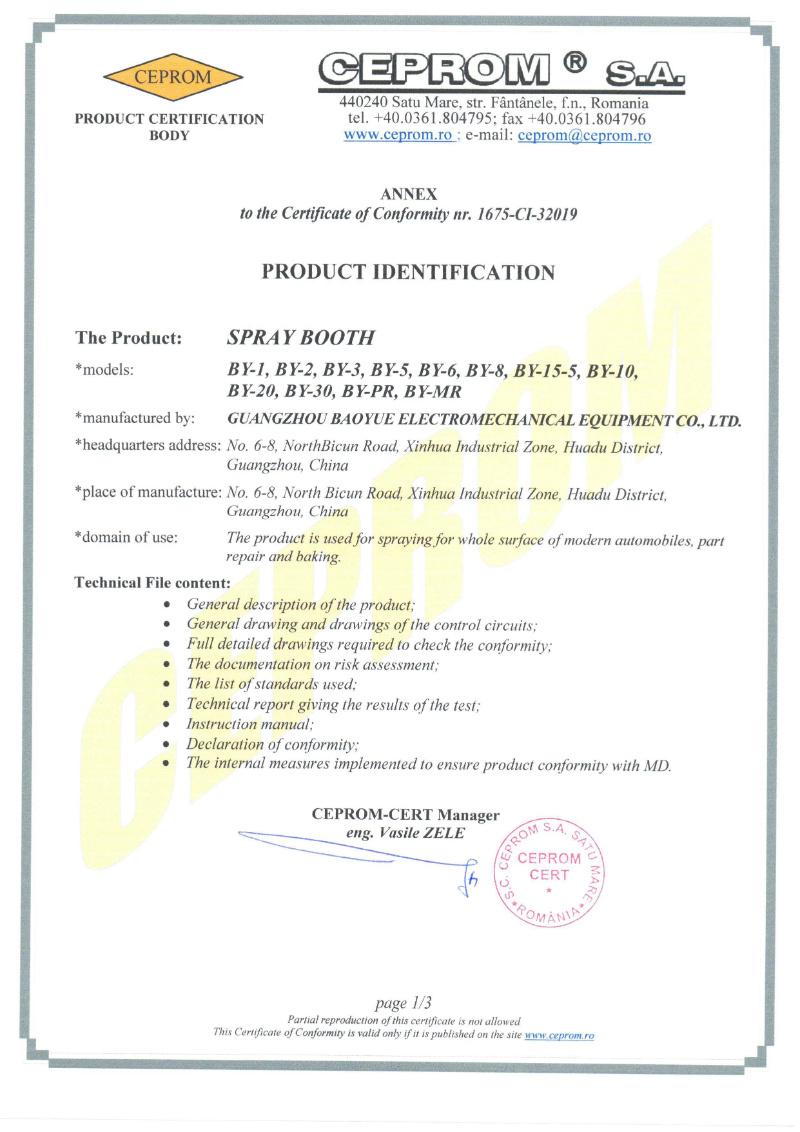

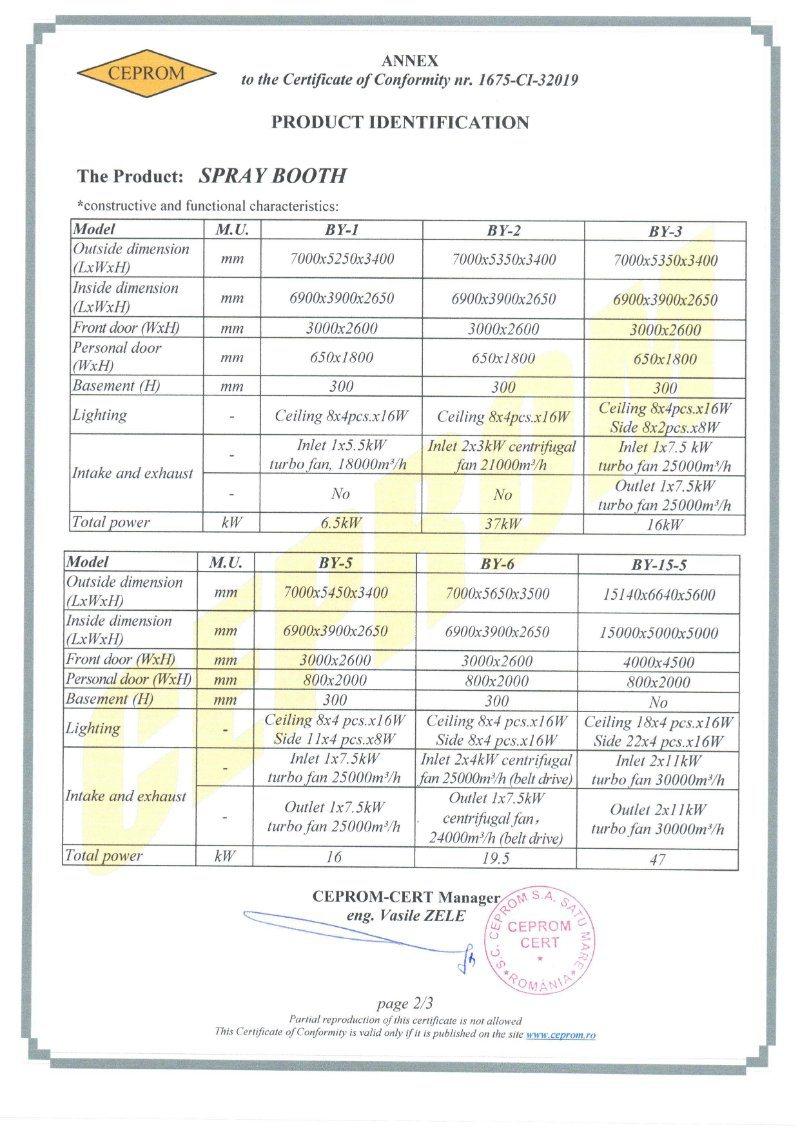

Certificate:
