• Model NO.：HY-CB55A
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：2rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Related Product 1：Furniture Paint Spray Booth
• Related Product 2：Folding Retractable Paint Spray Booth
• Related Product 3：Large Bus Truck Paint Spray Booth
• Related Product 4：Wet Type Water Curtain Paint Spray Booth
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Related Product 1 Furniture Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Related Product 3 Large Bus Truck Paint Spray Booth Related Product 4 Wet Type Water Curtain Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner

Model	HY-CB55A
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	600*1800(W*H)
Total power	15.5kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello GAS burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

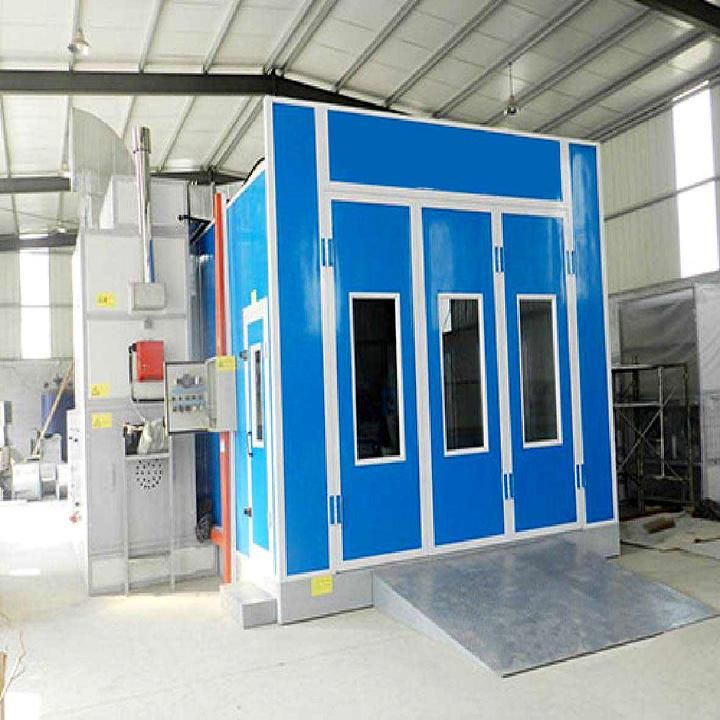

Picture of the Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner

Details show of Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner

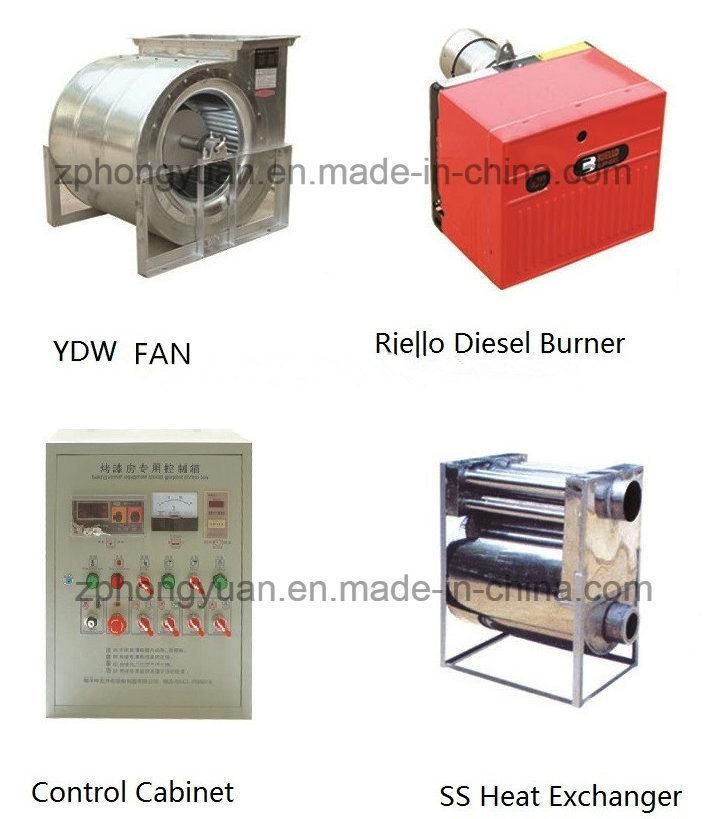

parts show of Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner


Production area and equipment for Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner


Package Show of Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner


Project case for paint booth/Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner



Certificate of our product and company

Our Team is serving you at any time



Send us enquiry for more info about Environmental Spray Car Auto Baking Room for Painting Car with gas diesel waste oil burner
