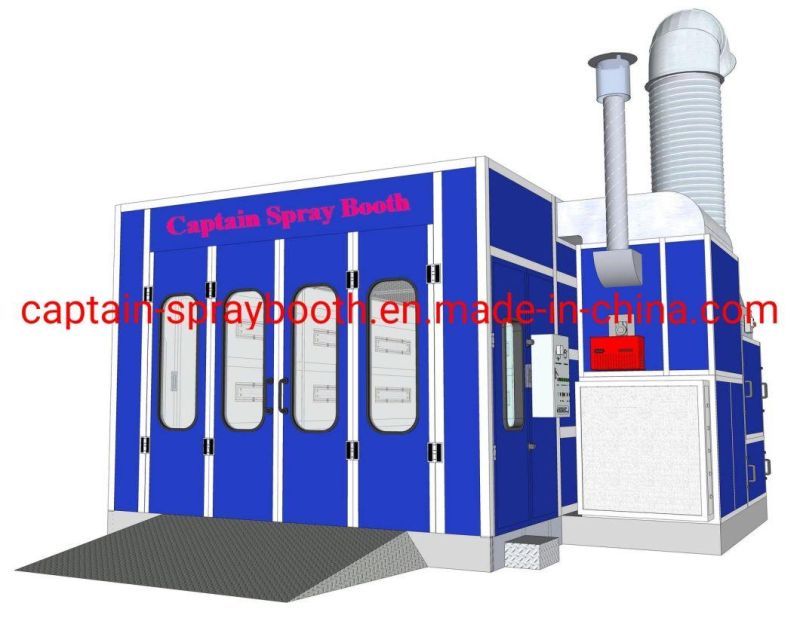

Full Downdraft Spray Booth/Painting Room for Automotive
Qingdao Hua Yushun Commercial Co., Ltd.- Type：Paint Spray Gun
- Certification：CCC, CE, CSA, GS
- Substrate：Sandwich Panel
- Brand：Captain
- Coating：Powder Coating
- Airflow Direction：Cross-flow Type
Base Info
- Model NO.：UP1006 DIESEL B
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Inside Dimension：6900X4000X2800mm(Lxwxh)
- Outside Dimension：7000X5500X3500 Mm(Lxwxh)
- Front Door：4 Folds, 2800X2600 Mm(Wxh)
- Emergency Door：650X2000mm(Wxh)
- Basement：3 Rows Diamond Plate , Galvanized
- Wall Panel：50mm EPS, 0.5mm Steel
- Light：32pcsx36W
- Inlet Fan：2X4 Kw Double-Intake Belt Centrifugal Fan
- Outlet Fan：5.5kw Double-Intake Belt Centrifugal Fan
- Heating System：Riello G20 Diesel Burner
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS
- Trademark：OEM,Captain
- Origin：Jiangsu, China.
- HS Code：8424899990
- Production Capacity：196sets,Month
Description
Detailed specificationInside dimension
6900×4000×2800 mm(L×W×H)Outside dimension
7000×5500×3500 mm(L×W×H)Front door
Folding door, 4 folds, 2800×2600 mm(W×H), without frame cover.Emergency door
1 unit, 650×2000mm(W×H).Basement Galvanized steel assemble, 300mm high, quadrate steel support,
3 rows grilles made by flat bar and twisted steel, galvanized,
3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. Wall panel
Thickness: 50 mm, width:950 mm, tongue and groove structure, 0.5mm color steel with antiflaming EPS inside.Light
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥900Lux.Generator cabinet
Intake from back upper, exhaust from back upper, white coated steel outside covered,
galvanized steel inside, filled with heat preservation material inside.Intake and Exhaust system
Inlet: 2×4 KW Double-intake belt centrifugal fan, air capacity: 29000m3/h.
Outlet:1×5.5KW Double-intake belt centrifugal fan, air capacity: 20000m3/h.Heating system
RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000Kcal/h.Chimney ducting 304 Stainless ducting and one safe fireproof chimney elbow. Purification system
Pre-filter, ceiling filter, fiberglass filter, activated carbon filterRoof
Powder coating filter frame.Control system
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat,
power supply switch, emergency stop, hour meter, temperature limit controller.Total power 15.0 KW UNIT PRICE (FOB QINGDAO) $ 7800
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Basic Draw----we can make draw according to your need and your installation place
Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

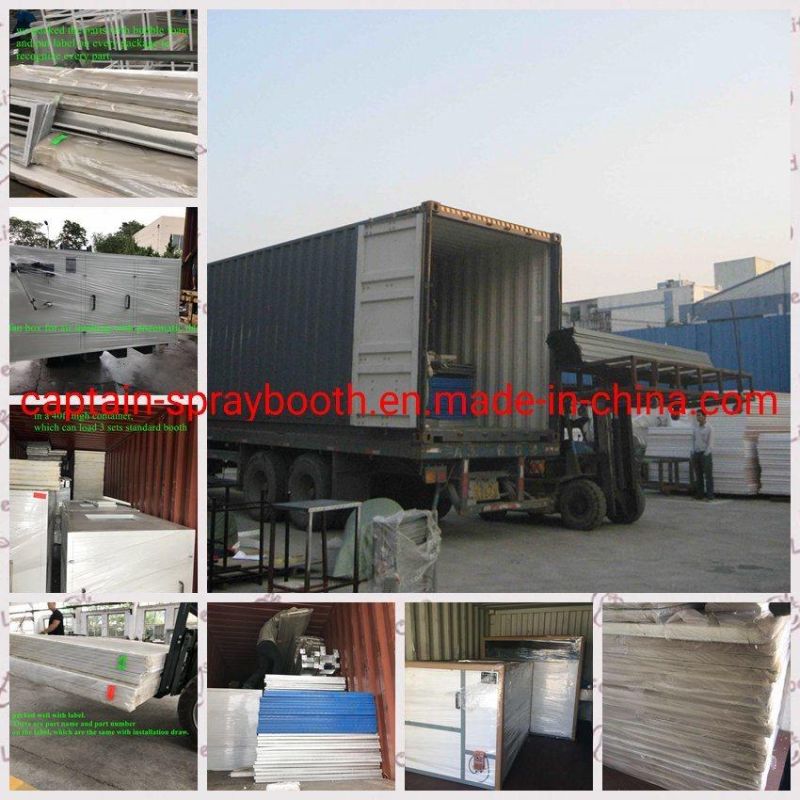

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.

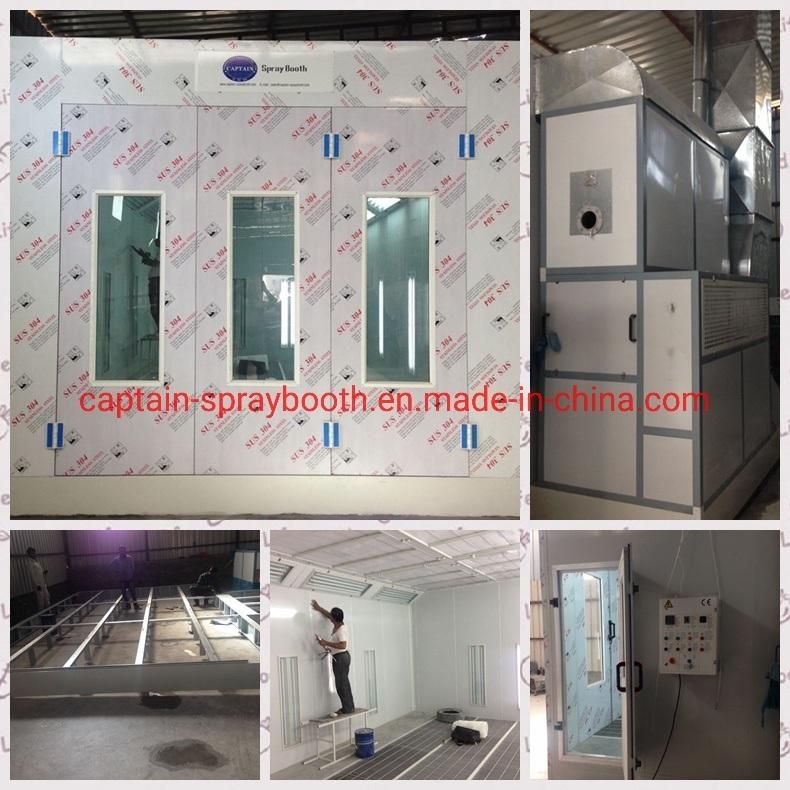

Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

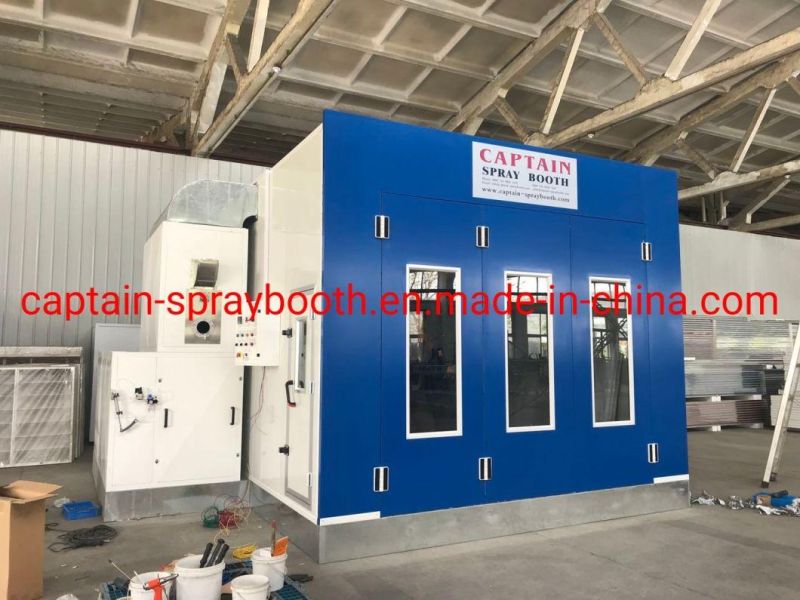

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.
The installed models by our customers
Parts
High desensity wall panel, two men stand on it, it will not bend.
Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.
Our control box is with SCHNEIDER parts
Different Colors for your choice
Workshop---- pictures for our workshop and stock, you can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery
Factory View
Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
Introduction of our company
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
6900×4000×2800 mm(L×W×H)
7000×5500×3500 mm(L×W×H)
Folding door, 4 folds, 2800×2600 mm(W×H), without frame cover.
1 unit, 650×2000mm(W×H).
3 rows grilles made by flat bar and twisted steel, galvanized,
3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc.
Thickness: 50 mm, width:950 mm, tongue and groove structure, 0.5mm color steel with antiflaming EPS inside.
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥900Lux.
Intake from back upper, exhaust from back upper, white coated steel outside covered,
galvanized steel inside, filled with heat preservation material inside.
Inlet: 2×4 KW Double-intake belt centrifugal fan, air capacity: 29000m3/h.
Outlet:1×5.5KW Double-intake belt centrifugal fan, air capacity: 20000m3/h.
RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000Kcal/h.
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter
Powder coating filter frame.
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat,
power supply switch, emergency stop, hour meter, temperature limit controller.
