• Single Turntable Size：L400*W400*H50mm
• Round Cover Diameter：345mm
• Square Plate Size：400*400mm
• Update Method：by Internet
• Color：Silver
• Thickness：50mm, or Customize
• Turning Range：+,-50 Degree
• Unilateral Adjustment：50 Degree
• Sliding Distance to Each Side：65mm
• Load：8 Ton or 12 Ton
• N.W：38kgs Per Pair
• G.W：40kgs Per Pair
• Package：2PCS Per Carton
• Package Size：L500*W500*H150mm
• OEM or ODM Service：Yes

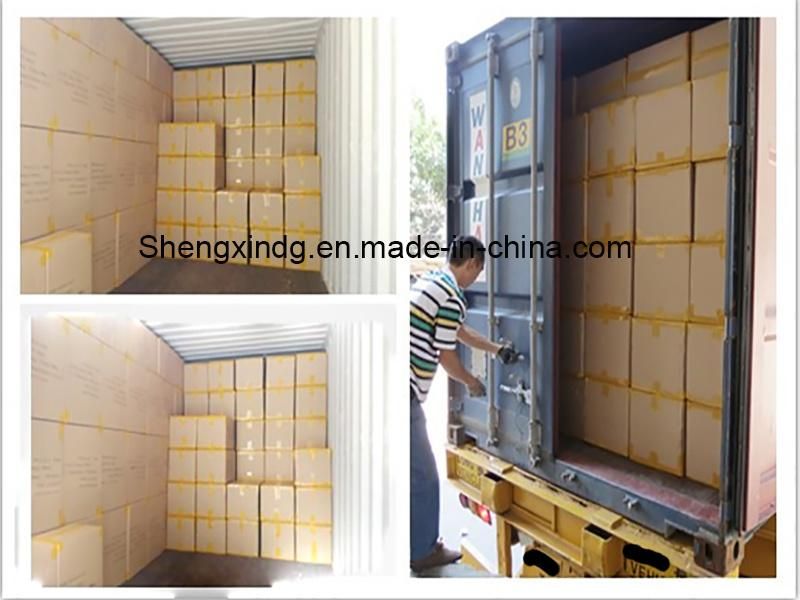

• Transport Package：PE Bag; Export Carton
• Specification：SGS; ISO; ROHS
• Trademark：SX
• Origin：Dongguan, China
• Production Capacity：500, 000PCS,Month

Basic Info.

Single Turntable Size L400*W400*H50mm Round Cover Diameter 345mm Square Plate Size 400*400mm Update Method by Internet Color Silver Thickness 50mm, or Customize Turning Range +/-50 Degree Unilateral Adjustment 50 Degree Sliding Distance to Each Side 65mm Load 8 Ton or 12 Ton N.W 38kgs Per Pair G.W 40kgs Per Pair Package 2PCS Per Carton Package Size L500*W500*H150mm OEM or ODM Service Yes Transport Package PE Bag; Export Carton Specification SGS; ISO; ROHS Trademark SX Origin Dongguan, China Production Capacity 500, 000PCS/Month

Product Description

What we have

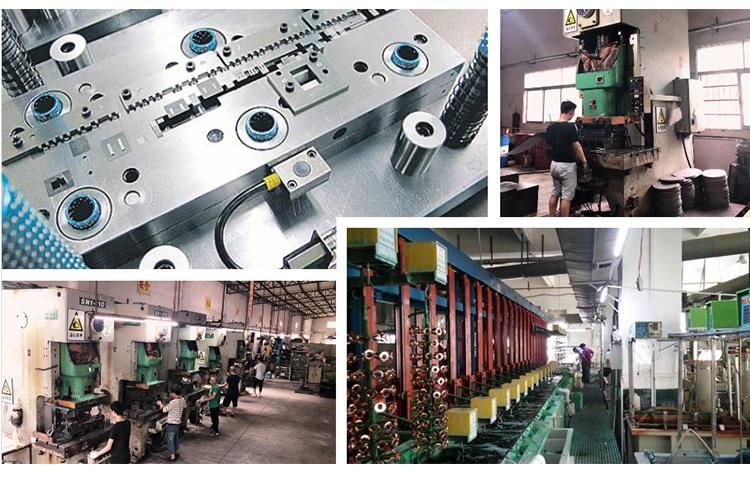

Our workshop
















Company profile:

Dongguan Shengxin Metal Manufacturing Co. Ltd is a Company who is specialized in design, manufacture and sale auto maintenance machine parts. We insist on "high quality, honest, co-operation, innovation, improvement" management concept. We are concentrating on technology improving and production efficiency.

At the early days of company establishment, our main business referred to metal stamping, deep drawing and precision machining, such as chassis stamping, machine stamping, car parts stamping, LED radiator stamping and streetlight radiator stamping. Since year 2007, we steadily step into professional auto maintenance parts area, products range enlarge to wheel alignment clamp, wheel alignment aligner adaptor adapter, wheel aligner, wheel alignment turntable, wheel alignment turnplate, car steering wheel holder support, car brake disk holder support, electrical power-driven parts, mechanism parts, suction nozzle, and so on.

We keep creating our own brand and products patent. Fortunately, we have already obtained patents for clamp set stud successfully. Whatever product design concept, quality and production efficiency, we have already been in the leading level.

Our advantages: Professional stamping mold making + reliable quality + best price + best service + on time delivery + excellent after-sales service.

Product description:

The technologies used to guarantee low friction and high wear-resistance, compliant with the requirements of the leading automotive producers. The turntable with manual locking is available in the same series.

- Suitable for use on hydraulic lifts and pit racks fitted with recesses for turnplates both 40 and 50mm high.

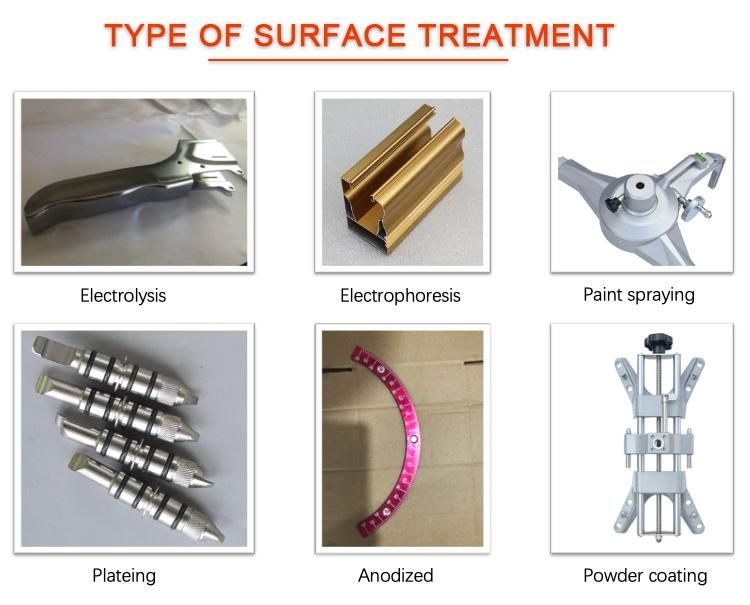

- High corrosion resistance thanks to paint coatings of surfaces.

- Extremely wear resistant lubricant-free bearings thanks to high-tech polymeric material.

- Suitable for application with standard turnplate bridge available.

- Handle for convenient carrying and installation.

Product specification:


Item	Wheel alignment turntable
Scope of application	All types wheel alignment machines
Height	50mm, or customize other sizes as per requirement
Round plate diameter	345mm
Square plate diameter	420*420mm
Turning range	±50°
Unilateral adjustment	50°
Sliding	65mm
Load	6 ton
N.W	15.50KG/2PCS
G.W	16.00KG/2PCS
Package	2PCS/CTN
Package size	L540*W540*H60mm

One set turntable include:
- 2pcs Turntable (one pair)
- 2pcs Passing Bridge
- 2pcs Thrust Block

Attention:

- It is suitable for four wheel alignment
- Euipped with 2pcs removable passing bridge and 2pcs thrust block.
- With an angle meter and pointer on it
- Remember to lock the turntable and put on the passing bridge before driving a car onto the turntable.
