The car lift can be customized as your detailed size.

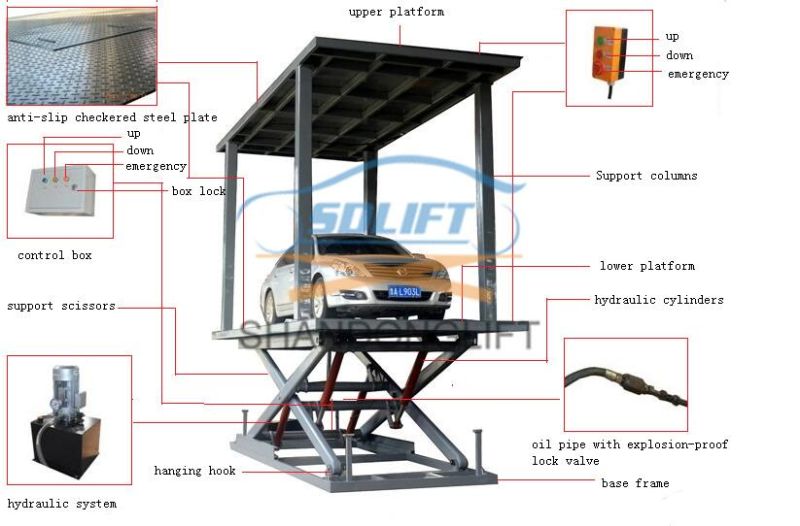

Parts Showing:

Configuration:

1) Load capacity: 3000kgs (below platform)
                            3000kgs (upper platform)
2) Platform size: 5.2m x 2.6m (below platform)
                           5.2m x 2.6m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m

5) Platform Material:rectangular tube + checkered iron

6) Scissor material: high strength Manganese Steel.

7) Hydraulic system: 380V/5.5Kw or other

8) High Precision Hydraulic Cylinder

9) Piston Rod: hard chromium plating surface.

10) High-pressure oil pump

11) Hydraulic oil: summer 46#, winter 32#

12) Controller: 1 control box below, 1 control panel above platform

The workshops:

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) The limit switch system helps the car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car lift are passed 1.2 times loading test before leaving factory.

Packaging & Shipping:

The Certificate:

Our Services

1) User-friendly English manual for machine installation using and maintenance.

2) 2 sets spare parts as additional and free for you together with lift in shipment.

3) 2 years warranty for whole machine without man-made faults.

4) We will send you parts for free if there are any non-human faults during warranty time.

5) Supply 24-hours technical assistance by email, telephone or other communication online.

6) Engineers are available to your country if necessary.
