Altar Im508 Update of Auro Im100 Key Programmer Autel Im508 All System Scanner with Key Programming
Hunan Lianke Electronic Commerce Co., Ltd.- After-sales Service：Lifetime Free Technical Support
- Warranty：One Year Warrnty
- Certification：RoHS, CE
- Condition：New
- Standard：Standard
- Language：Spanish, Japanese, German, French, English, Italian, Portugal
Base Info
- Model NO.：Autel Im508
- Update Method：by Internet
- Type：Diagnostic Scanner
- Software Update：1 Year Free Update
- Protocols：ISO 9142-2, ISO 14230-2, ISO 15765-4, K,L-Line etc
- Touchscreen：7-Inch
- System：Android 4.4.4
- Battery：5000 mAh Lithium-Polymer Battery
- Memory：64GB on-Board Memory
- Connection：WiFi, Bt
- Coverage：98% Vehicle Coverage
- Features：Expert Mode for Advanced Key Learning
- 2 in 1 Tool：Full System Diagnosis&Key Programmer
- Supported System：All Systems Like ABS, DPF, Epb, Sas, SRS, TPMS, I
- Availale：Ready Stock
- Suitable：Locksmith, Workshop etc
- Transport Package：Carton Package
- Trademark：Autel
- Origin：China
- HS Code：9031809090
- Production Capacity：800PCS,Month
Description
Basic Info.
Model NO. Autel Im508 Update Method by Internet Type Diagnostic Scanner Software Update 1 Year Free Update Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line etc Touchscreen 7-Inch System Android 4.4.4 Battery 5000 mAh Lithium-Polymer Battery Memory 64GB on-Board Memory Connection WiFi, Bt Coverage 98% Vehicle Coverage Features Expert Mode for Advanced Key Learning 2 in 1 Tool Full System Diagnosis&Key Programmer Supported System All Systems Like ABS, DPF, Epb, Sas, SRS, TPMS, I Availale Ready Stock Suitable Locksmith, Workshop etc Transport Package Carton Package Trademark Autel Origin China HS Code 9031809090 Production Capacity 800PCS/MonthProduct Description
LAUNCH AUTEL Official Authorized Store!
100% Original Products and Best Price.
We Support Wholesale Price and Dropshipping.
Overseas wareouse located in Spain, Germany, USA, Australia, Russia and etc.

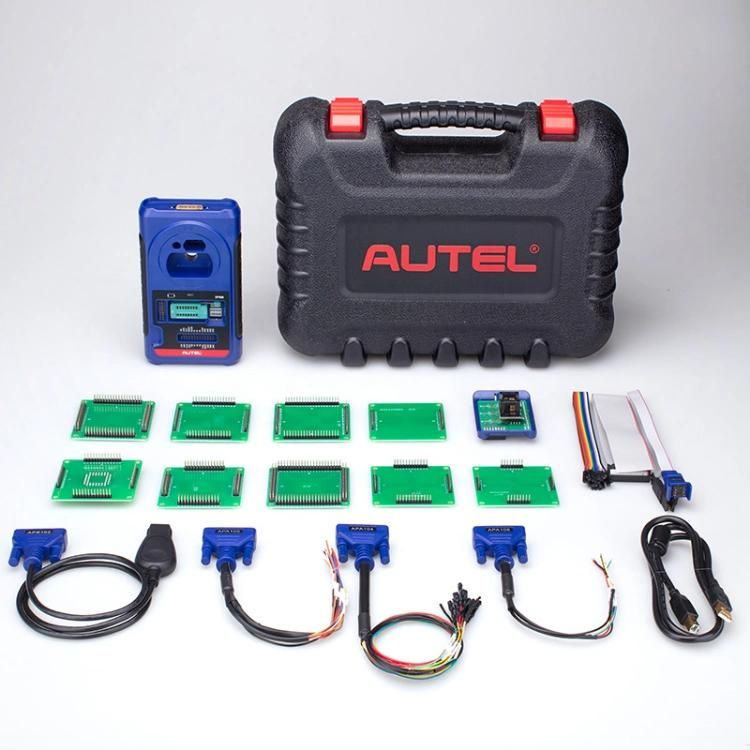

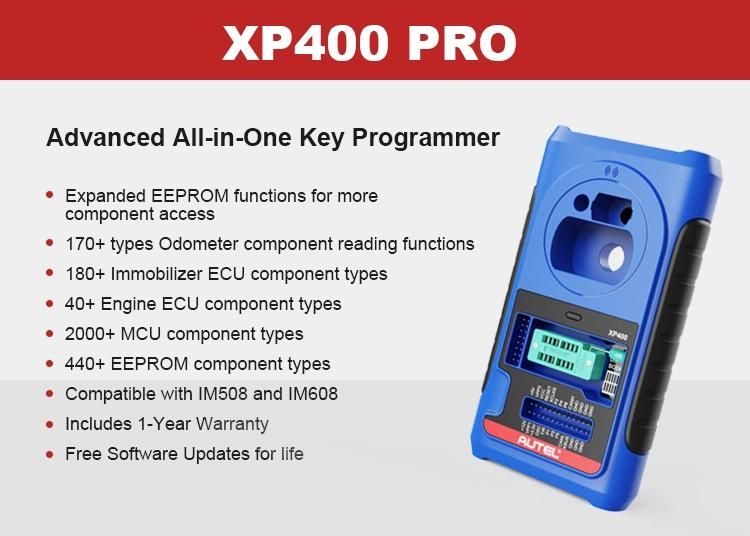

Combo set IM508 with XP400PRO
Autel IM508 Key Programmer Features:
• Powerful Cortex-A9 processor
• 7"1024x600 LCD capacitive touchscreen
• Internal reliable 32GB Memory
• Android Operating System for fast boot-up and multitasking
• Powerful combination of key programming/all system diagnostics/advanced maintenance services
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all key lost) , key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
• Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
Autel IM508 Key Programmer Specification:
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor(1.6 GHz) |
| Memory | 64GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 32GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95% non-condensing |
| Net Weight | 885g(2.31|b.) |
Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

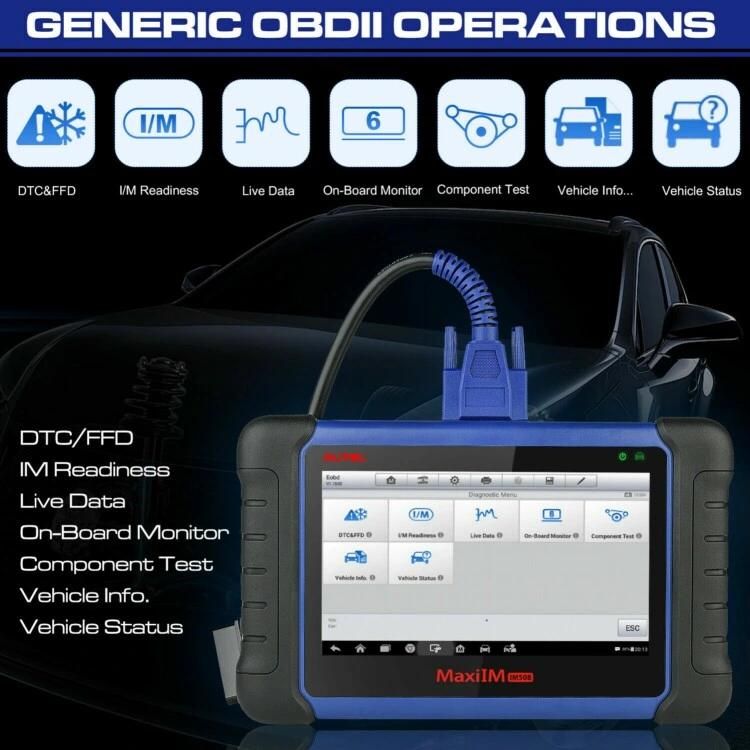

Autel IM508 Key Programmer Details:
