Car Spraying Booth, Car Spray Room
Qingdao Hua Yushun Commercial Co., Ltd.- Type：Spray Painting Booth
- Certification：CE
- Substrate：Sandwich Panel
- Brand：Captain
- Coating：Painting
- Airflow Direction：Cross-flow Type
Base Info
- Model NO.：SK1001
- Heating Mode：Diesel
- Paint Mist Treatment：Wet-type
- Condition：New
- Internal Size(Lxwxh)：6900X3900X2600mm(Lxwxh)
- External Size(Lxwxh)：7000X5500X3250mm(Lxwxh)
- Air Ventilation Unit Capacity：Standard Units 4kw, 5.5kw, and 7.5kw
- Main Door：3-Fold, 2700X2500mm(Wxh)
- Floor Configuration：on Cement Floor or on Raised Metal Basement with R
- Heating Method：Diesel Burner
- Lights：Orsam
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS
- Trademark：Captain ,OEM
- Origin：Jiangsu, China.
- HS Code：8424899990
- Production Capacity：300sets,Month
Description
Detailed specificationInside dimension
6900×4000×2800 mm(L×W×H) Outside dimension
7050×5500×3500 mm(L×W×H) Front door
Folding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue. Emergency door
1 unit, 650×2000mm(W×H), color: white Basement Galvanized steel assemble, 300mm high, quadrate steel support, 3 rows grilles made by flat bar and twisted steel, galvanized, 2 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. Wall panel
Thickness: 75mm, width:950mm, tongue and groove structure, 0.6mm color steel with rock wool inside, color: white. Light
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 12Units×4Pcs=48Pcs×18W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux Generator cabinet
Intake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. Intake and Exhaust system
Inlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h.
Outlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. Heating system
RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. Spray to baking switch One manual damper Chimney ducting 304 Stainless ducting and one safe fireproof chimney elbow. Purification system
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter Roof
Galvanized steel Control system
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge. Total power 18.5KW UNIT PRICE (FOB QINGDAO) $9800
Pictures of our spray booth

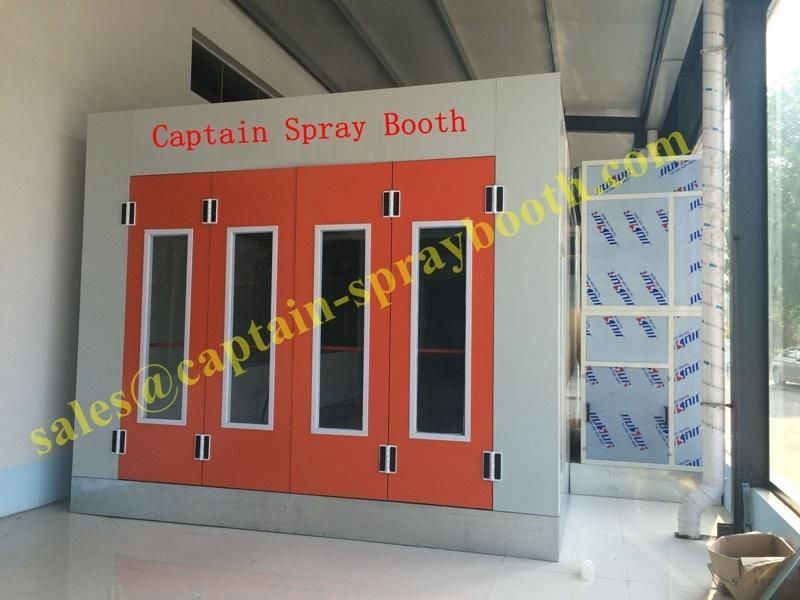

Front View

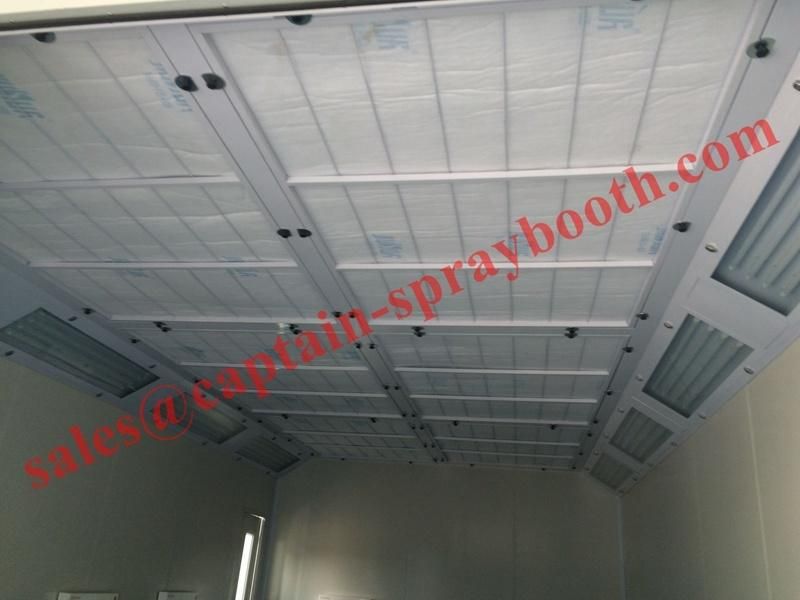

The Ceiling

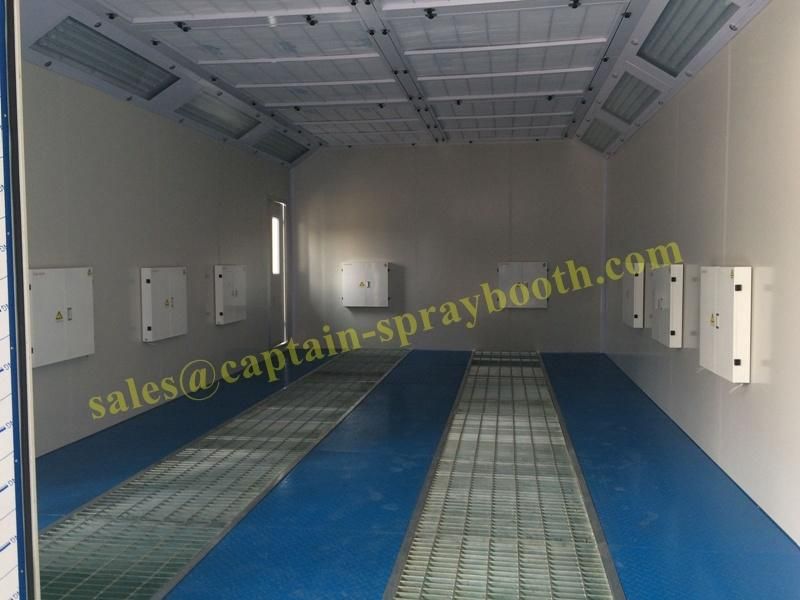

The inside View--for basement, we also can do full girlles, 3 grilles in the middle.

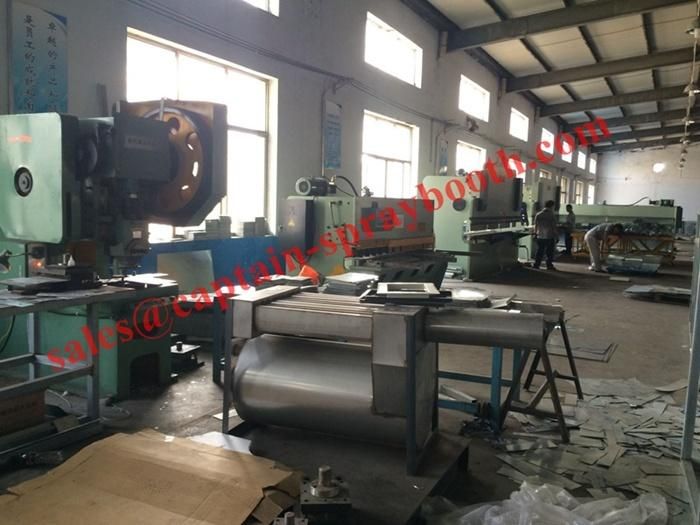

Production machine--high technology machine makes sure precise production
Introduction
Captain Auto Equipment Co.,Ltd is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service, More Than 90% Of Our Spraying Booth Is Customized.

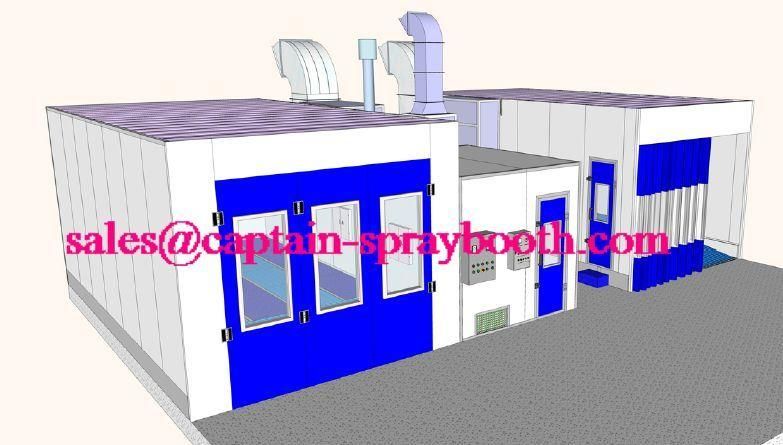

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions. The draw we made according to our buyer's need.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
From the picture you can see we have engough stock to ensure fast delivery!
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
