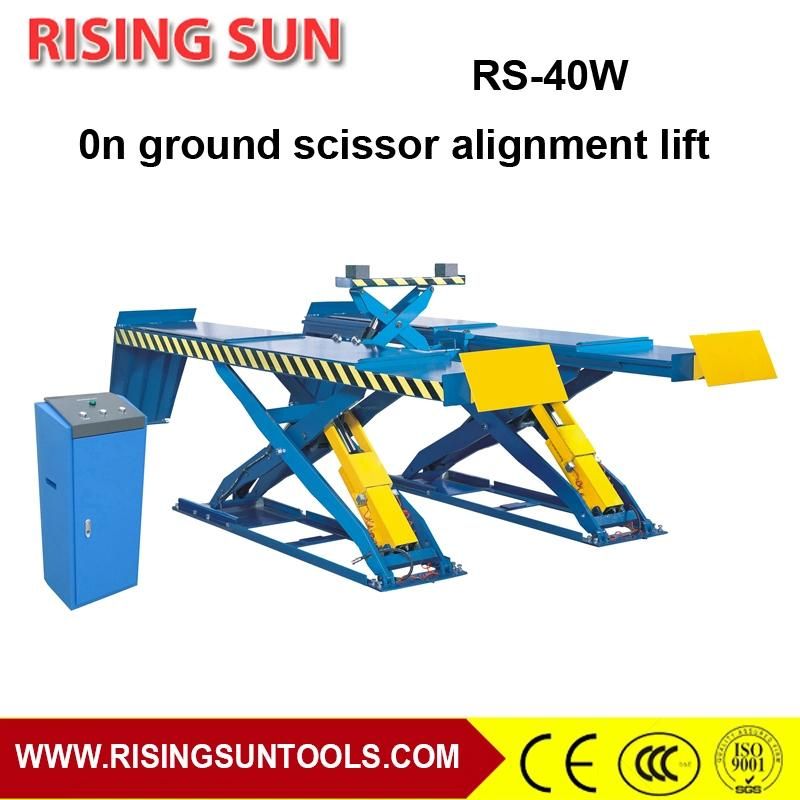

4 Cylinder Car Repair Auto Scissor Lift for Wheel Alignment

Yancheng Xinchun Machinery and Electrical Equipment Co., Ltd.
  • Type：Four Cylinder Hydraulic Lift
  • Lifting Capacity：4T
  • Driving Type：Hydraulic
  • Certification：CE, ISO
  • Driving Motor Number of Mechanical Lift：1
  • Double Cylinder Lift Type：Planer-type

Base Info

  • Model NO.：RS40W
  • Shearing Lift Type：Big Shear Type
  • Condition：New
  • Brand：Rising Sun
  • Design：Scissor
  • Product Name：4 Cylinder Car Repair Auto Scissor Lift
  • Max Lifting Height：1850mm
  • Min Height：330mm
  • Motor Power：2.2kw
  • Oil Pressure：18MPa
  • Lifting Time：50s
  • Lowering Time：40s
  • Power Supply：220-240V,380-415V,1,3pH,50,60Hz
  • Color：Red,Blue,Grey,Customised
  • Certificate：Ce
  • Transport Package：7ctns, 1900kgs, 2cbm
  • Specification：on ground scissor lift
  • Trademark：RSISING SUN
  • Origin：China
  • HS Code：84254290
  • Production Capacity：400sets,Month

Description

Basic Info.

Model NO. RS40W Shearing Lift Type Big Shear Type Condition New Brand Rising Sun Design Scissor Product Name 4 Cylinder Car Repair Auto Scissor Lift Max Lifting Height 1850mm Min Height 330mm Motor Power 2.2kw Oil Pressure 18MPa Lifting Time 50s Lowering Time 40s Power Supply 220-240V/380-415V,1/3pH,50/60Hz Color Red,Blue,Grey,Customised Certificate Ce Transport Package 7ctns, 1900kgs, 2cbm Specification on ground scissor lift Trademark RSISING SUN Origin China HS Code 84254290 Production Capacity 400sets/Month

Product Description

4 Cylinder Car Repair Auto Scissor Lift for Wheel Alignment

Sincerely looking for contracted distributor in different country,thanks for kind contacting !

Main feature
  1. Luxurious scissor profile platform structure with super synchronization.
  2. Device perform stable and reliable work is relayed on imported hydraulic pneumatic and electric components .
  3. The pneumatic self-locking system and anti-explosion pipe structure are automatic opening when lowering which ensure the safety of the device.
  4. Ingenious and unique sliding system and closed platform,also don't need ground pits.
  5. With teolley guide rail and can optional add the second lifting trolley .
  6. The position of the front wheel turning table(optional part ) is adjustable and suitable for various type of automobile .
  7. With hydraulic lock and mechanical dual-gear safety-claw lock double safety device.Automatically open when lowering.By lock operation can has the safety-claw located adversely,safe&reliable.
  8. CE certificated .

4 Cylinder Car Repair Auto Scissor Lift for Wheel Alignment

Technic data
ModelRS-40W
Lifting capacity 3500KG
Power supply 380V/50HZ/3PH
Motor2.2KW
Max lifting height (main)1800MM ,(jack)  490MM
Lowest height 180MM
Lifting time 55S
Air pressure 6-8BAR
Hydraulic pressure 25MPA
Length of platform (main)4000MM, jack 880-1280mm



Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE

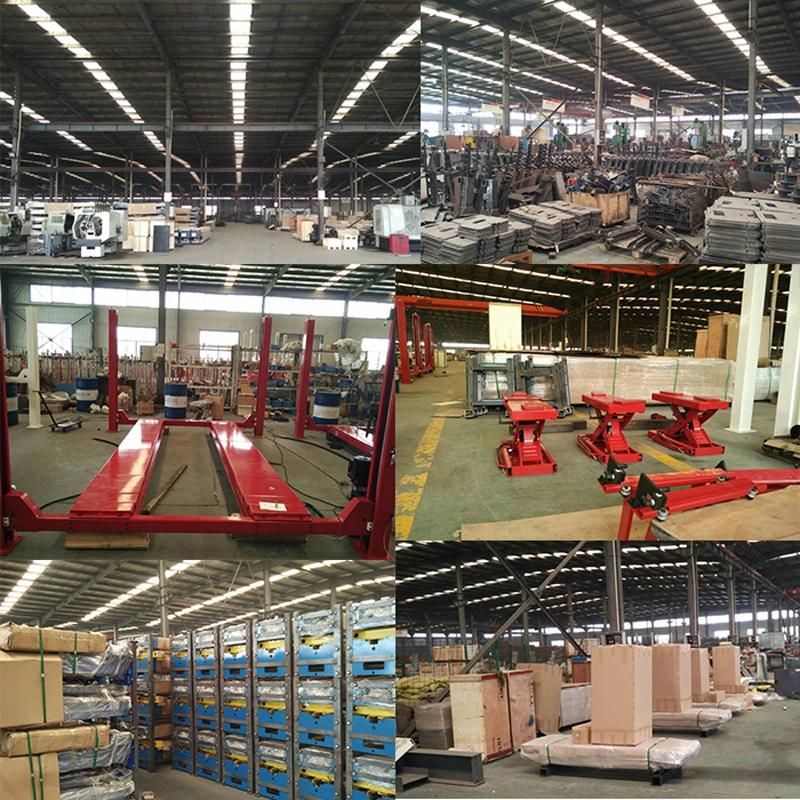

Company information
Rising Sun - Professional quality you can rely on !
This brand was founded aims for providing one-stop solution for vehicle works.
4 Cylinder Car Repair Auto Scissor Lift for Wheel Alignment


Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)18years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted

Honestly , we can give more safe of your business and money.
