Factory Direct Price Premium Quality Car Paint Booth From Infitech
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Product Name：Customized Auto Body Express Repair Workshop
- Keyword：Paint Baking Oven
- Usage：Auto Body Express Repair
- Walls：50mm Thick Rock Wool Panel
- Illumination：>1,000lux
- Filters：High Efficiency Filter
Base Info
- Model NO.：IT-SPW-1101
- Fans：Direct-Drive Big Impeller Fan
- No-Load Speed：0.35m,S
- Noise：<78dB
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：7000X4000X2800MM
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets , Year
Description
Item 1: Preparation bayDesign standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Airflow Full downdraft Internal dimensions 6500×4000×2800mm (L×W×H) External dimensions 8460×4000×3810mm (L×W×H) Basement 350mm high, full grids, 900kg/wheel Ceiling lighting 8 sets, each 4 X 18W, 576W total Brightness > 800Lux Exhaust system 1×5.5KW, 970RPM, 380V, 50HZ, SIEMENS motor Air volume 18,000m3/h, 650pa Filters Floor filter: Fiberglass filter
Exhaust filter: Fiberglass filter Controls Fan start, emergency stop switch, lighting, failure indication Electrical & Tool cabinets Yes. Special item Rated power: 6.5KW Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Airflow Full downdraft for spray and cure Internal dimensions 7000 X 4000 X 2800mm (L X W X H) External dimensions 7110 X 5760 X 3810mm (L X W X H) Plenum height 600mm Basement 350mm high, full grids, 900kg/wheel Entrance door 1 set, 3200 X 2700mm (W X H), manual door Divider door 1 set, 6000 X 2400mm(B X H), electric plate roll-up door Personnel door 1 set, 800 X 2000mm (W X H) Ceiling lighting 10 sets, each 4 X 18W, 720W total Sidewall lighting 4 sets, each 4 X 18W, 288W total Brightness > 1,000Lux Filters Pre-filter, ceiling filter, floor filter, exhaust filter Intake system 11KW, 970rpm, 380V, 50Hz, SIEMENS motor Exhaust system 11KW, 970rpm, 380V, 50Hz, SIEMENS motor Air volume 35,000m3/h Equipment empty loaded air speed +/- 0.35m/s Noise <78db Heats Direct fired heating system Maximum working temperature 80°C Controls CE standard control box Special item Rated power: 24KW Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 3000 X 3000 X 2800mm (L X W X H) External dimensions 3100 X 3100 X 2850mm (L X W X H) Entrance door 1 set, 800 X 2000mm (W X H) Ceiling lighting 2 sets, each 4 X 18W, 144W total Filters Pre-filter, exhaust filter Ventilation system 1.5KW, 1450RPM, 380V, 50Hz, SIEMENS motor Air volume 3,500m3/h Controls CE standard control box Special item Rated power: 2KW
Features
Detailed images
Company Information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
BS EN 60204: 2006 + A1: 2009
Exhaust filter: Fiberglass filter
BS EN 60204: 2006 + A1: 2009
BS EN 60204: 2006 + A1: 2009
Features
| Airflow • Full downdraft airflow for spray and cure • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum |

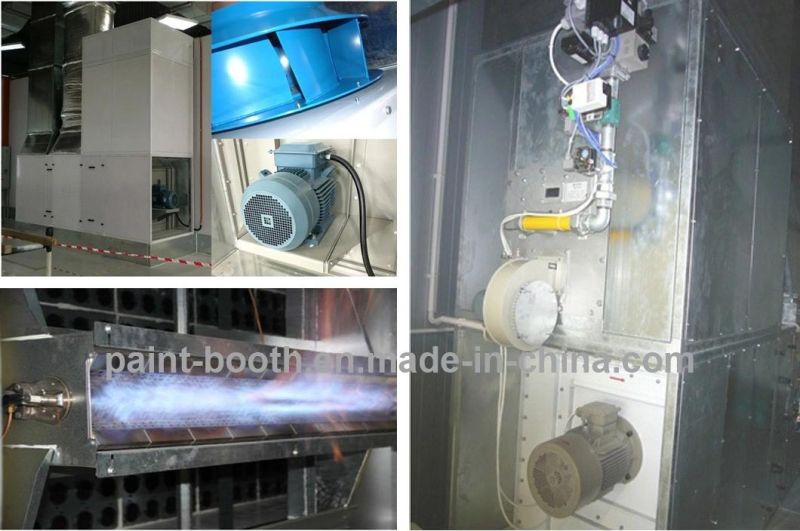

| Doors • Manual door, 3 wing entry door (2 + 1 structure) • Personnel door with observation window | Air handling unit • Intake and exhaust motors, 11kw, SIEMENS motor • Direct fired heating system |

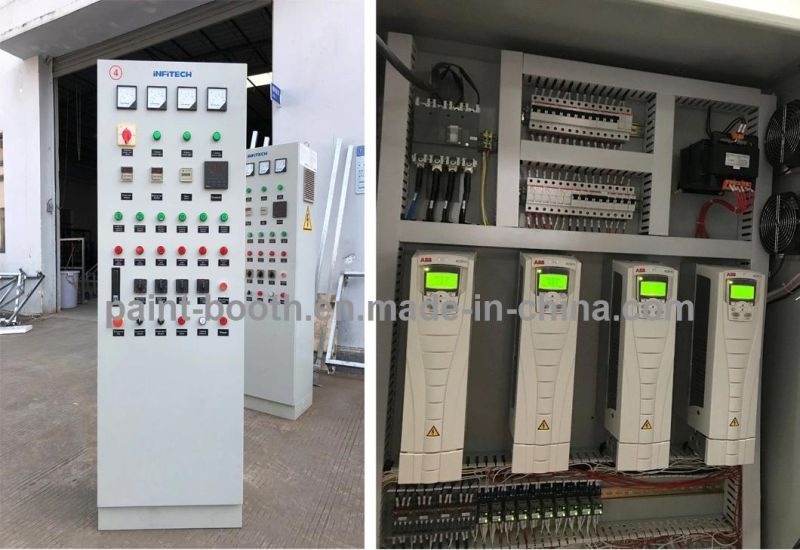

| Filtration • Pre-filter: G3 grade pre-filter bag filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Exhaust filter: Simple activated carbon filter mat, M type | Controls • Standard Y/Δ step-down start control system •PLC control, higher reliability, lower failure rate •Painting, heating painting, flash-off, baking, lighting, emergency stop switch, failure indication, cooling, motor overload and over-current protection, fan and heating system interlock control, over-temperature alarm indication |
Electric plate roll-up door (Divider door between prep bay and spray booth)

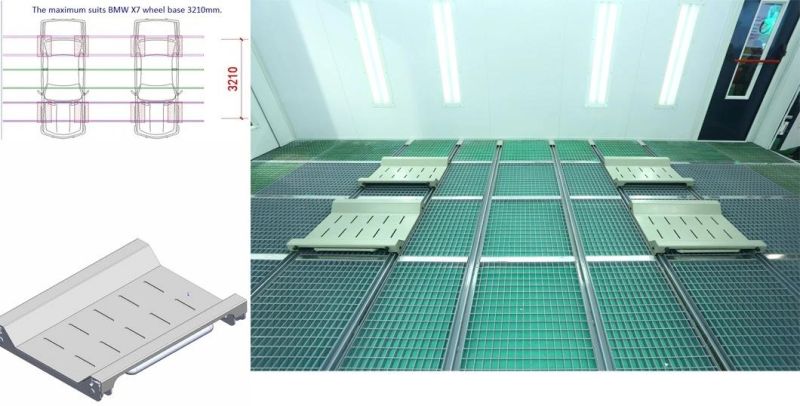

| Trolley (Greatly facilitates the movement of vehicle from one work area to the next)
|
