DN-880s Hydraulic Dual Arm Wheelchair Lift for Van and Minibus
Changzhou Xinder-Tech Electronics Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：350kg
- Driving Type：Hydraulic
- Certification：CE
Base Info
- Model NO.：WL-D-880S
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
- Shearing Lift Type：Small Shear Type
- Condition：New
- Design：Two Post
- Max Lifting Heigh：880mm
- Own Weight：140kg
- Packing Size：Wooden Case, 1.2*0.6*1.4m
- Operation：Fully Automatic
- Working Temperature：-20~+50
- Transport Package：Wooden Case
- Specification：1140*720 , 1240*820mm
- Trademark：xinder
- Origin：China
- HS Code：842890909
- Production Capacity：100sets,Year
Description
Overview
Introduction
Advantages
Detailed

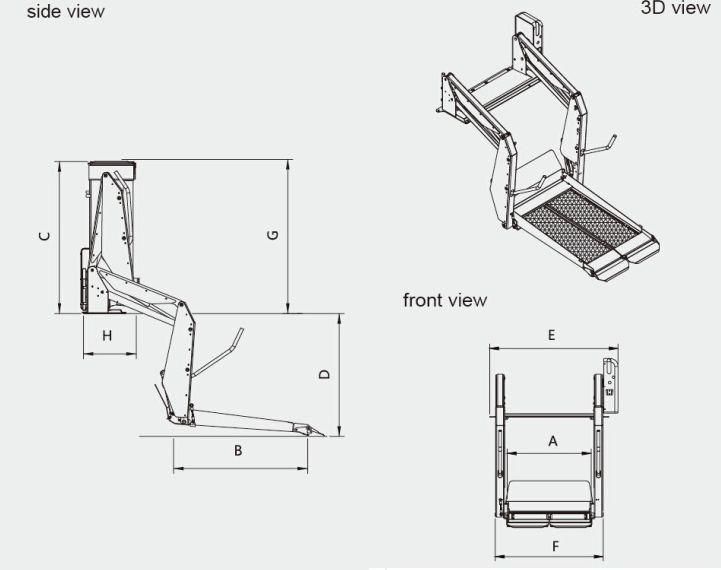

| Model | DN-880-1150 | DN-880S-1150 | DN-880U-1150 | DN-880-1250 | DN-880S-1250 | DN-880U-1250 |
| Platform size | 1140*720 | 1150*720 | 1140*720 | 1240*820 | 1215*820 | 1240*820 |
| overall width | 1137 | 1137 | 1137 | 1237 | 1237 | 1237 |
| overall height | 1215 | 1235 | 1200 | 1315 | 1300 | 1200 |
| overall depth | 435 | 490 | 490 | 435 | 490 | 490 |
| max lifting height | 880 | 880 | 880 | 880 | 880 | 880 |
| Volt | 12-24V | 12-24V | 12-24V | 12-24V | 12-24V | 12-24V |
| max working pressure | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa |
| loading capacity | 350KG | 350KG | 350KG | 350KG | 350KG | 350KG |
